INSTALLATION - Cable Termination
Example:

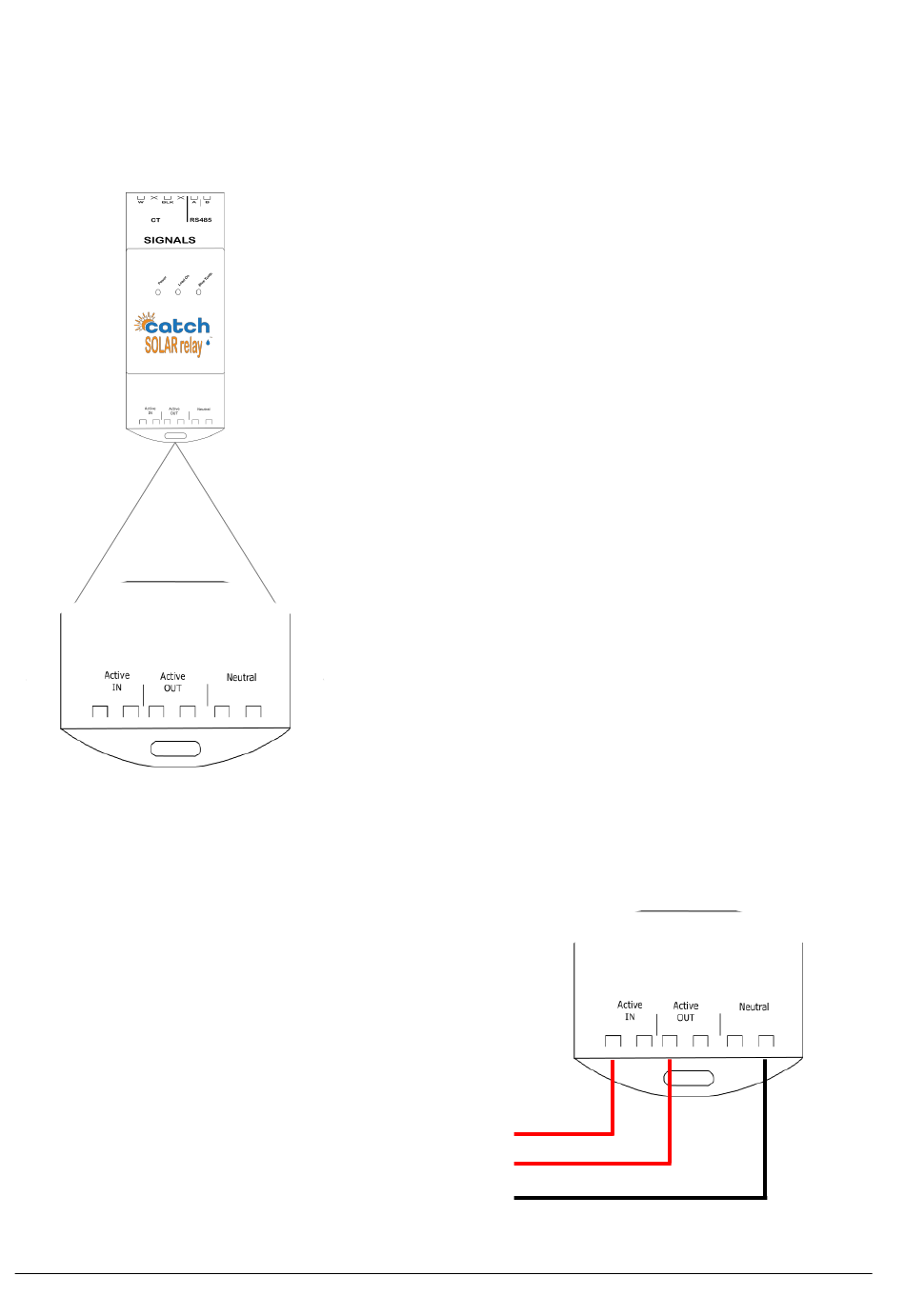

Wiring for a basic installation. As you can see it
does not matter which of the two terminals you
choose for each connection.
Ideal cable size 1.5mm
2.5mm2
There are 3 connections that need to be made on
the bottom of the CATCH Relay, each connection
can be made from one of two connection points.
For example: The Active IN connection point is
made from one of the left two connectors. You
can choose either one, as they are bussed
together inside the device.
Active In
Active Out
Neutral
