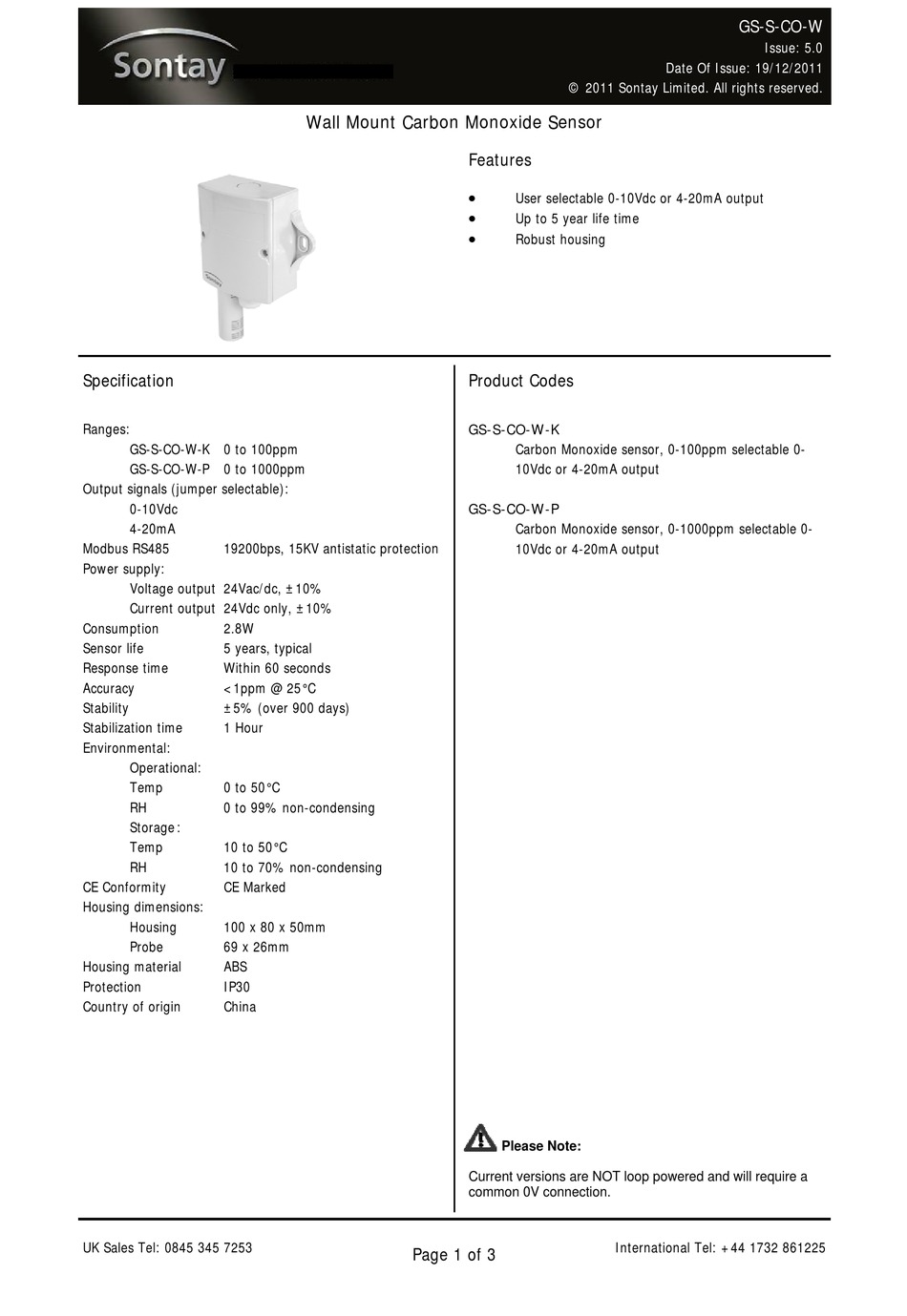

Sontay GS-S-CO-W Quick Start Manual

Specification
Ranges:
GS-S-CO-W-K 0 to 100ppm
GS-S-CO-W-P 0 to 1000ppm
Output signals (jumper selectable):
0-10Vdc
4-20mA
Modbus RS485 19200bps, 15KV antistatic protection
Power supply:
Voltage output 24Vac/dc, ±10%
Current output 24Vdc only, ±10%
Consumption 2.8W
Sensor life 5 years, typical
Response time Within 60 seconds
Accuracy <1ppm @ 25°C
Stability ±5% (over 900 days)
Stabilization time 1 Hour
Environmental:
Operational:
Temp 0 to 50°C
RH 0 to 99% non-condensing
Storage :
Temp 10 to 50°C
RH 10 to 70% non-condensing
CE Conformity CE Marked
Housing dimensions:
Housing 100 x 80 x 50mm
Probe 69 x 26mm
Housing material ABS
Protection IP30
Country of origin China
UK Sales Tel: 0845 345 7253

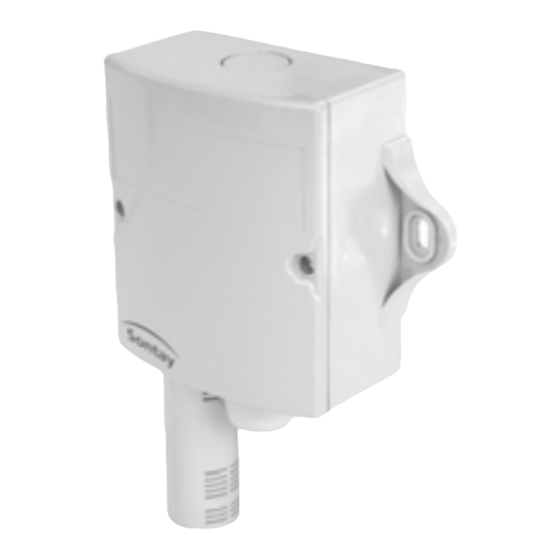

Wall Mount Carbon Monoxide Sensor
Features



Product Codes
GS-S-CO-W-K
GS-S-CO-W-P
Current versions are NOT loop powered and will require a
common 0V connection.
Page 1 of 3
Date Of Issue: 19/12/2011
© 2011 Sontay Limited. All rights reserved.
User selectable 0-10Vdc or 4-20mA output
Up to 5 year life time
Robust housing
Carbon Monoxide sensor, 0-100ppm selectable 0-
10Vdc or 4-20mA output
Carbon Monoxide sensor, 0-1000ppm selectable 0-
10Vdc or 4-20mA output
Please Note:
International Tel: +44 1732 861225
GS-S-CO-W
Issue: 5.0
