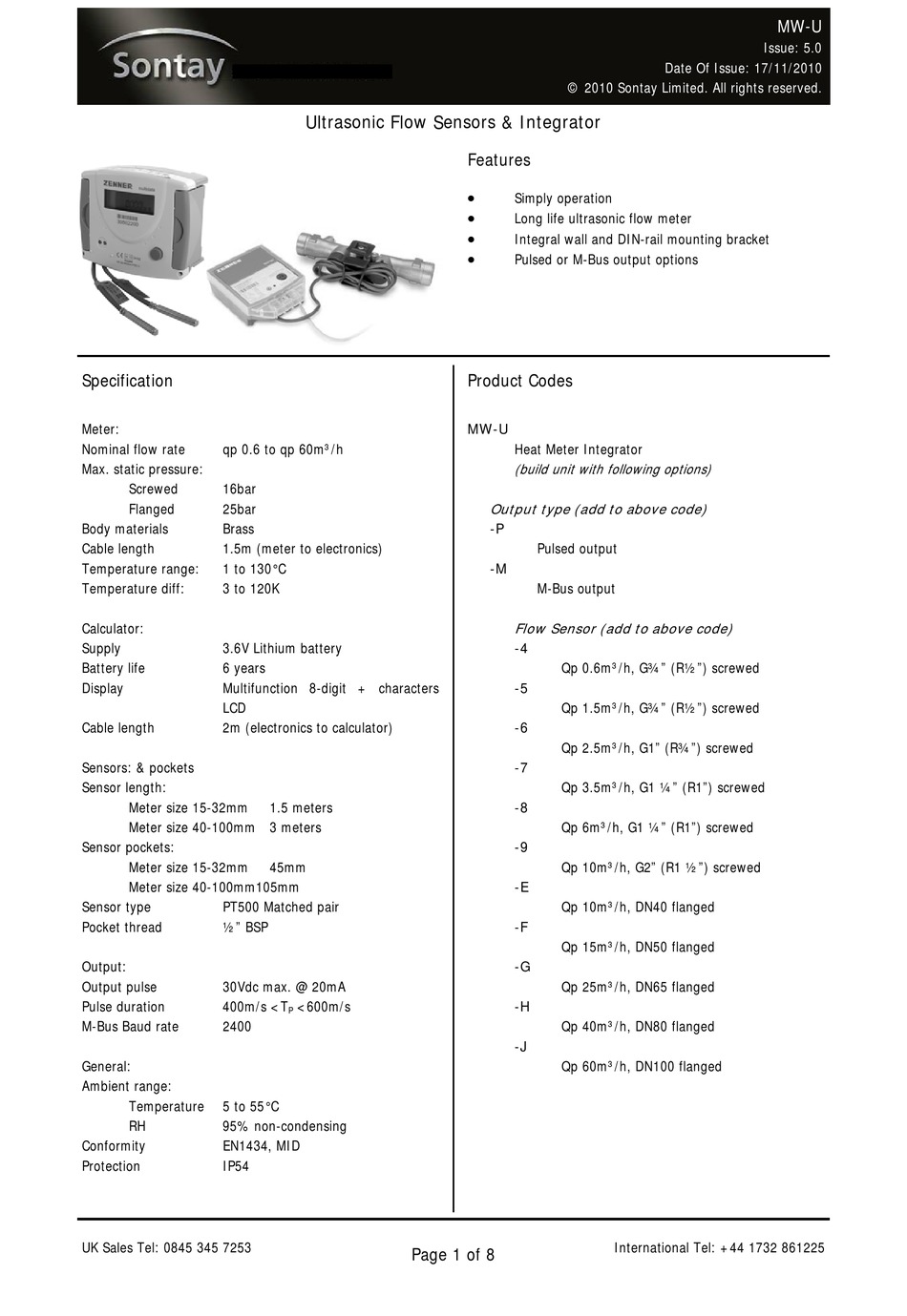

Sontay MW-U Series Quick Start Manual

Specification
Meter:
Nominal flow rate qp 0.6 to qp 60m³/h
Max. static pressure:
Screwed 16bar
Flanged 25bar
Body materials Brass
Cable length 1.5m (meter to electronics)
Temperature range: 1 to 130°C
Temperature diff: 3 to 120K
Calculator:
Supply 3.6V Lithium battery
Battery life 6 years
Display Multifunction 8-digit + characters
LCD
Cable length 2m (electronics to calculator)
Sensors: & pockets
Sensor length:
Meter size 15-32mm
Meter size 40-100mm
Sensor pockets:
Meter size 15-32mm
Meter size 40-100mm105mm
Sensor type PT500 Matched pair
Pocket thread ½" BSP
Output:
Output pulse 30Vdc max. @ 20mA
Pulse duration 400m/s <T
M-Bus Baud rate 2400
General:
Ambient range:
Temperature 5 to 55°C
RH 95% non-condensing
Conformity EN1434, MID
Protection IP54
UK Sales Tel: 0845 345 7253

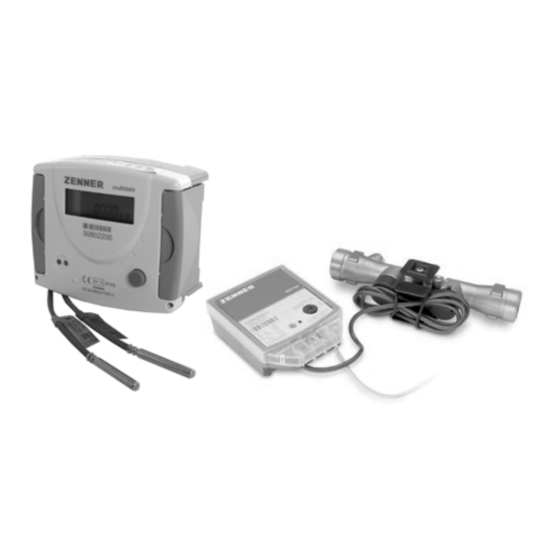

Ultrasonic Flow Sensors & Integrator
1.5 meters
3 meters
45mm
<600m/s
P
Page 1 of 8
© 2010 Sontay Limited. All rights reserved.
Features

Simply operation

Long life ultrasonic flow meter

Integral wall and DIN-rail mounting bracket

Pulsed or M-Bus output options
Product Codes
MW-U
Heat Meter Integrator
(build unit with following options)
Output type (add to above code)
-P
Pulsed output
-M
M-Bus output
Flow Sensor (add to above code)
-4
Qp 0.6m³/h, G¾" (R½") screwed
-5
Qp 1.5m³/h, G¾" (R½") screwed
-6
Qp 2.5m³/h, G1" (R¾") screwed
-7
Qp 3.5m³/h, G1 ¼" (R1") screwed
-8
Qp 6m³/h, G1 ¼" (R1") screwed
-9
Qp 10m³/h, G2" (R1 ½") screwed
-E
Qp 10m³/h, DN40 flanged
-F
Qp 15m³/h, DN50 flanged
-G
Qp 25m³/h, DN65 flanged
-H
Qp 40m³/h, DN80 flanged
-J
Qp 60m³/h, DN100 flanged
International Tel: +44 1732 861225
MW-U
Issue: 5.0
Date Of Issue: 17/11/2010
