ELEEELS X4 Instruction Manual

X 4
Percussive
Massage
Device
Instruction Manual

CORDLESS / RECHARGEABLE

24V Lithium-ion Battery

LIGHTWEIGHT DESIGN
2.4 lbs. / 1.1 kg

OPERATING

Comfort Mode
Level 1 Level 2 Level 3
(15 strokes (20 strokes (25 strokes
per second) per second) per second)
Agility Control /
Quick Start Buttons
Level 6 Level 5 Level 4
(50 strokes (40 strokes (30 strokes
per second) per second) per second)
Sports Mode
• Switch on the main power button at the bottom of the handle.
• Sports Mode Quick Start: Press the "+" agility control button once for level 4.
• Comfort Mode Quick Start: Press the "-" agility control button once for level 3.
• Press the "+" or "-" agility control button repeatedly to adjust the speed or pause the
device during operation. The blue LED lights indicate the corresponding speed level.
• Massage the desired body part at your preferred speed by applying pressure as
needed.
• When the massage device stops operating after a 10-minute session, press the agility
control button to start a new session.
• Switch o the main power button after operation.
EN
We developed the ELEEELS percussive massage device to accelerate recovery and prevent
muscle damage in order to relieve pain and promote circulation.

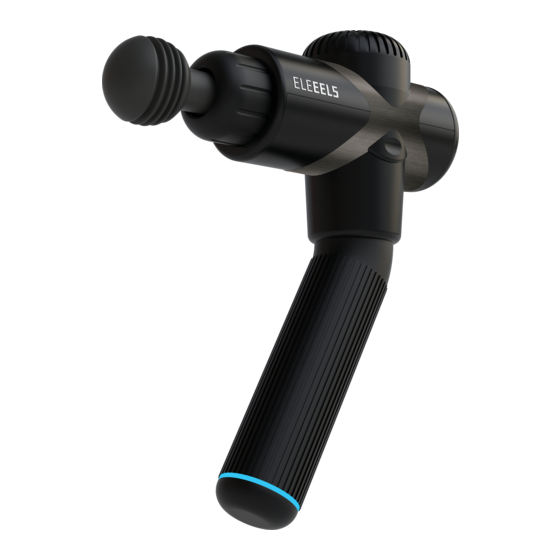

ELEEELS X4
1
2
8
Side View
1) High-torque, high-speed brushless motor
(delivers up to 50 strokes per second)
2) Xtreme Power™ Engineering (13 mm
amplitude deep muscle therapy)
3) Eterno Quiet™ Motion Technology
4) +/- 6 speed agility control for optimal pressure
5) Speed level indicator
6) Rechargeable lithium-on battery (up to 10
hours of use per charge)
7) Battery level indicator
8) ON/OFF switch
EN

HOW DO I ADJUST THE ANGLE OF THE HANDLE?

Twist the battery (handle) 180 degrees until you hear a 'click' .
MAINTENANCE & CLEANING
• Use a slightly damp towel to clean the device and a soft cloth to dry it.
• Do not clean the device with chemicals or alcohol.
• Only use the AC adapter supplied by ELEEELS for recharging.
WARNINGS & CAUTIONS
• Do not immerse in water. Keep away from liquids or heat sources. Keep ventilation ports
free from dust and debris.
• Do not remove screws or attempt to disassemble.
• Do not operate continuously for more than one hour. Allow device to rest for 10 minutes
before re-using.
• For adult use only. Do not use if injured. Consult your doctor before using this product.

SAFETY INSTRUCTIONS

DANGER: TO REDUCE RISKS OF ELECTRIC SHOCK, FIRE, AND PERSONAL INJURY, THIS
PRODUCT MUST BE USED IN ACCORDANCE WITH THE FOLLOWING INSTRUCTIONS:
• Apply to a clean, dry clothed area of the body by lightly pressing and moving across the
body for approximately 60 seconds per area.
• Only use the device on the body's soft tissue as desired. Do not use on head or any hard,
bony area of the body. Discontinue use immediately if experiencing any pain.
• Do not drop the device.
• Do not tamper or alter the device in any way.
• Never leave the device unattended during operating or charging.
EN

5 Interchangeable Applicators

3 4
5
6

USAGE INSTRUCTIONS

PLEASE READ PRIOR TO USE

CHARGING

7
Charge the battery for up to 6 hours before rst use to make sure it is fully charged. To charge
the battery:
Back View
1) Switch o main power button at the bottom of the handle, and connect the device to the
Vibration Frequency:
2) A green light will ash at the bottom of the handle when the charging begins.
Comfort Mode: Level 1 (15 strokes per
3) When the green light stops ashing, the device is fully charged.
second), Level 2 (20 strokes per second),
4) The circular light power indicator shows the battery level.
Level 3 (25 strokes per second)
Sports Mode: Level 4 (30 strokes per
second), Level 5 (40 strokes per second),
Level 6 (50 strokes per second)
Weight: 2.4 lbs. / 1.1 kg
Charge: 110-240V 50/60Hz 28V, DC-1A
EN
DISCLAIMER
Please do not use the ELEEELS percussive massage device, or any massage device without
pregnancy, neuropathy, retinal damage, pacemaker user, recent surgery, epilepsy or
migraines, herniated disks, spondylolisthesis, spondylolysis, or spondylosis, recent joint
replacements, surgical pins or plates, or you have any concerns about your physical health.

WARRANTY

IF WITHIN ONE YEAR FROM THE DATE OF PURCHASE, THIS PRODUCT FAILS DUE TO A
DEFECT IN THE MATERIAL OR WORKMANSHIP, ELEEELS WILL REPAIR OR REPLACE THE
PRODUCT; OR FAILED COMPONENT(S), FREE OF CHARGE
THIS WARRANTY EXCLUDES:
(a) Damage caused by accident, abuse, or mishandling during transport;
(b) Damage arising from use of units from unauthorized repair;
(c) Malfunction of units that are not used in accordance with ELEEELS care instructions;
(d) Damage for which the cost of repair exceeds the cost of the product;
(e) Deterioration of the delivered product resulting from abnormal storage and/or
-
(f ) Any product for which a dated proof of purchase cannot be provided.
Please visit below link for instruction manual in other languages:
http://www.eleeels.com/im
Dampener Bullet Flat Fork
supplied adapter.
a) Red: 0-25%
b) Blue: 25-75%
c) Green: 75- 100%
rst obtaining approval from your doctor if you have any of the following conditions:
safeguarding conditions on the client's premises, and
EN
Round
