ELEEELS M1 Instruction Manual

M 1
Electrical
Muscle
Stimulation
Massager
Instruction Manual
CORDLESS / RECHARGEABLE
90 mAh Lithium-ion Battery
LIGHTWEIGHT DESIGN
0.07 lbs. / 32 g

USAGE INSTRUCTIONS

PLEASE READ PRIOR TO USE

CHARGING

Fully charge the battery before rst use. To charge the battery:
1) Connect the USB Type-C cable to the charging port.
2) The charging speed depends on the adapter used. It is suggested to use an
adapter with at least 5V/1A to fully charge the device in approximately 1 hour.
3) During charging, the LED light battery indicator ashes in green slowly. When the green
light stops ashing, the device is fully charged.

OPERATING

• Before using M1, skin should be clean and free of oils and cosmetics.
• Stick M1 with one of the 3 interchangeable pads on either shoulders, neck, arms, waist,
back, knees, feet, or ankles. Please stick EMS pad directly on the skin, or else the
protection system will turn o the device automatically.
• Press the smart controller for 2 seconds to turn on the device. The default setting is level
1 of intergrated massage mode.
• Press the "+" or "-" control button repeatedly to adjust the power during operation. There
is a total of 10 power level. The LED indicator ashes once when highest or lowest power
level is reached.
• Switch between integrated (blue LED light), soothing (purple LED light), calming (white
LED light), kneading (yellow LED light), and shiatsu (pink LED light) massage modes by
pressing the smart controller once.
• When the battery level is lower than 10%, the LED light battery indicator turns to red.
Operation continues for a few minutes, and the device turns o .
• The device shuts o automatically after a 15-minute session. Alternatively, press the
smart controller for 2 seconds to turn o the device.
EN
ELEEELS M1
2
1) Smart Controller
2) +/- Control for 10 Power Levels
3) Battery Indicator / Massage
Mode Indicator
Weight: 0.07 lbs. / 32 g
Charging Port: USB Type-C
Battery: 90 mAh Lithium-ion Battery (up to 3
hours of use per charge)

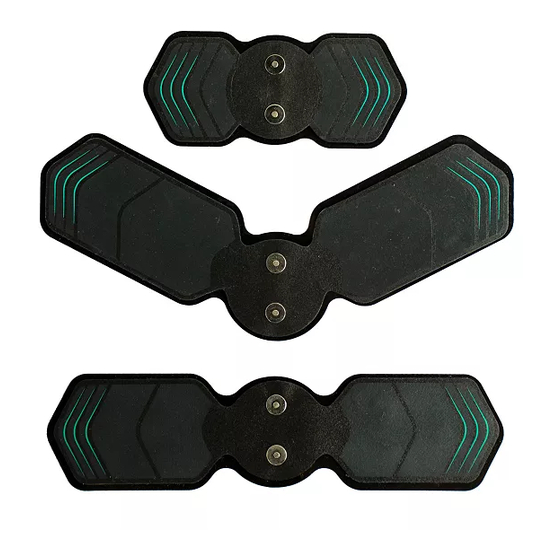

3 Interchangeable Pads
V Pad
EN
MAINTENANCE & CLEANING
• Use a slightly damp towel to clean the device and a soft cloth to dry it.
• Do not clean the device with chemicals or alcohol.
• Use the ELEEELS supplied USB Type-C cable.
WARNINGS & CAUTIONS
• Do not immerse in water. Keep away from liquids or heat sources.
• Do not operate continuously for more than one hour. Allow device to rest for 10 minutes
before re-using.
• For adult use only. Do not use if injured. Consult your doctor before using this product.
• Never apply EMS pad over irritated or cracked skin.
• If the EMS pad cannot stick to the skin rmly, exchange it with the replacement pad
included in the packaging.

SAFETY INSTRUCTIONS

DANGER: TO REDUCE RISKS OF ELECTRIC SHOCK, FIRE, AND PERSONAL INJURY, THIS
PRODUCT MUST BE USED IN ACCORDANCE WITH THE FOLLOWING INSTRUCTIONS:
• Do not drop the device.
• Do not tamper or alter the device in any way.

DISCLAIMER

Please do not use the ELEEELS M1 without rst obtaining approval from your doctor if
any of the following apply: recent joint replacements, metal pins or plates or you have
any concerns about your physical health. Do not use M1 if you feel pain, discomfort,
or have a wound at or near the site of application.
EN
5 Massage Modes
1 3
Massage Mode:
Integrated (Blue LED Light)
Soothing (Purple LED Light)
Calming (White LED Light)
Kneading (Yellow LED Light)
Shiatsu (Pink LED Light)
Long Pad
Short Pad
EN

WARRANTY

IF WITHIN ONE YEAR FROM THE DATE OF PURCHASE, THIS PRODUCT FAILS DUE TO A
DEFECT IN THE MATERIAL OR WORKMANSHIP, ELEEELS WILL REPAIR OR REPLACE THE
PRODUCT; OR FAILED COMPONENT(S), FREE OF CHARGE
THIS WARRANTY EXCLUDES:
(a) Damage caused by accident, abuse, or mishandling during transport;
(b) Damage arising from use of units from unauthorized repair;
(c) Malfunction of units that are not used in accordance with ELEEELS care instructions;
(d) Damage for which the cost of repair exceeds the cost of the product;
(e) Deterioration of the delivered product resulting from abnormal storage and/or
safeguarding conditions on the client's premises, and
(f ) Any product for which a dated proof of purchase cannot be provided.
Please visit below link for instruction manual in other languages:
http://www.eleeels.com/im
-
Integrated Soothing
Kneading
Calming
Shiatsu
EN
EN
