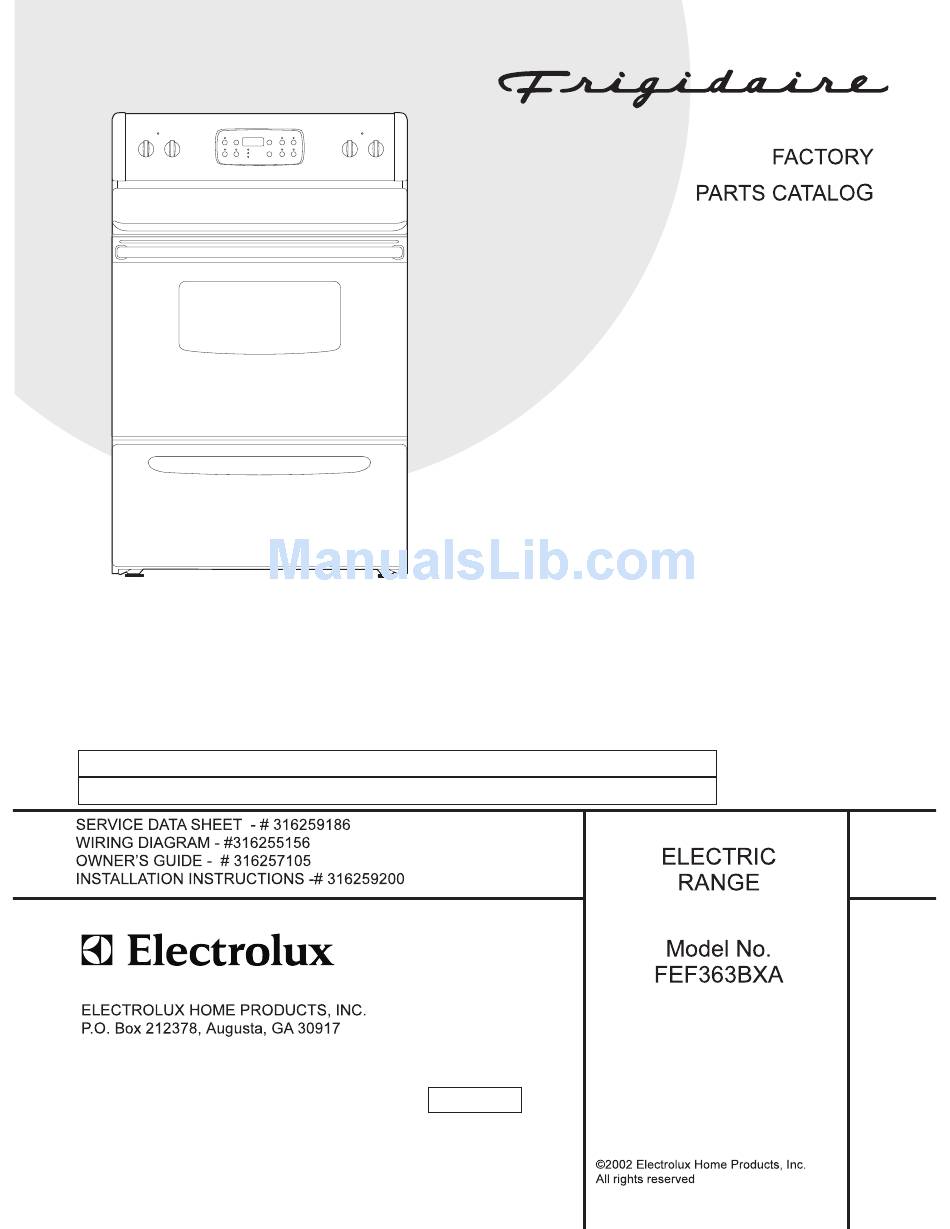

- Page 1 PRODUCT NO. BASE MODEL NO. FEF363BXAWA FEF363BXA COLOR MARKET black/white North America Publication No. 5995374005 020610 -EN/SERVICE /ECL...
- Page 2 BACKGUARD 06/02...
- Page 3 FEF363BXAWA BACKGUARD POS. NO PART NO DESCRIPTION 316239900 Shield,backguard ,rear wall 316241000 Shield,end cap ,RH 316241001 Shield,end cap ,LH 316022500 Light/Lamp,warmer,indicator ,drawer/zone,125 V 316220216 Support,backguard ,black ,RH 316220217 Support,backguard ,black ,LH 316240904 End Cap,black ,RH 316240905 End Cap,black ,LH 316246630 Panel,backguard ,black 20 # 316222902...
- Page 4 BODY 06/02...
- Page 5 FEF363BXAWA BODY POS. NO PART NO DESCRIPTION 316201300 Back,main 316230102 Panel,bodyside ,white ,RH 316230103 Panel,bodyside ,white ,LH 316129200 Screw,leveling ,plastic ,with stop 316067902 Rack,oven 316212906 Hinge,oven door ,RH 316212907 Hinge,oven door ,LH 3203540 Panel,oven bottom 316081900 Pan,broiler 316082000 Insert,broiler pan 12 # 316027701 Switch,oven light...
- Page 6 TOP/DRAWER 06/02...
- Page 7 FEF363BXAWA TOP/DRAWER POS. NO PART NO DESCRIPTION 316011503 Drawer 316231500 Liner,drawer 316231305 Panel,drawer ,white 3051163 Glide,drawer ,rear 15 # 316010205 Element,surface ,6" ,1200 W ,radiant 15A# 316010206 Element,surface ,8" ,2200 W ,radiant 15B# 316049707 Element,dual ,9" ,surface ,2100W/1000W ,radiant 316098188 Main Top,white 316235900 Hinge,main top ,RH...
- Page 8 DOOR 06/02...
- Page 9 FEF363BXAWA DOOR POS. NO PART NO DESCRIPTION 5303935191 Trim kit-door,3 sided ,black ,w/tape and foil 5303935203 Glass,door kit ,black ,outer ,w/foil tape 316088700 Glass,oven door ,airwash 316222706 Shield,wool ,oven door 316236800 Insulation,oven door 316088600 Glass,oven door ,inner 316230604 Liner,oven door 316001014 Screw,waf hd sq ,10-24 x 1.6 ,handle ,(2) 316008401...
-
Page 10: Wiring Schematic
WIRING SCHEMATIC 06/02... -
Page 11: Wiring Diagram
FEF363BXAWA Publication No. 5995374005 WIRING DIAGRAM...
