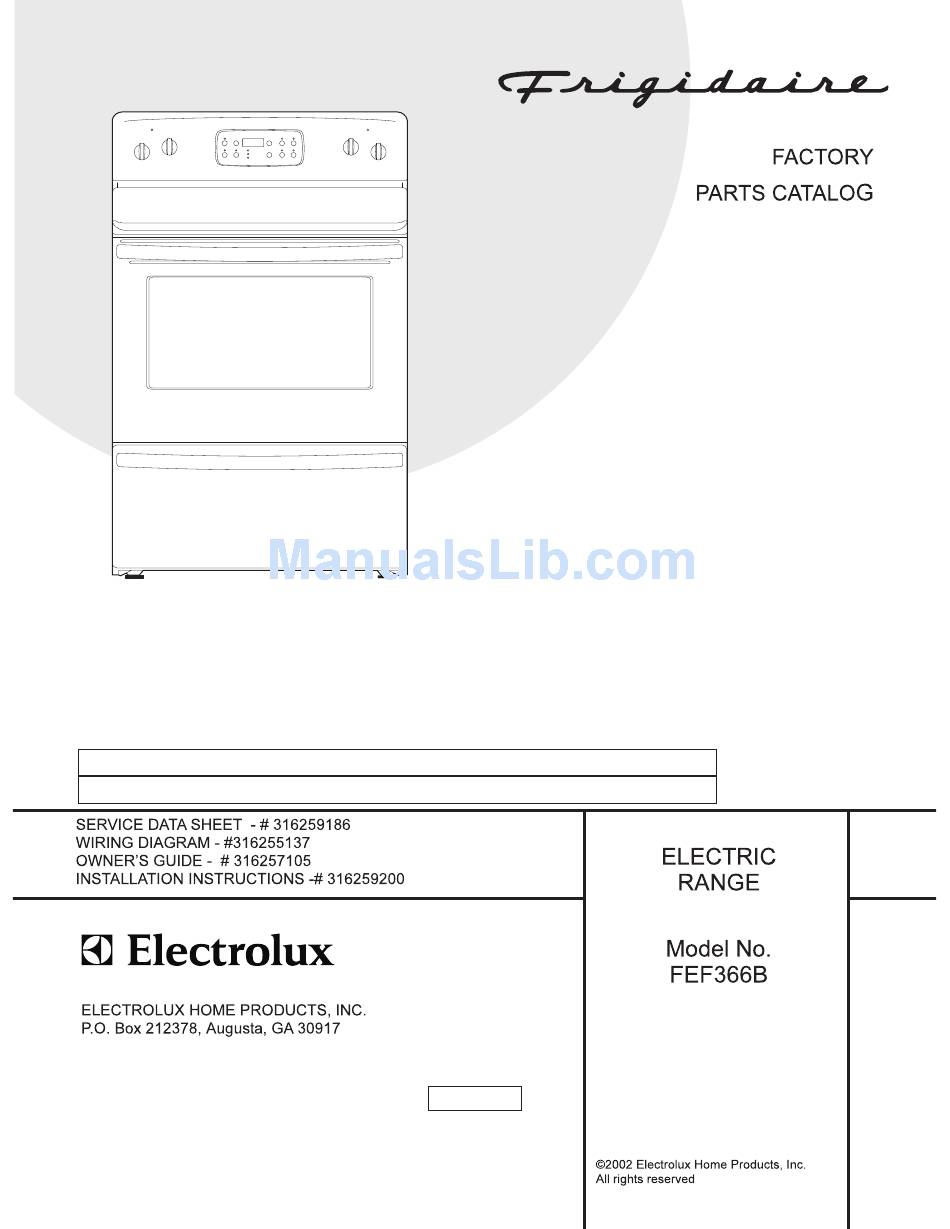

- Page 1 PRODUCT NO. BASE MODEL NO. FEF366BCA FEF366B COLOR MARKET white North America Publication No. 5995368395 020315 -EN/SERVICE /ECL...
- Page 2 BACKGUARD...
- Page 3 BACKGUARD POS. NO PART NO DESCRIPTION 316239900 Shield,backguard ,rear wall 316022500 Light/Lamp,warmer,indicator ,drawer/zone,125 V 316220204 Support,backguard ,black ,RH 316220205 Support,backguard ,black ,LH 316232630 Panel,backguard ,black 20 # 316222902 Clock/Timer,electronic 316220805 Overlay,clock ,black 24 # 316246001 Switch,rocker ,black ,oven light 316223002 Knob,black 316040201 Lens,indicator light ,red...
- Page 4 BODY...
- Page 5 BODY POS. NO PART NO DESCRIPTION 316201300 Back,main 316230104 Panel,bodyside ,black ,RH 316230105 Panel,bodyside ,black ,LH 316129200 Screw,leveling ,plastic ,with stop 316067902 Rack,oven 316214401 Rack,oven sump 316205000 Hinge,oven door ,RH 316205001 Hinge,oven door ,LH 316201501 Panel,sump ,oven bottom 316081900 Pan,broiler 316082000 Insert,broiler pan 12 #...
- Page 6 TOP/DRAWER...
- Page 7 TOP/DRAWER POS. NO PART NO DESCRIPTION 316011503 Drawer 316231500 Liner,drawer 316248800 Panel,drawer ,stainless 3051163 Glide,drawer ,rear 15 # 316010205 Element,surface ,6" ,1200 W ,radiant 15A# 316010206 Element,surface ,8" ,2200 W ,radiant 15B# 316224200 Element,surface ,9" ,2500W ,radiant 316251903 Main Top Assy,glass/steel ,black 316235900 Hinge,main top ,RH 316235901...
- Page 8 DOOR...
- Page 9 DOOR POS. NO PART NO DESCRIPTION 316240000 Glass,oven door ,black ,outer 316237000 Glass,oven door ,heat barrier 316222707 Shield,wool ,oven door 316236700 Insulation,oven door 316237100 Glass,oven door ,clear ,inner 316230605 Liner,oven door 316001015 Screw,waf hd sq ,10-24 x 1.25 ,(2) ,handle mtg 316001016 Screw,handle mtg ,10-12 X .750 316008401...
-
Page 10: Wiring Diagram
WIRING DIAGRAM...
