Manual

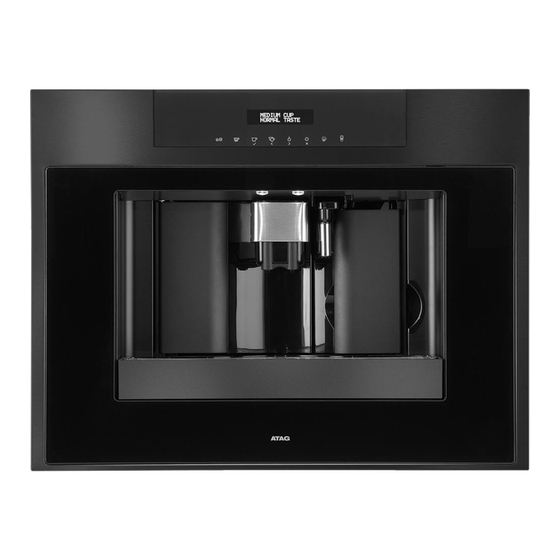

Coffee machine
CM4511AC
CM4592AC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM4511AC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atag CM4511AC

Summary of Contents for Atag CM4511AC

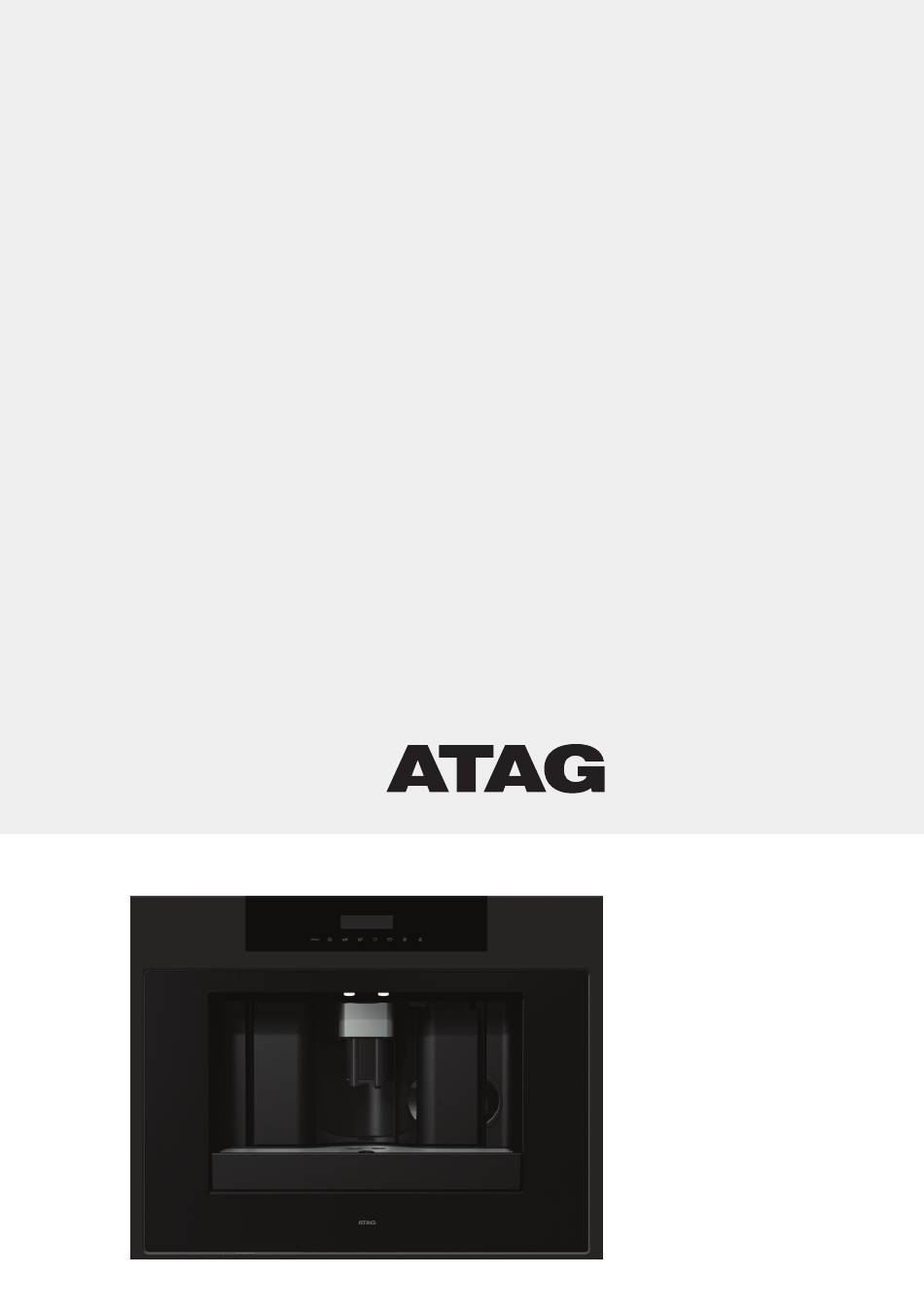

  • Page 1 Manual Coffee machine CM4511AC CM4592AC...
  • Page 2 Manual EN 3 - EN 41...

  • Page 3: Table Of Contents

    CONTENTS Introduction Pictograms used Description Control panel Safety instructions What you should pay attention to Preparation Operation Settings Using menu options Maintenance Cleaning Messages Faults table Troubleshooting Installation instructions What you should pay attention to Building in Appendices Disposal of appliance and packaging Technical data EN 3...

  • Page 4: Introduction

    Preventative maintenance Your coffee machine requires preventative maintenance. To guarantee that the coffee machine works well and reliably, ATAG recommends having the machine serviced once every 2 to 3 years (after a maximum 8,000 cups). Pictograms used...

  • Page 5: Description

    DESCRIPTION A. Main switch / Aa. On/Stand-by button B. Handles C. Nozzle D. Water tank (removable) E. Cup tray Drip tray grill (removable) G. Service door H. Height adjustable coffee dispenser Control panel J. Coffee bean holder cover K. Ground coffee chute cover L.

  • Page 6: Control Panel

    CONTROL PANEL 1. Display 2. Touch key ‘Coffee strength’ to select strength or preground 3. Touch key to select the type/quantity of coffee: • ESPRESSO • MEDIUM CUP • LARGE CUP 4. Touch key ‘One cup of coffee’ 5. Touch key ‘OK’ to confirm the selected function 6.

  • Page 7: Safety Instructions

    SAFETY INSTRUCTIONS What you should pay attention to • WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. • The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction...
  • Page 8 SAFETY INSTRUCTIONS • Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. •...
  • Page 9 SAFETY INSTRUCTIONS • Only ask for original spare parts to be used. Failure to respect the above could reduce the safety of the appliance. • Do not put objects containing liquids, inflammable or corrosive materials on the machine. • Use the accessories holder to contain coffee accessories (for example coffee beans).

  • Page 10: Use

    Preparation Connect the appliance to the mains supply (see chapter ‘Installation’) and switch on the appliance with the main switch (see ‘A’ page 5). The first time you switch on the appliance with the main switch and every time that it is plugged in, the appliance executes a “SELF-DIAGNOSIS” action.

  • Page 11: Operation

    8. Open the lid and fill the container with coffee beans, then close the lid and push the appliance in. The coffee maker is now ready for normal use. Only fill the water tank with cold water. Never use other liquids such as mineral water or milk.
  • Page 12 ▷ Once the set amount of coffee has been delivered, the machine stops delivery automatically and expels the exhausted waste coffee into the waste coffee container. After a few seconds, the appliance is ready for use again. Tips • To turn the appliance off, press the ‘On-off’ button (Aa / see page 5). Before going off, the appliance performs an automatic rinse cycle.
  • Page 13 Empty the waste coffee container • The appliance counts the number of coffees made. Every 14 single coffees (or 7 doubles) the appliance displays “EMPTY WASTE COFFEE CONTAINER”. This means that the waste coffee container is full and must be emptied and cleaned. •...
  • Page 14 To change these quantities, proceed as follows: 1. Place a cup under the spouts. 2. Press the ‘type of coffee’ touch key (3) to select the type of coffee. 3. Keep the ‘one cup of coffee deliver’ touch key (4) pressed until the message “PROGRAM QUANTITY”...
  • Page 15 Preparing espresso coffee using ground coffee 1. Press the ‘Coffee strength’ touch key (2) several times to select “PRE-GROUND”. 2. Extract the machine by pulling it outwards using the handles. 3. Lift the central lid, place one measure of preground coffee in the funnel, push the appliance back and proceed as described in the section “Making coffee using coffee beans”.
  • Page 16 3. Press the ‘Hot water’ touch key (8). Hot water is dispensed; the display shows “HOT WATER”. Once the programmed amount of hot water is dispensed, dispensing stops automatically. For a few seconds the display shows “PREPARATION RUNNING PLEASE WAIT”. After that the appliance is ready to make coffee again and the last selected coffee setting appears on the display.
  • Page 17 5. Remove the hot water spout and attach the milk container to the nozzle. 6. Position the milk spout (N4) and then place a sufficiently large cup under the coffee and milk spouts. 7. Press the ‘Cappuccino deliver’ touch key (12). “CAPPUCCINO” is displayed and after a few seconds, frothed milk flows out of the milk spout into the cup below (delivery stops automatically).
  • Page 18 Notes • While making cappuccino or latte macchiato, the flow of frothed milk or coffee can be interrupted by pressing the ‘Cappuccino deliver’ touch key (12) or the ‘Latte Macchiato’touch key (13). • If the milk in the container finishes while delivering frothed milk, remove the container and add milk.
  • Page 19 After a few seconds, the appliance starts delivering coffee into the cup and the message “COFFEE FOR CAPPUCC. PROGRAM QUANTITY” or “COFFEE FOR MACCHIATO PROGRAM QUANTITY” is displayed. 5. Once the required quantity of coffee has been delivered into the cup, press the ‘Cappuccino deliver’...

  • Page 20: Settings

    SETTINGS Using menu options You can change the following menu options and functions: • Rinsing • Set language • Energy saving (enable or disable energie saving) • Set time (daytime) • Auto start (auto switch on) • Auto off (auto turn off) •...
  • Page 21 SETTINGS Setting the language You can choose between several languages. A different language can be selected as follows: 1. Press the touch key ‘MENU’ (10) and press the scroll touch keys (7 and 9) until the menu option “SET LANGUAGE” appears. Confirm the menu option with the touch key ‘OK’...
  • Page 22 SETTINGS 2. Press the touch key ‘OK’ (5). “ENABLE?” is displayed. 3. Press the touch key ‘OK’ (5). The hours flash on the display. 4. Use the scroll touch keys (7 and 9) to set the hour. 5. Press the touch key ‘OK’ (5) to confirm. The minutes flash on the display.
  • Page 23 SETTINGS The factory setting can be changed as follows: 1. Press the touch key ‘MENU’ (10) and press the scroll touch keys (7 and 9) until the menu option “ SET TEMPERATURE” appears. 2. Confirm the menu option with the touch key ‘OK’ (5). The display shows the current setting.
  • Page 24 SETTINGS 5. Press the scroll touch keys (7 and 9) until the established hardness level is displayed. Confirm the selection with the touch key ‘OK’ (5). The appliance is now programmed to provide the descaling warning when necessary, based on the actual hardness of the water. Information on the hardness of the water in your area can be obtained from the local water board.
  • Page 25 SETTINGS Statistics You can look up the following information values: • how many coffees have been made; • how many milk drinks have been made (cappuccino’s/latte macchiato/frothed milk); • how many times the machine has been descaled; • the total number of litres of water delivered. Two cups of coffee dispensed at the same time are counted as two cups.
  • Page 26 SETTINGS Descaling Over time, leads the continuous heating of the water that is used to make coffee to lime deposits in the inner circuits of the machine. Descale the machine when the message “DESCALE” flashes on the display. Use the descaler recommended by the manufacturer only. Under no circumstances should you use sulphamic or acetic based descalers.
  • Page 27 SETTINGS ▷ After about 30 minutes, the message “RINSING FILL TANK” is displayed. The appliance is now ready for a rinsing process with clean water. 7. Empty the container used to collect the descaler solution. 8. Take out the water tank, empty the watertank and fill it with clean water.

  • Page 28: Maintenance

    MAINTENANCE Cleaning Before performing any cleaning operations, the machine must be turned off by pressing the main switch (A) and unplugged from the mains power supply. Never immerse the coffee maker in water. Cleaning the coffee machine Do not use solvents or abrasive detergents to clean the coffee maker. A soft damp cloth will suffice.
  • Page 29 MAINTENANCE To remove the drip tray (F): 1. Open the service door. 2. Remove the drip tray and the waste coffee container. 3. Clean the drip tray and waste coffee container. 4. Replace the drip tray and waste coffee container. 5.
  • Page 30 MAINTENANCE Cleaning the inside of the coffee maker • Check regularly (about once a week) that the inside of the appliance is not dirty. If necessary, remove coffee deposits with a sponge. • Remove the residues with a vacuum cleaner. Cleaning the brewing unit The brewing unit must be cleaned regularly to avoid the build-up of coffee encrustations which could cause malfunction.
  • Page 31 MAINTENANCE 7. Once inserted, make sure the two colored buttons have snapped back out, otherwise the service door cannot be closed. ▷ The two colored buttons are correctly snapped out (A). ▷ The two colored buttons are not snapped out (B). 8.
  • Page 32 MAINTENANCE 3. Remove the frothed milk regulator (F) by pulling it outwards. 4. Wash all the components thoroughly with hot water and mild washing-up liquid. Make sure there are no milk residues left inside the holes (H) and the groove (G) on the fine end of the frothed milk regulator (F).

  • Page 33: Messages

    MESSAGES MESSAGE MEANING WHAT TO DO FILL TANK The water tank is empty or not Fill the water tank and properly in place. insert it according to the instructions. The water tank is dirty or Rinse out or descale the limescale deposits have built water tank.
  • Page 34 MESSAGES MESSAGE MEANING WHAT TO DO DESCALE Shows that the coffee machine The descaling program must is encrusted with limescale. be carried out as soon as possible (see “Carrying out the descaling program”. CLOSE DOOR The service door is open. Close the service door.

  • Page 35: Faults Table

    TROUBLESHOOTING Faults table If the appliance does not work properly, this does not always mean that it is defective. If the coffee machine does not work and a message is displayed, refer to the problem solving information (see chapter ‘Messages’). If no message is displayed, try to find a solution first by checking the points mentioned in the table below, or contact the service department (see the guarantee certificate for details).
  • Page 36 TROUBLESHOOTING FAULT CAUSE SOLUTION The machine does not switch The main switch on the right Check that the main switch is on when the on/stand by side of the appliance is not in the ‘ON’ position and that button is pressed switched on or the mains plug the power lead is plugged in is not plugged in.
  • Page 37 TROUBLESHOOTING FAULT CAUSE SOLUTION Coffee does not come out The holes on the coffee Remove the dried on coffee of the spouts on the coffee dispenser are blocked with with a needle (see “Cleaning dispenser but out of the dried on coffee. the coffee machine”).

  • Page 38: Installation Instructions

    INSTALLATION INSTRUCTIONS What you should pay attention to • After removing the packaging, make sure the product is complete and undamaged. If in doubt, do not use the appliance and contact a qualified professional. • Installation must be carried out by a qualified techncian and in compliance with current regulations.
  • Page 39 INSTALLATION INSTRUCTIONS Building in Please check the minimum measures necessary to the proper installation of the appliance. The coffee maker must be installed in a column unit, which must in turn be fixed to the wall. 4 5 m m i n 5 6 0 + 8 m m 5 4 5...
  • Page 40 INSTALLATION INSTRUCTIONS x 16 + - 1 560 mm • Position the appliance on the rail, making sure the pins are correctly inserted in the housing, then fix it with the screws supplied. • If the height of the appliance requires adjusting, use the spacer disks provided.

  • Page 41: Disposal Of Appliance And Packaging

    APPENDICES Disposal of appliance and packaging The packaging of this appliance is recyclable and may have been made • cardboard • paper • polythene foil (PE) • CFC-free polystyrene (PS hard foam) • polypropylene tape (PP). Dispose of these materials in a responsible manner and in accordance with government regulations.
  • Page 42 The appliance identification card is located on the side of the appliance. When contacting the service department, have the complete type number to hand. You will find the addresses and phone numbers of the service organisation on the guarantee card. 569486 569486...

This manual is also suitable for:

Cm4592ac
