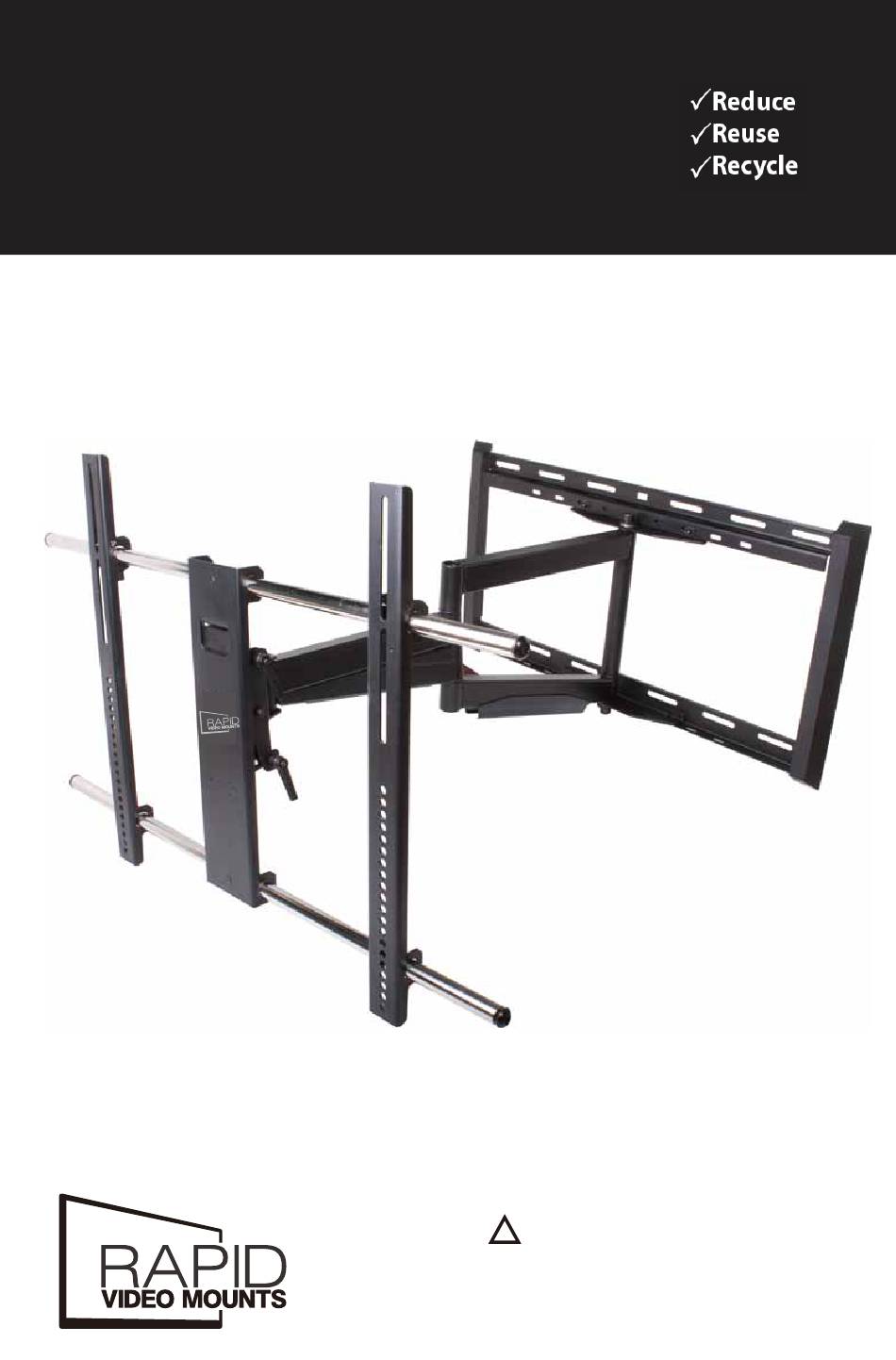

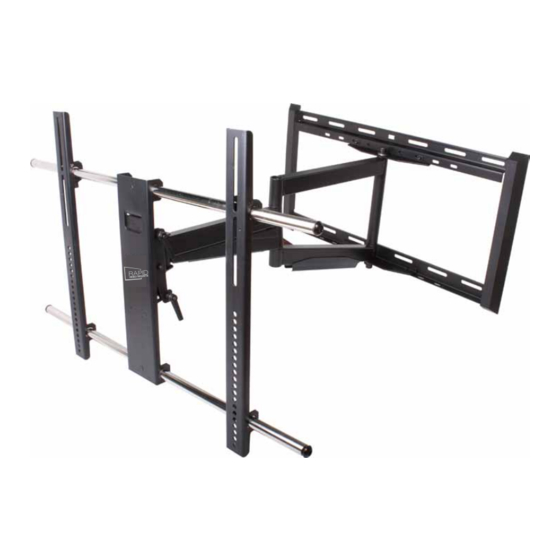

RVM-75FM150
Low Profile Full Motion TV Mount
IN STRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
!
CAUTION:
THE MAXIMUM LOADING WEIGHT
IS 150 LBS. USE WITH PRODUCTS HEAVIER THAN
THE MAXIMUM WEIGHT INDICATED MAY RESULT IN
INSTABILITY AND POSSIBLE PERSONAL INJURY.
Max Screen Size: 80"
V1
P 1
Advertisement
Related Manuals for Rapid video mounts RVM-75FM150
Summary of Contents for Rapid video mounts RVM-75FM150
- Page 1 RVM-75FM150 Low Profile Full Motion TV Mount IN STRUCTION MANUAL MANUAL DE INSTRUCCIONES MANUEL D’INSTRUCTIONS CAUTION: THE MAXIMUM LOADING WEIGHT IS 150 LBS. USE WITH PRODUCTS HEAVIER THAN THE MAXIMUM WEIGHT INDICATED MAY RESULT IN INSTABILITY AND POSSIBLE PERSONAL INJURY.
-
Page 2: Tools Needed
Tampoco prevé todas las posibles contingencias relacionadas con la instalación o el uso de este producto. La información que contiene este documento queda sujeta a cambio sin aviso previo o compromiso alguno. RAPID VIDEO MOUNTS no ofrece ninguna garantía, ni expresa ni implícita, respecto de la información aquí incluida. RAPID VIDEO MOUNTS no se responsabiliza de la precisión de la información provista en este documento, ni tampoco de que sea completa o suficiente. - Page 3 HARDWARE PRODUCT NUMBERS M4 x 12 M5 x 12 M6 x 15 M8 x 15 M4 x 25 M5 x 25 M6 x 25 M8 x 25 SQUARE WASHER SPACER STEEL M6 X 5/8” ALLEN WASHER ACORN WRENCH WASHER WRENCH 8 mm LAG 5 mm ANCHOR...
- Page 4 CORNER MOUNTING INFORMATION The Extra Large Full Motion Mount can be installed in a corner location when needed. Prior to installing the Mount it is impor- tant to determine the approprite corner wall to install the mount. Please see diagrams below to assist in determin- ing the appropriate wall placement to...
- Page 5 STEP 1A- FLAT BACK FLAT PANEL (UNIVERSAL MONITOR PLATE) Connect Universal Monitor Plate to flat panel Conecte el adaptador al monitor Connectez l'adaptateur au moniteur SQUARE WASHER STEP 1B- CURVED BACK FLAT PANEL (UNIVERSAL MONITOR PLATE) Connect Universal Monitor Plate to flat panel Conecte el adaptador al monitor Connectez l'adaptateur au moniteur SQUARE...
- Page 6 STEP 2A- CENTER UNIVERSAL MONITOR PLATE Monitor Plate must be centered (horizontal plane) on back of flat panel STEP 2B- SECURE UNIVERSAL MONITOR PLATE VERTICAL RAILS Adjust vertical rails on horizontal chrome rod and secure with pre- installed screws.
- Page 7 STEP 2C- PRIOR TO EXTENDING ARMS REMOVE ARM ASSEMBLY FROM WALL PLATE Prior to extending arm： Remove 2 Allen screws at top of Arm Assembly with included Allen wrench. Remove 2 Allen screws at bottom of Arm Assembly with included Allen wrench.
- Page 8 STEP 3A- WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO 3B) Find stud and mark edge and center locations Ubique el panel y marque las ubicaciones de los bordes y el centro. Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre. LEVEL WALL PLATE DRILL BIT WITH INCLUDED...
- Page 9 STEP 3B – SOLID CONCRETE INSTALLATION Solid Concrete Drill Bit Level Drill pilot hole Concreto sólido S. broca Nivelado Realice el agujero piloto Béton massif Foret Level Percez le trou de guidage DRILL BIT LEVEL WALL PLATE NOT INCLUDED WITH INCLUDED BUBBLE LEVEL AND MARK HOLES FOR DRILL BIT PILOT HOLE...
- Page 10 STEP 4 - ATTACH ARM ASSEMBLY TO WALL BRACKET Position Arm Assembly to desired lateral position on wall bracket for opti- mum placement of Flat Panel. Secure Arm Assembly to Wall plate using screws removed from Step 2. STEP 5 - ATTACH UNIVERSAL MOUNT BRACKET TO ARM ASSEMBLY & WALL BRACKET Heavy, Assistance Required TRES LOURD ! Cette etape...
- Page 11 SECURE MONITOR PLATE TO ARM ASSEMBLY Secure Acorn Nut and Washer on Monitor Plate to Arm Assembly (snug tension only) M6 Wrench M6 Washer M6 Acorn Nut ADJUST TILT TENSION/ POST INSTALLATION LEVEL Built-in level feature for post installation Adjust tilt mechanism tension with ratchet handle lever correction Rotate ratchet...
-
Page 12: Warranty Information
Esta garantía se aplica a los residentes de los Estados Unidos que realizaron la compra en un distribuidor autorizado de RAPID VIDEO MOUNTS. Esta garantía cubre los productos RAPID VIDEO MOUNTS de los defectos de materiales y de mano de obra por un periodo de 5 años. RAPID VIDEO MOUNTS, a su exclusivo criterio, reparará o reemplazará...
