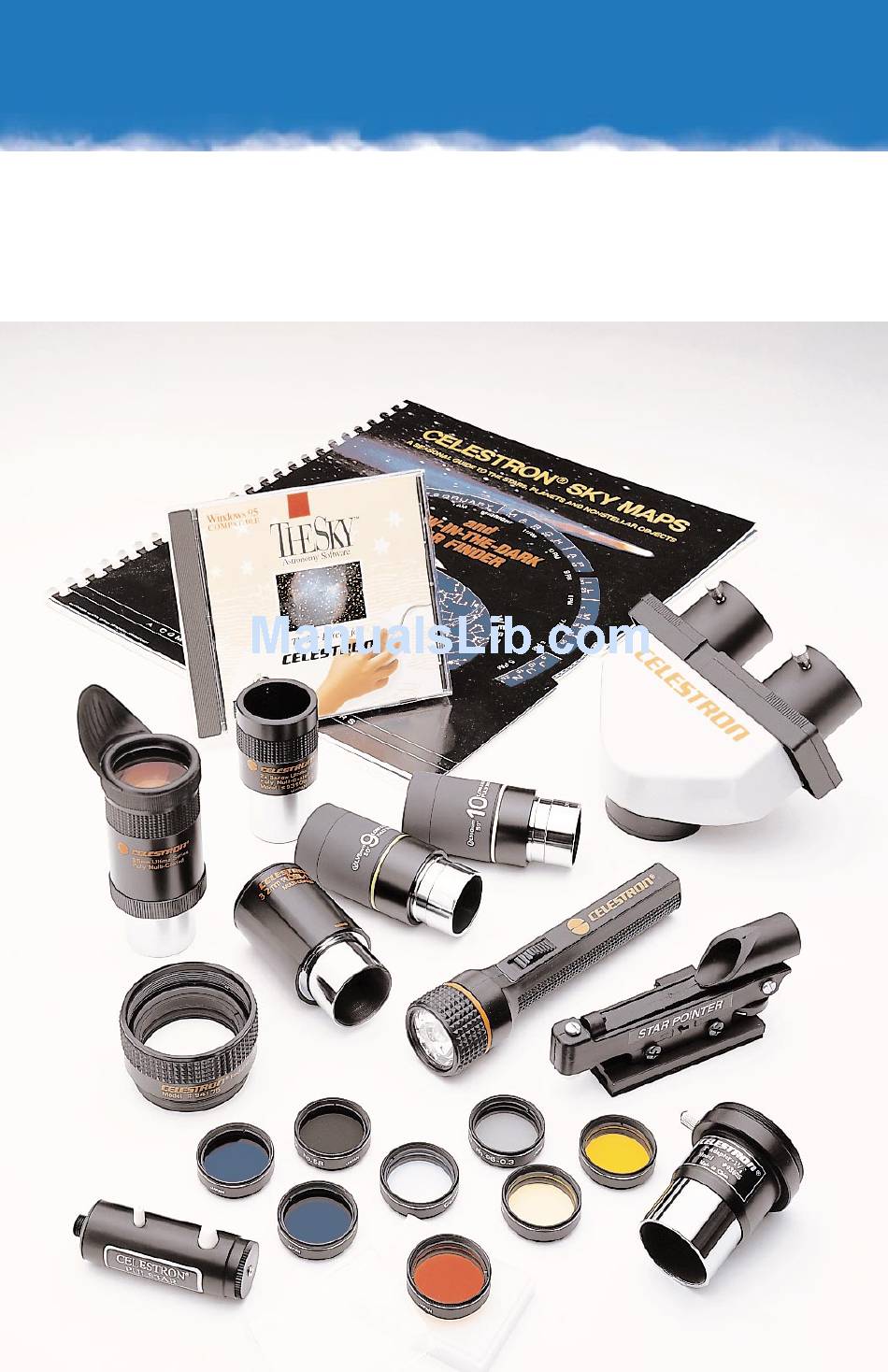

- Page 1 1998 CELESTRON Accessories...
-
Page 2: Table Of Contents
ABLE OF ONTENTS Accessories — General AC Adapters ....3 Binocular Neck Strap ..3 Binocular Tripod Adapter ..3 Cases . -
Page 3: Accessories - General
Binocular Tripod Adapter – #93512-A This useful adapter attaches to the center hinge of most high quality binoculars, allowing you to mount them to any tripod equipped with a standard vibration-free viewing, this adapter conveniently sets your hands free for other tasks while observing. -
Page 4: Car Battery Adapters
Car Battery Adapters Allow you to link your telescope drive directly to #18769 the cigarette lighter receptacle of your car, for a quick and easy DC power source in one step. #18767 Car Batter Adapter – C5 + , Celestar 8, Ultima ®... -
Page 5: Focuser Assembly
Car Window Mount – #93513 This durable, heavy-duty mount is carefully designed to attach easily to your car window and provide stable, vibration-free support for binoculars, telephoto lenses and spotting scopes. " eyepieces. #92506 ", Night Vision flashlight and a CD-ROM #92507 ", moon filter... -
Page 6: Eyepieces
YEPIECES Economy Eyepieces: .96" and Celestron offers these very economical eyepieces to expand your viewing options. They are all simple eyepiece designs — Ramsden (SR & F) and Huygens (H & HM) but perform quite well on f/8 or slower telescopes. -
Page 7: Plössl, Ultima
Plössl Eyepieces: .96" and 1 In a recent Sky and Telescope review, Celestron’s .96" and 1 " Plössl eyepieces were rated as top ranking, and found to outperform many similar, but more expensive eyepieces. An exceptional value! Celestron offers these premium eyepieces at affordable prices, yet they’re among the best designed and corrected eyepieces available. -
Page 8: Lv, Cross Hair, Deluxe Zoom
LV Eyepieces: 1 These Vixen brand eyepieces (6 to 8 elements) are a new breed, using the rare earth glass lanthanum in one of their field lenses, for almost total freedom from any visual aberrations. All focal lengths have a comfortable 20mm of eye relief. -
Page 9: Ultima Spotting Scope
Ultima Spotting Scope Eyepieces Extremely high quality eyepieces designed exclusively for the Ultima line of spotting scopes. Model 65mm Spotter #1828 #1830 #1838 16-48x Zoom Eyeguard Set — #93330 A set of 10 rubber eyeguards that fit Celestron 1 (except 32 and 40mm) eyepieces as well as many eyepieces of other manufac- turers. -
Page 10: Barlow Lenses
ARLOW ENSES Barlow lenses offer an easy, economical way to increase the magnification range of your eyepieces, and Celestron carries an assortment of these highly useful lenses. A Barlow lens doubles the magnifying power of your eyepiece by doubling its effective focal length. -
Page 11: Diagonals
IAGONALS Diagonals: .96" and 1 Celestron’s Erect Image Diagonals are an Amici prism design. This design allows you to look into the telescope at a 45° angle, at images that are oriented properly, meaning the image is upright and correct from left to right. Use of Celestron’s .96" to 1 "... -
Page 12: Finderscopes
INDERSCOPES Finderscopes are secondary scopes, used to help locate objects in the main telescope. The larger the finderscope, the more you’ll see, to an upper limit of 50mm. Units larger than 50mm have too narrow a field of view to be useful. Finderscopes mount onto the main telescope tube and are an invaluable tool in locating objects for viewing. - Page 13 Star Pointer can be used during daytime observing as well. It’s also a handy guide when using binoculars. Attaches to any telescope easily. Extra bases are available (#51631) to make it easy to move the Star Pointer for use on different telescopes.
-
Page 14: Filters
ILTERS Eyepiece filters are an invaluable aid in lunar and planetary observing. They reduce glare and light scattering, increase contrast through selective filtration, increase definition and resolution, reduce irradiation and lessen eye fatigue. Celestron’s filters are made of high quality, solid plane parallel glass with excel- lent homogeneity. - Page 15 #8 Yellow 83% T [Series 4] All observing information for this filter is the same as that given for the #12 and #15 Deep Yellow filters, with the exception of the following: Mars – Improves the Martian maria by reducing scattered light from blue areas, while allowing passage of more green light for studying yellow dust clouds.
- Page 16 GREEN #56 Light Green 53% T [Series 2] Moon– Enhances lunar features. Jupiter – Increases visibility of the Great Red Spot. Useful for observing the low-contrast hues of blue and red that exist in the Jovian atmosphere. Mars – Excellent for increased contrast of Martian polar caps, low clouds and yellowish dust storms.
-
Page 17: Polarizing, Skylight, Moon
" Polarizing Filter Set: – #93608 Ambient daylight is normally comprised of multiple wavelengths of light, vibrating in multiple planes. The Eyepiece Polarizing Filter Set transmits only light moving along a specific plane, thereby increasing the contrast between surfaces with different planar transmissions. Generally, the polarization effect makes blue skies a deeper blue, eliminates surface reflections and helps reduce atmospheric haze. -
Page 18: Solar
Solar Filters Celestron’s Solar Skreen ® solar filters transmit .001% of visible light, allowing direct observation of the sun. You can see sunspots and the mottled areas known as granules with these filters. In addition to reducing the intensity of the sun’s visible light, they also block 99.999% of invisible infrared light, so you can observe the sun in complete safety and comfort. -
Page 19: Lpr
LPR Filters #94127A Light Pollution Reduction (LPR) Filters are designed to selectively reduce the transmission of certain wavelengths of light, specifically those produced by artificial light. This includes mercury, and both high and low pressure sodium vapor lights. In addition, they block unwanted natural light caused by neutral oxygen emission in our atmosphere (i.e. -
Page 20: Motor Drives
They are powered by four D-cell batteries (not included). 2x and 4x sidereal speeds are available through the included hand controller. Model #93515 — MDCG-3 (for Firstscope 80s and 114s) Model #93517 — MDCG-4 (for CG-4 mounts) Model #93518 — MDCG-5 (for CG-5 mounts) Deluxe Model —... -
Page 21: Guiding Eyepieces
UIDING YEPIECES Guiding (or reticle) eyepieces are mandatory for guided astrophotography. They keep a guide star stationary during long exposures to avoid star trailing. #94169 and #94170 require an ill uminator — choose from models #60001 and #60011. 12mm Kellner Reticle Eyepiece: 1 "... -
Page 22: Photo Accessories
HOTO CCESSORIES Reducer/Corrector f/6.3 – #94175 This combination focal reducer and field corrector lens accessory works with all Celestron C5, C8, C9 , C11 and C14 telescopes. This clever accessory makes it possible to have a dual focal ratio instrument, without sacrificing image quality. -
Page 23: Hand Controller
Hand Controller – #28983 For use with the C5 + and Celestar 8, both for astrophotography and CCD imaging. It’s also great for observing, where it serves to make centering objects easier. Provides easy centering and guiding on both axes. (Requires declination motor for use of the declination axis). -
Page 24: Counterweights
Counterweights Using accessories such as cameras, Lens Shades, Tele-Extenders and the 2" Diagonal will affect the balance of your Celestron Schmidt-Cassegrain telescope. Counterweights restore proper balance, increasing ease in handling and improved tracking accuracy. You don’t need perfect balance to operate your telescope. In fact, it’s not always possible to achieve perfect balance with fixed-position weights. -
Page 25: T-Adapters And T-Rings
Celestron T-Adapter. Models available: Canon [93413] Canon EOS [93419] Minolta [93400] Minolta Maxxum [93418] If you own an older camera with a thread mount, it will probably accept the Pentax Universal Thread Mount T-Ring. -
Page 26: Tele-Extender
Deluxe Tele-Extender – #93643 The Deluxe Tele-Extender for Schmidt-Cassegrain telescopes is a hollow tube that allows you to attach a camera to your telescope, with an eyepiece installed. By using the Deluxe Tele- Extender in combination with an eyepiece, you can increase your instrument’s effective focal length to well over 10,000mm! And this corresponds with a matching increase in image size. -
Page 27: Computerized Circles/Sky Maps/Books
OMPUTERIZED Digital Setting Circles: Advanced Astro Master ® Computerize your telescope! This pointing system contains a database of over 10,000 objects. Once aligned, it will guide you to any one of these objects. Included are the entire RNGC catalog, the Messier catalog, IC catalog (selected objects), major planets, over 241 interesting double and multiple stars, and a user definable catalog of 25 objects! -
Page 28: Planispheres
Planisphere A simple and inexpensive tool for all levels of observers, from naked eye viewers to users of highly sophisticated telescopes. The Celestron Planisphere makes it easy to locate stars for observing and is a great planet finder as well. A map of the night sky, oriented by month and day, rotates within a depiction of the 24 hours of the day, to display exactly which stars and planets will be visible at any given time. -
Page 29: Stereo Binocular Viewer
The Stereo Binocular Viewer (#93690) allows you to adapt two eyepieces to the telescope for simultaneous viewing (i.e., like binoculars). The result: a fantastic three dimensional effect when observing many celestial objects. The Stereo Binocular Viewer greatly improves contrast and definition on lunar, planetary and solar subject matter as well as on deep sky objects. -
Page 30: Tripods And Accessories
" x 20 threaded hole. The Photo Tripod provides stable support for video cameras, telephoto lenses, spotting scopes and binoculars. This tripod boasts a number of deluxe features, including: oil fluid pan head, peg for video camera attachment, quick release pan head, adjustable aluminum legs,... - Page 31 Lightweight Field Tripod – #93591-A Designed for Celestron’s C5 telescope, this rigid, metal tripod weighs less than 10 lbs. and is very compact when folded up. It’s great for traveling. It can be used with the Celestar 8 telescope when high portability is required. An optional accessory tray (#93594) is available for this tripod.
-
Page 32: Equatorial Wedges
QUATORIAL For optimal performance in astronomical observing that involves setting circles or motorized tracking, Celestron’s telescopes with a fork mount and motor drive must be mounted on an Equatorial Wedge. The wedge allows you to tilt the telescope so that its polar axis (R.A. -
Page 33: Equatorial Mounts
QUATORIAL OUNTS Telescope Equatorial Mount – CG-3 – #91503 A durable, rigid, German equatorial mount with a wooden tripod, offering both affordability and high quality. Designed as an excellent and inex- pensive upgrade option when you’re ready to move to a sturdier mount for your beginning telescope. -
Page 34: Warranty
ELESTRON A. Celestron International (CI) warrants its accessories to be free from defects in materials and workmanship for one year. CI will repair or replace such product or part thereof which, upon inspection by CI, is found to be defective in materials or workmanship. As a condition to the obligation of CI to repair or replace such product, the product must be returned to CI together with proof-of-purchase satisfactory to CI. - Page 36 ® Celestron International 2835 Columbia Street Torrance, CA 90503 TEL (310) 328-9560 • FAX (310) 212-5835 #93685-98 $2.00 Web site at http//www.celestron.com © 1998 Celestron International...
