- Page 1 Bluetooth HeadSet ™ Experience the freedom of wireless communication User Manual F8T064uk P75048uk...
-
Page 3: Table Of Contents
Contents Safety Approvals and Certification ......................2 Introduction ............................. 4 Headset Features ............................ 6 Charging the Headset ..........................7 Wearing the Headset ..........................9 Switching the Headset On/Off ....................... 12 Pairing the Headset ..........................12 Using the Headset ..........................14 Accepting a Call ............................. -
Page 4: Safety Approvals And Certification
Safety Approvals and Certification Users are advised not to make changes or modify the device in any way. Changes or modifications not expressly approved by Belkin will void the warranty. FCC Notices This device complies with part 15 of the FCC rules. Operation is subject to the following two... - Page 5 CE Statement Important Notice: This device is a 2.4GHz FHSS Bluetooth headset, intended for office and home uses in all EU and EFTA member states. The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to Belkin.
-
Page 6: Introduction
Introduction Congratulations on your purchase of a Belkin Bluetooth Headset. The Bluetooth Headset is lightweight, weighing just about 10g. It has both Headset and Hands-Free profiles for more functions, and is compatible with more Bluetooth wireless technology mobile phones. Read this user’s guide carefully before you start using Belkin Bluetooth Headset. - Page 7 Bluetooth Wireless Technology The Bluetooth wireless technology has revolutionised the personal connectivity market by providing freedom from wired connections. It is a specification for a small form-factor, low-cost radio solution providing links between mobile computers, mobile phones and other portable and handheld devices, and connectivity to the Internet.
-
Page 8: Headset Features

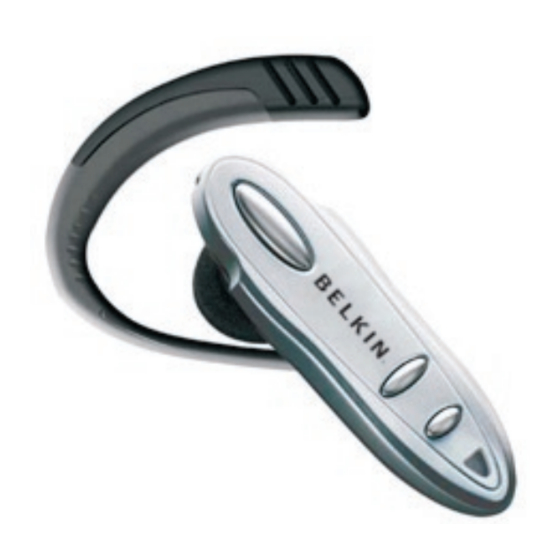

Headset Features Talk Button: Switches the headset on/off, answers/ends a call, pairs the headset with a device, and is used for voice dialing. Volume Up Button: Increases the speaker volume. Volume Down Button: Decreases the speaker volume. LED Indicator: Displays the status of the headset. Microphone: Picks up external audio. -
Page 9: Charging The Headset
Charging the Headset The headset has a rechargeable battery. Before using the headset for the first time, you have to charge the headset battery for approximate 2 hours to get a full charge. A fully charged battery provides up to 7 hours of talk time and over 1 week of standby time. When the battery is low, the LED indicator flashes red. - Page 10 To charge the headset: Connect the AC adapter to the desktop charger, then plug into an electrical outlet. Place the headset in the desktop charger. During charging, the red indicator light on the desktop charger illuminates. When the battery is fully charged, the indicator light on the charger turns green.
-
Page 11: Wearing The Headset
Wearing the Headset The Belkin Bluetooth Headset can be worn either on the right or left ear. The earpiece is adjustable, and the 90-degree, rotatable design ensures a snug yet comfortable fit in your ear. To put on the headset, please follow the instructions as below: Directly put the earpiece into your outer ear canal. - Page 12 Wearing the Clip Easy to carring via Clip. Putting on the Headset Put on the headset with the ear hook behind your ear. Make sure the microphone is pointing towards your mouth.
- Page 13 To adjust the ear hook for right-ear use To adjust the ear hook for left-ear use (micro adjustable) (micro adjustable) Changing cover Suite your style and match your mood with Belkin cut-out-covers. Pull out the current cover as shown, then push your favorite cover in.
-
Page 14: Switching The Headset On/Off
Switching the Headset On/Off To switch the headset on Press the Talk button for about 5 seconds until you hear a low tone followed by a high tone. The LED indicator flashes blue four times. The headset switches on and enters standby mode. The LED indicator continuously flashes blue every 3 seconds. - Page 15 Perform a device discovery from the mobile phone. (For details on device discovery, please consult your phone’s user’s guide.) Once the mobile phone discovers the headset, the text Belkin appears on the phone’s screen. Follow the phone instructions to accept pairing. When prompted to enter the passkey, enter the number : 0000.
-
Page 16: Using The Headset
Using the Headset Before using the headset, make sure that (1) the headset is switched on and connected to a paired. Bluetooth mobile phone; (2) the headset is within 10 meters of the phone; and (3) the phone’s Bluetooth feature is on (see your phone’s user’s guide). NOTE: The headset supports both Headset and Hands-Free profiles. -
Page 17: Rejecting A Call
Rejecting a Call When a call comes and you do not want to answer it, you can press the Talk button for 2 seconds to reject the call. Making a Call You can make a call through: Voice activation To use voice activation, the mobile phone must support voice dialing. For details on voice dialing, please see your phone’s user’s guide. -
Page 18: Redialing The Last Number
Redialing the Last Number To redial the last phone number, press the Volume Down button for 3 seconds. Volume Control During a call, you can adjust the headset speaker volume. An audio tone is played for each volume up and volume down step. To increase the volume, press the Volume Up button repeatedly until you reach the desired level. -
Page 19: Mute/Un-Mute
Mute/Un-mute To mute the headset sound during a call, press the Volume Up button and the Volume Down button for 2 seconds, and you hear 1 tones repeated every 20 seconds. Upon activating the mute function, the person on the other side won’t hear you, but you can hear all sound generated from the other side. -
Page 20: Headset Led Indicator
Headset LED Indicator Status Blue LED Red LED Interval Remarks Turning on 4 times Turning off 4 times Pairing mode Flashes blue and red alternatively until the pairing is complete or time out. Standby mode 3 times 3 times 3 seconds Flashes red when low battery Incoming call... -
Page 21: Audio Tones
Audio Tones Switching on Quick series of 2 tones, low to high Switching off Quick series of 2 tones, high to low Pairing mode 1 tones Incoming call A ring tone at a 2-second interval Mute 1 tones repeated every 20 seconds Un-mute Single tone Low battery... -
Page 22: Specifications
Specifications Standard Compliant with Bluetooth specification v1.1 / v1.2 Chipset BlueCore2-Audio single chipset Profile Supported Bluetooth Headset & Hands-free profiles Radio Frequency 2402 MHz ~2480 MHz Transmitter Power Class 2 (max 4dBm) Transmission Range Up to 10 meters Receiver Sensitivity -78 dBm Charger Power Supply 5VDC / 200 mA... -
Page 23: Limited Warranty
Belkin warrants this product against defects in materials and workmanship for its warranty period. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period with transportation charges prepaid to the authorized Belkin dealer from whom you purchased the product. - Page 24 © 2005 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. The Bluetooth name and the Bluetooth trademarks are owned by Bluetooth SIG, Inc. and are used by Belkin Corporation under license. Mac, Mac OS, and Apple are trademarks of Apple Computer, Inc., registered in the U.S.
