Step 1: Mount Outside
Antenna

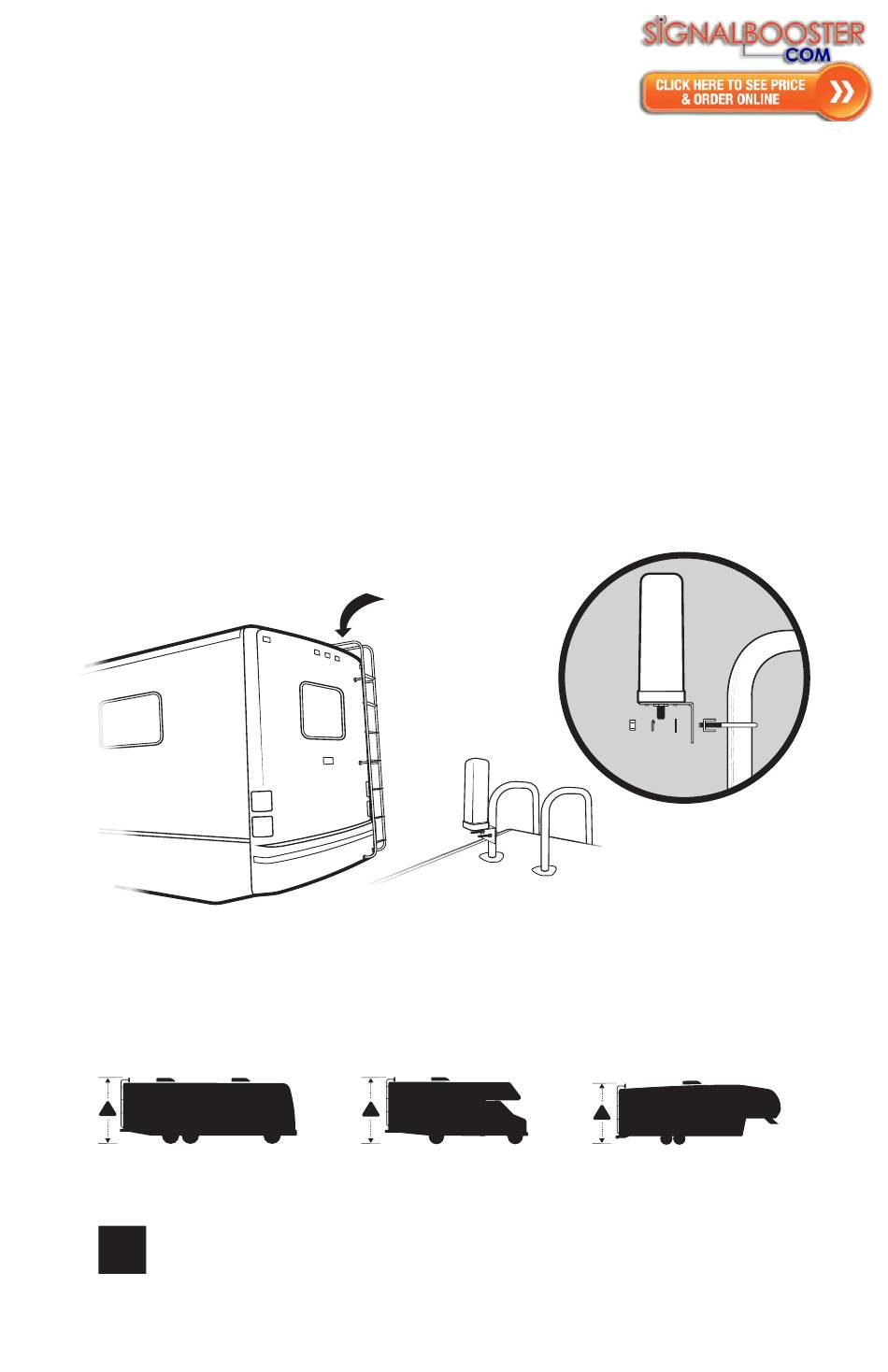

Determine where you want to have the outside antenna on
your RV. Mount outside antenna to a pole or ladder so that the
entire outside antenna is above the roof line of the RV and
clear of other metal obstructions.
NOTE: This must be in a location within reach of the booster with the
20' coax cable (installed in Step 4).
NOTE: Keep in mind to stay below the max height limit allowed by law, which
varies from state to state (generally 14' in western states and 13'6" in
eastern states).
!
2
good outside
antenna location
!

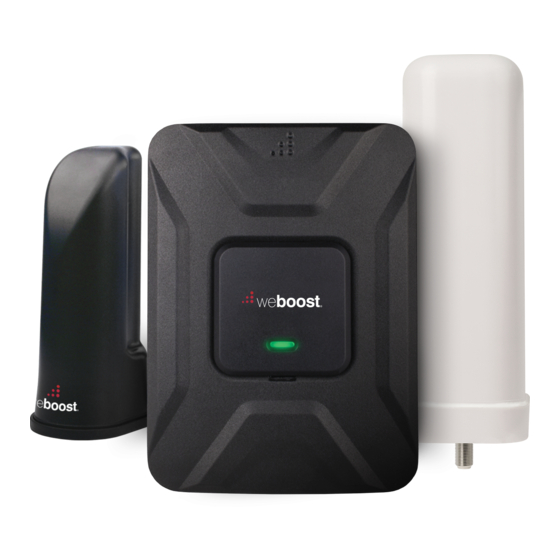

CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV
!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SIGNAL BOOSTER 470410
Summary of Contents for SIGNAL BOOSTER 470410
- Page 1 NOTE: Keep in mind to stay below the max height limit allowed by law, which varies from state to state (generally 14’ in western states and 13’6” in eastern states). CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV...
- Page 2 Drill a 1 inch hole toward the top of the RV that goes into the desired location. Do not put this hole on the top of the RV. WARNING: Be sure to stay clear of any power, pipes, etc. that may be damaged. 1 inch bit DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER...
- Page 3 Outside Antenna Connect the RG-6 cable to the outside antenna and route through the rubber ring of the cable entry cover, then into the newly drilled hole rubber ring of the cable entry cover CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV...
-
Page 4: Step 4: Booster Location
Snap booster back into bracket. NOTE: We recommend in a cabinet near a power source. Be sure it’s in a location that the 20’ RG-6 cable can reach. good booster location DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER... - Page 5 ______ Step 5: Connect Outside Antenna Cable To Booster Fasten the end with smaller SMA connection to the ‘Outside Antenna’ port on the booster. be sure to hand tighten only CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV...
- Page 6 RV. We strongly recommend using an RTV sealant from the cable inside to prevent moisture, insects, & other mounts undesired things from entering the RV. DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER...
- Page 7 Connect the 13’ RG-58 cable to the ‘Inside Antenna’ port on the booster. Route the cable where you want to receive the boosted signal. Connect the inside antenna to the cable. Inside Antenna best when used within 4-10 feet of cellular device CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV...
- Page 8 ______ Step 8: Power Up The Booster Connect power cable to booster, then into 110V Wall plug and enjoy! NOTE: We’ve included a fused 12V hardwire power supply option as well. DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER...
