  • Page 1 GOPOWERBIKE GoExpress...
  • Page 2 DO NOT RETURN TO STORE! If you need any help with your new GoExpress bike, whether it is missing parts or you need help with assembly, please email us at help@gopowerbike.com or call us at 917-900-1110. We will be sure to respond...
  • Page 3 Please read and understand this manual fully before assembling and riding your bike. If you have questions after reading this manual, please reference the GoPowerbike Help Center, contact us by email, or give us a call. We are here to help! Email: help@gopowerbike.com...

  • Page 4: Table Of Contents

    Table of Contents Using This Manual General Info Assembly Instructions Battery Charging Operation Maintenance Troubleshooting Warnings and Safety Limited Warranty...

  • Page 5: Using This Manual

    Assembly and first adjustment of your bike from Gopowerbike requires special tools and skills and it is recommended that this should be done by a certified, reputable bike mechanic if possible.

  • Page 6: General Info

    NOTICE: A critical aspect of assembling your bike by Gopowerbike is securing the front wheel and checking the tightness of the rear wheel axle nuts. All bikes by Gopowerbike use a quick release front wheel mounting mechanism and the rear wheel is bolted on. These mechanisms may become loose or unsecured during shipment or over time.
  • Page 7 If the throttle, brake lever cutoff switches, pedal assistance, or lighting are functioning abnormally, intermittently, or not working, please discontinue using your ebike immediately and contact the Gopowerbike Product Support team for assistance. Quick Release Levers Quick release levers are located on your ebike to secure the seatpost and the front wheel to the bike.
  • Page 8 Handlebar grips should not move easily on the handlebar end. Loose, worn, or damaged handlebar grips should be replaced before you ride and can be purchased from Gopowerbike. The seat and seatpost should be properly aligned, fitted to the user, and the seatpost quick release should be properly tightened, fully closed, and secured before riding.

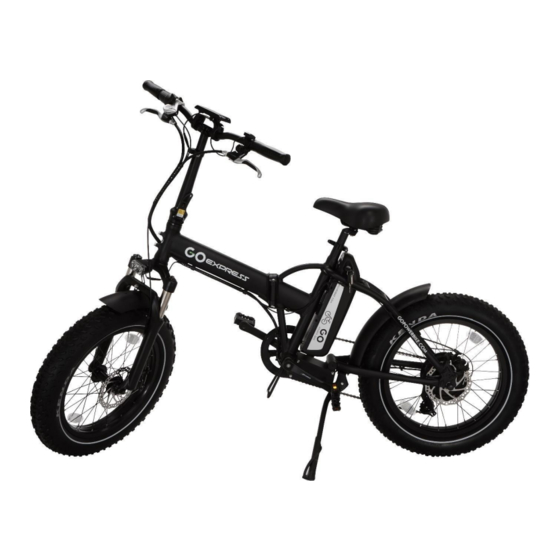

  • Page 9 Fully Assembled GoExpress Fully Assembled and Folded...

  • Page 10: Assembly Instructions

    1: Unpack the bike. Open the bike box and remove the small box inside. With the help of another person capable of safely lifting a heavy object, remove the GoExpress from the bike box. Carefully remove the packaging material protecting the bike frame and components. Please recycle packaging materials especially cardboard and foam whenever possible.
  • Page 11 Step 2: Unfold handlebar stem. Insert the handlebars into the handlebar stem and close the quick release clamp, as shown below. Then carefully rotate the handlebar stem upwards and close the bottom hinge.
  • Page 12 Step 3: Unfold the bike. Turn the front wheel slightly to the right until the frame is unfolded and both sides of the central hinge are touching.
  • Page 13 Step 4: Secure central hinge. Pull directly upward on the quick release lever to lift the hinge pin, and at the same time, push the bike frame together so the hinge is fully closed. Step 5: Complete unfold. Swing the frame hinge quick release lever toward the front of the bike so it is parallel to the frame.
  • Page 14 NOTICE: GoExpress pedals are designed to fold by pressing the pedal end directly toward the crank and then folding. Use caution to keep fingers, clothing, etc. away from the folding parts and potential pinch...
  • Page 15 Step 7: Inflate the tires. Check that the tire beads and tires are evenly seated around the rims. Use a pump with a Schrader valve and pressure gauge to inflate each tire to the recommended pressure indicated on the tire sidewall. Do not overinflate or underinflate tires.
  • Page 16 Step 8: Set the desired seat height. Open the quick release lever by hinging it open fully. Ensure the seatpost clamp opening is aligned with the notch at the front of the seat tube. Adjust the seatpost up or down to a comfortable height, while ensuring the seatpost is inserted into the frame past the minimum insertion point.
  • Page 17 NOTICE: If you have any questions regarding the assembly of your bike, contact GoPowerbike. If you are not able to ensure all the assembly steps in the assembly video are performed properly, or you are unable to view the assembly video, please consult a certified, reputable local bike mechanic for assistance in addition to contacting GoPowerbike for help.
  • Page 18 Adjusting Seat Height For most users, the seat height should be set by placing the ball of their foot on the pedal when the crank is at its lowest point. In this orientation their leg should almost be fully extended, with a slight bend at the knee.
  • Page 19 Before using the bike, always check to ensure that the folding mechanism locks on the central frame hinge, handlebar stem hinge, pedals, and seatpost quick release lever are properly and securely locked. Check that they are correctly secured before every ride and after every time the bike is left unsupervised, even for a short time.
  • Page 20 NOTICE: If you have any questions regarding the proper fit of your bike please consult a certified, reputable local bike mechanic for assistance fitting the bike to a rider or contact GoPowerbike.

  • Page 21: Battery Charging

    Battery Charging Charging Procedure Follow these steps for charging your bike from GoPowerbike: 1. Ensure the battery is off by having the battery pack on the 0 button 2. Remove the rubber cover on the charging port on the opposite side of the battery from the key 3.
  • Page 22 Battery Charging Information Check the charger, charger cables, and battery for damage before beginning each charge. Always charge in a safe area that is cool*, dry, indoors, away from direct sunlight, dirt, or debris, in a clear area away from potential to trip on the charging cords, or for damage to occur to the bike, battery, or charging equipment while parked and/or charging.
  • Page 23 Use caution to avoid damage to battery connector terminals, which are exposed when the battery is unlocked and removed from the frame of the bike. In the case of damage to the terminals or battery mounts, please discontinue use and contact GoPowerbike Product Support immediately. When Installing the Battery onto the Bike Ensure the battery is off before sliding the battery onto the frame mount receptacle.
  • Page 24 Do not charge the battery with any chargers other than the one originally supplied from GoPowerbike or a charger designed for use with your specific bike purchased directly from GoPowerbike.
  • Page 25 Long-Term Battery Storage If storing your bike from GoPowerbike for longer than two weeks at a time, follow the instructions below to maintain the health and longevity of your battery. Charge (or discharge) the battery to approximately 75% charged. Power off the battery either locked to the frame or unlocked and removed from the frame for storage Store the battery in a dry, climate controlled, indoor location between 50 °F –...

  • Page 26: Operation

    Contact GoPowerbike if you have any questions about assembly or operation.
  • Page 27 Handlebar Features Location on Handlebar Component LCD Display Remote LCD Display Shifter Throttle...
  • Page 28 LCD Display Information The table and image below show the various features and information displayed on the LCD display. Location Information on Display Battery Charge Indicator Distance (Odometer, Trip Odometer) Distance Unit (kilometers (Km), miles (Mile)) Speed Unit (kilometers per hour (Km/h), miles per hour (MPH)) Operation Mode Watt Meter, Error Code Indicator...
  • Page 29 LCD Display Operations Operation Directions Turn on bike Press and hold M button until power engages Turn on headlight, taillight, Press and hold up arrow until light illuminates Activate brake light When bike is on, squeeze brake lever Increase pedal assist (PAS) level Press and release up arrow Decrease pedal assist (PAS) level Press and release down arrow...
  • Page 30 Start-Up Procedure After the bike has been properly assembled if all components are secured correctly, and you have read this entire manual, you may turn the bike on and select a power level following the steps outlined below: 1) Turn on the battery pack...
  • Page 31 2) Press and hold the ‘’M’’ Button for 3 seconds...
  • Page 32 3) Turn on the Headlight/Taillight press and hold the UP arrow for 3 seconds...
  • Page 33 Begin riding carefully. With the proper safety gear and rider knowledge, Press the red button and you may now operate your bike from GoPowerbike. On a flat surface, in a low gear (1 or 2), most riders should be able to begin pedaling the bike with pedal assist level 0 or 1.
  • Page 34 Brake Light Features and Operations Your ebike by GoPowerbike comes equipped with a taillight/brake light that is integrated into the electrical system. Anytime the bike is powered on, squeezing one or both brake levers on the handlebar will cause the brake light to illuminate.
  • Page 35 Battery Charge Level Indicator The LCD display on the handlebars of your bike from GoPowerbike features a battery charge level indicator (like a fuel gauge on a car). This indicator calculates battery life based on the battery power output (instantaneous voltage reading) and can fluctuate while riding if power demand and/or output changes.
  • Page 36 Driving Range The range of your bike from GoPowerbike is the distance the bike will travel on a single full charge of the onboard battery. The range values in this manual are estimates based on expected usage characteristics of bikes by GoPowerbike. Some of the factors that affect range include changes in elevation, speed, payload, acceleration, number of starts and stops, ambient air temperatures, tire pressure, and terrain.
  • Page 37 Carrying Loads MAXIMUM PAYLOAD CAPACITY FOR GoExpress The total maximum weight limit, or payload capacity, of the GoExpress (300 LBS) includes the weight of the rider as well as clothing, The GoExpress is compatible with the optional rear rack and safety gear, cargo, accessories, passengers, etc.

  • Page 38: Maintenance

    Basic Bike Care To ensure safe riding conditions you must properly maintain your bike from GoPowerbike. Follow these basic guidelines and see a certified, reputable bike mechanic at regular intervals to ensure your bike is safe for use and fun to ride. See the Pre-Ride Safety Checklist and Recommended Service Intervals sections in this manual for more detailed information.
  • Page 39 Pre-Ride Safety Checklist Notice: Before every ride, and after every 25-45 miles (40-72 km), we advise following the pre-ride safety checklist. Safety Check Basic Steps 1. Brakes Ensure front and rear brakes work properly. Check brake pads for wear and ensure they are not overworn. Ensure brake pads are correctly positioned in relation to the rims.
  • Page 40 Check that the frame and fork are not bent or broken. 8. Frame, Fork, If either frame or fork are bent or broken, they should be replaced. and Seat Check that the seat is adjusted properly, and seatpost quick release lever is securely tightened. Ensure hub motor is spinning smoothly and motor bearings are in good working order.
  • Page 41 Tire Inflation and Replacement The GoExpress employs 20’’ x 4.25’’ rubber tires with inner tubes. The tires are designed for durability and safety for regular cycling activities and to be checked before each use for proper inflation and condition. Proper inflation, care, and timely replacement will help to ensure that your bike’s operational characteristics will be maintained, and unsafe conditions avoided.

  • Page 42: Troubleshooting

    Error Detection Your bike from GoPowerbike is equipped with an error detection system integrated into the display and controller. In the case of an electronic control system fault an error code should display. If your bike has an error code displayed at...

  • Page 43: Warnings And Safety

    ● Be careful at intersections and when preparing to pass other vehicles or other cyclists. ● Familiarize yourself with all the features and operations of the bike by GoPowerbike. Practice and become proficient at shifting gears, applying the brakes, using the power assist system, and using the throttle in a controlled setting before riding in riskier conditions.
  • Page 44 Safety Notes The following safety notes provide additional information on the safe operation of your bike from GoPowerbike and should be closely reviewed. Failure to review these notes can lead to serious injury or death. ● All users must read and understand this manual before riding their bike from GoPowerbike. Additional manuals for components used on the bike may also be provided and should be read before installing or using those components.
  • Page 45 Wet Weather It is recommended to not ride in wet weather if avoidable. Ride in wet weather only if necessary. This electric bike is not meant for use in puddles, heavy rain, or streams. Never immerse or submerge this product in water or liquid as the electrical system may be damaged.
  • Page 46 ● Any aftermarket changes to your bike from GoPowerbike not expressly approved by GoPowerbike could void the warranty and create an unsafe riding experience.
  • Page 47 A Note for Parents and Guardians As a parent or guardian, you are responsible for the activities and safety of your child. The GoExpress is not designed for use by children under the age of 18. If you are carrying a passenger in a child safety seat, they should also be wearing a properly fitted and approved helmet.

  • Page 48: Limited Warranty

    Limited Warranty Warranty Info Every bike by GoPowerbike is covered under a manufacturer's one-year all-inclusive warranty for the original owner against all manufacturing defects. GoPowerbike warrants this product, including all individual components against defects in material or workmanship as follows:...
  • Page 49 Components of the GoExpress are subject to higher wear when compared to bikes without power assistance. This is because the GoExpress can travel at higher average speeds than regular bicycles and has a greater weight. Higher wear is not a defect in the product and is not subject to warranty.
  • Page 50 We are here to help! If you have questions, please: Contact us directly by email to help@gopowerbike.com Call GoPowerbike Product Support 917-900-1110 V5.002...
