SPF2000-V-TY Smart Pet Feeder
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pawmate SPF2000-V-TY and is the answer not in the manual?

Questions and answers

Related Manuals for Owon Pawmate SPF2000-V-TY

Summary of Contents for Owon Pawmate SPF2000-V-TY

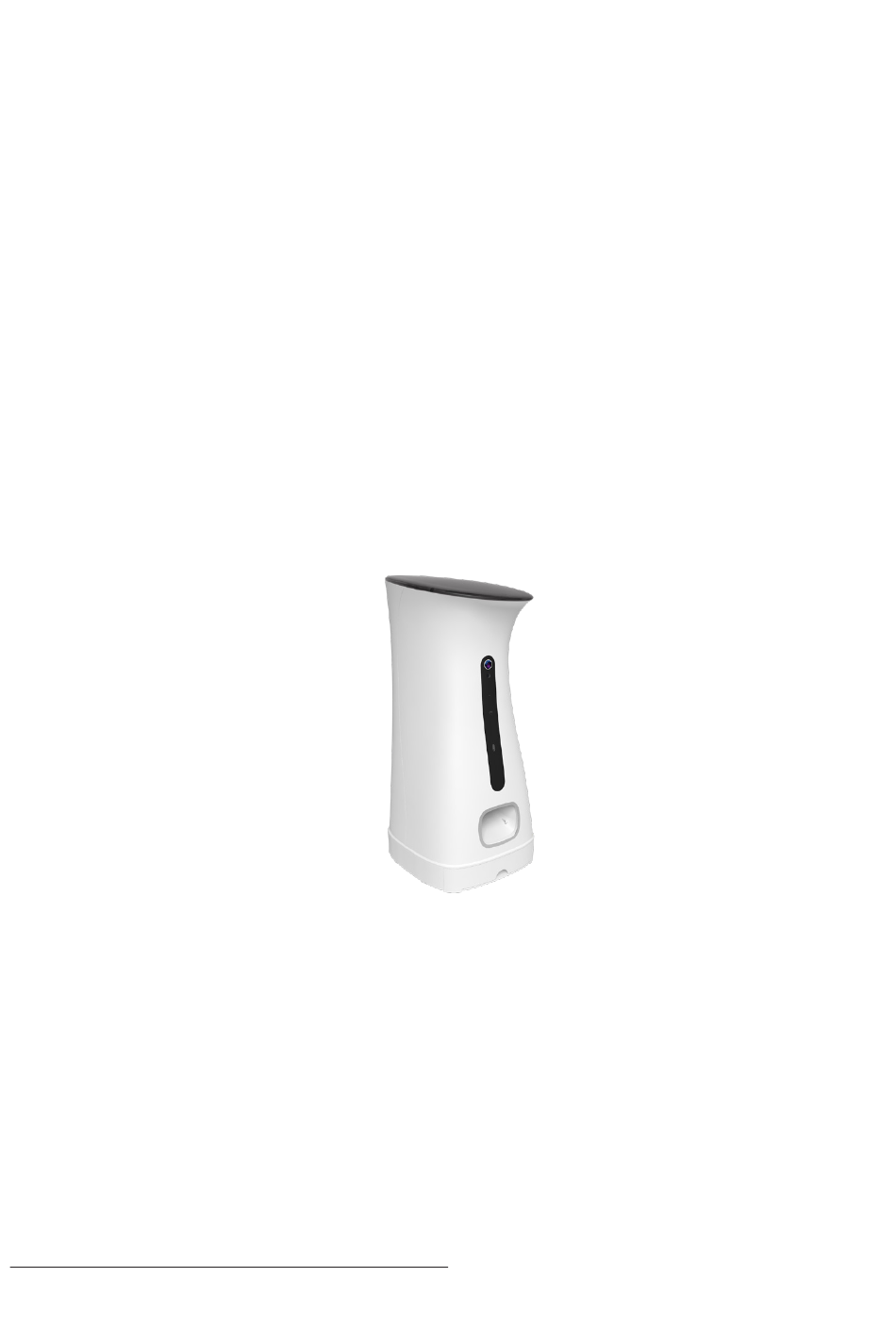

  • Page 1 SPF2000-V-TY Smart Pet Feeder Quick Start Guide...
  • Page 3 Preface Quick start by the following steps: Scan the QR Code behind the Pet Feeder with your smartphone or • search 'Smartlife' APP from App store to download. Make sure the Wi-Fi indicator lamp is rapidly blinking. If not, please •...

  • Page 4: Safety Notice

    Safety Notice WARNING: Failure to follow these safety notices could result in fire, electric shock, other injuries, or damage to the Smart Pet Feeder and other property. Read all the safety notices below before using the Smart Pet Feeder. • Avoid high humidity or extreme temperatures. • Avoid long exposure to direct sunlight or strong ultraviolet light.

  • Page 5: Technical Specifications

    Technical Specifications Hopper Capacity • 7.5L Auto Feeding Time • 1-8 meals per day Microphone • 10 meters, -30dBV/Pa Speaker • 8 Ohm 1w • DC power cord Power • Backup batteries: 3 x D cell Dimension • 230 x 230 x 500 mm N. W. • 3.76 kgs Color • White...
  • Page 6 Welcome The Smart Pet Feeder allows you to feed remotely or apply schedules for automatic feeding. With HD camera, you can even interact with your pets using voice from your mobile phone when you're not home. This guide will provide you with an overview of the product and help you get through the initial setup.
  • Page 7 In the box • Pet Feeder x 1 • Power Adapter x 1 • Quick Guide x 1 • Cord Hose Protector x 1 • Stand x 1 Please check the condition and the accessories of pet feeder after you open the box.

  • Page 8: Get To Know Your Device

    Get to know your device Cover Buttons & display (Open the cover) HD camera Night vision Microphone Wi-Fi indicator Fault indicator lamp Food outlet Bowl Wi-Fi indicator The Wi-Fi status gives the following information: Wi-Fi Status What it means Flashing Pet Feeder has not joined the Internet.
  • Page 9 Battery box Speaker Power jack Power switch Battery box 3 x D-size batteries. Please pay attention to the polarity. Please note that the battery charging is for backup purpose only. If you wish to control the pet feeder remotely, power supply is needed. Speaker Play sound.

  • Page 10: Button Introduction

    Button Introduction: Lock. Hold the button for 6 seconds then release it to lock all buttons. Hold it again for 6 seconds then release it to unlock. Reset network configuration. Hold the button for 6 seconds then release it. After beep sound and the start-up sound, the network configuration will be reset.

  • Page 11: Display Introduction

    Display Introduction: Key lock Current Meal Total Meals Battery Level CURRENT Total Meals MEALS Feed Time TIME Current Portion PORTION : TOTAL System time Total Portion History Setup manually • Setup system time 1. Press 'SET', the Hour of system time starts flashing, press 'UP' to set the hour, and then press 'OK' to confirm.

  • Page 12: Get Started

    Get started To get started, you will need: • A Wi-Fi network. • A mobile phone with a mobile APP installed. Then follow the steps below: 1. Power on the Smart Pet Feeder. 2.Make sure the Wi-Fi indicator lamp is rapidly blinking. If not, please reset the network configuration.
  • Page 13 5. Confirm your Wi-Fi indicator is rapidly blinking. Then enter your home Wi-Fi account and password(Only support 2.4Ghz Wi-Fi) 6. Place the router, mobile phone, and Pet Feeder as close as possible. Confirm the indicator on your device is rapidly blink, then tap 'Next' to wait for connection.

  • Page 14: Wifi Network Configuration

    4.2 WiFi Network Configuration FAQS: 1. Device not responding : Please confirm your WI-FI is 2.4 Ghz and the password is correct.
  • Page 15 2.More device-pairing FAQS: Connecting your device How to connect Step 1: Add device 1. Connect your device to the power source and turn it on 2. Open the App, select '+' on the top right of the home page to add device.
  • Page 16 Step 2: Enter Wi-Fi Password Select the Wi-Fi through which the device can connect to the Internet, and enter the Wi-Fi password. Then click 'OK' to proceed to net-pairing. Only 2.4G Wi-Fi is supported at this moment, please check if the Wi-Fi network is 2.4G. Finally, wait a few seconds until it displays that network has successfully been paired.
  • Page 17 5. Make sure the router password is correct. 6. Make sure the device has been added using 2.4G WiFi band. Enable the Wi-Fi broadcast function and do not set it to hidden mode. 7. Make sure that the encryption method of the router's wireless setting is WPA2-PSK and the authentication type is AES, or both are set as automatic.
  • Page 18 try to turn off some device's Wi-Fi functions and configure it again. 10. If the router has enabled the wireless MAC address filter, try to remove the device from the router's MAC filter list to ensure the device is not prohibited by the router to connect to the network.
  • Page 19 What if the device is off line 1. Please make sure the device has been powered on; 2. Please check if the network is stable. Checking method: put a mobile phone or an iPad next to the device and make sure they are connected to the same network, then try to open a web page;...

  • Page 20: App Overview

    4.3 App Overview: Home management Add Device Location Voice Control Information Room Management Device List Home: 1. Device list You can check the added device, tap one to enter control board 2. Location information Information about your local weather conditions, outdoor temperature, PM 3.
  • Page 21 Device settings On/Off the sound Full screen Video Definition Control board: Select the target Pet Feeder in device list then enter the control board • Screenshot Press to save the current image of camera to the phone's photo gallery • Talk Press it to talk through the Feeder.
  • Page 22 • Playback Playback your record video on your SD card • Schedule Program time periods, cycle and portion to feed automatically. Timer tolerance may be about +/- 30 seconds. It supports up to 8 schedules can be set. • Feed Set portion to feed manually once •...
  • Page 23 1.How do I install the stand Align the stand with the hole at the bottom. Gently push the stand into the hole at the bottom. 2.Where should the TF card be installed Open the cover and remove the food storage bucket. There is a slot inside the Pet Feeder.
