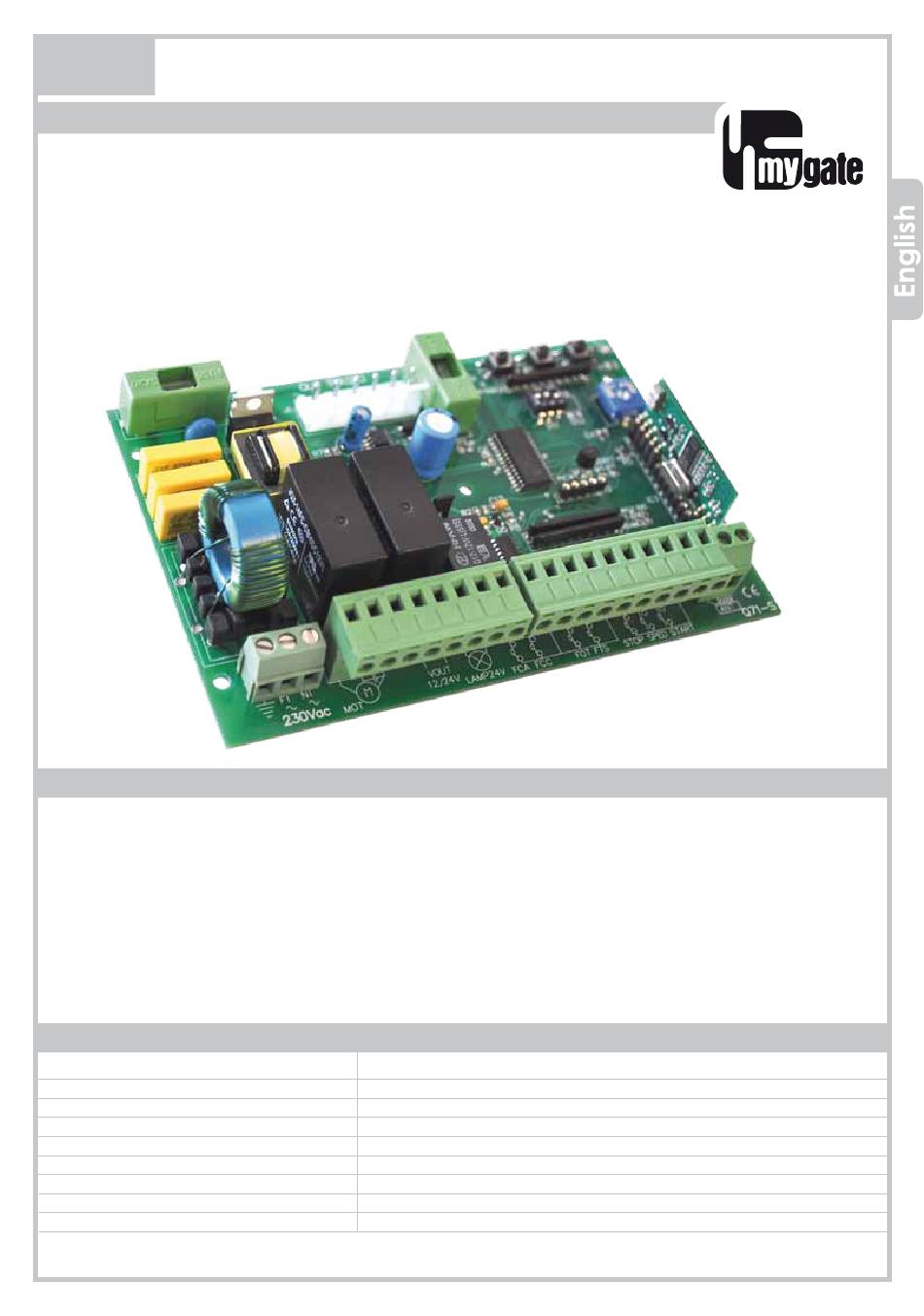

Q71S
CONTROL PANEL FOR
SLIDING GATES
Q71S

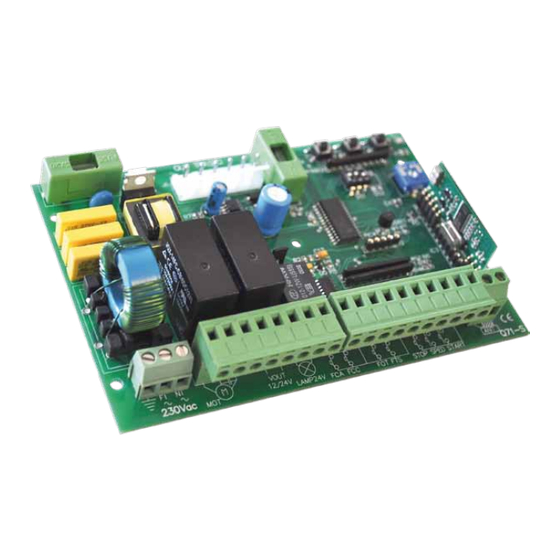

Control panel for sliding gate automation 230Vac
•
Streamlined programming procedure
•
Automatic setting of the obstacle detection level
•
Automatic setting of the deceleration time
•
Deceleration speed adjustment
•
Pause-time adjustment
•
Electric limit-switch in opening and closing
•
Outputs for safety photocells in opening and in closing
•
Outputs for START, PARTIAL OPENING and STOP push-buttons
•
Output for safety flashing light (Blinker)
TECHNICAL FEATURES
Control Panel Dimensions
Control Panel Weight
Transformer
Transformer Weight
Blinker Power Supply
Accessories Power Supply
Working time
Pause-time
Obstacle Detection Level
Instructions Manual
140 x 95 x 38 mm
0,186 Kg
30VA 230/0 - 12 - 24Vac
0,60 Kg
24Vdc max 20W
12Vdc – 24Vdc, max 3W
ADJUSTABLE
ADJUSTABLE
AUTOMATIC
230V ac
Advertisement
Table of Contents
Related Manuals for MyGate Q71S
Summary of Contents for MyGate Q71S
- Page 1 Q71S CONTROL PANEL FOR 230V ac SLIDING GATES Q71S Instructions Manual Control panel for sliding gate automation 230Vac • Streamlined programming procedure • Automatic setting of the obstacle detection level • Automatic setting of the deceleration time • Deceleration speed adjustment •...
- Page 2 WARNINGS This manual contains important information regarding personal safety. An incorrect installation or an improper use may cause serious damages to person(s) or object(s). Read carefully and pay particular attention to the safety sections marked by the symbol : Store this manual safely for future use. All wirings or operations on the control panel must be performed with the control panel disconnected from the power supply.
- Page 3 WIRING Diagram for 230V ac motor Transformer 230V /0-12-24V ac 30VA plug OUT TRASFO 230V ac MAINS 230V START STOP Motor 230V Flashing Light 24Vac max 20W 12V dc /24V ac Q71S_1_2011...
- Page 4 ELECTRIC WIRINGS Please refer to the diagram in chapter 2 for a correct wiring. MOTOR wiring Wire the motor to plugs nr 4-5-6 on J4. FLASHING LIGHT wiring You can wire a flashing light (max 20W) to plugs nr 10-11 on J4. QUICK flashing →...
- Page 5 Selecting the OPERATING MODE Three different operating modes can be selected trough DS1 dip-switches as follows: STEP by STEP Mode A first START command makes the gate OPEN. A second START command while the gate is opening will STOP the gate. A further START command makes the gate CLOSE.
- Page 6 Programming of RADIO TRANSMITTERS DELETING all Radio Transmitters For your security we recommend you to delete all factory radio code memorized on the control panel: Keep P1 button on the control panel pressed until DL1 goes off (about 10 seconds). All radio codes have been deleted.
- Page 7 PAUSE-TIME setting Keep P3 button on the control panel pressed until LED DL1 lit and stays on, then release the button. • Wait for the time you want to set as pause-time and then press again P3. • DL1 light goes off: the pause-time has been saved in the control board’s memory. •...
