- Page 1 V-PUMP • DIRECT DRIVE JEFC100V10B Series User Manual v.1.1...

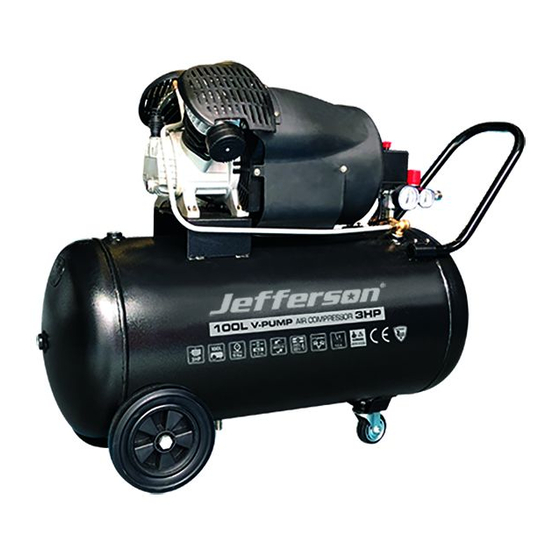

- Page 2 USER MANUAL JEFC100V10B Series 100L V-PUMP AIR COMPRESSOR • 3HP • 10Bar • Direct Drive www.jeffersontools.com...
-
Page 3: Table Of Contents
Important: Please read all these instructions before operating this product and save these instructions. This manual has been compiled by Jefferson Tools and is an integrated part of the product with which it's enclosed and should be kept with it for the future reference. -
Page 4: Introduction
10bar (145psi) 10bar (145psi) Guaranteed Sound Power: 96 dB LWA 96 dB LWA Lubrication: Jefferson HT68 Compressor Oil Jefferson HT68 Compressor Oil Weight: NW: 56kg / GW: 61kg NW: 56kg / GW: 61kg Box Dimensions: 955 x 396 x 855mm 955 x 396 x 855mm www.jeffersontools.com... -
Page 5: Unpacking & Assembly
PLEASE NOTE THE FOLLOWING PHOTOGRAPHS & INSTRUCTIONS ARE FOR REFERENCE ONLY AND MAY DIFFER FOR YOUR COMPRESSOR MODEL. PLEASE CONTACT JEFFERSON TOOLS IF YOU NEED ANY ADVICE ON THE ASSEMBLY PROCEDURE. Fig.1 Fig.2... -
Page 6: Equipment Identification
USER MANUAL JEFC100V10B Series 100L V-PUMP AIR COMPRESSOR • 3HP • 10Bar • Direct Drive EQUIPMENT IDENTIFICATION 1. Tank Outlet (sealed) 10. Handle 2. Tank Rating Plate 11. Airline Coupler (Air Outlet) 3. Oil Sight Level Glass 12. Tank Pressure Gauge 4. -
Page 7: Before First Use
Check oil Level: Before using the compressor check the oil level using the dipstick. If the oil is not up to the mark it should be topped up with Jefferson HT68 Compressor oil (see Fig.6). Sight glass / Oil Level: The compressor oil level can be viewed through the sight glass;... -
Page 8: Safety Guidelines
USER MANUAL JEFC100V10B Series 100L V-PUMP AIR COMPRESSOR • 3HP • 10Bar • Direct Drive SAFETY GUIDELINES Read and ensure that you understand all of the operating instructions, safety precautions and warnings in this Instruction Manual before operating or maintaining this compressor. Most accidents that result from compressor operation and maintenance are caused by the failure to observe basic safety rules or precautions. - Page 9 Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly. • Only use Jefferson approved replacement parts. Non-approved parts will void your warranty and can lead to malfunction and resulting injuries. Genuine parts are available from Jefferson your dealer.
-
Page 10: Warning Labels
USER MANUAL JEFC100V10B Series 100L V-PUMP AIR COMPRESSOR • 3HP • 10Bar • Direct Drive WARNING LABELS Label Potential Hazard Prevention Water directed at electrical connections or switches, or Never attempt to clean the air compressor while it is objects connected to an electrical circuit, could result in running. -
Page 11: Operation Guide
USER MANUAL JEFC100V10B Series 100L V-PUMP AIR COMPRESSOR • 3HP • 10Bar • Direct Drive OPERATION GUIDE WARNING: Take care when selecting tools for use with the compressor. Air tool manufacturers normally express the volume of air required to operate a tool in cubic feet per minute (cfm). This refers to free air delivered by the compressor (‘air out’) which varies according to the pressure setting. -
Page 12: Troubleshooting
USER MANUAL JEFC100V10B Series 100L V-PUMP AIR COMPRESSOR • 3HP • 10Bar • Direct Drive TROUBLESHOOTING FAULT CAUSE REMEDY Tank pressure drops continually. Air leak, check all connections. Locate and rectify leak. Run the compressor at maximum pressure then switch off and disconnect. Brush a soapy water solution over the connections and look for bubbles. -
Page 13: Maintenance
Replace the oil cap and be sure to tighten this nut securely (you can use some PTFE tape on the thread to help create a tighter seal before tightening). • Fill the oil reservoir with a compatible compressor oil (e.g Jefferson HT68 Compressor Oil). Checking / Cleaning the Air Filter •... -
Page 14: Environmental Protection
USER MANUAL JEFC100V10B Series 100L V-PUMP AIR COMPRESSOR • 3HP • 10Bar • Direct Drive ENVIRONMENTAL PROTECTION Recycle any packaging and unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. -
Page 15: Parts List & Diagram - Main Assembly
USER MANUAL JEFC100V10B Series 100L V-PUMP AIR COMPRESSOR • 3HP • 10Bar • Direct Drive PARTS LIST & DIAGRAM - MAIN ASSEMBLY Description Description Description Plug (Socket Head) Handle Sleeve Hex Nut Quick Coupler Check Valve SP Washer Pressure Regulator... -
Page 16: Parts List & Diagram - Pump Assembly
USER MANUAL JEFC100V10B Series 100L V-PUMP AIR COMPRESSOR • 3HP • 10Bar • Direct Drive PARTS LIST & DIAGRAM - PUMP ASSEMBLY Description Description Description Oil sightglass Scraping Ring Hex Nut O-Ring Cylinder SP Washer Hex.bolt Location Pin Capacitor Front cover... -
Page 17: Ec Declaration Of Conformity
100L V-PUMP AIR COMPRESSOR • 3HP • 10Bar • Direct Drive EC Declaration of Conformity We, Jefferson Professional Tools & Equipment, as the authorised European Community representative of the manufacturer, declare that the following equipment conforms to the requirements of the following Directives:... -
Page 18: Limited Warranty Statement
Jefferson will assume both the parts and labour expense of correcting defects during the stated warranty periods below. All warranty periods start from the date of purchase from an authorised Jefferson dealer. If proof of purchase is unavailable from the end user, then the date of purchase will be deemed to be 3 months after the initial sale to the distributor. - Page 19 • A Warranty Returns form will be sent to you for completion and return by post or fax, together with details of your nearest authorised Jefferson repair centre. On receipt of this form Jefferson will arrange to collect the equipment from you at the earliest convenience.
-
Page 20: Www.jeffersontools.com
USER MANUAL JEFC100V10B Series 100L V-PUMP AIR COMPRESSOR • 3HP • 10Bar • Direct Drive IMPORTANT! SAFETY FIRST! Before attempting to use this product please read all the safety precautions and operating instructions outlined in this manual to reduce the risk of fire, electric shock or personal injury.
