Operation
36
5.5.2 Hardware settings

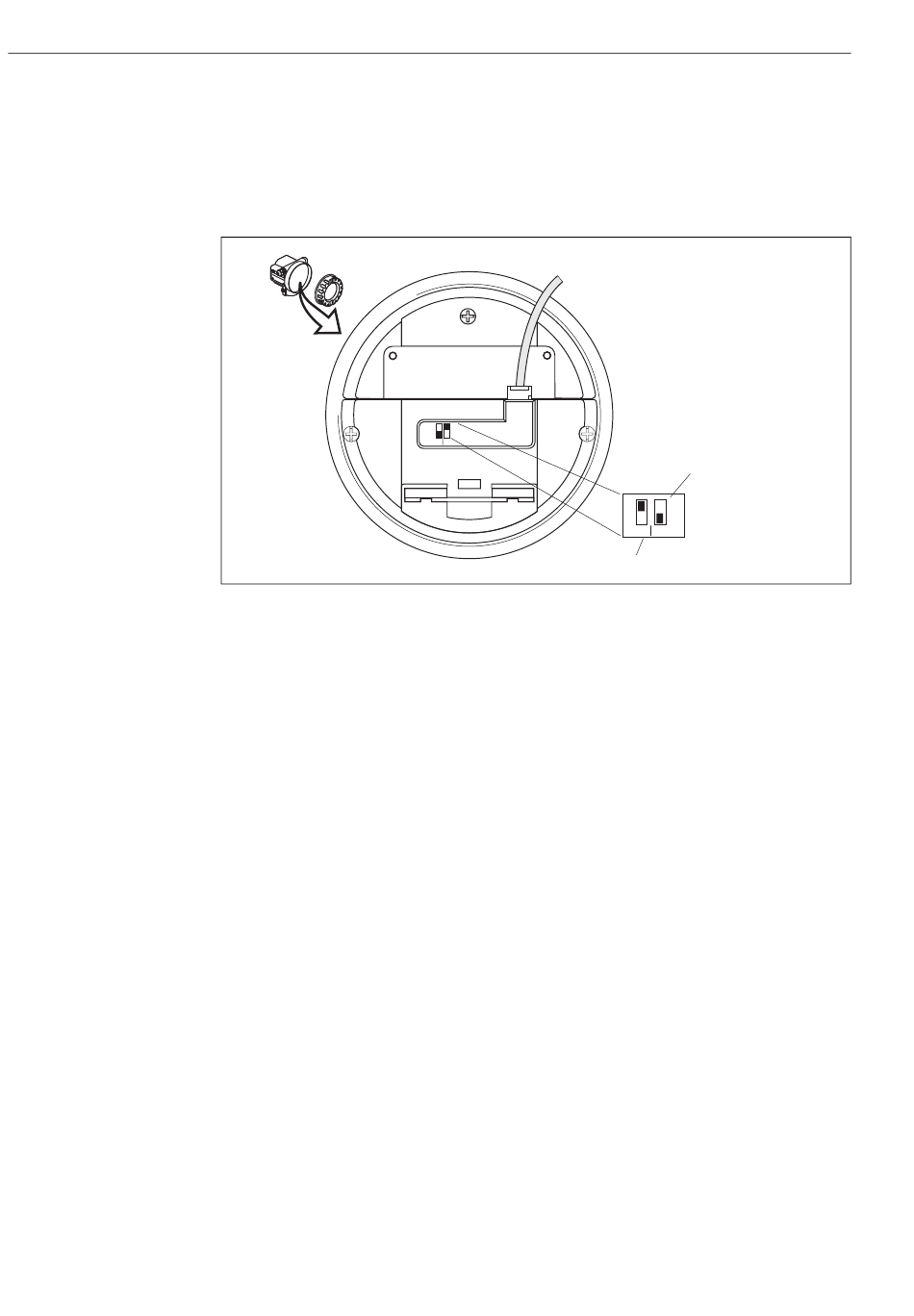

A DIP-switch in the connection compartment of the instrument allows the write protection and
simulation functions to be set via hardware.
• If "SIM" is switched off, the simulation function is not accesible in the configuration tool.
• If "WP" is switched on, parameter access is disabled
EN EN DR DR
Orde Orde MIC MIC RO RO ES ES S+ S+
Ser.- Ser.- r Cod r Cod e: e: PIL PIL HA HA US US
No.: No.: OT OT II II ER ER
Mes Mes
Mea Mea sber surin sber surin eich eich
g rang g rang
4...2 4...2 U 16... U 16... e e max max . 20 . 20
0 mA 0 mA 36 36 V DC V DC m m
IP IP 65 65
T T A >70° A >70° C : C :
t >85° t >85°
C C
Device identification
FOUNDATION Fieldbus identifies the device by its identification code and automatically allocates
an appropriate field address. There is no separate hardware switch for this purpose.
5.5.3 Network configuration
During the configuration of the FOUNDATION Fieldbus network the device description (DD) of the
Micropilot M must be downloaded into the directory foreseen for it.
• Start the interface configuration tool.
• Configure the interface.
• Call the DD download routine.
• Download the device descriptions (.ffo and .sym files) to the directory offered.
• When the configuration is complete, close the tool and the FOUNDATION Fieldbus stack (if
open).
The Micropilot M device descriptions can be ordered direct from Endress+Hauser or downloaded
from our website "www.endress.com". They contain all data necessary to operate
Endress+Hauser FOUNDATION Fieldbus devices.
Micropilot M FMR244 with FOUNDATION Fieldbus
on
off
SIM WP
default settings:
write protection OFF
simulation ON (i.e. simulation is
allowed in the configuration tool)
write protection
on
off
SIM WP
simulation
L00-FMxxxxxx-19-00-00-en-002
