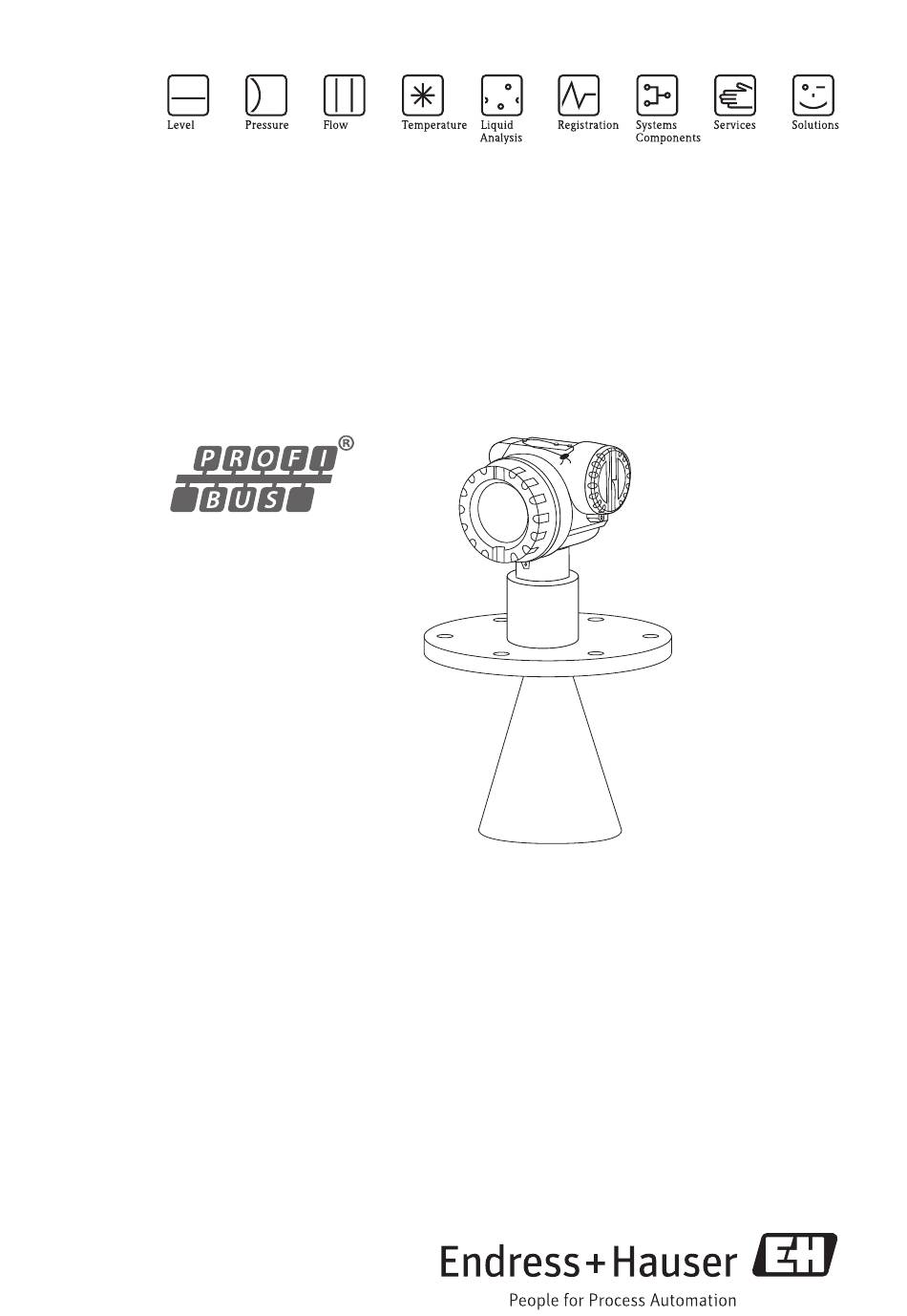

Brief Operating Instructions
Micropilot M FMR230
Level-Radar
These are Brief Operating Instructions.
For more detailed information, please refer to the Operating Instructions and the
additional documentation on the CD-ROM provided.
These Brief Operating Instructions are not intended to replace the Operating
Instructions provided in the scope of supply.
The complete device documentation consists of:
• These Brief Operating Instructions
• A CD-ROM with:
– The Operating Instructions
– Approvals and safety certificates
– Additional device-specific information
KA01001F/00/EN/13.11
71139438

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Micropilot M FMR230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Endress+Hauser Micropilot M FMR230

  • Page 1 Brief Operating Instructions Micropilot M FMR230 Level-Radar These are Brief Operating Instructions. For more detailed information, please refer to the Operating Instructions and the additional documentation on the CD-ROM provided. These Brief Operating Instructions are not intended to replace the Operating Instructions provided in the scope of supply.
  • Page 2: Table Of Contents

    Table of Contents Micropilot M FMR230 PROFIBUS PA Table of Contents 1 Safety instructions ..........3 1.1 Designated use .
  • Page 3: Safety Instructions

    Micropilot M FMR230 PROFIBUS PA Safety instructions Safety instructions Designated use The Micropilot M is a compact radar level transmitter for the continuous, contactless measurement of liquids, pastes and sludge. The device can also be freely mounted outside closed metal vessels because of its operating frequency of about 6 GHz and a maximum radiated pulsed energy of 1 mW (average power output 1μW).
  • Page 4: Return

    Safety instructions Micropilot M FMR230 PROFIBUS PA 1.3.1 FCC approval This instrument complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This instrument may not cause harmful interference, and this instrument must accept any interference received, including interference that may cause undesired operation.
  • Page 5: Mounting

    Micropilot M FMR230 PROFIBUS PA Mounting Mounting Quick installation guide Observe orientation when installing! Installation in bypass: Installation in tank (free space): Installation in stilling well: Mark on process connector Mark on process Mark on process connector facing the nearest tank wall! connector 90°...
  • Page 6: Installation

    Mounting Micropilot M FMR230 PROFIBUS PA Installation 2.3.1 Mounting kit In addition to the tool needed for flange mounting, you will require the following tool: • 4 mm (0.16 in) Allen wrench for turning the housing or mounting an FAR10 antenna extension.
  • Page 7 Micropilot M FMR230 PROFIBUS PA Mounting 2.3.4 Installation in stilling well For installations in a stilling well, follow the engineering hints (→ ä 9) and note the following points: • Marker is aligned toward slots. • Measurements can be performed through an open ball valve without any problems.
  • Page 8 Mounting Micropilot M FMR230 PROFIBUS PA 2.3.6 Orientation • Recommended distance (1) wall – outer edge of nozzle: ~1/6 of tank diameter. Nevertheless the device should not be installed closer than 30 cm (11.8 in) to the tankwall. • Not in the centre (3), interference can cause signal loss.
  • Page 9 Micropilot M FMR230 PROFIBUS PA Mounting 2.3.7 Engineering hints Tank installations • Avoid any installations (1), like limit switches, temperature sensors, etc., inside the signal beam (→ ä 10). • Symmetrical installations (2), i.e. vacuum rings, heating coils, baffles, etc., can also interfere with the measurement.
  • Page 10 Mounting Micropilot M FMR230 PROFIBUS PA 2.3.8 Beam angle The beam angle is defined as the angle α where the energy density of the radar waves reaches half the value of the maximum energy density (3dB-width). Microwaves are also emitted outside the signal beam and can be reflected off interfering installations.
  • Page 11 Micropilot M FMR230 PROFIBUS PA Mounting • In case of media with a low dielectric constant (groups A and B), the tank bottom can be visible through the medium at low levels (low height C). Reduced accuracy has to be expected in this range.
  • Page 12: Post-Installation Check

    Mounting Micropilot M FMR230 PROFIBUS PA 2.3.10 Turn housing After mounting, the housing can be turned 350° in order to simplify access to the display and the terminal compartment. Proceed as follows to turn the housing to the required position: •...
  • Page 13: Wiring

    Micropilot M FMR230 PROFIBUS PA Wiring Wiring Warning! When using the measuring instrument in hazardous areas, installation must comply with the corresponding national standards and regulations and the Safety Instructions or Installation or Control Drawings. " Caution! Before connection please note the following: •...
  • Page 14: Wiring In T12 Housing

    Wiring Micropilot M FMR230 PROFIBUS PA Wiring in T12 housing Unscrew housing cover (1). Insert cable (2) through gland (3). Connect cable screen to the grounding terminal (4) within the terminal compartment. Make connection (see terminal assignment). Tighten cable gland (3).
  • Page 15: Terminal Assignment

    Micropilot M FMR230 PROFIBUS PA Wiring Terminal assignment plant ground PA- PA+ L00-FMP4xxxx-04-00-00-en-007 Cable specification PROFIBUS Twisted, screened pairs must be used. The following cable types can be used, for example: • Siemens 6XV1 830-5BH10 (grey) • Kerpen CEL-PE/OSCR/PCV/FRLA FB-02YS(ST)YFL (grey) •...
  • Page 16: Screening/Potential Matching

    Wiring Micropilot M FMR230 PROFIBUS PA Overvoltage protector The level transmitter Micropilot M with T12-housing (housing version "D", see ordering information in the Operating Instruction) is equipped with an internal overvoltage protector (600 V surge arrester) according to DIN EN 60079-14 or IEC 60060-1 (impulse current test 8/20 μs, Î...
  • Page 17: Operation

    Micropilot M FMR230 PROFIBUS PA Operation Operation General structure of the operating menu The operating menu is made up of two levels: • Function groups (00, 01, 03, …, 0C, 0D): The individual operating options of the instrument are split up roughly into different function groups.
  • Page 18: Display And Operating Elements

    Operation Micropilot M FMR230 PROFIBUS PA The third digit numbers the individual functions within the function group: → • basic setup • tank shape • medium property • process cond Here after the position is always given in brackets (e.g. "tank shape" (002)) after the described function.
  • Page 19 Micropilot M FMR230 PROFIBUS PA Operation 4.2.1 Display Headline Position indicator ENDRESS + HAUSER Symbol Main value Bargraph Unit – Selection list Help text +21dB Envelope curve 0.00 2.305m 10.00 L00-FMRxxxxx-07-00-00-en-003 4.2.2 Display symbols The following table describes the symbols that appear on the liquid crystal display:...
  • Page 20 Operation Micropilot M FMR230 PROFIBUS PA 4.2.3 Key assignment Key(s) Meaning Navigate upwards in the selection list. Edit numeric value within a function. Navigate downwards in the selection list. Edit numeric value within a function. Navigate to the left within a function group.
  • Page 21: Device Address

    Micropilot M FMR230 PROFIBUS PA Operation Device address 4.3.1 Software addressing Software addressing comes into operation, when DIP-switch 8 is in the position "ON". BA034S/04/EN describes, how to set the address in this case. 4.3.2 Hardware addressing T II T II...
  • Page 22: Commissioning

    Commissioning Micropilot M FMR230 PROFIBUS PA Commissioning Function check Make sure that all final checks have been completed before you start up your measuring point: • Checklist "Post-installation check", → ä 12. • Checklist "Post-connection check", → ä 16. Switching on the measuring device...
  • Page 23: Overview Basic Setup

    Micropilot M FMR230 PROFIBUS PA Commissioning Overview Basic Setup flange: reference point of measurement E = empty calibr. (= zero) setting in 005 F = full calibr. (= span) setting in 006 D = distance (distance flange / product) display in 0A5...
  • Page 24 Commissioning Micropilot M FMR230 PROFIBUS PA " Caution! The basic setup is sufficient for successful commissioning in most applications. Complex measuring operations necessitate additional functions that the user can use to customise the Micropilot as necessary to suit his specific requirements. The functions available to do this are described in detail in the BA00221F/00/EN.
  • Page 25: Basic Setup With The Device Display

    Micropilot M FMR230 PROFIBUS PA Commissioning Basic Setup with the device display 5.4.1 Function "measured value" (000) ⇒ ENDRESS + HAUSER – This function displays the current measured value in the selected unit (see "customer unit" (042) function). The number of digits after decimal point can be selected in the "no.of decimals"...
  • Page 26 Commissioning Micropilot M FMR230 PROFIBUS PA 5.4.3 Function "tank shape" (002) ⇒ ENDRESS + HAUSER – This function is used to select the tank shape. Selection: • dome ceiling • horizontal cyl • bypass • stilling well • flat ceiling •...
  • Page 27 Micropilot M FMR230 PROFIBUS PA Commissioning 5.4.4 Function "medium property" (003) ⇒ ENDRESS + HAUSER – This function is used to select the dielectric constant. Selection: • unknown • DC: < 1.9 • DC: 1.9 ... 4 • DC: 4 ... 10 •...
  • Page 28 Commissioning Micropilot M FMR230 PROFIBUS PA standard calm surface turb. surface For all applications that do not fit into Storage tanks with immersion tube or Storage / buffer tanks with rough any of the following groups. bottom filling. surface due to free filling or mixer nozzles.
  • Page 29 Micropilot M FMR230 PROFIBUS PA Commissioning 5.4.6 Function "empty calibr." (005) ⇒ ENDRESS + HAUSER – This function is used to enter the distance from the flange (reference point of the measurement) to the minimum level (=zero), → ä 23.
  • Page 30 Commissioning Micropilot M FMR230 PROFIBUS PA 5.4.9 Function "dist./meas.value" (008) ⇒ ENDRESS + HAUSER – The distance measured from the reference point to the product surface and the meas. level calculated with the aid of the empty adjustment are displayed. Check whether the values correspond to the actual meas.
  • Page 31 Micropilot M FMR230 PROFIBUS PA Commissioning distance = ok • mapping is carried out up to the currently measured echo • The range to be suppressed is suggested in the "range of mapping" (052) function Note! Anyway, it is wise to carry out a mapping even in this case.
  • Page 32 Commissioning Micropilot M FMR230 PROFIBUS PA 5.4.12 Function "start mapping" (053) ⇒ ENDRESS + HAUSER – This function is used to start the interference echo mapping up to the distance given in "range of mapping" (052). Selection: • off: no mapping is carried out •...
  • Page 33: Envelope Curve With The Instrument Display

    Micropilot M FMR230 PROFIBUS PA Commissioning Envelope curve with the instrument display After the basic setup, an evaluation of the measurement with the aid of the envelope curve ("envelope curve" (0E) function group) is recommended. 5.5.1 Function "plot settings" (0E1) ⇒...
  • Page 34 Commissioning Micropilot M FMR230 PROFIBUS PA 5.5.2 Function "recording curve" (0E2) This function defines whether the envelope curve is read as a • single curve or • cyclic ⇒ ENDRESS + HAUSER – Note! • If the cyclical envelope curve is active in the display, the measured value is refreshed in a slower cycle time.
  • Page 35 Micropilot M FMR230 PROFIBUS PA Commissioning Endress+Hauser...
  • Page 36 KA01001F/00/EN/13.11 71139438 CCS/FM+SGML 9.0 ProMoDo 71139438...
