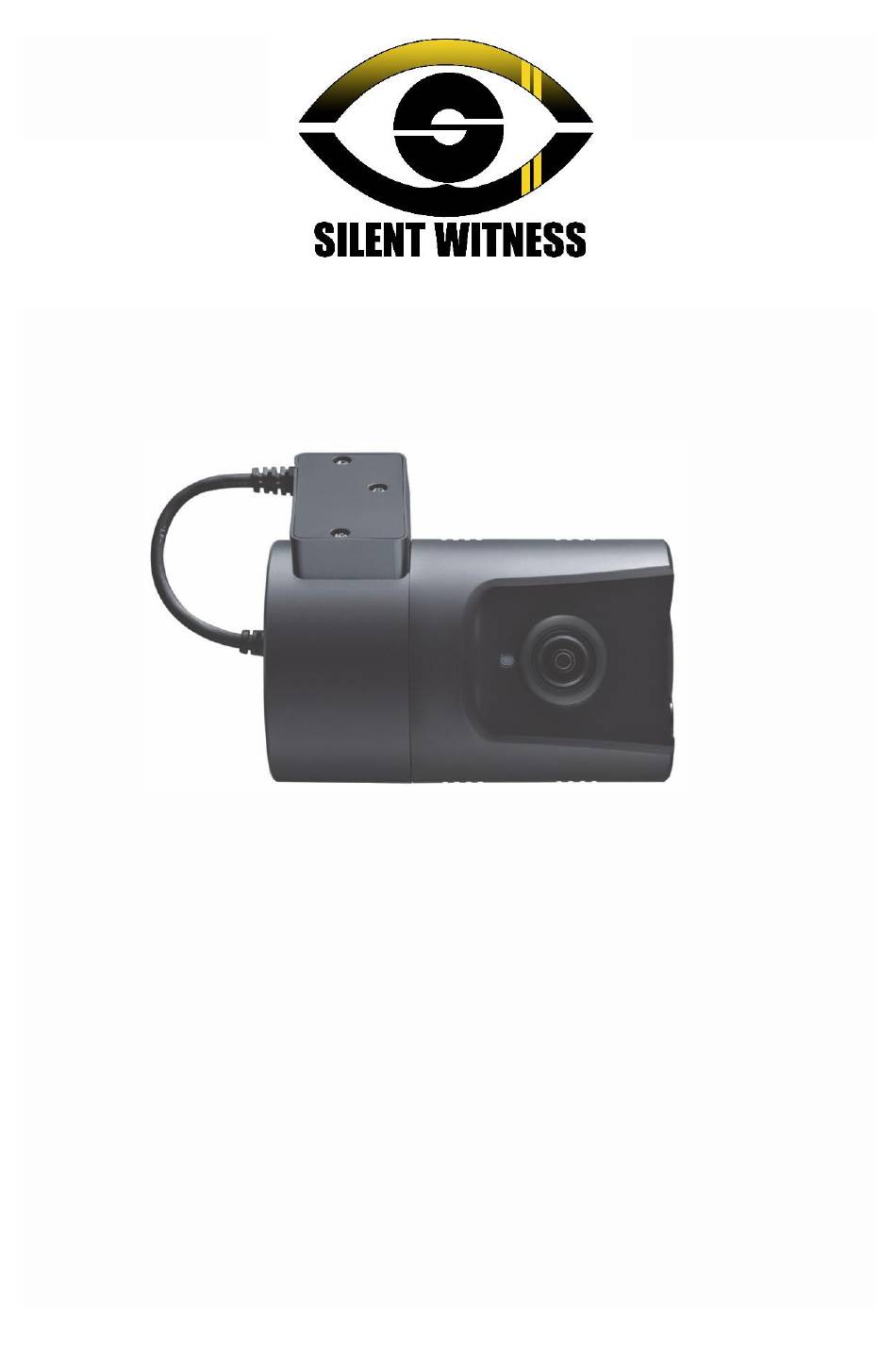

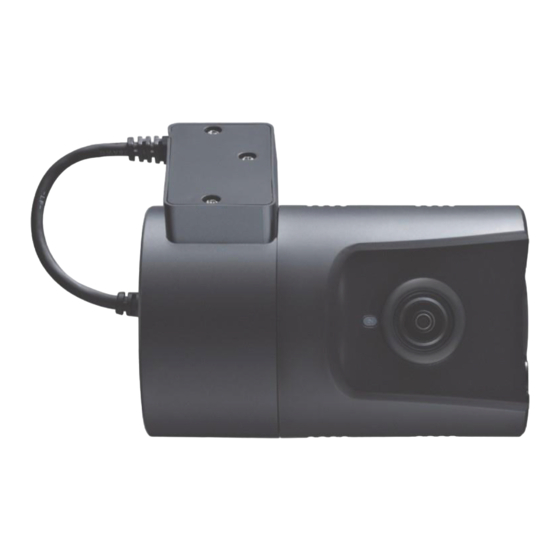

USER GUIDE
SW2400
3G ENABLED VEHICLE RECORDER
 Thank you for purchasing the SW2400 Vehicle Recorder.
 Please ensure that you read and understand this USER GUIDE
and use it before connecting and installing this Recorder.
 Please store the USER GUIDE in an easily accessible location.
st
VER 1.0.0 1
Edition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW2400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Silent Witness SW2400

Summary of Contents for Silent Witness SW2400

  • Page 1 USER GUIDE SW2400 3G ENABLED VEHICLE RECORDER  Thank you for purchasing the SW2400 Vehicle Recorder.  Please ensure that you read and understand this USER GUIDE and use it before connecting and installing this Recorder.  Please store the USER GUIDE in an easily accessible location.

  • Page 2: Table Of Contents

    INDEX SAFETY ADVICE GPS RECEPTION CONTENTS INTRODUCTION FINCTIONS LEDS &BUZZER SPECIFICATION Installation CONFIGURATION TOOL USER GUIDE INITIALIZE SD CARD DEVICE SETTINGS RECORD SETTINGS EVENT SETTINGS INFO. SETTINGS CONNECTIVITY SETTINGS SERVER SETTINGS SOFTWARE USER GUIDE PC VIEWER SOFTWARE SETTINGS OPEN THE SD CARD OPEN FILES PLAYBACK DRIVE DATA...

  • Page 3: Safety Advice

    SAFETY ADVICE CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER‐SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Please make sure you follow the safety advice/instructions given in the user guide. Caution RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

  • Page 4: Gps Reception

    GPS RECEPTION Activate the product in an area without large buildings to improve GPS reception. The commercial purpose GPS has the average rage error of more than 15 meters and the range error could be more than 100 meters due to environmental conditions like buildings, roadside trees etc. The temperature range for optimum operation of the GPS receiver in your car is ‐10 ~ 50°C.

  • Page 5: Contents

    CONTENTS Power Cable SW2400 Vehicle Recorder Sticker for Windscreen mounting User Guide (double sided tape x2) Wire Splice clips (x5) Sticker for Angle Lock (Void sticker x2) Torx screw (x1) SD Cover (x1)

  • Page 6: Introduction

    INTRODUCTION FRONT Bracket (GPS/GLONASS inside) Camera Lens Cable (95cm) SIDE SIM Slot (Mini SIM) IMEI Number Lock using Torx screw SD Memory Card Slot...
  • Page 7 INTRODUCTION G‐Sensor Calibration BACK button PANIC Button Record LED Communication LED BLUE LED Green LED POWER CABLE Black (Ground) Red (Power Battery +) White (Power ACC + ) Green (Alarm In, NC/NO), (External panic button+ ) Black (Ground), (External panic button+ ) Orange (Alarm In, Voltage) Yellow (Alarm out), Low(0V) to High (5V) 2seconds External Panic Button...

  • Page 8: Finctions

    FUNCTIONS Automatic Booting Once the SW2400 has been wired to your car power source the SW2400 will be boot up, this will take around 1 minute for the unit to be ready to record. The default setting for record is the continuous recording at 30fps, 720P resolution.
  • Page 9 When power to the unit is interrupted, SW2400 creates the last file using the internal Super Capacitor. Time and Date There are no time and date settings as the SW2400 get’s this information from the GPS satellite's. SD Memory Card Format Please format [initialize] the SD card using the “Configuration Tool SW2400”...

  • Page 10: Leds &Buzzer Specification

    LEDS & BUZZER SPECIFICATION BLUE LED (RECORD) GREEN LED (COMMUNICATION) FRONT LED Buzzer...

  • Page 11: Installation

    Arrange the power cord neatly alongside of the windshield and door pillar trim. The SW2400 requires a continuous 12/24 volt power source from the vehicle. The cable supplied will allow you to hard wire the SW2400 unit to the fuse box of your vehicle.

  • Page 12: Configuration Tool User Guide

    CONFIGURATION TOOL USER GUIDE Configuration Tool SW2400 Software PC SYSTEM REQUIREMENT Recommended PC specifications for PC Viewer Software Windows Vista. Windows 7, Windows 8/8.1 Core 2 Duo 2.5GHz or Higher 2GB or Higher Interface SD Memory Card Reader Install : 55MB or Higher...
  • Page 13 SOFTWARE INSTALLATION The Configuration Tool SW2400 Software is on the provided SD card. (Also available on our website.) 1. Connect the SD card into your PC (if your computer does not have and SD card slot use the USB SD card reader) and open the “My Computer”...

  • Page 14: Initialize Sd Card

    INITIALIZE SD CARD Click! To initialize the SD card quickly, click on the above icon and you will be presented with the following screen to choose the SD card to initialize. Click ‘OK’ when selected. On the following screen, check the ‘Quick Format’ button and uncheck the ‘Backup Configuration File’...

  • Page 15: Device Settings

    In custom set, you can set 3 different shock sensor values individually. Auto adjust G‐Sensor to Vehicle speed Once it checked, SW2400 will automatically decrease the G‐Sensor sensitivity at higher vehicle speeds to compensate for the naturally added G‐forces that are...

  • Page 16: Record Settings

    RECORD SETTINGS Resolution VGA (640x480), 720P (1280x720), 1080p HD (1920x1080). Frame Rate Adjust the frame rate from 30fps, 15fps, 10fps, 5~1fps Quality Adjust the picture quality from Standard, High, Super Record Mode Event (Automatically starts recording by G‐sensor or Panic button.) Continuous (Always recording when powered by DC 12/24V.) Dual (The continuous record fps is 1fps and Event record will work according to the Fps setting.)

  • Page 17: Event Settings

    EVENT SETTINGS Event settings You can set the unit to record when triggered by the G‐Sensor, Panic Button and GPS Speed Limit and Alarm Inputs. And you can set the Alarm out duration per each event.

  • Page 18: Info. Settings

    INFO. SETTINGS This option allows you to adjust the Time Zone, GPS Time synchronization, set your Vehicle ID and also the Driver ID.

  • Page 19: Connectivity Settings

    CONNECTIVITY SETTINGS Set the Service Type as Sever to use 3G connection. Adjust the settings like Dial No., APN, password, User ID, Authentication etc. Please refer to the Sim Card supplier website for these settings.

  • Page 20: Server Settings

    SERVER SETTINGS Set Domain/Static IP and Port number Default License Key is “DASKEY_001” And check Transmit Live Tracking Data and Transmit Event Data. And then select events.

  • Page 21: Software User Guide

    SOFTWARE USER GUIDE PC Viewer Software PC SYSTEM REQUIREMENT Recommended PC specifications for PC Viewer Software Windows Vista. Windows 7, Windows 8/8.1 Core 2 Duo 2.5GHz or Higher 2GB or Higher Interface SD Memory Card Reader Install : 55MB or Higher Backup : 4GB or Higher Free space Display...
  • Page 22 3. Double click [SETUP.EXE] in the [pcsw] folder. 4. Select the language and then follow the dialog box prompts. 5. The “PC Viewer SW2400” icon will be displayed on your desktop. NOTE: To Un‐install the PC Viewer Software Make sure the program is not running and open the ‘Control Panel’...

  • Page 23: Pc Viewer Software Settings

    PC VIEWER SOFTWARE SETTINGS Viewing settings This setting is for the PC Viewer Software itself. To set the Recorder, refer to page 15. Click the ‘Password’ button. Password for the PC Viewer Software can be set with any number between 1000‐9999. The ‘speed’...

  • Page 24: Open The Sd Card

    OPEN THE SD CARD Insert the SD card into your PC ② Select the SD card drive and ① Click “Select SD Card” icon click “OK” ③ Click “Open SD Card” The playback file list and “Continuous” and “Event” tap is displayed on the right side of the screen. You can hide the playback list by clicking the close icon.

  • Page 25: Open Files

    OPEN FILES If you want to play a specific file that has been backed up on the PC or SD Card, Click the “Open files” icon “Open files” icon Select the MDT file you want to play and click “Open”. The image of the selected file will then be displayed and you can click the “Play”...

  • Page 26: Playback

    PLAYBACK Camera title ‐ Resolution GPS Speed Record Mode Display Frame / Total frames number Vehicle ID, Driver ID Reverse Previous Play Next Pause Image Image Capture Screen Record Video Volume Playback Speed Control Signal / Alarm Indicator Left, Right, Brake, Reverse...

  • Page 27: Drive Data

    DRIVE DATA “Drive Data” icon The default setting only displays the G‐sensor graphs but other information may be added by checking the boxes in the upper part of the screen. G‐Sensor: (X axis: red, Y axis: green, Z axis: blue, based on the positioning of the main unit) is shown with the data reference point zero‐point calibrated and positive shocks as (+) and negative shocks as (‐).

  • Page 28: Tracking Map

    TRACKING MAP “Tracking Map” icon The route taken will be displayed on the Google map. The playback position will be shown on the map with the orange arrow. The blue markings show the route taken. To see the route and position on the Google map, the GPS data should be recorded with video.

  • Page 29: Event Search

    EVENT SEARCH “Event Search” icon The “Event Search” help to find a specific data quickly. Select “Search Range” and select “Search Conditions” And then click Search button. Choose an event from the searched list and click “Go to Video” to see the video.

  • Page 30: Privacy Settings

    PRIVACY SETTINGS “Privacy Settings” icon Set the mosaic area on the video for privacy protection. When backing up the data as a JPG or AVI format and playing in the Viewer software, you are able to make a mosaic processing on the area you have set.

  • Page 31: Save Jpeg And Avi File

    SAVE JPEG AND AVI FILE Pause the playback and click “Save JPG” icon to make JPG images. “Save JPG” icon Pause the playback and click “Save AVI” icon to make an AVI file. “Save AVI” icon...

  • Page 32: Print Image

    PRINT IMAGE Pause the playback and click “Print Image” icon. “Print Image” icon Type Subject and Memo Alter the printer settings to change paper size/orientation etc.

  • Page 33: Backing Up Files

    BACKING UP FILES Back up the recorded data on your PC. There is an option to store data by type to easy management of data. “Backup Data” icon The start time is when the video was paused and cannot be changed once you start this process.

  • Page 34: Backup Data List And Export

    BACKUP DATA LIST AND EXPORT You can use the data backup list to play data files easier that have been backed up. “Backup Data List and Export” icon Choose the folder where the backup files are at the bottom of the screen. (It will automatically show the last folder that was accessed.) Then, select the type by scrolling down the options.

  • Page 35: Specification

    SPECIFICATION Image sensor 1/3” 3 Megapixel CMOS Sensor Standard DSP 170 ° (H ： 139.5 ° , V : 71.5 ° ± 5% ) Angle of View Band support WCDMA Band1(2,100MHz)/ Band8 (900MHz) Max Data Rate UL:5.76Mbps, DL : 7.2Mbps 1080p HD (1920x1080) Video resolution 720P (1280x720), VGA (640x480)

  • Page 36: Appendix Recording Time Table

    APPENDIX Recording time table This table is a guideline only. Actual results may very depending on a variety of factors on the road.

  • Page 37: Appendix Upgrade

    Copy “XXXXXX_x.x.x.img” file to the SD card [program] folder. 2. Upgrade SW2400 Insert the prepared SD card to SW2400 unit and turn on the power. The Blue & Red LED will blink while the unit is upgrading. It will also ‘beep’...

  • Page 38: Technical Support And Warranty

    Technical Support & Warranty TECHNICAL SUPPORT For Technical Support, please contact Silent Witness LIMITED WARRANTY This product is supplied with 1 year warranty. The Warranty excludes products That have been misused, (including accidental damage) and damage caused by normal wear and tear. In the unlikely event that you encounter a problem with...
  • Page 39 www.parksafeautomotive.com www.silentwitness.com...
