Summary of Contents for Silent Witness SW013

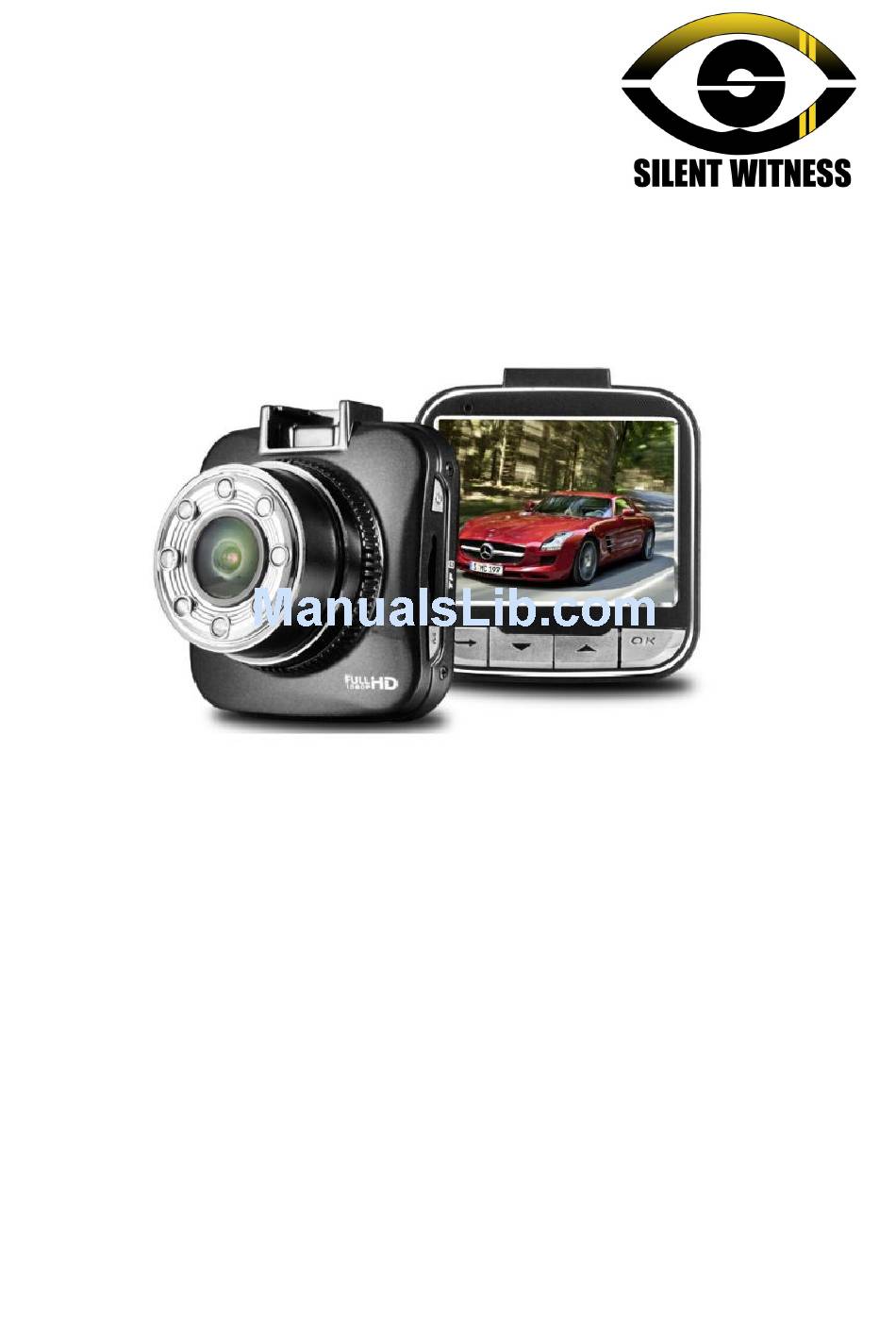

- Page 1 SW013 SW013C (Optional 2nd Camera) USER MANUAL WWW.SILENTWITNESS.CO.UK...
- Page 2 Menu About your SW013 Key functions Installing the SW013 07-12 Menu options 13-14 Optional 2nd camera Media playback Recording times Menu options explained FAQ - Troubleshooting Notes...
- Page 3 Preface Thank you for purchasing the Silent Witness SW013 camera, please read carefully before operation allow you to get the best out of your digital video recorder. If there is a difference between the manual and the camera please take the recorder as standard, we reserve the right to change the content or technical specification without prior notice.
- Page 4 About your SW013 Power Socket Reset Button LED Indicator Light 2nd camera Socket Power Button Menu Button Return Down OK/Confirm Screen Icons G-Sensor Motion On/Off Loop Setting Detection Video Mode Pages Pages On/Off Camera Mode 9-17 7,17 Pages Resolution 8,17...
-
Page 5: When Recording
Key Functions The keys all have different actions and short cuts depending on if the camera is recording or not recording . Please see the table below KEYS NOT RECORDING WHEN RECORDING Action Action "OK" KEY Short Tap Starts Recording Stops Recording Long Press Takes a photo... - Page 6 MOT failure. The compact size of the SW013 is ideal for being located close and tight behind your rear view mirror. The power adaptor plugs straight into your cigarette socket or can be hard wired into your cars electrics with all the cables hidden for a professional look.
- Page 7 Turn your camera on using the Power button on the left hand side In the bottom left of the screen if the RED symbol is flashing please press the “OK” button to stop the recording, the red symbol will stop flashing. Press and hold the “M”...
- Page 8 Contrast Allows you to change the contrast of the video recording. We recommend the setting 0 Exposure Allows you to change the exposure of the video recording. We recommend the setting 0 Power-On Video When your camera powers up the video will start to record straight away if this option is ticked, We recommend this option is ON at all times.
- Page 9 Plate Number You may wish to give the camera a name or enter a car registration plate, so the cameras can be identified in more than one vehicle. You can enter this here. Parking Control This option is used for car cctv, this is only used in certain circumstances.
- Page 10 Key tone Turn the key tone on and off. Fill Light Switch on night enhancing mode We recommend the setting OFF, unless the camera is being used in low light conditions. Card Info Tells you the SD card storage information Delay Shutdown When you switch the vehicle off, choose the amount of time the camera stays on and records...
- Page 11 Language Change the language of the menu Date Change the time and date Screen Switch This is a screen saver , when the camera turns on the screen will then go to sleep, until a key is pressed. We recommend the setting is always set to a time preference, so that is will not distract you whilst driving.
- Page 12 Photo Mode Photo Resolution Choose the size of the digital camera White Balance Set the white balance of the digital camera , We recommend this option is set to “Automatic” . Exposure Lets you change the exposure of the digital camera. Photo Watermark Prints the time and date into the pictures...
- Page 13 2nd camera option The SW013 has an 2nd camera option for rear facing recording (SW013C) . The camera is a external rear camera and records within the main video. Like below. If the camera has been installed to your reversing gear, when the camera is put into reverse the main screen on the camera will switch to the rear facing camera, the LED lights will turn on , this will help illuminate the rear of the vehicle, also parking lines on the screen will help gauge obstacles behind you.
- Page 14 Installing the SW013C (Optional 2nd camera) 12v + The second camera is plugged into the side USB Please Note If you wish to use the rear camera as reverse camera , please note installing this camera internally will create a glare when the LED lights turn on. We would always recommend using the camera externally when the reverse function is being used.
- Page 15 Pause. And the “M” button to exit back to the main screen. Once you are on the main screen press the “OK” button to start recording. Recording Times Estimate recording times in minutes for the SW013 Model Camera CARD SIZE SW013...
- Page 16 Playing back videos on your computer. The SW013 does not require software to view files back on a PC or MAC, the videos will play back with software like VCL player and QuickTime. • Remove the SD card from the camera and insert into the USB card reader •...
-
Page 17: Loop Setting
Menu Options Explained G-SENSOR The G-Sensor senses the G-Force movement of the vehicle, if the camera notices a anomaly it will activate the sensor and lock the video file. E.g if the vehicle is travelling down the road and suddenly the driver brakes hard, the camera will detect something has changed in the driving pattern and will lock the file, if the G-Sensor has been activated. - Page 18 FAQ’s Cannot take photos or videos Please check and make sure the card has enough storage space, Please see page 10 for formatting My camera does not record when I start the vehicle Please make sure that the camera has not been manually stopped, When the camera is powered please press the OK button, the camera will start to record, if not please make sure your SD card has enough storage.
- Page 19 Notes...
- Page 20 For more information and questions Please visit www.silentwitness.co.uk...
