Summary of Contents for Lutool LT62068

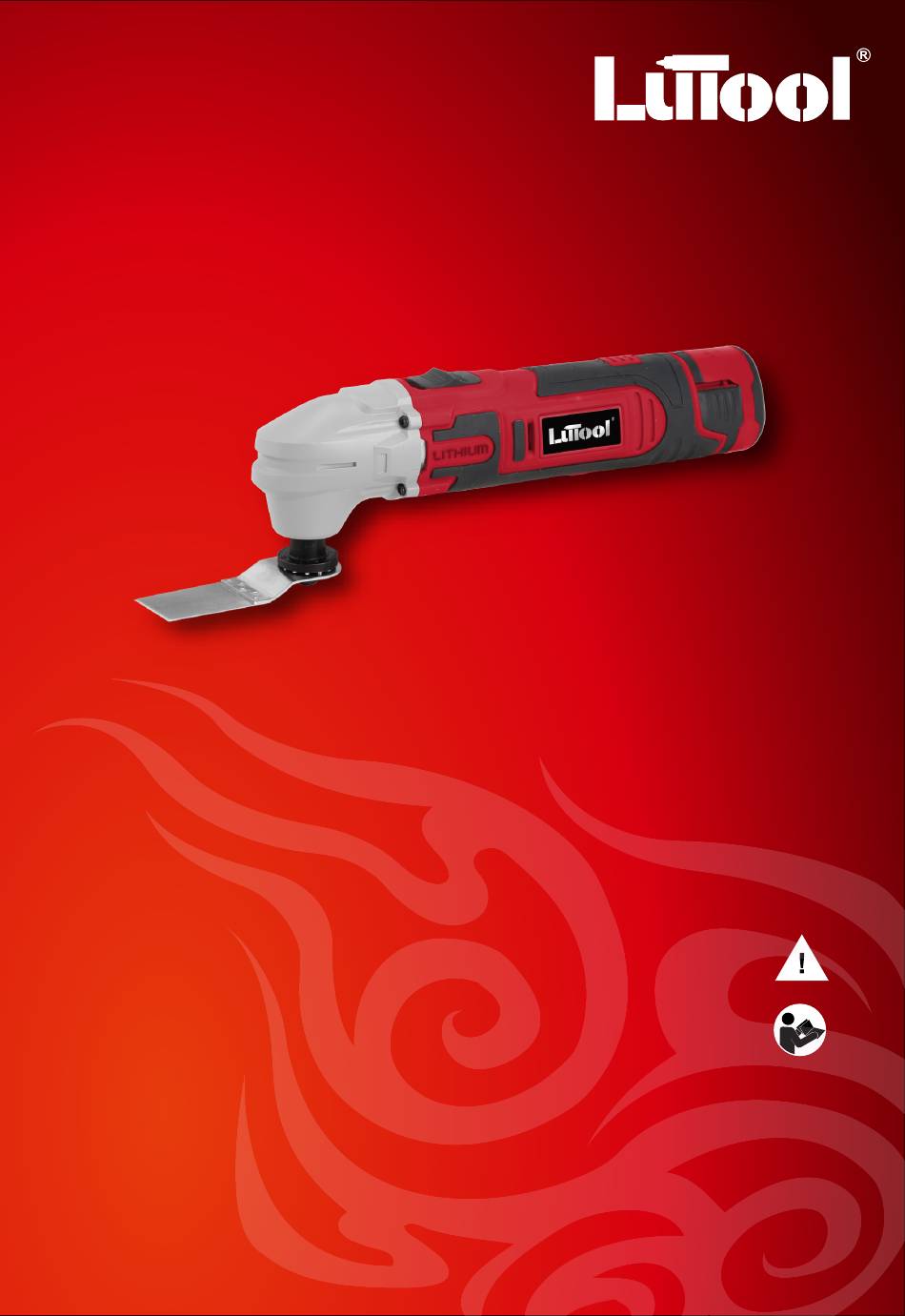

- Page 1 CORDLESS OSCILLATING TOOL LT62068 nstruction Manual Warning: Please make certain that the person intended to use this equipment carefully reads and understands these instructions before starting opertions.
- Page 2 Product components: Fig. A: Cordless Oscillating Tool...
-
Page 3: Table Of Contents
CONTENTS APPLICATION .................. 2 DESCRIPTION (FIG A-B-C).............. 2 PACKAGE CONTENT LIST .............. 3 SYMBOLS ..................3 GENERAL POWER TOOL SAFETY WARNINGS ......4 ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS ..................6 ADDITIONAL SAFETY INSTRUCTIONS FOR THE CORDLESS OSCILLATING TOOL ..............7 ........ -
Page 4: Application
APPLICATION Oscillating Tool : Depending on the accessory mounted on the tool, this machine is intended for a variety of tasks such dry sanding small areas, sawing, scraping, polishing, rasping, cutting, separating, etc. These tool is not designed for commercial or industrial use. WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. -
Page 5: Package Content List
PACKAGE CONTENT LIST Remove all packaging materials. Check that the package contents are complete. Check the appliance, the power cord, the power plug and all accessories for transportation damage. Keep the packing materials as far as possible until the end of the warranty period. Dispose of it into your local waste disposal system afterwards. -
Page 6: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING：Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference! The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool. - Page 7 Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 8: Additional Safety Instructions For Batteries And Chargers
ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS Batteries Never attempt to open for any reason. Do not store in locations where the temperature may exceed 40 °C. Charge only at ambient temperatures between 4 °C and 40 °C. ... -
Page 9: Additional Safety Instructions For The Cordless Oscillating Tool
ADDITIONAL SAFETY INSTRUCTIONS FOR THE CORDLESS OSCILLATING TOOL Risk of injury ! Only use an undamaged plug and cable of charger. Do not treat any materials that produce any particles that are detrimental to health (e.g. asbestos). Risk of damage to property/material ! ... -
Page 10: General Charging Information
GENERAL CHARGING INFORMATION Charging the battery pack (Fig. 1) Fig. 1 LED light Charger The ba ery pack for this tool has been shipped in a low charge condi n to prevent any possible problems. You should charge the ba eries prior to use. NOTE : Ba eries will not reach full charge the first me they are charged. -
Page 11: Operation Information Specific For The Oscillating Tool
NOTE: If the battery does not fit properly, disconnect it and confirm that the battery pack is the correct model for this charger as shown on the specification chart. Do not charge any other battery pack or any battery pack that does not securely fit the charger. ... - Page 12 Switching ON/OFF (Fig .4) Make sure the battery pack is installed. Switch the power tool on: push the ON/OFF switch button (2) forwards onto the “ON” position. Switch the power tool off: pull the ON/OFF switch button backwards to the “OFF” position. Fig.4 Mounting an accessory (tool) Risk of injury !
- Page 13 9.4.2 Mounting a cut saw blade or scraper (Fig. 6) 1. Remove inner hexagon screw with pressure plate by using Allen key (10).. 2. Fit the desired cut saw blade/spatula blade onto the locating pins of the output spindle firmly and place inner hexagon screw on the cutter, tighten it with Allen key finally.
- Page 14 9.4.3 Attaching / replacing the sand paper (Fig. 8) With fast hook/loop fixation This sanding plate is an equipped with a hook and loop rubber backing pad. Position the sand paper and press on by hand. Press on the sand paper by giving it a short, firm push against the flat surface of the sanding plate (8) and switch on the power tool.
- Page 15 Application tips Sanding Typical application: Sanding wood & metal; sanding small areas, especially corners, edges and places difficult to access. Sanding with a constant movement and light pressure. Pressing on heavily does not increase the removal – the sand paper merely becomes worn even faster. The sand paper lasts longer if the wear is distributed evenly.
-
Page 16: Cleaning And Maintenance
Scraper Scraper blade is suitable for removing vinyl, varnish, paint layers, carpeting, caulk and other adhesives. Use a rigid scraper blade to remove harder materials, such as vinyl flooring, carpeting and tile adhesives in large area. Use a flexible scraper blade (not included) to remove softer material such as caulk. Tips: 1. -
Page 17: Technical Details
TECHNICAL DETAILS Model nr. LT62068 General tool data Charger Rated input 220-240V~ 50/60Hz, 12W 12.6V, 0.4A Rated output Battery 12V – 1300mAh Rated Voltage 12V DC Type Li-ion capacity 1300mAh 3-5 hour Charging time Specific tool data Cordless oscillating tool... -
Page 18: Recycling
RECYCLING Meaning of crossed–out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local council for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
