bolid DIP-34PA-03 Quick Start Manual

Addressable Photoelectric Smoke Detector

GENERAL

DIP-34PA-03 Addressable Photoelectric Smoke Detector (hereinafter referred to as the DIP-34PA-03 or the detector) is
designed to be used in a fire alarm system in order to detect smoke inside enclosed premises by sensing light reflected
by smoke particles. The detector meets the requirements of Appendix "Р" of Russian Rules СП5.13130.2009.
The DIP-34PA-03 operates under control of a Signal-10 Intrusion and Fire Alarm Control Unit in an alarm loop of Type 14,
Fire Threshold Addressable. Up to ten detectors each having its own address from 1 to 10 can be brought into a single
Signal-10 alarm loop of Type 14. Each detector responds with its state to the Signal-10. These states can be Fire Alarm,
Trouble, Dusty, Norm, and Test. Electromagnetic compatibility of the detector meets the requirements for the third
resistance level.
The version of DIP-34PA-03 firmware is 1.00. Please read the Signal-10 User's Manual to get more information about
DIP-34PA-03 operation.
The detector's operability can be tested by means of a laser tester (such as the tester produced by System Sensor).

SPECIFICATIONS

Sensitivity
Response Time
Ingress Protection Rating
Input Voltage (via a Signal-10 alarm loop in threshold mode)
Current Consumption (via an alarm loop of a Signal-10)
Pre-operation Time
The number of detectors per alarm loop
Operating Temperatures
Storage Temperatures
Humidity
Overall Dimensions (diameter x height)
Weight
The detector doesn't contain precious metals (Clause 1.2 of ГОСТ 2.608-78)

STANDARD DELIVERY

For single-piece delivery:
DIP-34PA-03 Detector
Instruction Manual
Address Sticker
Protective Cover
Unit Package

WIRING

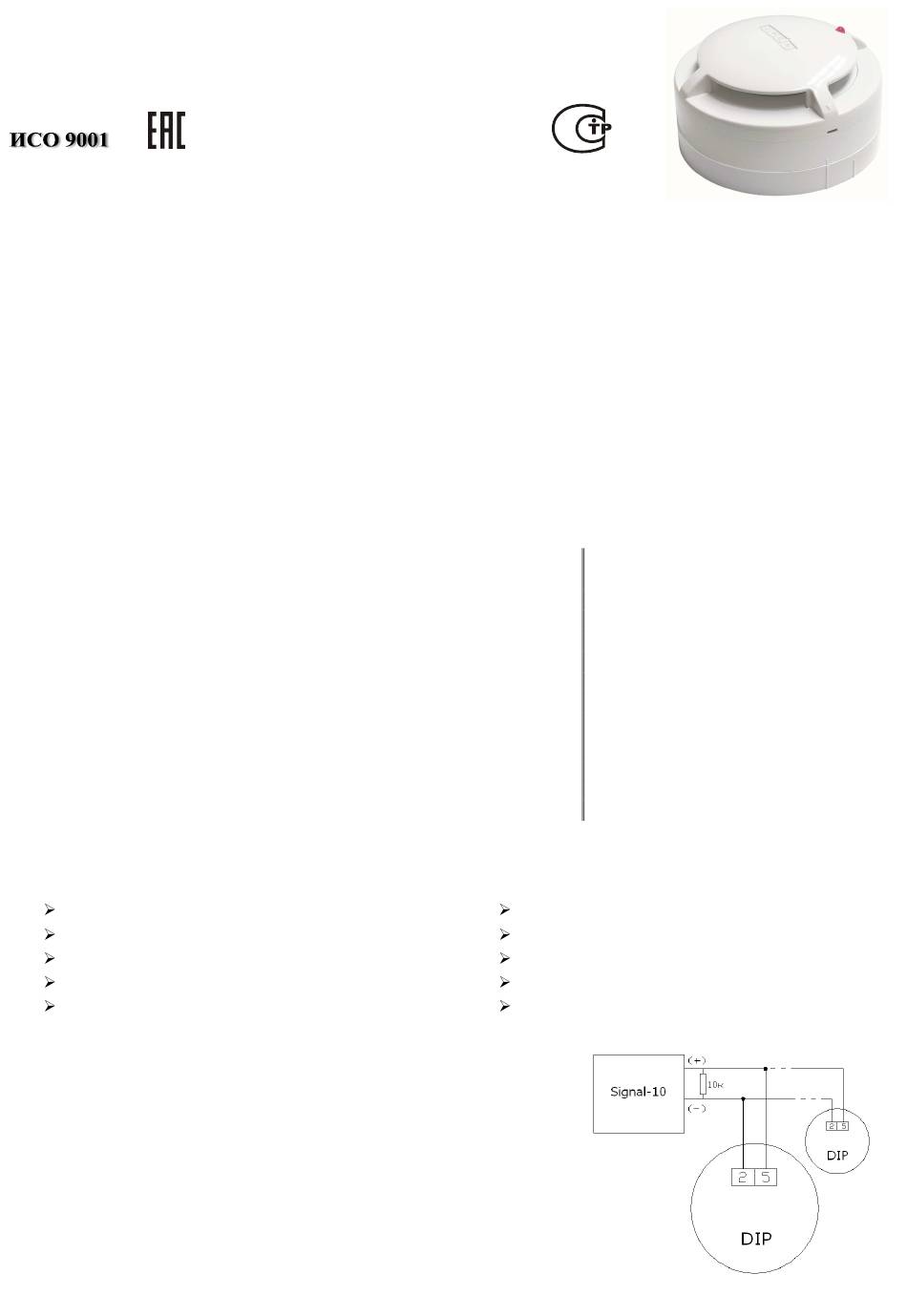

Figure 1 shows the standard wiring diagram to connect DIP-34PA-03
detectors into an alarm loop of the Type 14 of a Signal-10 control
unit. The first terminal of a detector base can be used to connect a
shield of the connecting wire.
DIP-34PA-03
INSTRUCTION MANUAL
- 1 pc.
- 1 pc.
- 1 pc.
- 1 pc.
- 1 pc.
0.05 - 0.2 dB/m
10 s max
IP 41
9 ÷ 30 VDC
0.4 mA max in quiescent mode
60 s max
Up to 10
−30 to +55° C
−50 to +50° C
93% at 40° C, non-condensing
100 mm × 47 mm max
0.2 kg max
For group delivery:
DIP-34PA-03 Detector
Instruction Manual
Address Sticker
Protective Cover
Group Package
- 10 pcs.
- 1 pc.
- 10 pcs.
- 10 pcs.
- 1 pc.
Figure 1. Wiring Diagram
