Pyle PPHP1037UB User Manual page 3

1. Iphone input: Allows you to connect Iphone with a 3.5mm connector.
2. Balanced Microphone Input: Connector for a Balanced microphone input.
3. Microphone input: Allows you to connect a microphone with a 6.3mm connector.
4. RCA Line-In: Allows you to connect an externel audio device (CD, radio/DVD, etc)
with RCA connectors.
5. XLR Line-In: Allows you to connect an external audio device (CD, radio/DVD, etc)
with XLR connectors.
6. Signal output: Use 6.35mm jack to connect ampli er or even another powered
speaker cabinet in cascade using a XLR connector.
7/8. SD card /USB
9. MP3/Iphone Volume control: Set the MP3/Iphone volume level.
10. Mic volume control: Use this control to set the volume level of Microphone.
11. Line-In signal volume control: Use this control to set the volume level of the
Line-In signal.
12. Volume control: Set the volume level.
13. Treble: Use it to set the treble level
14. Bass: Use it to set the bass level
15. AC 110/220 Voltage Selectable
16. On/O Power Switch: Press to power on/o the speaker
17. AC power: To connect the AC power cord
18. Fuse

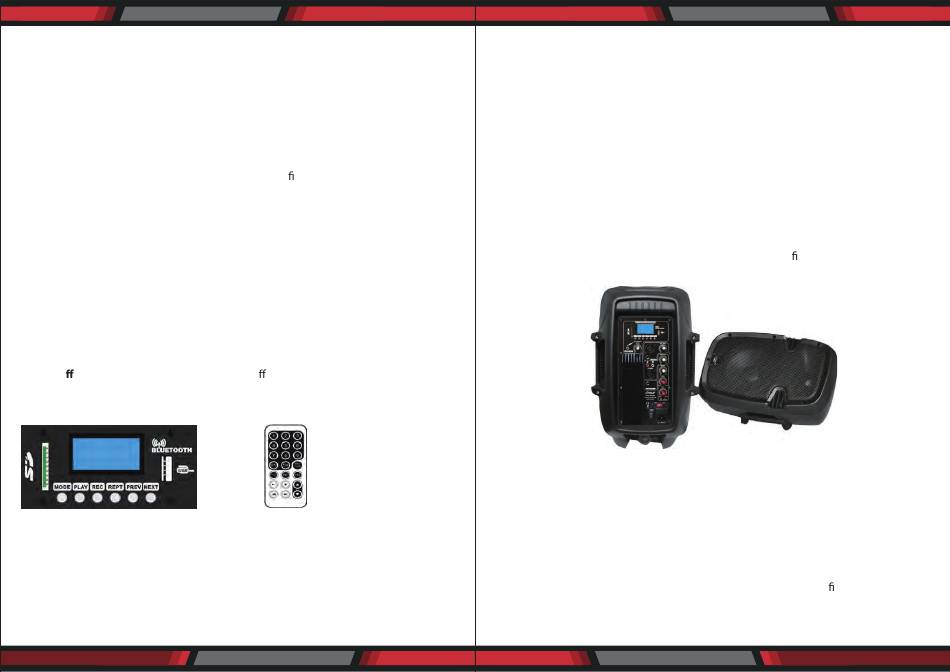

A. MODE: Press to change USB/SD/Wireless BT.
B. PLAY: Press to play songs or pause.
C. REC: Recording to USD or SD.
D. REPT: Press to select repeat mode: one, all or random.
E: PREV: Press to jump to the previous song.
F: NEXT: Press to jump to next song.
4
www.PyleUSA.com
Wireless BT Function Instruction
1. Press 'MODE' to enable Wireless BT and connection to your device.
2. Once 'Bluetooth' appears on the LCD screen it will read 'connected' or
3. Allow the speakers to search for Wireless BT connection.
4. Once, a Wireless BT connection is established with a paired device, the screen will
5. The LCD screen will read 'connected' and a Wireless BT connection has been
Record Function Instruction:
By pressing the 'REC' button you will have the ability to record to your USB and SD
memory cards. Once your selected memory device is inserted (ei. USB Flash or SD
memory card) you will be able to record and delete audio les directly from the
speaker's control center and LCD screen.
Remote control
CAUTIONS
Do not place the microphone against the speaker, it can cause feedback echo
and it will damage the system.
EXTRA FUNCTIONS
6.3 And XLR connectors marker as LINE OUT can handle an ampli er or even another
powered speaker cabinet. On the bottom of the speaker there is a hole to place a
stand.
'unconnected' whether your device has paired with the speakers.
prompt you for a 4-digit pass code, enter "0000" and agree to connect
established
2-Way High-Powered Speaker with MP3, Wireless BT Music Streaming,
Record Function, USB and SD Memory Readers & Remote Control
5
