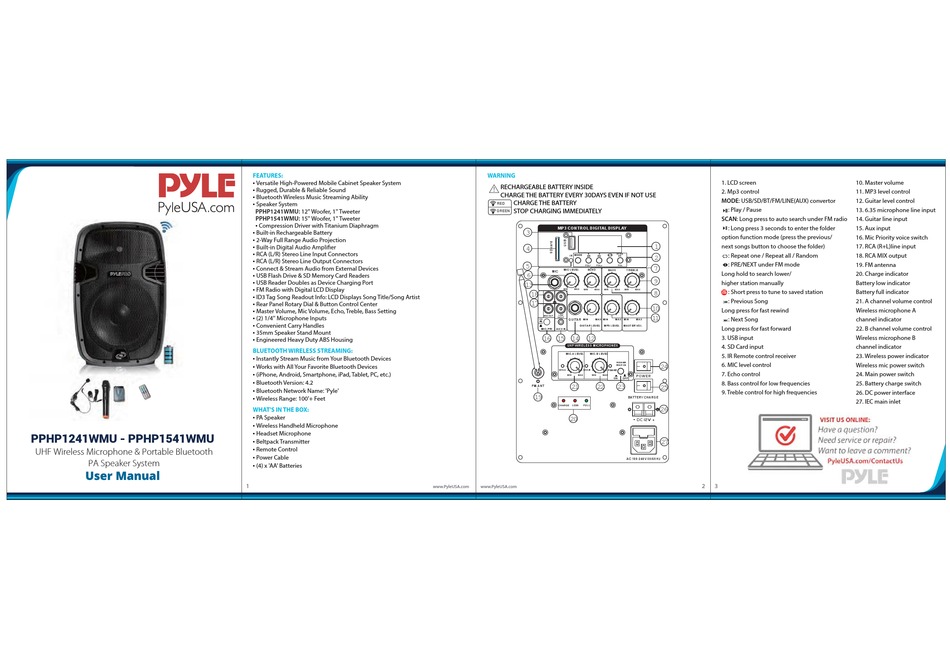

Pyle PPHP1241WMU User Manual

UHF Wireless Microphone & Portable Bluetooth
PA Speaker System
FEATURES:
Versatile High-Powered Mobile Cabinet Speaker System
Rugged, Durable & Reliable Sound
Bluetooth Wireless Music Streaming Ability
Speaker System
PPHP1241WMU: 12'' Woofer, 1'' Tweeter
PPHP1541WMU: 15'' Woofer, 1'' Tweeter
Compression Driver with Titanium Diaphragm
Built-in Rechargeable Battery
2-Way Full Range Audio Projection
RCA (L/R) Stereo Line Input Connectors
RCA (L/R) Stereo Line Output Connectors
Connect & Stream Audio from External Devices
USB Flash Drive & SD Memory Card Readers
USB Reader Doubles as Device Charging Port
FM Radio with Digital LCD Display
ID3 Tag Song Readout Info: LCD Displays Song Title/Song Artist
Rear Panel Rotary Dial & Button Control Center
Master Volume, Mic Volume, Echo, Treble, Bass Setting
(2) 1/4'' Microphone Inputs
Convenient Carry Handles
35mm Speaker Stand Mount
Engineered Heavy Duty ABS Housing
BLUETOOTH WIRELESS STREAMING:
Instantly Stream Music from Your Bluetooth Devices
Works with All Your Favorite Bluetooth Devices
(iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
Bluetooth Version: 4.2
Bluetooth Network Name: 'Pyle'
Wireless Range: 100'+ Feet

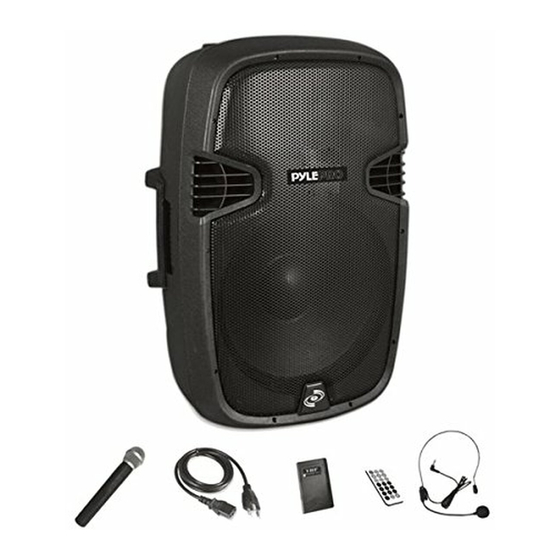

WHAT'S IN THE BOX:
PA Speaker
Wireless Handheld Microphone
Headset Microphone
Beltpack Transmitter
Remote Control
Power Cable
(4) x 'AA' Batteries
1
WARNING
RECHARGEABLE BATTERY INSIDE
CHARGE THE BATTERY EVERY 30DAYS EVEN IF NOT USE
CHARGE THE BATTERY
STOP CHARGING IMMEDIATELY
3
4
5
6
13
18
17
16 15 14 12
MIC.A MIC.B POWER
21 22
19
20
www.PyleUSA.com www.PyleUSA.com
1. LCD screen
2. Mp3 control
MODE: USB/SD/BT/FM/LINE(AUX) convertor
: Play / Pause
SCAN: Long press to auto search under FM radio
: Long press 3 seconds to enter the folder
option function mode (press the previous/
1
next songs button to choose the folder)
2
: Repeat one / Repeat all / Random
: PRE/NEXT under FM mode
7
Long hold to search lower/
9
higher station manually
8
USD : Short press to tune to saved station
SCAN
: Previous Song
10
Long press for fast rewind
11
: Next Song
Long press for fast forward
3. USB input
4. SD Card input
5. IR Remote control receiver
POWER 24
6. MIC level control
SWITCH
7. Echo control
ON OFF
8. Bass control for low frequencies
23 25
9. Treble control for high frequencies
26
-
DC 12V +
27
2 3
10. Master volume
11. MP3 level control
12. Guitar level control
13. 6.35 microphone line input
14. Guitar line input
15. Aux input
16. Mic Priority voice switch
17. RCA (R+L)line input
18. RCA MIX output
19. FM antenna
20. Charge indicator
Battery low indicator
Battery full indicator
21. A channel volume control
Wireless microphone A
channel indicator
22. B channel volume control
Wireless microphone B
channel indicator
23. Wireless power indicator
Wireless mic power switch
24. Main power switch
25. Battery charge switch
26. DC power interface
27. IEC main inlet
