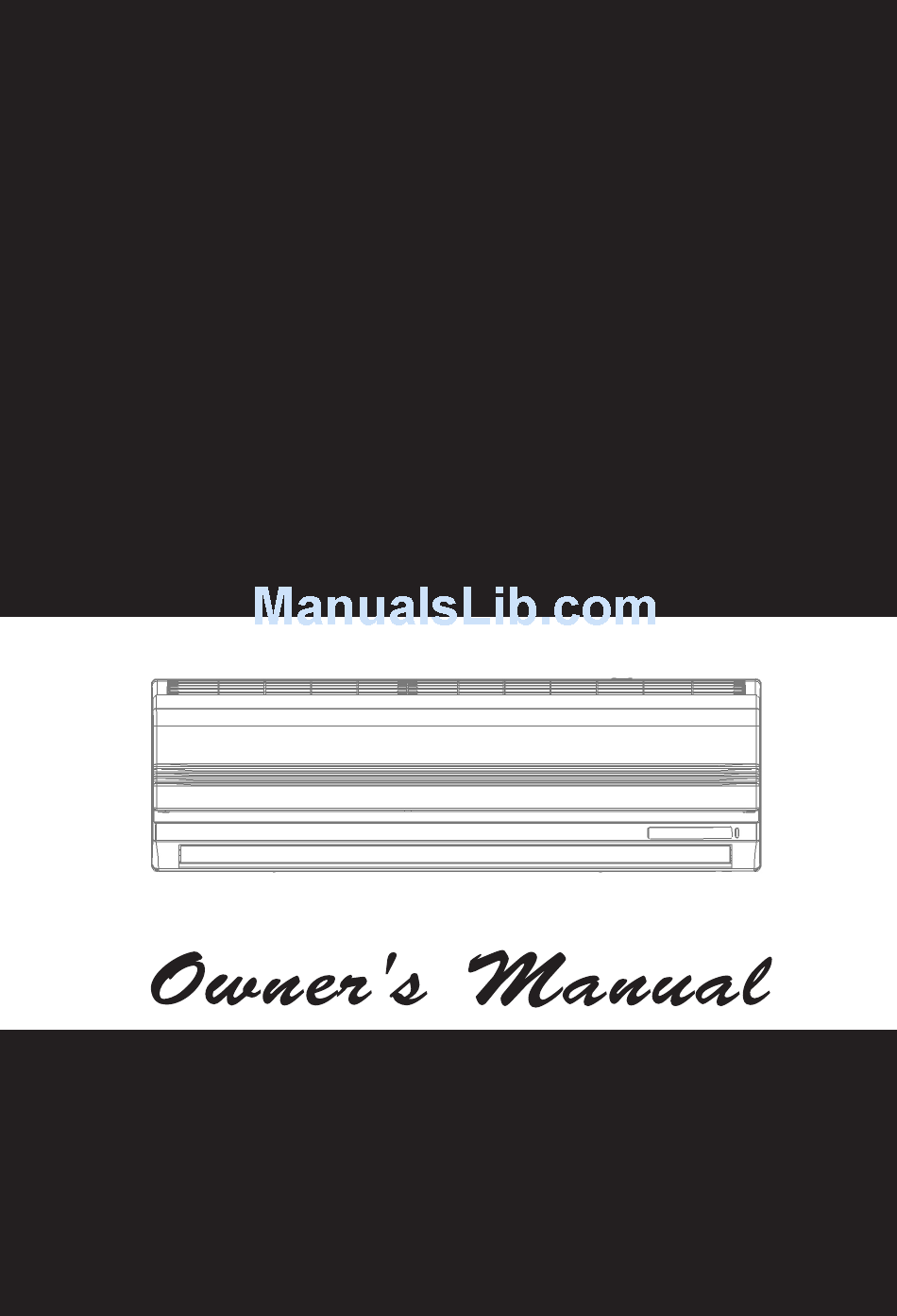

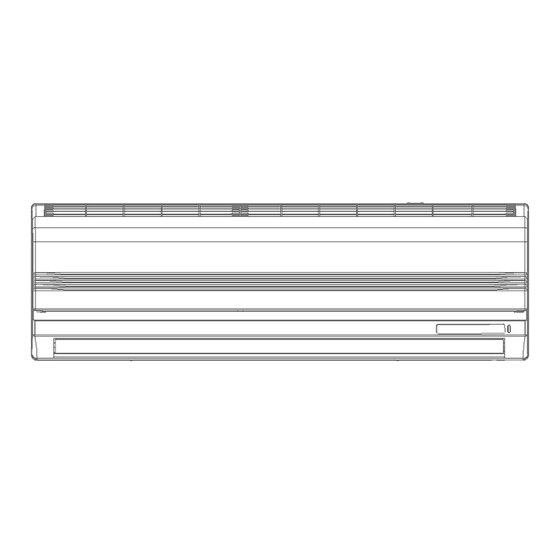

HEAT CONTROLLER, INC.
Wall Mounted
Mini - Split System
DMC24DB-1, DMH24DB-1
DMC36TB-1, DMH36TB-1
Dual-Zone, Tri-Zone
Air Conditioning / Heat Pump
Important Information
• Please read carefully and thoroughly this manual before operating this unit.
• Contact a qualified sevice technician for installation, repair and maintenance of this unit.
• The appliance is not intended for use by young children or those who require supervision.
• Young children should be supervised to ensure that they do not play with the appliance.
Advertisement
Table of Contents
Related Manuals for LG DMC24DB-1
Summary of Contents for LG DMC24DB-1
- Page 1 HEAT CONTROLLER, INC. Wall Mounted Mini - Split System DMC24DB-1, DMH24DB-1 DMC36TB-1, DMH36TB-1 Dual-Zone, Tri-Zone Air Conditioning / Heat Pump Important Information • Please read carefully and thoroughly this manual before operating this unit. • Contact a qualified sevice technician for installation, repair and maintenance of this unit.
-
Page 2: Table Of Contents
Room Air Conditioner Owner’s Manual TABLE OF CONTENTS Safety Precautions...3 Prior to Operation ...8 Operating Instructions...9 Remote Controller ...9 Remote Control Operation...11 Additional features...18 Maintenance and Service ...22 Operation Tips ...23 Troubleshooting ...24 2 Room Air Conditioner FOR YOUR RECORDS Write the model and serial numbers here: Model # Serial #... -
Page 3: Safety Precautions
Safety Precautions To prevent the injury of the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications. This symbol indicates the possibility of death or serious injury. - Page 4 Safety Precautions Be sure the installation area does not deteriorate with age. • If the base collapses, the air conditioner could fall with it, causing property damage, product failure, and personal injury. Operation Do not allow water to run into electric part. •...
- Page 5 Stop operation and close any window in storm or hurricane before the hurricane arrives. • There is risk of property damage, failure of product, or electric shock. Ventilate the product from time to time when operating it together with a stove, etc. •...
- Page 6 Safety Precautions Installation Always check for gas(refrigerant) leakage after installation or repair of product. • Low refrigerant levels may cause product failure. Do not install the product where the noise or hot air from the outdoor unit could offend neighbors. •...
- Page 7 Use a soft cloth to clean. Do not use harsh detergents, solvents, etc. • There is risk of fire, electric shock or damage to the plastic parts of the product. Always insert the filter securely. Clean the filter every two weeks or more often if necessary.
-
Page 8: Prior To Operation
Prior to operation Prior to operation Preparing for operation 1. Contact an installation specialist for installation. 2. Connect the power cable between indoor unit and outdoor unit properly. 3. Use a dedicated circuit. Usage 1. Being exposed to direct airflow for an extended period of time could be hazardous to your health. Do not expose occupants, pets, or plants to direct airflow for extended periods of time. -
Page 9: Operating Instructions
Operating Instructions Remote Controller 1. Remove the battery cover by pulling it according to the arrow direction. 2. Insert new batteries making sure that the (+) and (-) of battery are installed correctly. 3. Reattach the cover by sliding it back into position. Use 2 AAA(1.5volt) batteries. - Page 10 Operating Instructions Signal Receptor Receives the signals from the remote controller.(Signal receiving sound: two short beeps or one long beep.) Operation Indication Lamps On/Off : Lights up during the system operation. Sleep Mode : Lights up during Sleep Mode Auto operation. Timer : Lights up during Timer operation.
-
Page 11: Remote Control Operation
Remote Control Operation Controls CANCEL AUTO CLEAN Operation Mode Cooling Operation Auto Operation or Auto Changeover Healthy Dehumidification Operation Heating Operation • Cooling Model( ), Heat Pump Model( 1. START/STOP BUTTON Operation starts when this button is pressed Signal transmitter and stops when the button is pressed again. -
Page 12: Cooling Operation
Operating Instructions Cooling Operation Natural wind by the CHAOS logic For more fresh feeling, press the Indoor Fan Speed Selector and set CHAOS mode. In this mode, the wind blows like natural breeze by automatically changing fan speed according to the CHAOS logic. 12 Room Air Conditioner Press the Start/Stop button. -
Page 13: Auto Operation
Auto Operation DURING AUTO OPERATION: You cannot switch the indoor fan speed. It has already been set by the Fuzzy rule. If the system is not operating as desired, manually switch to another mode. The system will not automatically switch from the cooling mode to the heating mode, or from heating to cooling, then you must set the mode and the desired temperature again. - Page 14 Operating Instructions Healthy Dehumidification Operation DURING HEALTHY DEHUMIDIFICATION OPERATION: If you select the dehumidification mode on the operation selection button, the A/C starts to run the dehumidification function, automatically setting the room temp. and air volume to the best condition for dehumidification based on the sensed room temp.
- Page 15 Heating Operation(Heat pump model only) NATURAL WIND BY THE CHAOS LOGIC For more fresh feeling than other fan speed, press the Indoor Fan Speed Selector and set to CHAOS mode. In this mode, the wind blows like natural breeze by automatically changing fan speed according to the CHAOS logic.
- Page 16 Operating Instructions Jet Cool NOTICE Jet Cool function in heating mode is available on Artcool type only. During the JET COOL function at any moment, the A/C starts to blow the cool/heat air at extremely high speed for 30/60 minutes setting the room temp. automatically to 18°C/30°C(64°F/86°F).
- Page 17 2nd F Operation CANCEL AUTO CLEAN For more details, refer to functions next page. Press the Start/Stop button. The unit will respond with beep sound. Open the door of the Remote Controller and press the 2 button to operate functions printed in blue at bottom of buttons.
-
Page 18: Additional Features
Additional features Additional features Sleep Mode 1. Press the Sleep Mode Auto button to set the time you want the unit to turn off automatically. 2. The Timer is programmed in one-hour increments by pressing the Sleep Mode Auto button 1 to 7 times. - Page 19 Vertical Airflow Direction Control The up/down airflow (Vertical Airflow) can be adjusted by using the remote control. Press the Start/Stop button to start the unit. Open the door on the remote control. Press Chaos Swing button and the louvers will swing up and down.
-
Page 20: Forced Operation
Additional features Auto clean 1. Whenever you press the AUTO CLEAN button, Auto Clean Function will be selected or cancelled. AUTO CLEAN 2. Auto Clean function works before and after cooling or dehumidification mode. For details, refer to the below points. 3. - Page 21 Auto restart In case the power comes on again after a power failure, the unit operates automatically to the previous operating conditions. So there is no need of activating this function by pressing any key or button. In the initial mode, the fan operates at a low speed and the compressor starts about 3 minutes later. As the compressor starts, the fan speed also resumes its previous setting mode.
-
Page 22: Maintenance And Service
Maintenance and Service Maintenance and Service CAUTION: Before performing any maintenance, turn off the main power to the system. Indoor Unit Grille, Case, and Remote Control Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives. -
Page 23: Operation Tips
When the air conditioner is not going to be used for a long time. When air conditioner is not going to be used for a long time. 1. Operate the air conditioner on Air circulation mode (Refer to page 19) for 2 to 3 hours. •... -
Page 24: Troubleshooting
Maintenance and Service Troubleshooting Check the following points before requesting repairs or service... If the fault persists, please contact your dealer or service center. Case The air conditioner does not operate. The room has a peculiar odor. It seems that condensation is leaking from the air conditioner. - Page 25 Specifications and performance data subject to change without notice. HEAT CONTROLLER, INC. 1900 WELLWORTH AVENUE • JACKSON, MICHIGAN 49203 THE QUALITY LEADER IN CONDITIONING AIR P/No.: 3828A22236C...
