Quick Links
Contents
(I) Product Instructions
(II) Button and interface description
(III) Startup
(IV) Basic operation instructions for video recording /photographing / playback
(V) Instructions for menu setting
(VI) Product specifications
(IX) Frequently asked questions and solutions
Structure diagram

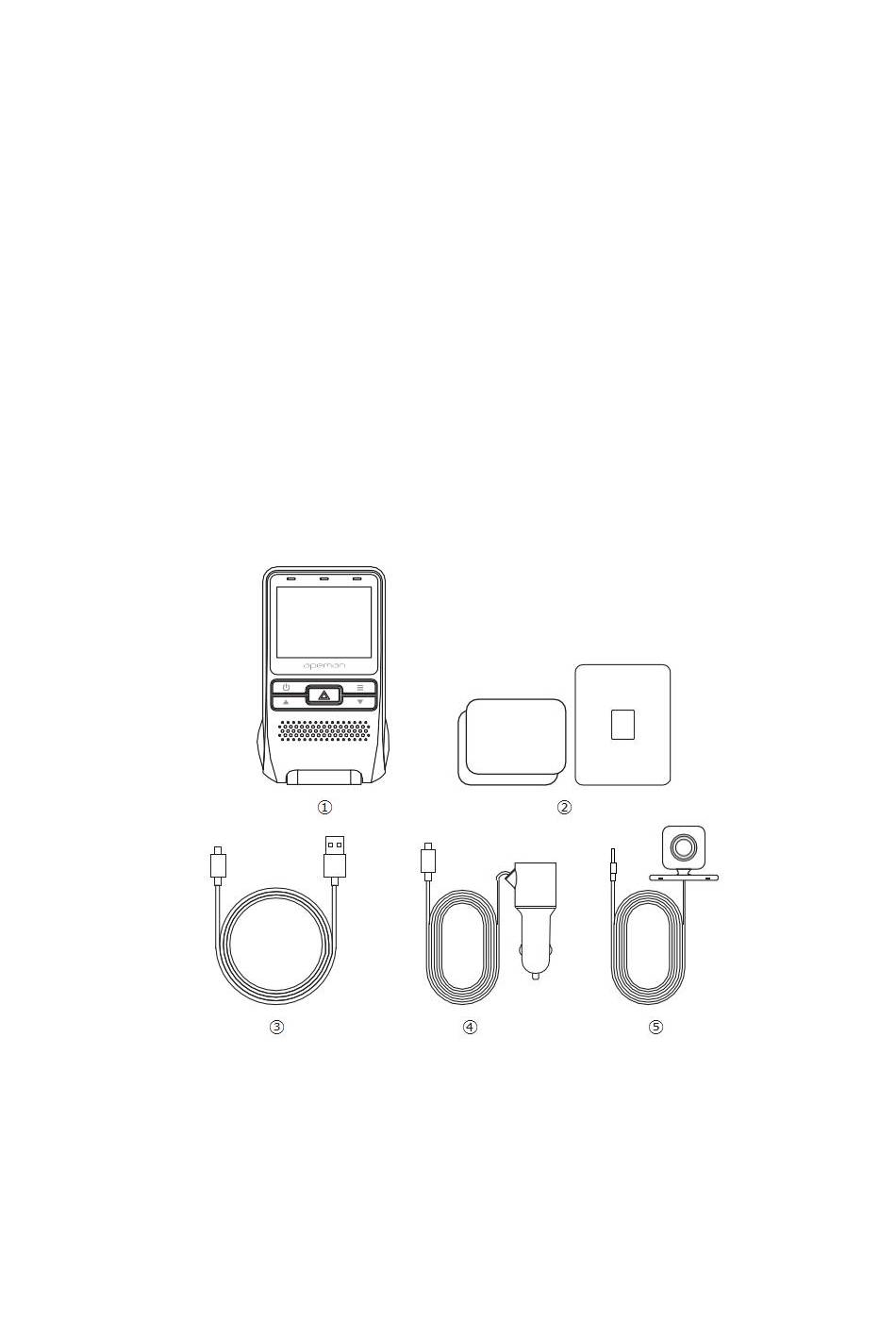

Package Contents
① Main Body ② 2×Adhesive ,1×Mount
③ Mini USB Cable
④ Car charger ⑤ Rear Cam
Button Instructions
Advertisement
Related Manuals for Crosstour CR600
Summary of Contents for Crosstour CR600
- Page 1 Contents (I) Product Instructions (II) Button and interface description (III) Startup (IV) Basic operation instructions for video recording /photographing / playback (V) Instructions for menu setting (VI) Product specifications (IX) Frequently asked questions and solutions Structure diagram Package Contents ① Main Body ② 2×Adhesive ,1×Mount ③...
- Page 2 ① TF Card Slot ⑥ Menu ⑪ Slide Slot ② Reset ⑦ Down ⑫ USB/Power Interface ③ Power On/Off ⑧ Screen ⑬ Rear Cam Interface ④ Up ⑨ Indicator ⑭. Lens ⑤ Record/OK ⑩ MIC 二：机器按键及接口说明 (II) Button and interface description 按键名称...
- Page 3 3. Short press power button to turn on/off the screen in standby mode. 不正常状态下，短按此键，机台可以重新启动 复位键 复位功能 Short press this button to restart the machine under Reset Reset function abnormal conditions. 1.摄像模式下：短按开始录像，再次短按停止录 像 2.菜单模式下：设置确认键 3. 在 拍 照 模 式 下 ： 短 按 拍 照 录像开始/停止功能...
- Page 4 Turn on/off audio record. 1. Under menu mode: Select downward; 2. Under playback mode: Select a file downward; 3. Under video mode: Short press it to turn on /off audio record. TF 卡插槽 按机上 TF 的卡图示插入卡槽即可 存储卡插槽 TF card slot Storage card slot.
- Page 5 (IV) Basic operation instructions for video recording/ photographing/ playback Video mode: After being powered on, it enters video mode and automatically starts recording. The video recording icon is displayed in the upper left corner of the screen. The red dot at the top of the screen flashes, indicating that a video is being recorded. Short press OK button to stop recording.
- Page 6 Loop Recording: The cam will cyclically record new videos under the time interval you set. Off / three minutes / five minutes / ten minutes. Default value: three minutes Display Mode: Picture in picture/ front camera/ back camera/ split-screen. Default value: Picture in picture.
- Page 7 1. Short press Up/ Down Button to switch to setting option. 2. Short press OK Button to enter and short press Up /Down Button to select. 3. After modification, press OK Button to save. Date and time: Press OK to enter it. Press Up or Down to change. After changing each time, press OK button to switch to the next item.
- Page 8 Version: You can view version information. Photo settings After being powered on, it enters the video mode and automatically starts recording. Short press OK Button to stop recording. Press Mode Button once to switch to photo mode. The photographing icon is displayed in the upper left corner of the screen. Short press Menu Button to switch to photo settings.
- Page 9 产品特点 单机双路， Product features Dual video G-sensor 内置（车子意外情况下紧急保存，不被删除） Built-in (emergently save files in case of an accident. Files saved will not be overwritten) 2 英寸 LCD 屏幕 液晶显示屏尺寸 Size of LCD 2 inch LCD 前 170 度高解析超广角镜头/后 120 度广角镜 镜头 头...
- Page 10 TF 卡（Class 10 或者以上，最大支持 32G) 存储卡 Storage card TF card (Class 10 or above, up to 32G) 麦克风 支持 Microphone Support 内置喇叭 支持 Built-in speaker Support 5V 1.5A 电源接口 Power interface -20 度到 60 度 正常使用温度范围 Normal working temperature -20 to 60 °C range VIII.
- Page 11 Due to the huge data of HD video, please use high-speed Class10 TF card supported by the machine. High-speed TF card has a C10 mark. A message “file error” occurs during playback of photo and video. The file is incomplete when an error occurs during data storage in TF card, please use the “formatting”...
