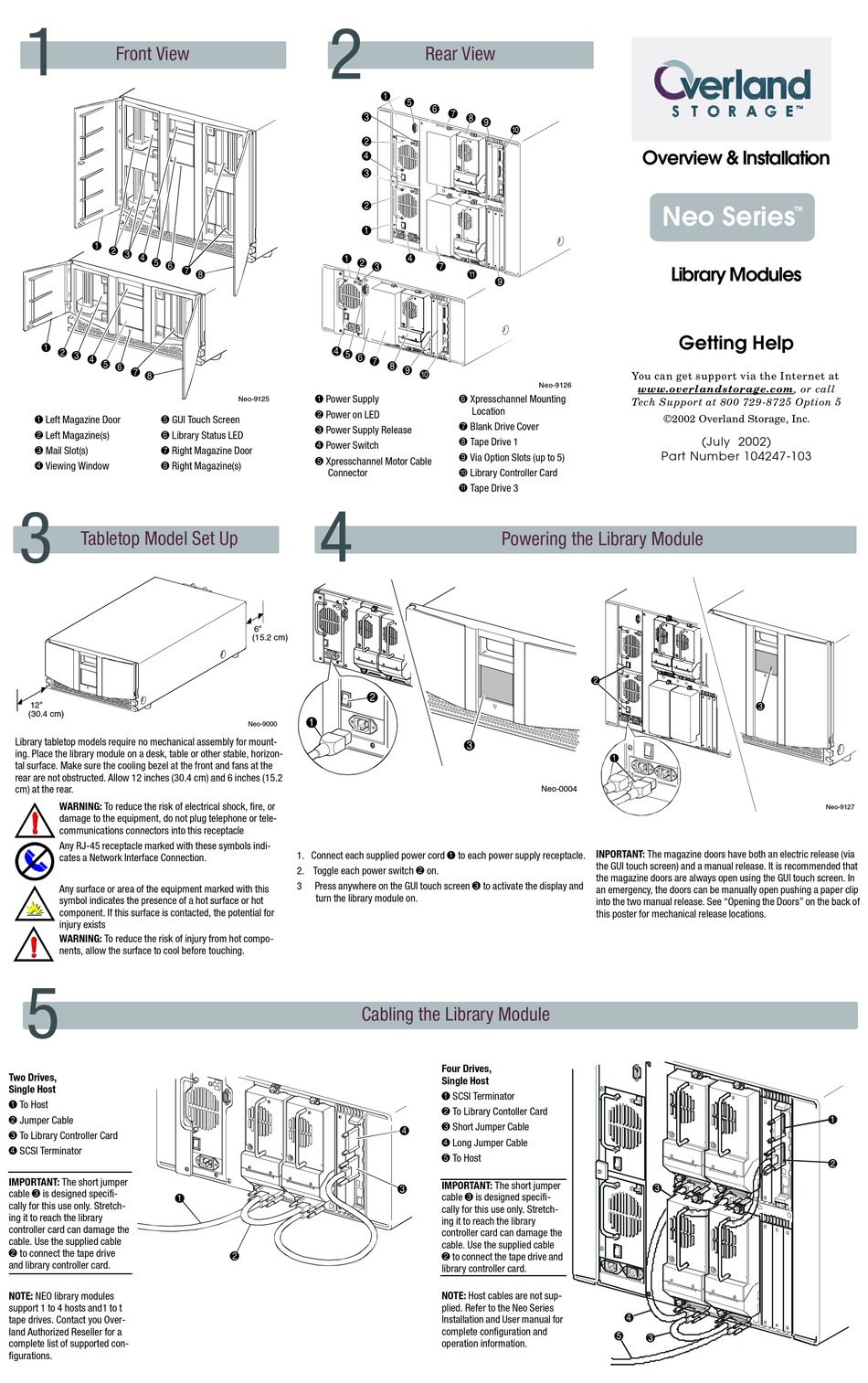

Overland Storage Neo Series Overview & Installation

1
Front View
1
2
3 4
5
6 7
1
2
3 4
5
6 7
8
1 Left Magazine Door 5 GUI Touch Screen
2 Left Magazine(s) 6 Library Status LED
3 Mail Slot(s) 7 Right Magazine Door
4 Viewing Window 8 Right Magazine(s)
3
Tabletop Model Set Up
12"
(30.4 cm)
Library tabletop models require no mechanical assembly for mount-
ing. Place the library module on a desk, table or other stable, horizon-
tal surface. Make sure the cooling bezel at the front and fans at the
rear are not obstructed. Allow 12 inches (30.4 cm) and 6 inches (15.2
cm) at the rear.
WARNING: To reduce the risk of electrical shock, fire, or
damage to the equipment, do not plug telephone or tele-
communications connectors into this receptacle
Any RJ-45 receptacle marked with these symbols indi-
cates a Network Interface Connection.
Any surface or area of the equipment marked with this
symbol indicates the presence of a hot surface or hot
component. If this surface is contacted, the potential for
injury exists
WARNING: To reduce the risk of injury from hot compo-
nents, allow the surface to cool before touching.
5
Two Drives,
Single Host
1 To Host
2 Jumper Cable
3 To Library Controller Card
4 SCSI Terminator
IMPORTANT: The short jumper
cable 3 is designed specifi-
cally for this use only. Stretch-
ing it to reach the library
controller card can damage the
cable. Use the supplied cable
2 to connect the tape drive
and library controller card.
NOTE: NEO library modules
support 1 to 4 hosts and1 to t
tape drives. Contact you Over-
land Authorized Reseller for a
complete list of supported con-
figurations.
2
8
4 5
1 Power Supply
Neo-9125
2 Power on LED
3 Power Supply Release
4 Power Switch
5 Xpresschannel Motor Cable
Connector
4
6"
(15.2 cm)
1
Neo-9000
1. Connect each supplied power cord 1 to each power supply receptacle.
2. Toggle each power switch 2 on.
Press anywhere on the GUI touch screen 3 to activate the display and
3
turn the library module on.
1
2
Rear View
1
5
6
7
3
8
9
2
4
3
2
1
1 4
2 3
7
q
9
6
7
8 9
:
6 Xpresschannel Mounting
Location
7 Blank Drive Cover
8 Tape Drive 1
9 Via Option Slots (up to 5)
- Library Controller Card
q Tape Drive 3
Powering the Library Module
2
3
Cabling the Library Module
Four Drives,
Single Host
1 SCSI Terminator
2 To Library Contoller Card
3 Short Jumper Cable
4
4 Long Jumper Cable
5 To Host
IMPORTANT: The short jumper
3
cable 3 is designed specifi-
cally for this use only. Stretch-
ing it to reach the library
controller card can damage the
cable. Use the supplied cable
2 to connect the tape drive and
library controller card.
NOTE: Host cables are not sup-
plied. Refer to the Neo Series
Installation and User manual for
complete configuration and
operation information.
:
Overview & Installation
Neo Series
Library Modules
You can get support via the Internet at
Neo-9126
www.overlandstorage.com, or call
Tech Support at 800 729-8725 Option 5
©2002 Overland Storage, Inc.
Part Number 104247-103
2
1
Neo-0004
INPORTANT: The magazine doors have both an electric release (via
the GUI touch screen) and a manual release. It is recommended that
the magazine doors are always open using the GUI touch screen. In
an emergency, the doors can be manually open pushing a paper clip
into the two manual release. See "Opening the Doors" on the back of
this poster for mechanical release locations.
3
4
5
3
TM
Getting Help
(July 2002)
3
Neo-9127
1
2
