OWNER'S MANUAL
FRENCH DOOR
REFRIGERATOR
Please read this owner's manual thoroughly before
operating and keep it handy for reference at all times.
LMX25986 **
www.lg.com
P/NO : MFL62184508

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMX25986ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG LMX25986ST

Summary of Contents for LG LMX25986ST

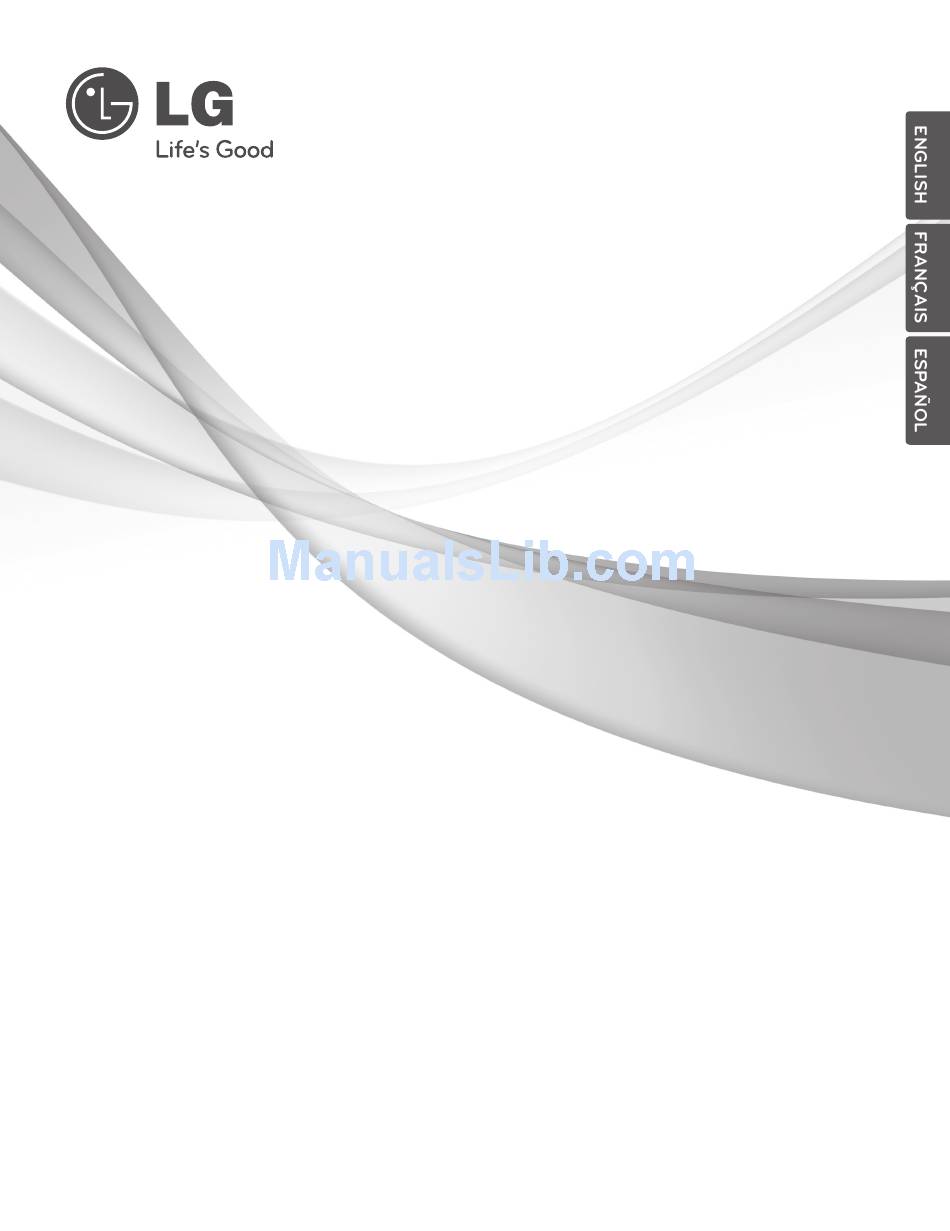

  • Page 1 OWNER’S MANUAL FRENCH DOOR REFRIGERATOR Please read this owner's manual thoroughly before operating and keep it handy for reference at all times. LMX25986 ** www.lg.com P/NO : MFL62184508...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS PRODUCT FEATURES IMPORTANT SAFETY INSTRUCTIONS COMPONENTS Refrigerator Exterior Refrigerator Interior - Key Parts and Components - Special Features INSTALLATION Specifications Unpacking Your Refrigerator Choosing the Proper Location - Flooring - Ambient Temperature - Measuring the Clearances Removing/Assembling the Refrigerator Door Handles Removing/Assembling the Freezer Drawer Handle...

  • Page 3: Product Features

    PRODUCT FEATURES * Depending on the model, some of the following functions may not be available. FILTERED WATER AND ICE DISPENSER The water dispenser dispenses fresh, chilled water. The ice dispenser dispenses cubed and crushed ice. DOOR ALARM The Door Alarm function is designed to prevent refrigerator malfunctioning that could occur if a refrigera- tor door or freezer drawer remains open.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETy INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. This guide contains many important safety messages. Always read and obey all safety messages. This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product.
  • Page 5 READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be followed, including the following. Do not use this product for special purposes (storage of medicine or test materials or for ships, etc). Unplug the power plug before cleaning or repairing the refrigerator.
  • Page 6 IMPORTANT SAFETy INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be followed, including the following. CAUTION Installation The refrigerator must be properly installed in accordance with the Installer Instructions that were taped to the front of the refrigerator.

  • Page 7: Components

    COMPONENTS Use this page to become more familiar with the parts and features of your refrigerator. Page references are included for your convenience. *The appearance and specifications of the actual product may differ depending on the model. Refrigerator Exterior LED Display Displays the refrigerator and freezer temperature, the water filter condi- tion and the dispenser status.

  • Page 8: Refrigerator Interior

    COMPONENTS Refrigerator Interior Key Parts and Components LED Interior Lamps The interior lamps light up the inside of the refrigerator. Fixed Door Bins Can Storage Bin Used to preserve chilled food or drinks. Ice Storage Bin For additional ice storage. Adjustable Refrigerator Shelf The shelves in your re-...

  • Page 9: Special Features

    Special Features SpacePlus Ice System Automatically produces 80-130 ice cubes in a 24-hour period. Mullion Folds in when the left door is opened. Glide’N’Serve Allows you to store food items at a dif- ferent temperature than the regular refrigerator area. Smart Diagnosis Speaker Hold your phone to this speaker when activating...

  • Page 10: Installation

    INSTALLATION INSTALLATION Specifications The appearance and specifications listed in this manual may vary due to constant product improvements. Bottom-freezer refrigerator model LMX25986 Description French door refrigerator Electrical requirements 115 VAC @ 60 Hz Min. / Max. Water pressure 20 -120 PSI (1.4 - 8.4 kgf/cm Dimensions 35 3/4"...

  • Page 11: Installation 28

    Unpacking Your Refrigerator WARNING Use two or more people to move and install the refrigerator. Failure to do so can result in back or other injury. Your refrigerator is heavy. When moving the refrig- erator for cleaning or service, be sure to protect the floor.

  • Page 12: Removing/Assembling The Refrigerator Door Handles

    INSTALLATION Removing/Assembling the Refrigerator Door Handles NOTE Removing the doors is always recommended when it is necessary to move the refrigerator through a nar- row opening. If it is necessary to remove the handles, follow the directions below. Removing the Handles Loosen the set screws with a in.

  • Page 13: Removing/Assembling The Doors And Drawers

    Removing/Assembling the Doors and Drawers Removing the doors is always recommended when it is nec- essary to move the refrigerator through a narrow opening. WARNING If your entrance door is too narrow for the refrigera- tor to pass through, remove the refrigerator doors and move the refrigerator sideways through the doorway.

  • Page 14: Removing The Right Refrigerator Door

    INSTALLATION Removing the Right Refrigerator Door Open the door. Remove the top hinge cover screw (1). Lift up the cover (2). Remove the cover. Rotate the hinge lever (3) clockwise. Lift the top hinge (4) free of the hinge lever latch (5). Lift the door from the middle hinge pin and remove the door.

  • Page 15: Assembling The Left Refrigerator Door

    Assembling the Left Refrigerator Door Install the left refrigerator door after the right door is installed. Lower the door onto the middle hinge pin. Fit the top hinge (7) over the hinge lever latch (8) and into place. Rotate the lever (6) clockwise to secure the hinge. Install the grounding screws (5) and connect the two wire harnesses (4).

  • Page 16: Removing The Freezer Drawers

    INSTALLATION Removing the Freezer Drawers The top, middle and bottom drawers are all removed in the same way. In the following figures, the Pullout Drawer located above the freezer drawer is not shown for clarity. CAUTION Use two or more people to remove and install the freezer drawer.

  • Page 17: Bottom Freezer Drawer

    Bottom Freezer Drawer Pull the drawer open to full extension. Remove the bas- ket by lifting the basket from the rail system. Remove the screws on both the left and right rails. INSTALLATION Grasp the drawer on each side and pull it up to separate it from the rails.

  • Page 18: Assembling The Freezer Drawers

    INSTALLATION Assembling the Freezer Drawers Top Freezer Drawer With both hands, pull out each rail simultaneously until both rails are fully extended. Grasp the drawer on each side and hook the door sup- ports 1 into the rail tabs 2 located on both sides. Lower the door into final position and tighten the screws located on both sides.

  • Page 19: Connecting The Water Line

    Connecting the Water Line Before You Begin This water line installation is not covered by the refrigerator warranty. Follow these instructions carefully to minimize the risk of expensive water damage. Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and can lead to water leakage or flooding.

  • Page 20: Water Line Installation Instructions

    INSTALLATION Water Line Installation Instructions WARNING When using any electrical device (such as a power drill) during installation, be sure the device is bat- tery powered, double insulated or grounded in a manner that will prevent the hazard of electric shock.

  • Page 21: Turning On The Power

    FLUSH OUT THE TUBING Turn the main water supply on and flush out the tubing until the water is clear. Shut the water off at the water valve after about one quart of water has been flushed through the tubing. CONNECT THE TUBING TO THE REFRIGERATOR NOTE: Before making the connection to the refrigerator, be sure that the refrigerator power...

  • Page 22: Leveling And Door Alignment

    INSTALLATION Leveling and Door Alignment Leveling After installing, plug the refrigerator’s power cord into a 3-prong grounded outlet and push the refrigerator into the final position. Your refrigerator has two front leveling legs—one on the right and one on the left. Adjust the legs to alter the tilt from front- to-back or side-to-side.

  • Page 23: How To Use

    HOW TO USE Before Use Clean the refrigerator. Clean your refrigerator thoroughly and wipe off all dust that accumulated during shipping. CAUTION Do not scratch the refrigerator with a sharp object or use a detergent that contains alcohol, a flam- mable liquid or an abrasive when removing any tape or adhesive from the refrigerator,.

  • Page 24: Control Panel

    HOW TO USE Control Panel * Depending on the model, some of the following functions may not be available. LED Display Control Buttons Control Panel Features The LED Display shows the temperature settings, dispenser options, water filter, door alarm, andl ocking status mes- sages.

  • Page 25: Control Lock

    Control Panel Features (continued) Light Press the LIGHT button, to turn on the dispenser light. The indicator will appear on the LED display. Change Filter When the water filter indicator turns on, you have to change the water filter. After changing the water filter, press and hold the FILTER button for three seconds to turn the indica- tor light off.

  • Page 26: In-Door Ice Bin

    HOW TO USE In-Door Ice Bin * Depending on the model, some of the following functions may not be available. CAUTION Keep hands and tools out of the ice compartment door and dispenser chute. Failure to do so may result in damage or personal injury.

  • Page 27: Automatic Icemaker

    Automatic Icemaker * Depending on the model, some of the following functions may not be available. Ice is made in the automatic icemaker and sent to the dis- penser. The icemaker will produce 12 cubes per cycle— approximately 120 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other operating conditions.

  • Page 28: When You Should Turn The Icemaker Off

    HOW TO USE Automatic Icemaker (continued) CAUTION The first ice and water dispensed may include particles or odor from the water supply line or the water tank. Throw away the first few batches of ice (about 24 cubes). This is also necessary if the refrigerator has not been used for a long time.

  • Page 29: Ice And Water Dispenser

    Ice and Water Dispenser * Depending on the model, some of the following functions may not be available. CAUTION Keep children away from the dispenser. Children may play with or damage the controls. Dispenser Using the Dispenser cold water, push on the water switch with To dispense a glass.

  • Page 30: Storing Food

    HOW TO USE Storing Food Food Preservation Location Each compartment inside the refrigerator is designed to store different types of food. Store your food in the optimal space to enjoy the freshest taste. Vegetable Storage (Crisper) Preserves vegetables and fruit. Ice Storage Bin If a large amount of ice is needed, transfer the ice in the...

  • Page 31: Food Storage Tips

    Food Storage Tips * The following tips may not be applicable depending on the model. Wrap or store food in the refrigerator in airtight and moisture- proof material unless otherwise noted. This prevents food odor and taste transfer throughout the refrigerator. For dated products, check date code to ensure freshness.

  • Page 32: Humidity Controlled Crisper And Glide'n'serve

    HOW TO USE Humidity Controlled Crisper and Glide’N’Serve Humidity Controlled Crisper * Depending on the model, some of the following functions may not be available. The crispers provide fresher tasting fruit and vegetables by letting you easily control humidity inside the drawer. You can control the amount of humidity in the moisture- sealed crispers by adjusting the control to any setting be- tween HIGH and LOW .

  • Page 33: Detaching And Assembling The Storage Bins

    Detaching and Assembling the Storage Bins Glide’N’Serve and Humidity Controlled Crisper To remove the Humidity Controlled Crisper and the Glide’N’Server, pull out the Crisper and Glide’N’Server full extension, lift the front up, and pull straight out. REMOVING AND REPLACING COMPONENTS NOTE: When reinstalling components, reverse the order of steps for removal.

  • Page 34: Adjusting The Refrigerator Shelves

    HOW TO USE Adjusting the Refrigerator Shelves The shelves in your refrigerator are adjustable to meet your individual storage needs. Your model may have glass or wire shelves. Adjusting the shelves to fit different heights of items will make finding the exact item you want easier. Doing so will also reduce the amount of time the refrigerator door is open which will save energy.

  • Page 35: Maintenance

    MAINTENANCE Cleaning Both the refrigerator and freezer sections defrost automatically; however, clean both sections about once a month to pre- vent odors. Wipe up spills immediately. Always unplug the refrigeration before cleaning. General Cleaning Tips Unplug refrigerator or disconnect power. Remove all removable parts, such as shelves, crispers, etc.

  • Page 36: Replacing The Water Filter

    NOTE To purchase a replacement water filter: - Visit your local dealer or distributor - Web: Find Parts & Accessories from Support section of lg.com - Call : 1-800-243-0000 (USA) 1-888-542-2623 (Canada) Part number of the replacement water filter: ADQ36006101 Firmly lock in the cartridge.

  • Page 37: Care And Cleaning

    Care and cleaning Model: LG ADQ36006101-S The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42 and Standard 53.
  • Page 38 For estimated costs of replacement elements please call USA 1-800-243-0000 CANADA 1-888-542-2623 (24 hours per day/7 days per week) or visit our website at www.lg.com 3M is a trademark of 3M Company. NSF is a trademark of NSF International. © 2009 3M Company. All rights reserved.
  • Page 39 Trademark/Model Designation ADQ36006101-S Manufacturer: Cuno Inc. The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section 116830 of the Health and Safety Code for the following health related contaminants: Microbiological Contaminants and Turbidity Cysts Organic Contaminants 2,4-D Reduction Atrazine...

  • Page 40: Smart Diagnosis

    If you experience problems with your refrigerator, call 1-800-243-0000. Only use the Smart Diagnosis feature when instructed to do so by the LG call center agent. The transmis- sion sounds that you will hear are normal and sound similar to a fax machine.

  • Page 41: Troubleshooting

    TROUBLESHOOTING Review the Troubleshooting section before calling for service; doing so will save you both time and money. Problem Refrigerator and Freezer The refrigerator control is set to OFF (some section are not cooling. models). Refrigerator is set to demo mode. Refrigerator is in the defrost cycle.
  • Page 42 TROUBLESHOOTING Problem Refrigerator or Freezer Refrigerator was recently installed. section is too warm. Air vents are blocked. Doors are opened often or for long periods of time. Unit is installed in a hot location. A large amount of food or hot food was added to either compartment.
  • Page 43 Problem Possible Causes Food is freezing Food with high water content was placed in the refrigerator near an air vent. compartment. Refrigerator temperature control is set incorrectly. Refrigerator is installed in a cold location. Frost or ice crystals form Door is opened frequently or for long periods on frozen food (outside of time.
  • Page 44 TROUBLESHOOTING Problem Icemaker is not making Doors are opened often or for long periods enough ice (continued). of time. Doors are not closed completely. The temperature setting for the freezer is too warm. Dispensing water slowly. Water filter has been exhausted. Reverse osmosis filtration system is used.
  • Page 45 Problem Possible Causes Icemaker is not making Refrigerator was recently installed or ice. icemaker recently connected. Icemaker not turned on. The ice detecting sensor is obstructed. The refrigerator is not connected to a water supply or the supply shutoff valve is not turned on.
  • Page 46 TROUBLESHOOTING Problem Ice has bad taste or odor. Water supply contains minerals such as sulfur. Icemaker was recently installed. Ice has been stored for too long. The food has not been stored properly in either compartment. The interior of the refrigerator needs to be cleaned.
  • Page 47 Problem Possible Causes Clicking The defrost control will click when the automatic defrost cycle begins and ends. The thermostat control (or refrigerator control on some models) will also click when cycling on and off. Rattling Rattling noises may come from the flow of refrigerant, the water line on the back of the unit, or items stored on top of or around the refrigerator.
  • Page 48 TROUBLESHOOTING Problem Doors will not close Food packages are blocking the door open. correctly or pop open. Ice bin, crisper cover, pans, shelves, door bins, or baskets are out of position. The doors were removed during product installation and not properly replaced. Refrigerator is not leveled properly.

  • Page 49: Warranty

    Should your LG Refrigerator (“Product”) fail due to a defect in materials or workmanship under normal home use, during the warranty period set forth below, LG will at its option repair or replace the product. This limited warranty is valid only to the original retail purchaser of the product and applies only when purchased and used within the United States including U.S.
  • Page 50 WARRANTY: Should your LG Refrigerator (“Product”) fail due to a defect in material or workmanship under normal home use during the warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase. This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or an authorized Cana- dian distributor thereof.
  • Page 53 LG Customer Information Center For inquires or comments, visit www.lg.com or call; 1-800-243-0000 USA, Consumer User 1-888-865-3026 USA, Commercial User 1-888-542-2623 CANADA Register your product Online! www.lg.com...
