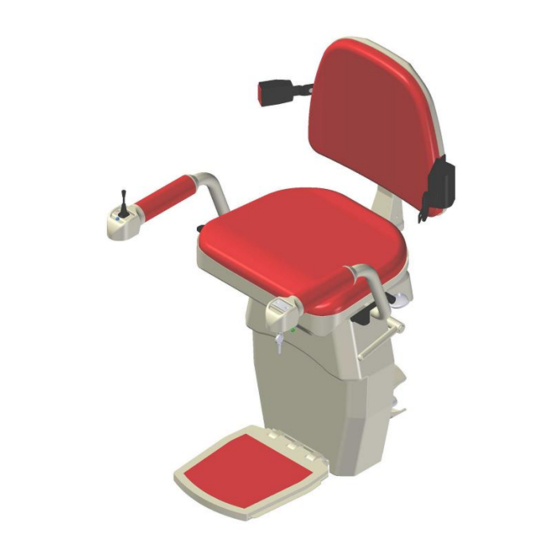

- Page 1 OWNER’S MANUAL CURVED STAIRLIFT MODEL L - 06 Curved Stairlift Owner’s Manual | | 0040 256 377385 – RO 0049 2295 901605 - DE 0 / 19...
-
Page 2: Table Of Contents
CONTENTS 1. SUPPLIER DETAILS ................pag. 2 2. PURCHASE INFORMATION FOR BUYERS......... pag. 2 3. FEATURES ....................pag. 2 3.1 GENERAL DESCRIPTION 3.2 TECHNICAL DATA 3.3 ENVIRONMENTAL INFLUENCE 4. USE ......................pag. 6 4.1 ELEMENTS OF USE 4.2 PREVENTIVE MEASURES BEFORE USE 4.3 PROHIBITIONS 5. -
Page 3: Supplier Details
1. SUPPLIER DETAILS If you have any questions regarding the operation or maintenance of your stair lift, please contact your supplier by phone or in writing. Supplier name: ............. Address: ................ Phone no.: ..............E-mail: ................2. PURCHASE INFORMATION FOR BUYERS If maintenance or repairs under guarantee are needed, your supplier will need the following information: Client name: .............. - Page 4 Upper tube Lower tubr Rack Beam Sole support for pole Fig. 1 Curved Stairlift Owner’s Manual | | 0040 256 377385 – RO 0049 2295 901605 - DE 3 / 18...
- Page 5 Lift Rolling mechanism Drive pinion Rail Stabilization mechanism Fig. 2 Curved Stairlift Owner’s Manual | | 0040 256 377385 – RO 0049 2295 901605 - DE 4 / 18...
-
Page 6: Technical Data
3.2 TECHNICAL DATA - Rated capacity – 275 lbs (125 kg). - Travel speed – programmable up to a max. val. of 0.32 ft/s (0.1 m/s) ± 10 % - The height measured from the top of the leg support against the stairs along the travel path is ca. -
Page 7: Use
4. USE 4.1 HOW TO USE Calling the lift from/to the parking area is made with the remote control in fig. 3, by pressing one of the two keys labeled with arrows. Keep the button pressed without worrying because the lift will slow down and stop automatically when it reaches the end of the track where you are. - Page 8 To occupy less space, the lift can be folded in the parking area, as shown in fig. no. 4 11. Swivel seat handle 1. STOP button 2. Contact key ( optional ) 3. Fault indication Fig. No. 4 Curved Stairlift Owner’s Manual | | 0040 256 377385 –...
- Page 9 1. Command joystick 10. Belt 9. Backrest movement lift up - down 8. Battery charging LED indicator Left 2. Right arm 3. Seat 6. Lifting - descending arm 4. Chair spin command button left - right 5. Feet support Fig. 5 Curved Stairlift Owner’s Manual | | 0040 256 377385 –...
- Page 10 To put the lift into operation, proceed as follows: - bring down the arms (2) and (7) from the vertical position, as shown in fig. 4, to a horizontal position, as shown in fig. 5. - the same applies to the seat (3) - by lifting the handle (6), you can also tilt the foot rest (5) from a folded position fig.
- Page 11 11. Swivel seat handle Fig. 5.1 Curved Stairlift Owner’s Manual | | 0040 256 377385 – RO 0049 2295 901605 - DE 10 / 18...
- Page 12 The lift does not move unless the seat is in the correct travel position. Correct position Incorrect position Fig. 6 - after the travel has ended, get off the lift and folds as follows: - lift the seat (3), arms (2) and (7), press the handle (6) fig. 5, then, using the remote, send the lift in the parking area The LED (3) fig.
- Page 13 Fig. 7 Information on the characteristics of the lift, date of manufacture, serial number and manufacturer’s name can be seen on the tags mounted visibly on the lift, as follows: Curved Stairlift Owner’s Manual | | 0040 256 377385 – RO 0049 2295 901605 - DE 12 / 18...
- Page 14 Curved Stairlift Owner’s Manual | | 0040 256 377385 – RO 0049 2295 901605 - DE 13 / 18...
-
Page 15: Preventive Measures Before Use
4.2 PREVENTIVE MEASURES BEFORE USE - check that both the seat and arms are used in the correct travel position according to fig. 6. - before use, check that there are no obstacles on the rail or on the lift’s travel area. -
Page 16: Prohibitions
4.3 PROHIBITIONS The following are prohibited: - several people getting on the lift – the lift is designed to safely transport one person - traveling while standing on the lift - using the lift in case of fire - placing the lift in places with high humidity or where it may come in contact with water - spraying it with liquid - dirtying or lubricating the controls... -
Page 17: By Authorized Companies
5.2 BY AUTHORIZED COMPANIES No further interventions should be required during the warranty period, if using the lift correctly, and maintaining the appropriate cleanliness of the track and observing the annual revisions. However, if irregularities occur, please contact the company that installed the lift. -
Page 18: Service
- minor mechanical deficiencies such as inadequate tightening of nuts, bolts and screws, and them not being secured; - deficiencies due to negligence, fire, water, natural phenomena or disasters, and defects occurred during transport. In the event of a failure under warranty, the beneficiary has to inform the company that performed the lift installation to identify the fault. - Page 19 Annex 1. PRODUCT INFORMATION Type Series Date of purchase INSTALLER INFORMATION Company name Contact person headquarters Phone E-mail BUYER INFORMATION Name Address Phone E-mail Curved Stairlift Owner’s Manual | | 0040 256 377385 – RO 0049 2295 901605 - DE 18 / 18...
