Summary of Contents for Hawle HW 10

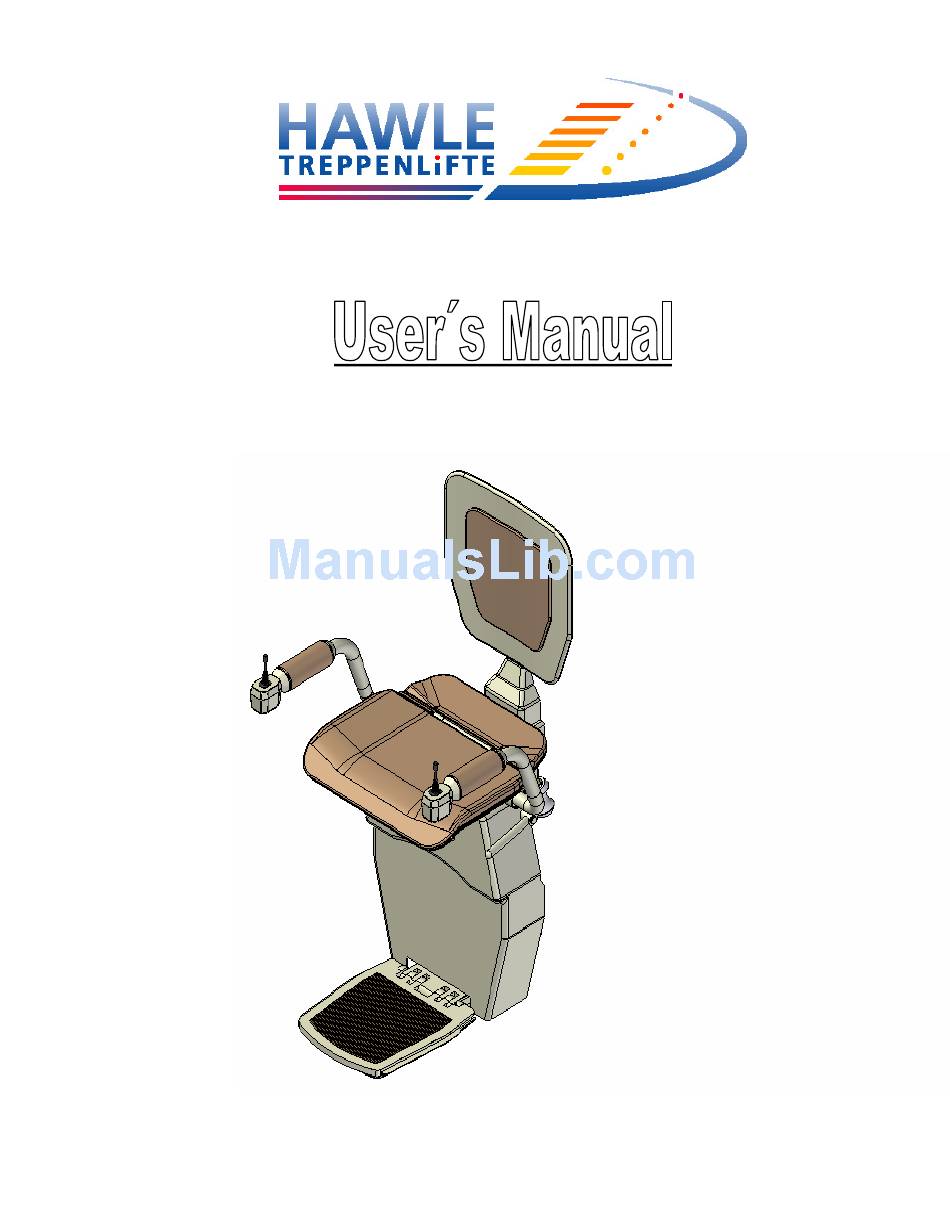

- Page 1 Stairlift Model HW 10 DOLPHIN MOBILITY LTD 37 CHERTSEY ROAD CHOBHAM, SURREY GU24 8PD TEL 01276 856060 OUT of HOURS 07973 412574...
-
Page 2: Table Of Contents
Contents General Description Instructions - Lift - Remote Control Detailed View Visual Indication Safety Maintenance - By User - By the Technican Warranty and Service... -
Page 3: General Description

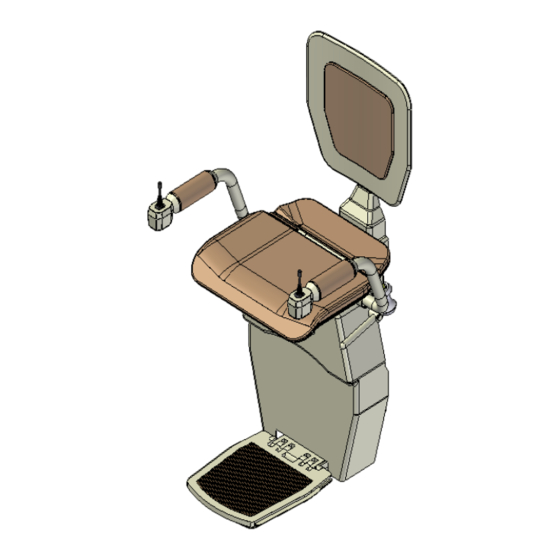

The HAWLE HW 10 is a complex lift construction which can be installed both outside and inside of the stairway. In order to save space, the lift can be folded on his parking position. -
Page 4: Instructions
By pulling the lever (6) tilt down the foot support. Now your HAWLE stairlift is ready to ride. You can start the run by using the joysick (1) on your armrest. Turn the joystick in the direction you want to ride and keep it turned until the lift reaches ist final position and stops automatically. -
Page 5: Remote Control
2.2 Remote Control To remote your HAWLE stairlift from its parking position just press the button for the desired direction on your remote control. Keep this button pressed until the lift reaches its final position and stops automatically. Fig. 2... -
Page 6: Detailed View
Detailed Overview 1. Joystick Control Direction Lift Up - Down 8. Blue LED Parking 7. Armrest left 2. Armrest right 3. Seat 6. Lever Foot support control 9. Green LED Mainswitch 4. Swivel seat control (Optional) 5. Foot support Fig. 3... -
Page 7: Visual Indication
A flashing LED indicates , that the accumulators need to be charged. If the LED stops shining, the accumulators lost their capacity or power supply was disconnected. Blue checklight The blue LED on the armrest of your HAWLE stairlift indicates that the driving unit reached its correct park- and chargingposition. 5 Safety... -
Page 8: Maintenance
6 Maintenance 6.1 By user To facilitate a joinful use without malfunction of your HAWLE stairlift, the HAWLE stairlift needs maintenance. We recommend to clean the rail with a moist towel, if necessary. 6.2 By technican If you decide to choose our „Complete- Service“ your guarantee will increase to 3 years automatically. -
Page 9: Warranty And Service
7 Warranty and Service As the manufacturer of your HAWLE stairlift we ensure you the correct function. The warranty time is 2 years and starts with handing over and putting into operation of the HAWLE stairlift. The claim does not exist for malfunction in cause of defective handling.
