Summary of Contents for Hawle HW 10

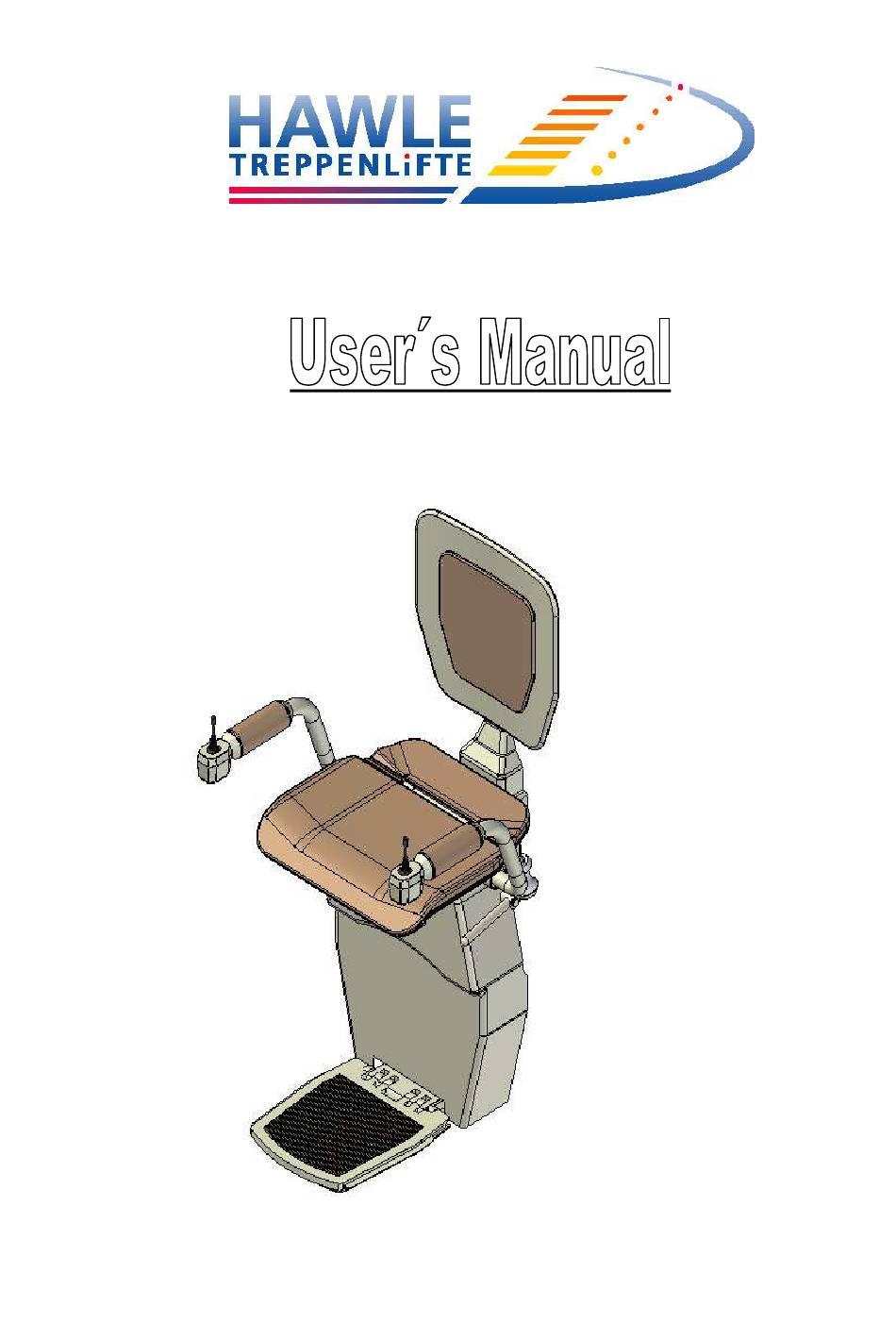

- Page 1 Stairlift Model HW 10...
-
Page 2: Table Of Contents
Contents General Description Instructions - Lift - Remote Control Detailed View Visual Indication Safety Maintenance - By User - By the Technican Warranty and Service... -
Page 3: General Description
Important: Please make sure that the blue checklight on the armrest of your HAWLE stairlift is glowing when the lift stops in the parking position. It shows the correct charging condition. Otherwise the batteries could be damaged, which are not included in the warranty. -
Page 4: Instructions
If you have a powered swivel seat, keep the swivel seat key pushed (4) and the seat of your HAWLE stairlift will turn and allow you a comfortable and safe mounting and dismounting. After reaching the final position, use the swivel seat switch to turn the seat to its standard (parked) position. -
Page 5: Remote Control
2.2 Remote Control To move your Hawle stairlift from its parked position using your remote, just press the button for the desired direction on your remote control. Keep this button pressed until the lift reaches its final position and stops automatically. -
Page 6: Detailed View
Detailed Overview 1. Joystick Control Direction Lift Up - Down 8. Blue LED Parking 2. Armrest ight 3. Seat Lever 4. Swivel ontrol Fig. 3 (Optional 5. Foot support... -
Page 7: Visual Indication
4 Visual Indication Green hecklight The green LED (Fig.3 (9) ) indicates the function of your HAWLE stairlift. It keeps shining if the contact key (optional) is inserted and the main switch is turned "ON/EIN." The contact key and the main switch can be found on the lower frontside below the seat of your HAWLE stairlift. -
Page 8: Maintenance
It is our recommendation that your lift is serviced every 12 months by the Hawle approved dealer that installed your lift. We do suggest cleaining the rail with a moist towel dampened with water if it becomes dirty. -
Page 9: Warranty And Service
7 Warranty and Service As the manufacturer of your HAWLE stairlift we ensure the product functions properly. The warranty time is 2 years on parts 5 years on the drive-train. It begins once the lift has been installed. The warranty does not cover malfunctions due to improper handling.
