- Page 1 HD Video Transmission and HD Codec Specialist H.264/H.265 HD Encoder User Manual https://www.orivision.com.cn/ EMAIL：lyy@zydz-china.com...
-
Page 2: Applicable Model

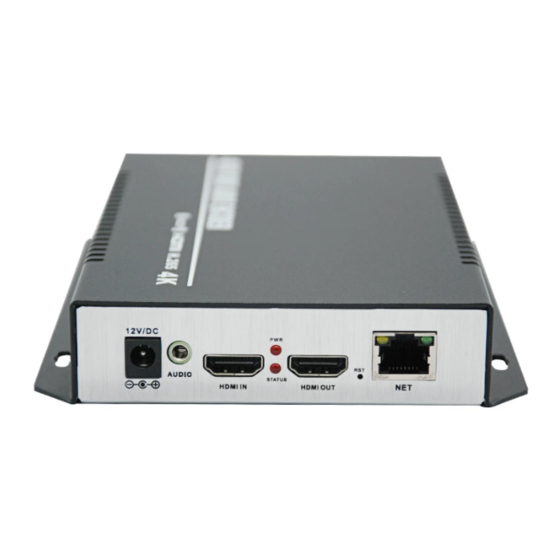

H.265 HD Encoder (HDMI / VGA / SDI interface is optional) Video Encoding:H.265&H.264 Input : HDMIx1, Audiox1 HDMI 4K Encoder 16.6x13x2.8cm Output : RJ45 , HDMIx1 ZY-EH501 0.3kg Max Resolution: 3840x2160@30HZ/60HZ Video Encoding:H.265&H.264 Input : HDMIx1, Audiox1 HDMI HD Encoder 16.5x8.5x2.5cm... - Page 3 HD Video Transmission and HD Codec Specialist Video Encoding:H.265&H.264 Input : VGAx1, Audiox1 VGA HD WIFI Encoder 16.5x8.5x2.5cm Output : RJ45 Ethernet,WIF ZY-EV201W 0.21kg Max Resolution: 1920x1080@30HZ/60HZ Video Encoding:H.265&H.264 Input :SDIx1, Audiox1 SDI 1ch HD Encoder-1U Output : RJ45 Ethernet,SDIx1 48.2x20x4.4cm ZY-ES211/ZY-ES311 Max Resolution:...
- Page 4 HD Video Transmission and HD Codec Specialist Video Encoding:H.264 HDMI HD Encoder Input : HDMx1 , Audiox1 16.6x13x2.8cm With HDMI loopout Output : RJ45 , HDMIx1 0.3kg ZY-EH111 Resolution: Up to 1920x1080@30HZ/60HZ Video Encoding:H.264 HDMI HD WIFI Encoder Input : HDMx1 , Audiox1 16.6x13x2.8cm With HDMI loopout Output : RJ45 , HDMIx1,WIFI...
- Page 5 HD Video Transmission and HD Codec Specialist Video Encoding:H.264 Input:HDMI/SDI/VGA x16, Audio x16 44.5X30X13.3cm 3U Standard chassis Output:RJ45 Ethernet x16 Max Resolution: 1920x1080@30HZ/60HZ 3U Chassis Statement: We have tried best to ensure the integrity and accuracy of the contents of the manual, but the technical error, operation error and printing error cannot be fully avoided.
-
Page 6: Product Overview
HD Video Transmission and HD Codec Specialist Product Overview The H.264/H.265 Encoder is a hardware device used for high-definition video signal (720P / 1080P, etc.) encoding and network transmission, using the latest and high-efficient HD digital video compression technology H.264/H.265, with the characteristics of reliable, high-definition, low bitrate and low latency. -
Page 7: Interface Instruction
HD Video Transmission and HD Codec Specialist Applications 4G mobile broadcast HD front capturing The HD video broadcast server Video Server for video Conference System Digital Standard HD stream server The live video teaching system front-end capturing IPTV system front-end capturing The WeChat broadcast system front-end capturing The medical video broadcast and recording system Support access to DVR/NVR... - Page 8 HD Video Transmission and HD Codec Specialist 4.5 The interface of H.265 HDMI encoder and WIFI encoder are the same： 4.6 The interface of H.265 SDI encoder and WIFI encoder are the same： 4.7 The interface of H.264 VGA encoder and WIFI encoder are the same： Power input----- 12V/DC（12V/1A，5V/2A ）...
-
Page 9: Web Settings
HD Video Transmission and HD Codec Specialist WEB SETTINGS Step 1: Reset & initialization Input the power supply to turn on encoder and hold a pin to press RST on the encoder for 10 seconds, it will be restarted and initialized. The default Route IP of dash board is 192.168.0.31 after initialization. - Page 10 HD Video Transmission and HD Codec Specialist Mainstream Status: it will show the resolution of the mainstream you set and multicast address . you can stream the multicast address by VLC or other streaming software . Second stream Status: it will show the resolution of the second stream you set and multicast address .
-
Page 11: Network Settings
HD Video Transmission and HD Codec Specialist Network Settings You can set network with Ethernet or WIFI, only device with WIFI can set WIFI connecting . The Default IP of the device is 192.168.0.31. if IP setting is forgotten after changing. You can reset it to default IP follow step 1 above. - Page 12 HD Video Transmission and HD Codec Specialist 5. 3 Mainstream encoding Main stream setting: Enc type: H.264 & H.265 is optional ( note: H.264 version can only choose H.264 ) Profile: baseline profile / main profile / high profile ( note: H.265 version choose main ...
- Page 13 HD Video Transmission and HD Codec Specialist Mainstream protocol settings: HTTP: /main enable/disable HTTP port: 1-65535 optional RTSP: /main enable/disable RTSP port: 1-65535 optional Multicast IP : 232.255.42.42 disable/RTP/UDP optional Multicast port: 1-65535 optional RTMP server IP : can set by stream media server . RTMP server port: 1-65535 optional RTMP app name: can set by yourself RTMP stream name: can set by yourself...
- Page 14 HD Video Transmission and HD Codec Specialist OSD Settings Note: You can insert two couples of words and three pictures simultaneously in mainstream Tex1 X: 0-1920 is optional, display the left and right position of the text Tex1 X: 0-1080 is optional, display the up and down position of the text Font1 size: 8-72 is optional Alpha1: 0-128 is optional, Color1: choose the color you want to display...
- Page 15 HD Video Transmission and HD Codec Specialist Pictures Setting Picture1: disable/ enable ( disable: no images enable: display the images) Pictures X: 4-1920 is optional to set the left and right position of the picture Pictures Y: 4-1080 is optional to set the up and down position of the picture Alphal: 0-128 is optional Picture1 name: display the name of the picture1 Upload picture1: choose to upload the image, support *.bmp format of the picture less...
- Page 16 HD Video Transmission and HD Codec Specialist Second stream settings Note: the way of the setting is same with mainstream code setting CVBS encoding Settings...
-
Page 17: Audio Encoding Settings
HD Video Transmission and HD Codec Specialist Audio Encoding Settings Audio bitrate: 48k, 64k, 128k, 160k, 192k, 256k Audio type: AAC Audio digital gain: 2x,4x,8x, used to adjust volume Audio input mode: digital/analog System Setting Change password: You can modify the web password by this . - Page 18 HD Video Transmission and HD Codec Specialist System information:it shows device SN and firmware version . ( the serial numbers of the device are set by factory, if you want to modify it , please contact the us ) Upgrade setting: Note: choose the zip rar file, no need to unzip the file .
-
Page 19: Wifi Setting
HD Video Transmission and HD Codec Specialist WIFI Setting Connection shown above, when you want to configure the HD encoder, you need set the fixed IP of the compute first 6.1 Wireless router settings Set up the user name of the wireless router Set up the password of the wireless router, pay attention to choose the encryption type: WPA-PSK... - Page 20 HD Video Transmission and HD Codec Specialist 6.2 HD wireless Encoder settings Connect the HD Encoders by the network cable, then open the IE to enter the network setting interface. Settings as shown below: Note: Default IP of wifi is 192.168.0.32 . When wifi connected successfully, then you can access to the web control panel by 192.168.0.32 .
