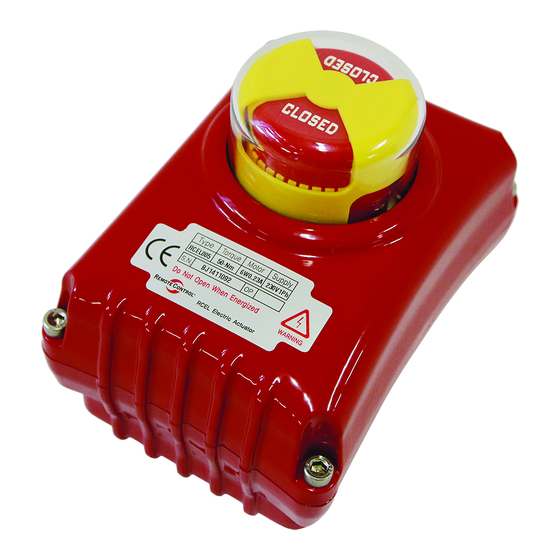

Remote Control RCEL005X Instructions

RCEL005X/009X
Electric Actuators Ex-proof
CAUTION
ELECTRICAL SHOCK HAZARD.To avoid serious personal injury,
property damage, turn off ALL power to the actuator before remov-
ing the cover.
Before installation, verify the nameplate information information to
insure the correct model number and voltage of the actuator.
Be sure to completly review the actuator manual prior to operation.
Final limit switch adjustment MUST be done after mounting the ac-
tuator to the valve. Incorrect adjustment may cause actuator failure.
The actuator must be properly grounded. Use the grounding lugs
provided on the inside and outside of the actuator body.
To minimize the possible damage caused by condensation, be sure
to energize the heater.
CAUTION
Explosion-proof products must be used under the designed temper-
ature range and environment appropriate for the product spec.
Flameproof Enclosure Level and Enviroment of Actuator
Ex IIB T4 -20 ºC ~ 55 ºC
Explosion proof actuators and wiring must be properly sealed prior
to operation. Improper installation may cause a hazardous condition
and failure of the explosion proof enclosure. The manufacture is not
responsible for any losses or damages caused by incorrect installa-
tion.
1. Certified cable entries must be used when installed. Use
separately certified cable entries, conduit entries or stopping
plugs so that the flameproof properties of the enclosure are
maintained.
2. If conduit is used for cable entry, a seal fitting with setting com-
pound must be installed as close as posible, within 450 mm to
the actuator.
Special conditions for safe use:
For information about the flameproof joints, please contact Rotork
Sweden AB.
Fasteners securing the top cover shall have the property class of
A2-50 at least.

Performance

Output
Torque
Model
Kg.m Nm
RCEL005X 5 50
RCEL009X 9 90
*Valid for 1-ph 110V AC and 220V AC
Motor *
Operation Time (90º)
Class (E)
60 Hz 50 Hz DC24V W
14 17 10 6
26 32 22 6
www.rotork.com www.remotecontrol.se
Instruction

Standard Specification

Enclosure
Ambient
temperature
Power Supply
Limit Switches
Manual Operation
Space Heater
Lubrication
Surface Treatment
Travel Angle
Self Locking
Entries
Materials
External Coating

Optional Specification

PIU Potentiometer Unit (1 K-Ohm)
CPT
Current Position Transmitter
Output DC 4~20 mA
PCU Proportional Control Unit
Input: DC 4~20 mA, 2~10 V,
0~5 V,
Output: DC 4~20 mA
LCU Local Control Unit
Mod - Bus
Profi - Bus
Can - Bus
Rated Current
1 Phase (AC)
24V 110V 220V
1,8 0,35 0,23
2,1 0,35 0,25
- 1 -
Top Quality Valve Actuators
Made in Sweden
Weatherproof enclosure IP67
Nema 4 and 6
Ex d IIB T4
-20 ºC to 55 ºC
110 / 220 / 230 Vac 1 Ph 50/60 Hz
24 Vac 1 Ph 50/60 Hz, 12/24 Vdc
2 (Open/Close)
2 Dry (Open/Close)
By 6 mm hex key
5 W (110 / 230 VAC, 12 / 24 VDC)
Grease Moly (EP type)
Anodizing
90º ± 5º (extension: upto 270º)
Provided by means of worm
gearing
2 - M20
Steel, Aluminium alloy, Bronze
Polyester (TGIC-free)
005X
X
X
X
0~10 V, 1~5 V
X
X
X
X
Number
Duty*
Of Weight
Cycle
DC
Handle
24V S2 (min)
Turns
1,8 15 6
2,1 15 4,5
009X
X
X
X
X
X
X
X
kg
5
5
