Summary of Contents for Sirius Satellite Radio SEM51

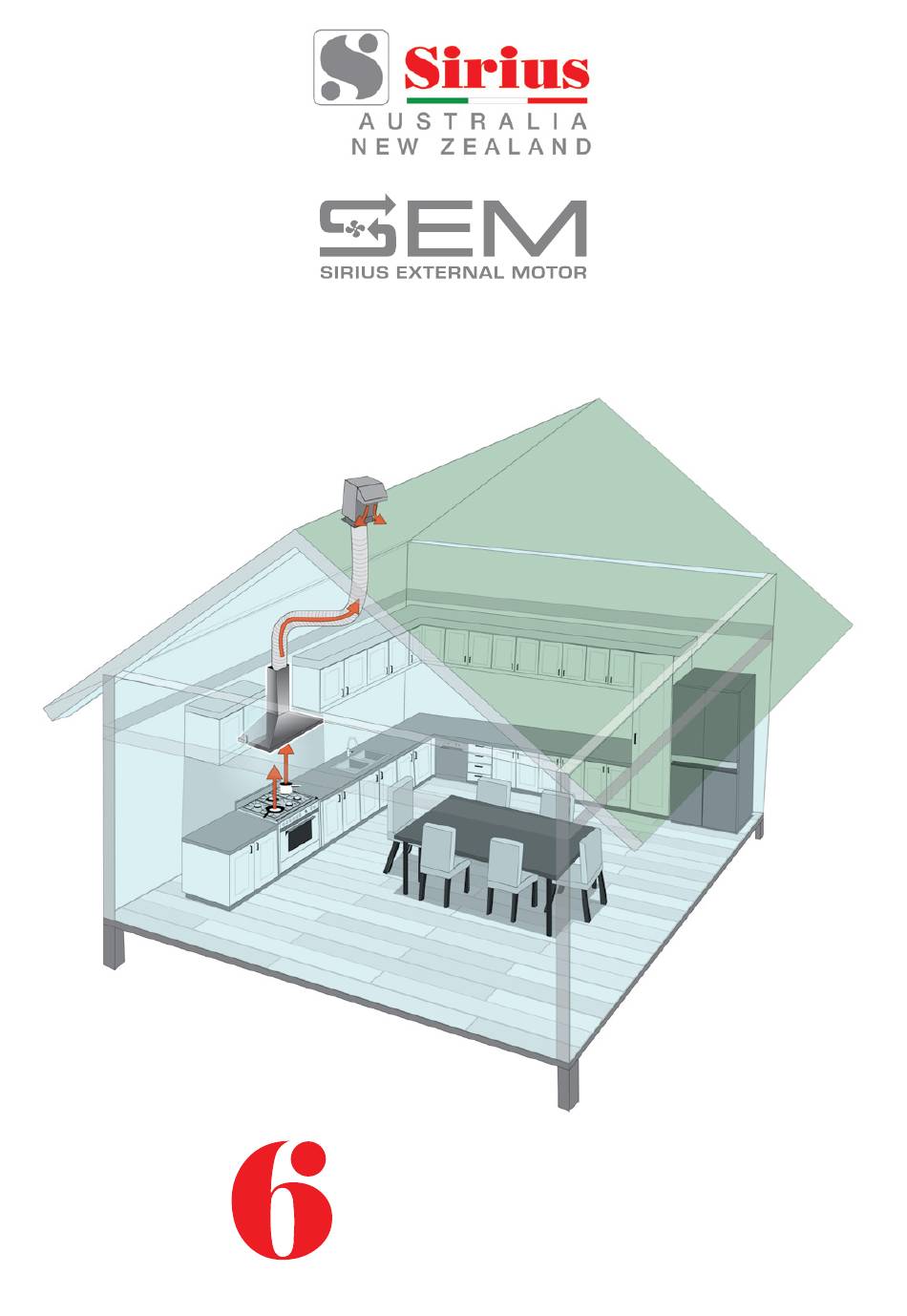

- Page 1 SEM51 User & Installation Manual Year Warranty when Sirius ducting is used. Full replacement warranty on parts and labour. www.siriusbrand.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS BEFORE YOU INSTALL BEFORE YOU INSTALL - MOTOR WIRING CONNECTION BEFORE YOU INSTALL - DUCTING INFORMATION INSTALLING THE SEM51 MOTOR OPTIONAL MESH FILTER BRACKET AND INTERNAL PIPE DIMENSIONS SEM51 MOTOR WIRING DIAGRAM WARRANTY INFORMATION... -
Page 4: Before You Install
BEFORE YOU INSTALL This installation should only be performed by a qualified tradesperson. Where possible, use a trained Sirius recommended installer (see Siriusbrand.com). Sirius will not be held responsible for issues that occur due to installation of product by an unqualified tradesperson. -
Page 5: Before You Install - Ducting Information
BEFORE YOU INSTALL - DUCTING INFORMATION Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory such as flexible ducting, Sirius will only warrant the rangehood and motor. If installation is found to be the cause of failure or issue then charges will apply for service and parts. Flexible ducting is not permitted under any circumstances. -

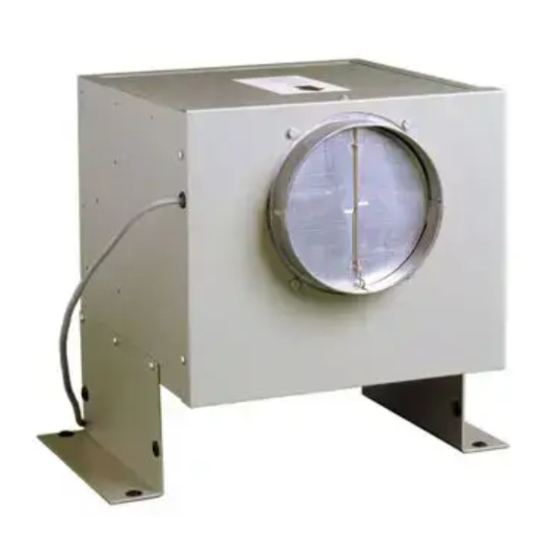

Page 6: Installing The Sem51 Motor
NOTE Please be aware for noise reasons the the SEM51 motor is required to be a minimum or 2 metres from the location of the rangehood. 3-5 metres is best practice installation. The motor has a 7 metre long control cable which cannot be lengthened under any circumstances. - Page 7 Sirius Rangehood. IMPORTANT Sirius strongly recommend that the installation of the SEM51 motor should only be performed by a suitably qualified tradesperson. Sirius will not be held responsible for any ongoing issues due to incorrect or sub standard installation by an unqualified installer.
-
Page 8: Optional Mesh Filter
BAL40 MESH OPTIONAL Part number: SPS-75105000598 Remove the 4 screws holding the existing ventillation cover in place and take off. Fit the BAL40 mesh into place and replace the 4 screws. Refer to Fig. 6. (Fig. 6) -
Page 9: Bracket And Internal Pipe Dimensions
BRACKET AND INTERNAL PIPE DIMENSIONS Flue ceiling brace Side view Top view 200mm diameter 254mm... -
Page 10: Sem51 Motor Wiring Diagram
SEM51 MOTOR WIRING DIAGRAM... -
Page 11: Warranty Information
WARRANTY INFORMATION Dear Customer, Thank you for choosing this Sirius Rangehood. We are sure that it will provide you with many years of excellent service. At Arisit Pty Limited we are dedicated to ensuring that our customers receive the best possible after-sales care. The Sirius ‘Protection Plan’... - Page 12 Your Warranty Register now to qualify. Terms & Conditions This warranty will not apply where: Division or travel costs for a technician or The fault is caused by accident, Authorised Service Agent shall be for the misuse, an infestation of insect account of the Purchaser.
