Summary of Contents for Akai ALED2206TBK

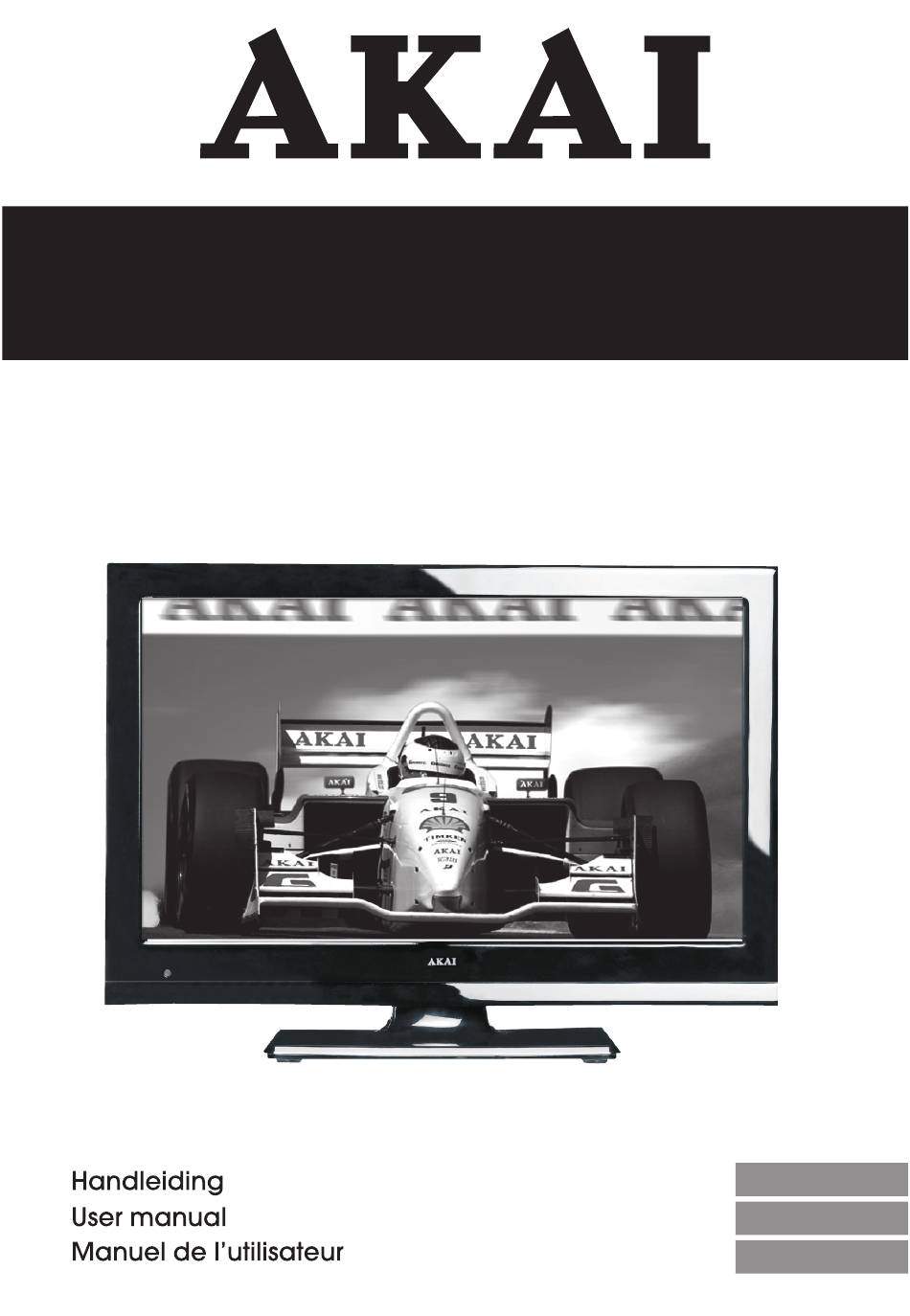

- Page 1 LCD-TV / DVD COMBI WITH DVB-T/C TUNER ALED2206TBK...
-
Page 2: Table Of Contents
Contents Features ............... 44 Locking a Channel ..........59 Managing Stations: Favourites ......60 Introduction ............44 Button Functions ..........60 Preparation ............44 Managing Stations: Sorting the Channel List ..60 Safety Precautions ..........44 On-Screen Information ......... 60 Package Contents .......... -
Page 3: Features
Introduction Features • Remote controlled colour LED TV. Thank you for choosing this product. This manual will guide you through the proper operation of your • Fully integrated digital-cable TV (DVB-TC - MPEG2) TV. Before operating the TV, please read this manual (DVB-TC - MPEG4). - Page 4 • Batteries, including those which are heavy metal- Moisture and Water free, should not be disposed of with household Do not use this device in a humid and waste. Please dispose of used batteries in an damp place (avoid the bathroom, the environmentally friendly manner.
-
Page 5: Package Contents
Package Contents LED TV TRADEMARK ACKNOWLEDGMENT “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Instruction Book Licence Notification (Optional) Remote Control M a n u f a c t u r e d u n d e r l i c e n s e f r o m D o l b y Laboratories. -
Page 6: Environmental Information
Environmental Information • This television is designed to consume less energy to save the environment. You not only help to save the environment but you can also save money by reducing electricity bills thanks to the energy efficiency features of this TV. To reduce energy consumption, you should take the following steps: •... -
Page 7: Remote Control Buttons
Remote Control Buttons 1. Standby 2. Image size 3. Sleep timer 4. Numeric buttons 5. Return / Exit / Index page (in TXT mode) 6. Cursor up 7. Cursor left 8. Programme up /Page down Programme down /Page up 10. Mono-Stereo / Dual I-II / Current language (*) (in DVB channels) 11. -
Page 8: Tv And Operating Buttons
TV and Operating Buttons FRONT and REAR VIEW Control switch VIEW Control Switch 1. Up direction 2. Down direction 3. Programme/Volume / AV / Standby-On selection switch Note:You can move the switch, upward or downward to change the volume. If you want to change the channel, press the middle of the switch once (Position 3) and then move upward or downward. -
Page 9: Viewing The Connections - Side Connectors
Note: You can use YPbPr to VGA cable (not supplied) to enable YPbPr signal via VGA input. WARNING: You cannot use VGA and YPbPr at the same tim 5. SPDIF Out outputs audio signals of the currently watched source. Use an SPDIF cable to trasfer audio signals to a device that has SPDIF input. Viewing the Connections - Side Connectors 1. -
Page 10: Using Usb Media
Note: You should use audio inputs of side AV Using USB Media connection cable (RED & WHITE) to enable sound • You can connect USB devices to your TV by using connection when connecting a device to your TV by the USB input of the TV. -
Page 11: Connecting To A Dvd Player Via Hdmi
Connecting to a DVD Player via HDMI Please refer to your DVD player’s instruction book for additional information. Power off both the TV and the device before making any connections. Note: Not all cables shown in the illustration are supplied. •... -
Page 12: Switching On/Off
Switching On/Off Basic Operations To Switch the TV On You can operate your TV using both the remote control and onset buttons. • Connect the power cord to the 220-240V AC, 50 Operation with the Buttons on the TV • Press STANDBY touch button. Then the standby Volume Setting LED lights up. -
Page 13: Viewing Electronic Programme Guide (Epg)
Blue button (Next day): Displays the programmes Viewing Electronic Programme of the next day. Guide (EPG) Numeric buttons (Jump): Jumps to the preferred You can view the electronic programme guide (EPG) channel directly via numeric buttons. to view information about available programmes.To OK (Options): Displays programme options including view the EPG menu please press EPG button on the “Select Channel”... -
Page 14: First Time Installation
First Time Installation IMPORTANT: Ensure that the aerial is connected and a Common Interface module is not inserted before switching on the TV for the first time installation. • When the TV is operated for the first time, the installation wizard will guide you through the process. -
Page 15: Installation
Installation Press MENU button on the remote control and select Installation by using “ ” or “ ” button. Press OK button and the following menu screen will be displayed. • Note: You can press “MENU” button to cancel. End of the search process, “Choose Region” osd will be displayed on the screen (if any multiple region variants are detected).Please select country and region choice then press OK to continue. -
Page 16: Manual Tuning
Analogue Manual Search Manual Tuning HINT: This feature can be used for direct broadcast entry. • Select Manual Channel Scan from the Installation menu by using “ ”/“ ” and OK buttons. Manual Scan options screen will be displayed. • Select the desired Search Type using “ ” or “... -
Page 17: Clear Service List (*)
Select Edit Channel List to manage all stored channels. Use “ ” or “ ” and OK buttons to select You can select frequency ranges from this screen. For Edit Channel List. highlighting lines you see, use “ ” or “ ” button. You can enter the frequency range manually by using the Operating the Channel List numeric buttons on the remote control. -
Page 18: Renaming A Channel
Renaming a Channel • Select a channel by using “ ” or “ ” button. Press OK button to add selected channel to favourites list. • Select the channel that you want to rename and Press OK button again to remove. select Edit Name option. -
Page 19: Media Playback Using Media Browser
Lang (Play Preview): Displays selected file in a small Media Playback Using Media preview screen. Browser INFO: Changes filter options. If the USB stick is not recognized after power off/on or FAV: Sorts files by name. First Time Installation, unplug the USB device, turn the TV off and on again and re-insert the USB device. -
Page 20: Slideshow Options
INFO: Changes filter options. sorted and there is no need to sort files again by pressing FAV button. BLUE: Switch between music,photo,video and all INFO: Changes filter options. YELLOW: Change view style Loop/Shuffle (Blue button): Press once to disable Slideshow Options Loop. -
Page 21: Configuring Picture Settings
Configuring Picture Settings You can use different picture settings in detail. Press MENU button and select the Picture icon by using “ ” or “ ” button. Press OK button to view • For 16:9 aspect ratio pictures that have been Picture Settings menu. -
Page 22: Pc Picture Settings
Note: Backlight can not be activate in VGA or Media Browser mode or while picture mode is set as Game. Noise Reduction: If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off. -
Page 23: Configuring Your Tv's Settings
Equalizer: Press OK button to view equalizer sub- Configuring Your TV’s Settings menu. Detailed settings can be configured to suit your personal preferences. Press MENU button and select Settings icon by using “ ” or “ ” button. Press OK button to view Settings menu. -
Page 24: Using A Conditional Access Module (Not Included)
Using a Conditional Access Configuring Language Module (not included) Preferences IMPORTANT: Insert or remove the CI module only You can operate the TV’s language settings using when the TV is SWITCHED OFF. this menu. • In order to watch certain digital channels, a conditional Press MENU button and select the Settings icon by access module (CAM) may be necessary. -
Page 25: Language Settings
Language Settings Parental Settings Menu Operation • Select an item by using “ ” or “ ” button. • Use “ ” or “ ” button to set an item. • Press OK button to view more options. Menu Lock (optional): Menu lock setting enables or disables the menu access. -
Page 26: Adding A Timer
Adding a Timer Configuring Date/Time Settings • Press YELLOW button on the remote control to Select Date/Time in the Settings menu to configure add a timer. The following menu appears on the Date/Time settings. Press OK button. screen: Channel: Changes network type by using “ ” or “ ”. Timer Type: This feature is unavailable to be set. -
Page 27: Configuring Other Settings
• Select Sources in the Settings menu and press OK Application version: Displays the current application button. version. • Press“ ” or “ ” buttons to select a source. Hard of Hearing: If the broadcaster enables any special signal concerning the audio, you can set this •... -
Page 28: Other Features
Teletext Other Features Displaying TV Information: Programme Number, The teletext system transmits information such as Programme Name, Sound Indicator, time, teletext, news, sports and weather on your TV. Note that if the channel type and resolution information is displayed signal degrades, for example in poor/adverse weather on the screen when a new programme is entered or conditions, some text errors may occur or the teletext “INFO”... -
Page 29: Tips
Tips Screen Care: Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the coating layer of the TV screen. For your safety, unplug the mains plug when cleaning the set. When moving the TV, hold it properly from the bottom part. -
Page 30: Appendix A: Pc Input Typical Display Modes
Appendix A: PC Input Typical Appendix B: AV and HDMI Signal Display Modes Compatibility (Input Signal Types) The display has a maximum resolution of 1920 x 1200. Source Supported Signals Available The following table is an illustration of some of the typical video display modes. -
Page 31: Appendix C: Supported Dvi Resolutions
Appendix D: Software Upgrade Appendix C: Supported DVI Resolutions • Your TV is capable of finding and updating new software upgrades over broadcast channels. When connecting devices to your TV’s connectors by • For broadcast channels search, the TV looks at the using DVI to HDMI cables (not supplied), you can refer available channels stored in your settings. -
Page 32: Appendix E: Supported File Formats For Usb Mode
Appendix E: Supported File Formats for USB Mode File Format Remarks Media Extension Video Audio (Maximum resolution/Bit rate etc.) .mpg, .mpeg MPEG1, 2 MPEG Layer 1/2/3 .dat MPEG1, 2 MPEG2 .vob MPEG2 .mkv H.264, MPEG1,2,4 EAC3 / AC3 MAX 1920x1080 @ 30P 20Mbit/sec MPEG4, Xvid 1.00, Xvid 1.01, Xvid 1.02, Movie... -
Page 33: Specifications
Specifications Digital Reception (DVB-C) TV BROADCASTING Transmission Standards: PAL/SECAM B/G D/K K’ I/I’ L/L’ DVB-C, MPEG2, DVB-C, MPEG4 RECEIVING CHANNELS I. DEMODULATION VHF (BAND I/III) • Symbolrate: 4.0 Msymbols/s to 7.2 Msymbols/s UHF (BAND U) • Modulation: 16-QAM , 32-QAM ,64-QAM, 128-QAM and 256-QAM HYPERBAND II. - Page 34 Features Contents Features ............... 75 General Properties General Properties..........75 • DVD / CD / CD-R / CD-RW / MP3 / JPEG / MPEG Safety Information ..........76 playback. Notes on Discs ............. 76 • NTSC/PAL playback (according to disc content) On handling discs ..........
-
Page 35: Safety Information
On cleaning Safety Information • Before playing, clean the disc with a cleaning cloth. CAUTION Wipe the disc from the center out. DVD Player is a class 1 laser product. However this product uses a visible laser beam which could cause hazardous radiation exposure. -
Page 36: Dvd Control Panel Buttons
DVD Control Panel Buttons A. Disc loader B. Play / Pause Plays/pauses the disc. When DVD menu (root menu) is active, this button functions as “button select” (selects the highlighted item in menu) if this is not prohibited by the disc. C. -
Page 37: General Operation
General Operation You can operate DVD, movie CD, music or picture CD’s content by using the proper buttons on your remote control. Below are main functions of commonly used remote control buttons. ... -
Page 38: General Playback
11. Reverse stepping is not available. General Playback 12. For your convenience: Basic Play If you attempt to enter a number greater than the total 1. Press on the power button time of the current title, the time search box disappears 2. -
Page 39: Preferences
Preferences SPDIF OUTPUT DEFAULT You can set Spdif Output as PCM or RAW. If you select PCM from SPDIF Output in DVD menu and play DVD If you choose RESET and press OK, the factory- with Dolby audio, you can get audio output with two presets are loaded. -
Page 40: Some Functions (Angle, Zoom Etc) Do Not Work
Some functions (Angle, Zoom etc) do DVD has a structure consisting of two 0.6-mm thin discs, which are adhered to each other. Since the not work thinner the disc, the higher the density at which the • These functions are not available on the DVD. information can be recorded, a DVD disc has a greater •... -
Page 41: Disc Types Compatible With This Unit
Disc Types Compatible with This Unit For proper operation, only 12 cm discs must be used. Specifications DVD: SS/SL 4.7” (DVD-5) CD-DA SS/DL 4.7” (DVD-9) CD-R Types of Discs Supported DS/SL 4.7” (DVD-10) CD-RW DS/DL 4.7” (DVD-18) MP-3/JPEG MPEG-2 Video Standard Decoding (MPEG-1 supported) Full-Screen Video Display of 720 x 576 (PAL) &...
