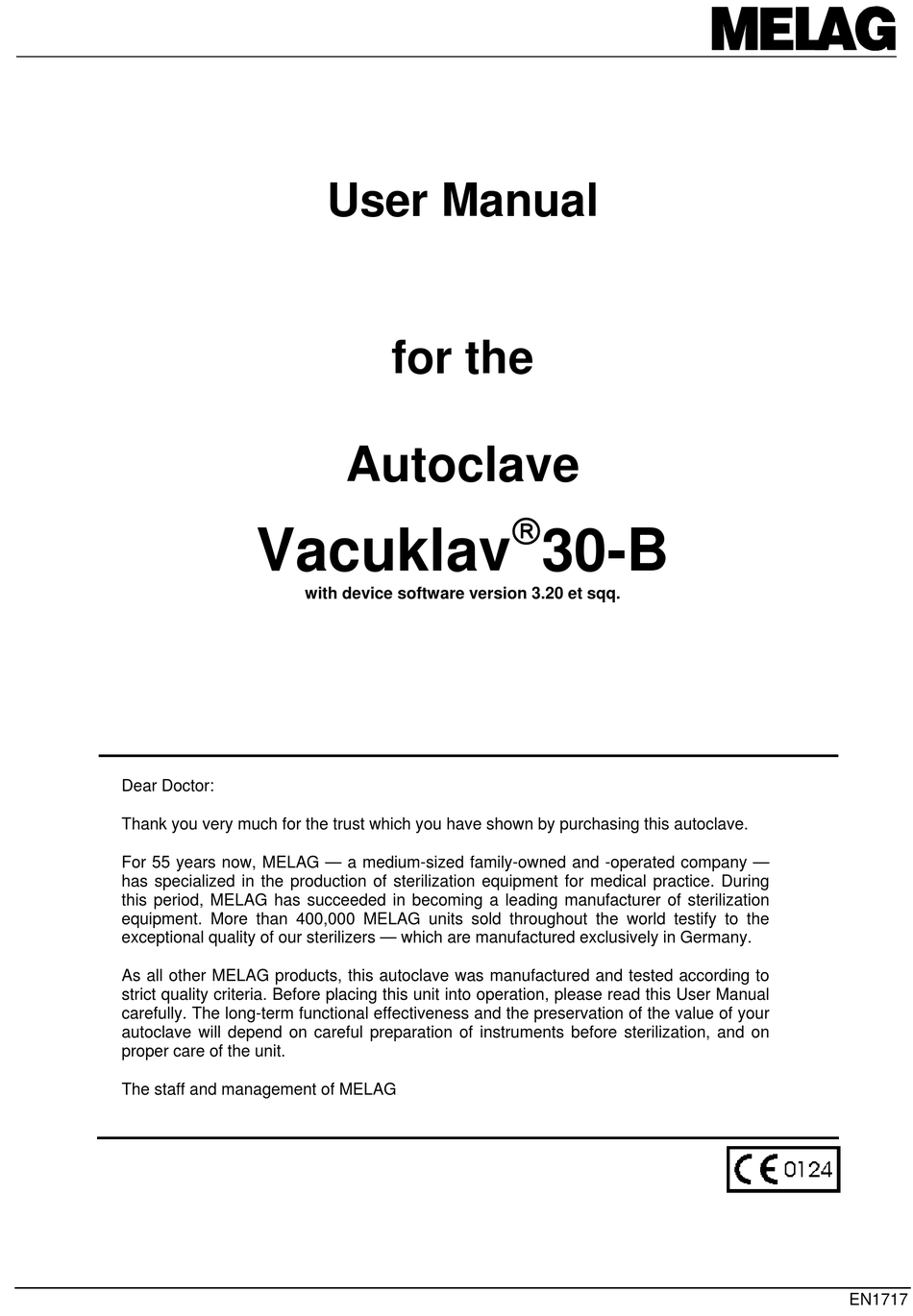

User Manual
for the
Autoclave
Vacuklav
30-B
with device software version 3.20 et sqq.
Dear Doctor:
Thank you very much for the trust which you have shown by purchasing this autoclave.
For 55 years now, MELAG — a medium-sized family-owned and -operated company —
has specialized in the production of sterilization equipment for medical practice. During
this period, MELAG has succeeded in becoming a leading manufacturer of sterilization
equipment. More than 400,000 MELAG units sold throughout the world testify to the
exceptional quality of our sterilizers — which are manufactured exclusively in Germany.
As all other MELAG products, this autoclave was manufactured and tested according to
strict quality criteria. Before placing this unit into operation, please read this User Manual
carefully. The long-term functional effectiveness and the preservation of the value of your
autoclave will depend on careful preparation of instruments before sterilization, and on
proper care of the unit.
The staff and management of MELAG
EN1717
Advertisement
Table of Contents
Related Manuals for MELAG Vacuklav 30-B
Summary of Contents for MELAG Vacuklav 30-B
- Page 1 Thank you very much for the trust which you have shown by purchasing this autoclave. For 55 years now, MELAG — a medium-sized family-owned and -operated company — has specialized in the production of sterilization equipment for medical practice. During this period, MELAG has succeeded in becoming a leading manufacturer of sterilization equipment.
-
Page 2: Table Of Contents
To ensure the functional effectiveness of this unit and to preserve its value: 1. Prepare the instruments to be sterilized carefully 2. Take proper care of the autoclave 3. Use only pure distilled or demineralised water Content Page Description of the unit ..........................4 Views of the unit........................... - Page 3 ® User Manual - Vacuklav 30-B Water quality (conductivity) / Chamber temperature ..............19 Selecting extra drying........................19 Records / Load documentation ......................19 6.3.1 Record print-out ..........................19 6.3.1.1 External printer ............................19 ® 6.3.1.1.1 Connecting the external Melaprint 42 printer .................19 6.3.1.1.2 Initialising the printer.........................20 6.3.1.2...
-
Page 4: Description Of The Unit
Description of the unit Views of the unit ______________________________________________________ Rear view Front view Side view ® Fig. 1 Views of the Vacuklav 30-B Safety valve Fuses - 2 x 16 A / FF Sterile filter 10 Power switch Cooling water inlet (3/4" external thread) with 11 Motor circuit breaker (vacuum pump) EN1717 12 Sliding door lock... -
Page 5: Control Panel
® User Manual - Vacuklav 30-B Control panel _______________________________________________________ 2 x 20 - alphanumeric LED-display, showing program status, and parameters for basic and special functions Program Start - Stop Buttons selecting, adjusting Program selection Start - stop buttons to start displaying special functions: for sterilization programs/ test programs interrupt... -
Page 6: Electronic Parameter Control (Eps)
The autoclave must also be supplied with purified water for steam generation. The distilled or demineralised water can come either from a storage container (MELAG Art.-No. 244) or directly from the container in which purchased water is supplied. This should also be situated close to the autoclave (length of feed pipe supplied 1.5 m, maximum height difference 1.5 m). -
Page 7: Levelling The Autoclave
Cooling water outlet pipe DN16 Power connection Power con Water stop cock with safety combination in accordance with DIN 1988 (MELAG Art.-No.: 37310) Leak detector with stop valve and sensor (MELAG Art.-No.: 01056) Wall - mounted trap (MELAG Art.-No.: 37410) Wall outlet (NW 40) Storage container for distilled or demineralised water (MELAG Art.-No.: 244) -
Page 8: Power Supply
If you use the MELAG storage container (MELAG Art.-No.: 244) you will find the necessary instructions on the label. This container has a volume of 11.5 litres, enough for an average of 25 sterilization cycles. -
Page 9: Vacuum Test
® User Manual - Vacuklav 30-B Vacuum test ________________________________________________________ In order to check the operation of the autoclave in the course of the initial start-up, after long periods without being used, or after moves, as well as periodically during routine use, a vacuum test should be carried out to check for leaks. -
Page 10: Test Run
As documentation that the autoclave has been set-up properly, an installation record should be produced by an authorised person and a copy sent to MELAG. This is important in the event that you wish to make claims under warranty provisions. -
Page 11: Instructions For All Sterilization Procedures
, then the items should if possible be stood vertically on the tray, or sterilized in foil holders (MELAG-Art.-No.: 22410). They should never be laid flat one on top of the other. If seals split open during sterilization it may be necessary to increase the length of the sealing impulse or to use a double-seal. -
Page 12: Closing The Door
Mixed loads If mixed loads of textiles and instruments are to be sterilized, then as far as possible the textiles should be above the instruments and direct contact with the instruments should be avoided. Inclusion of textiles and instruments in the same sterilization container is not desirable. Textiles should never come into direct contact with the walls of the chamber. -
Page 13: Program Start
® User Manual - Vacuklav 30-B Program name / Display message Parameter/Application Program MELAsteam Cleaning at 136°C, 2.3 bar, and a maxi- M E L A s t e a m - c l e a n i n g mum cleaning time of 60 min., for the steam cleaning of instruments that have already been disinfected. - Page 14 Program status Display message 4. Sterilization phase Start-Stop Program When the required pressure and S t e r i l i z a t i o n temperature have been reached the sterilization proper then begins. 2 . 1 8 b a r 1 3 5 °...
-
Page 15: Print-Out Record
® User Manual - Vacuklav 30-B Print-out record _____________________________________________________ The print-out record contains the following information: ------------------------------------------ Program MELAG Vacuklav 30-B ------------------------------------------ Date Program : Universal-program 134°C wrapped Time of start Datum : 07.07.1999 Uhrzeit : 12:16:28 (Start) Charge Nr.: 5... -
Page 16: Sterilization Frequency / Pauses
After cooling, wrapped sterilized objects should be stored in a place where they are protected from dust (e.g. instrument cupboard). Given proper storage, DIN 58953 Part 7 gives the following guidelines for the maximum storage periods for sterilized objects: in basic wrapping (e.g. transparent sterilization foil) up to 6 weeks; in double-wrapping up to 6 months. -
Page 17: Terminate Drying
® User Manual - Vacuklav 30-B 4.11.2 Terminate drying _________________________________________________________________ A program can be terminated after starting of the program step “Drying”, e.g. in case of needing an instrument urgently for use. Since the sterilization has been completed, the items are sterilized at this point. Drying is crucial for sterile storage. -
Page 18: Reaction To Warnings / Error Messages
4.12 Reaction to warnings / error messages__________________________________ ® The Vacuklav 30-B has a number of safety features and an extensive integrated control and monitoring system, in order to ensure the greatest possible level of safety for the sterilization process, and to eliminate risks for the patients and operators. -
Page 19: Special Functions
® User Manual - Vacuklav 30-B Special functions Water quality (conductivity) / Chamber temperature _______________________ By repeatedly pressing the "-" button then the preheating temperature of the chamber and the conductivity of the purified feed water used for steam generation can be displayed alternately. Operation Display message Press down the "-"... -
Page 20: Initialising The Printer
6.3.1.1.2 Initialising the printer After connecting the printer to the autoclave it must be registered with the autoclave processing unit (initialised). Proceed as follows: Operation Display message 1. Switch on autoclave Display shows time, Program Start-Stop 1 4 : 2 7 : 1 2 pressure and temperature 0 . -
Page 21: Connection To An External Pc
® User Manual - Vacuklav 30-B 6.3.1.2 Connection to an external PC 6.3.1.2.1 Installation Records and archives can also be kept by using an external PC. This requires a suitable connection between the serial port of the PC and the printer port of the autoclave. ®... -
Page 22: Printing Out Stored Records
6.3.3 Printing out stored records When an external printer is fully installed, a print-out of selected records from the memory can be produced by selecting the following options after switching on the autoclave: Operation Display message 1. Hold down "+" button Program Start-Stop and also press "-"... -
Page 23: Print All Stored Cycle Records
® User Manual - Vacuklav 30-B 6.3.4 Print all stored cycle records In order to print-out all stored cycle records (with a fully installed external printer) then select the following options after switching on the autoclave: Operation Display message 1. Hold down "+" button Start-Stop Program and also press "-"... -
Page 24: Display Printer Memory
6.3.5 Display printer memory ___________________________________________________________ With a fully installed external printer, the status of the printer memory can be displayed as follows: Operation Display message 1. Hold down "+" button Program Start-Stop and also press "-" F u n c t i o n : button. -
Page 25: Deleting Cycle Records
® User Manual - Vacuklav 30-B 6.3.6 Deleting cycle records In order to delete cycle records (e.g. in the event of the warning message "Printer memory full", with the option "Immed. print-out? No", selected (see Section 7.3), then after switching on the appliance proceed as follows: Operation Display message 1. -
Page 26: Test Print-Out
6.3.7 Test print-out _____________________________________________________________________ In order to check the printer and its connection to the autoclave, a test print-out can be made as follows: Operation Display message 1. Hold down "+" button Program Start-Stop and also press "-", F u n c t i o n : Select "Function"... -
Page 27: Resetting Date And Time
® User Manual - Vacuklav 30-B Resetting date and time _____________________________________________ The date and time can be reset if necessary (e.g. winter time / summer time) as follows: Operation Display message 1. Hold down "+" button Program Start-Stop and also press "-" F u n c t i o n : button. -
Page 28: Automatic Preheating
Operation Display message 7. Press "Program" to Program Start-Stop confirm the new value, D a t e / T i m e which then stops flashing M i n u t e : 2 8 If more adjustment are necessary, return to Point 4 and begin again, 8. -
Page 29: Total Load Count
There are two standard options "Automatic preheating" and "Additional drying". Any further program modification to suit specific individual requirements should only be carried out by authorised personnel, after consultation with your dealer or with the experts at MELAG. Page 29... -
Page 30: Operational Errors / Malfunctions
Following these instructions continue to work with the autoclave. If the malfunction occurs repeatedly then contact our dealer, and authorised MELAG customer service or contact MELAG directly. You should describe the problem precisely and include the works number of your appliance. -
Page 31: Warning Messages
® User Manual - Vacuklav 30-B Warning messages __________________________________________________ For the following warning messages, please observe the comments made and restart the program in question. If the warning occurs repeatedly please consult your specialist dealer. Warning message Cause / Remedy Door not closed properly: W A R N I N G ! ... - Page 32 The sterile filter may be clogged or torn. Exchange the sterile filter (MELAG Art. No.: 20160). R e p l a c e s t e r i l e f i l t e r A c k n o w l e d g e w i t h b u t t o n „...
- Page 33 The monitoring of the internal device battery voltage has W A R N I N G ! determined a too low voltage value. The battery has to be changed by the MELAG service- B a t t e r y d e a d company/ service.
-
Page 34: Error Reports
Error reports__________________________________________________________ Errors are generally reported by a "Error" on the display with the number of the error and its short name. Error reports may occur without a program start (when the power is switched on or soon after), or during a program. - Page 35 ® User Manual - Vacuklav 30-B Warning message Cause / Remedy The capillary tube level regulator is open at the start of the E r r o r 1 0 : program (error report immediately after start), or the monitoring time until refilling with demineralised or distilled O v e r h s t e a m g e n e r .
-
Page 36: Taking Care Of Your Autoclave
S t e r i l i z a t i o n T D Taking care of your autoclave Preparation of instruments______________________________________________ MELAG - non-rusting materials ® All parts of the Vacuklav 30-B which come into contact with steam are made of non-rusting material. The autoclave chamber and its door are made of stainless steel, pipes carrying steam are made of Teflon, and threaded fittings and magnet valves are made of brass. -
Page 37: Rust Formation = Drag-In Rust
The water used should at least comply with the specifications in accordance with the European standard EN 13060 listed in the table below. For the operation of the Vacuklav 30-B, however, battery water in accordance with VDE 510 is sufficient, as long as the VDE specifications are strictly adhered to (conductivity on production 10 S/cm* , when used ... -
Page 38: Checking The Operation Of The Autoclave
As well as all essential components and electrical elements, parts are also inspected for wear and replaced as necessary. A maintenance reminder appears on the display after 1000 sterilizations. Consult your dealer of the MELAG Customer Service if you have any questions relating to servicing and maintenance. Page 38... -
Page 39: Annex
® User Manual - Vacuklav 30-B Annex Installation options __________________________________________________ Example 1 Example 2 Example 4 Example 3 Fig. 4 Installation options for the Vacuklav 30-B (A) with double-chamber trap (B) *1) Alternatively, two separate outflow traps can be installed Example 1 Example 2 ... -
Page 40: Additional Technical Data
17.6 litre Maximum load 5 kg instruments or 2 kg textiles Loading options: Mount "A" with max. 6 MELAG-trays Mount "B" with max. 4 standard tray-cassettes or 4 MELAG-trays Mount "C" with max. 3 standard tray-cassettes or 6 MELAG-trays MELAG- Sterilization containers: 28M,G, 23R, (15K, 17K,M,G,R, Foil holder 9.2.2... -
Page 41: Instructions On Drying
® User Manual - Vacuklav 30-B Instructions on drying__________________________________________________ ® The Vacuklav 30-B provides very good drying standards for sterilized items. Particularly difficult drying tasks (e.g. double wrapping) can also be dried to very good standards with the help of the supplementary drying function and the automatic pre-heating. - Page 42 When preparing textiles for treatment in the autoclave, care must be taken that the folds in the textiles are arranged in parallel, and that the items are packed side-by-side. This vertical configuration ensures that channels can form between the textile folds for the air to flow out and steam to flow in. Do not stack textiles on top of each other as this hinders the penetration of steam into the packages of textiles.
-
Page 43: Instruments
® User Manual - Vacuklav 30-B 9.3.5 Loading the autoclave _______________________________________________________________ Textiles and instruments should not be sterilized together in one sterilization container. Textiles and instruments in separate sterilization containers should as far as possible not be sterilized in the same load. However, where this is unavoidable for economic or other reasons, the following rules should be observed: ... -
Page 44: Stacking Sterilization Containers
The drying can be improved by the following measures: Pre-heating the autoclave (empty sterilization) Arranging transparent sterilization and paper packing vertically Selecting the program option "Additional drying" Extending the drying times (please consult your MELAG customer service) Page 44 Rev.: 0 - 07/240 BA_3_GB_30B_v0.doc...
