Bestcare BESTLIFT PL400H Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

BESTLIFT®
F U L L B O D Y P A T I E N T L I F T
M o d e l : P L 4 0 0 H / P L 4 0 0 H E

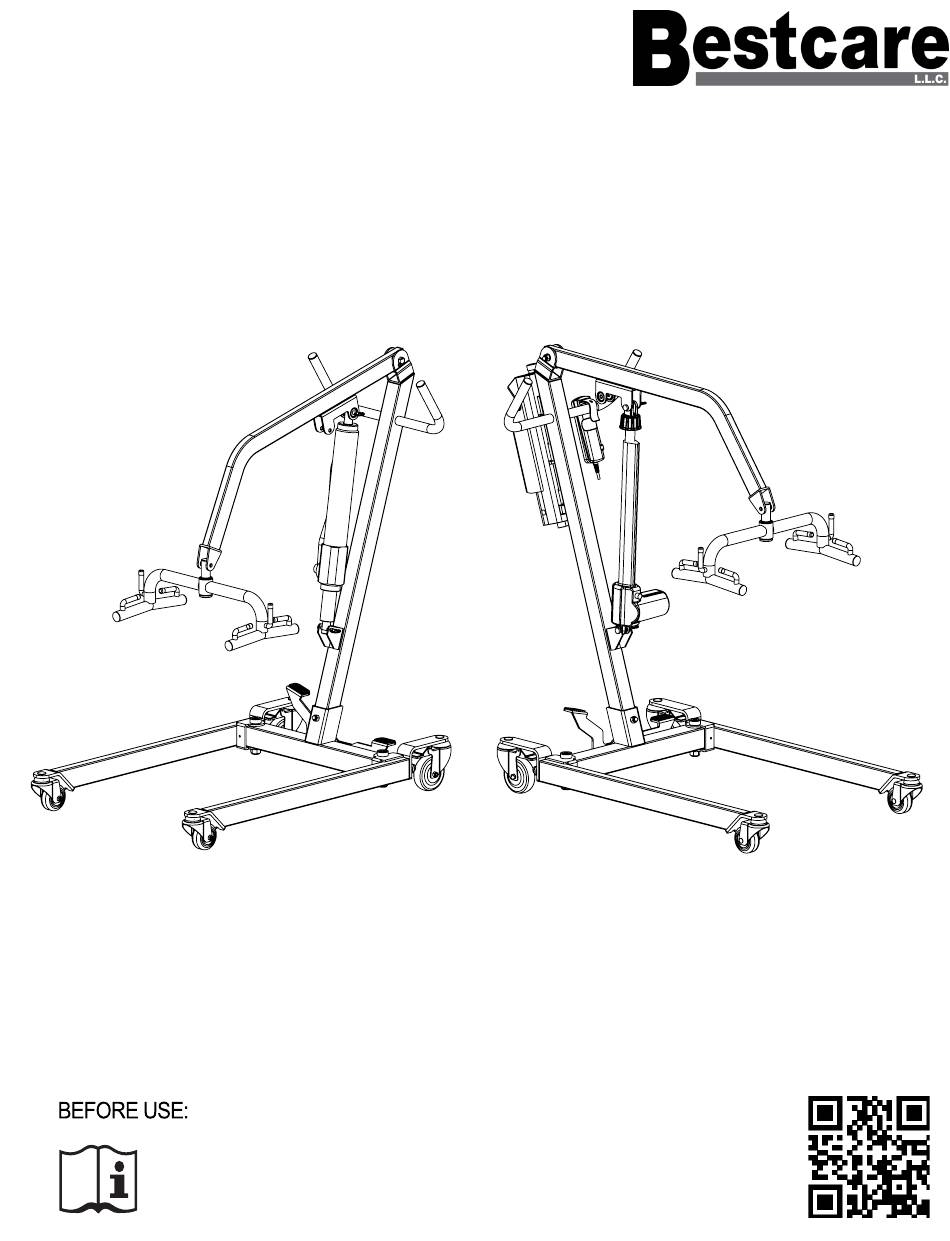

PL400H model shown
Ensure the product has been assembled according to the instructions in this
manual. All operators should read and understand the instructions for safe and
proper operation of the patient lift.
PL400HE model shown

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BESTLIFT PL400H and is the answer not in the manual?

Questions and answers

Peter Martyr
August 18, 2025

Is it possible to top up the hydraulic fluid and how on a PL400H hoist?

0

Related Manuals for Bestcare BESTLIFT PL400H

Summary of Contents for Bestcare BESTLIFT PL400H

  • Page 1 BESTLIFT® F U L L B O D Y P A T I E N T L I F T M o d e l : P L 4 0 0 H / P L 4 0 0 H E PL400H model shown PL400HE model shown Ensure the product has been assembled according to the instructions in this...
  • Page 2 Thank you for choosing Bestcare! To better serve you, please record the following information for future use: Supplier Name: ___________________________________________ Supplier Telephone: ________________________________________ Product Serial Number: _____________________________________ Date of Purchase: _________________________________________ Date of Manufacture The manufacturing date can be found on the serial number label that is located at the top of the mast.

  • Page 3: Product Description

    Product Description The Bestlift® PL400H and PL400HE allow patients up to 400lbs to be lifted and transferred safely with minimal physical effort provided by the operator. The PL400H/HE can lift the patient with ease from the floor to the bed. The 6 point spreader bar provides added comfort for the patient while moving from any surface.

  • Page 4: Definitions & Symbols

    DEFINITIONS & SYMBOLS n this manual, the user refers to the patient or resident and may be used interchangeably at different times. Caregiver refers to the operator or person who is assisting with the transfer. Symbols used in this manual and on the product and their meanings: Warning! Failure to heed this warning may Do Not Bleach.

  • Page 5: Safety Instructions

    • While being lifted in a sling, always keep the user/patient centered over the base and facing the caregiver operating the lifter. • Never leave the user/patient unattended during lifting. Service personnel may contact Bestcare for any information, instructions, or certain parts for servicing purpose.
  • Page 6 • DO NOT replace any components of the lift without consulting with Bestcare and must follow proper instruction from Bestcare when replacing any components. • DO NOT service any parts of the lift while in use with a patient.

  • Page 7: Features And Overview

    PROPRIETARY AND CONFIDENTIAL 120-400 THE INFORMATION CONTAINED IN THIS MATERIAL: DESCRIPTION: DRAWING IS THE SOLE PROPERTY OF BESTCARE LLC. ANY REPRODUCTION IN PART FINISH: SCALE: SHEET: 1 of 1 OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF BESTCARE LLC IS PROHIBITED.
  • Page 8 PL400H PL400HE mm (in) mm (in) 1879.7 (74.0) 1816.3 (71.5) 1199.9 (47.2) 1023.7 (40.3) 679.8 (26.8) 792.6 (31.2) 522.8 (20.6) 522.8 (20.6) 845.8 (33.3) 845.8 (33.3) 806.3 (31.7) 806.3 (31.7) 517.6 (20.4) 517.6 (20.4) 300.3 (11.8) 300.3 (11.8) 561.6 (22.1) 465.2 (18.3) 182.9 (7.2) 182.9 (7.2)

  • Page 9: Specifications And Options

    1256.54 Lift Weight Unloaded (kg) 35.0 37.1 Diameter 1337.1 mm * Bestcare is committed to continuous improvements of our products therefore the specification, dimensions, and features listed above are for guidance only and are subject to change without prior notice.
  • Page 10 Installation Step 1: Remove base from box. Step 2: Remove the white cap nut and bolt from the base bracket. Step 3: Insert the mast into the base bracket, align the holes on the bracket with hole on the mast. Reinsert the bolt and the cap nut, and use a wrench to tighten the nut.
  • Page 11 Step 4: Remove the cap nut and bolt on the boom. Do not remove the plastic U shaped washer or the bushing inside the hole of the boom, reinsert and align the holes of the plastic washer and bushing if needed. Step 5: Insert the boom with the plastic washer as follows into the bracket at the top of the mast.
  • Page 12 Step 6: Install the hydraulic pump/electric actuator, and secure the lower and upper ends of the pump/actuator to the bracket on the mast and boom mast using a pin and retaining ring as follows. Warning: When installing the upper end of the PUMP, make sure pump is aligned to the hole on bracket that is closer to the mast.
  • Page 13 Setting Up Power Control Unit M5 SCREWS M4 SCREWS 2920 PACIFIC DRIVE UNLESS OTHERWISE SPECIFIED: NORCROSS, GA 30071 ALL DIMENSIONS IN MM DRAWN BY: DATE: 9/27/2017 6-30 30-120 PART NUMBER:...
  • Page 14 Operating Instructions Double check all assemblies for tightness and read operating instructions carefully prior to use. For optimum performance the lift should be transported and stored in following condition range: • -25°C to +5°C (-13°F to 41°F), and • +5°C to +35°C (41°F to 95°F) at a non-condensing relative humidity 0% to 90% •...
  • Page 15 Patient Lift Hydraulic Pump Unit Operating Instruction Pump Piston Handle Pump Serial Number To raise the boom: -Turn the release knob clockwise until it stops. -Use the handle bar to pump the piston Release To lower the boom: Knob The release knob controls the speed of the piston as it’s lowering.
  • Page 16 Power Control Unit Overview Emergency Stop Button Up / Down Button Battery Pack Release Handle LCD Display Panel Battery Pack Clear Contact Plastic Cover Charger DC In Not Used Additional Battery Pack (Optional) Actuator Hand Control Charging Cradle (Optional) 1. Connect Actuator as shown above. 2.
  • Page 17 Release Pressed in LCD Display Panel Signs When the emergency stop button is released, the LCD Display Panel will show one of the four signs below. • The sign will display for 5 seconds. • Then the lift will go into standby mode and the sign disappears. •...
  • Page 18 Operating Lift: Using Hand Control LED Indicator Lifting * Green = In Use * Blank = Standby Lowering Operating Lift: Using LCD Display Panel...
  • Page 19 Warning! - Battery Low and Charging is Needed If the battery needs to be charged, the LCD Display Panel will show a blinking low battery sign shown on the left either when the emergency stop button is released or when a button on the LCD Display Panel is pressed.
  • Page 20 Available slings compatible with Patient Lift Sling Type Material Sizes Mesh M, L Universal Polyester M, L, XXL Mesh S, M, L Universal with Head Support Polyester S, M, L, XXL Universal Disposable Nonwoven, Disposable M, L Universal Disposable with Head Support Nonwoven, Disposable S, M, L, XXL Sani...
  • Page 21 Sling Hook-Up Guide 2 Point S-Bar 6 Point S-Bar Hook up A Point 1 Hook up A Point 1 Hook up B Point 2 Hook up B Point 2 Insert D through C Insert D through C Hook up D Point 1 Hook up D Point 5...
  • Page 22 Transfer From Bed to Wheelchair 1. User/patient should be in the center of the bed. 2. Position user onto his/her side by rolling user towards you. 3. Roll the sling in half. The handle on the back section should face outward when the sling is fitted.

  • Page 23: Maintenance And Inspection

    • Note – Bestcare assumes that the assembly instructions were performed properly and The Bestcare Lift requires a minimum of service to keep it in proper working order and to assure safe operation. It by a qualified individual. Bestcare also assumes that the operator of the lift has been is important that certain basic checks be performed periodically by the operator of the lift or by a qualified bio-med properly trained, reviewed all the training material and knows how to operate the lift.
  • Page 24 • REPLACE a sling when it shows signs of deterioration. Deterioration of sling • Contact Bestcare for “Guideline for Identifying Deteriorated Slings” if needed. Disinfecting of the lift and sling • Inspect slings prior to each use for contamination from previous use.
  • Page 25 Emergency Lowering Mechanism Contact your dealer immediately if standard troubleshooting techniques do not correct the failure. Do not attempt to lift until all failure and safety issues have been resolved. In case of lift failure, please follow the procedures below to safely lower the user. The Emergency Lowering Device is located at the top of the actuator shaft.

  • Page 26: Troubleshooting Guide

    Troubleshooting Guide The following list of encountered problems and solutions will assist you in determining what may be causing your patient lift not to function as designed. If you have a problem occurring which is not listed below please contact your dealer or technical support for help. Do not attempt to repair or replace components or parts on your lift as this may void your warranty or cause further problems that may result in patient injury.

  • Page 27: Warranty Policy

    Bestcare LLC Single Patient Slings are designed for limited use with one patient and may not be washed. Bestcare will replace any disposable slings found to have a manufacturing defect. Normal wear and tear will not be covered under warranty.
  • Page 28 Bestcare LLC 2920 Pacific Drive Norcross, GA 30071 Ver 2021.11 www.bestcarellc.com | © 2021 Bestcare LLC...

This manual is also suitable for:
