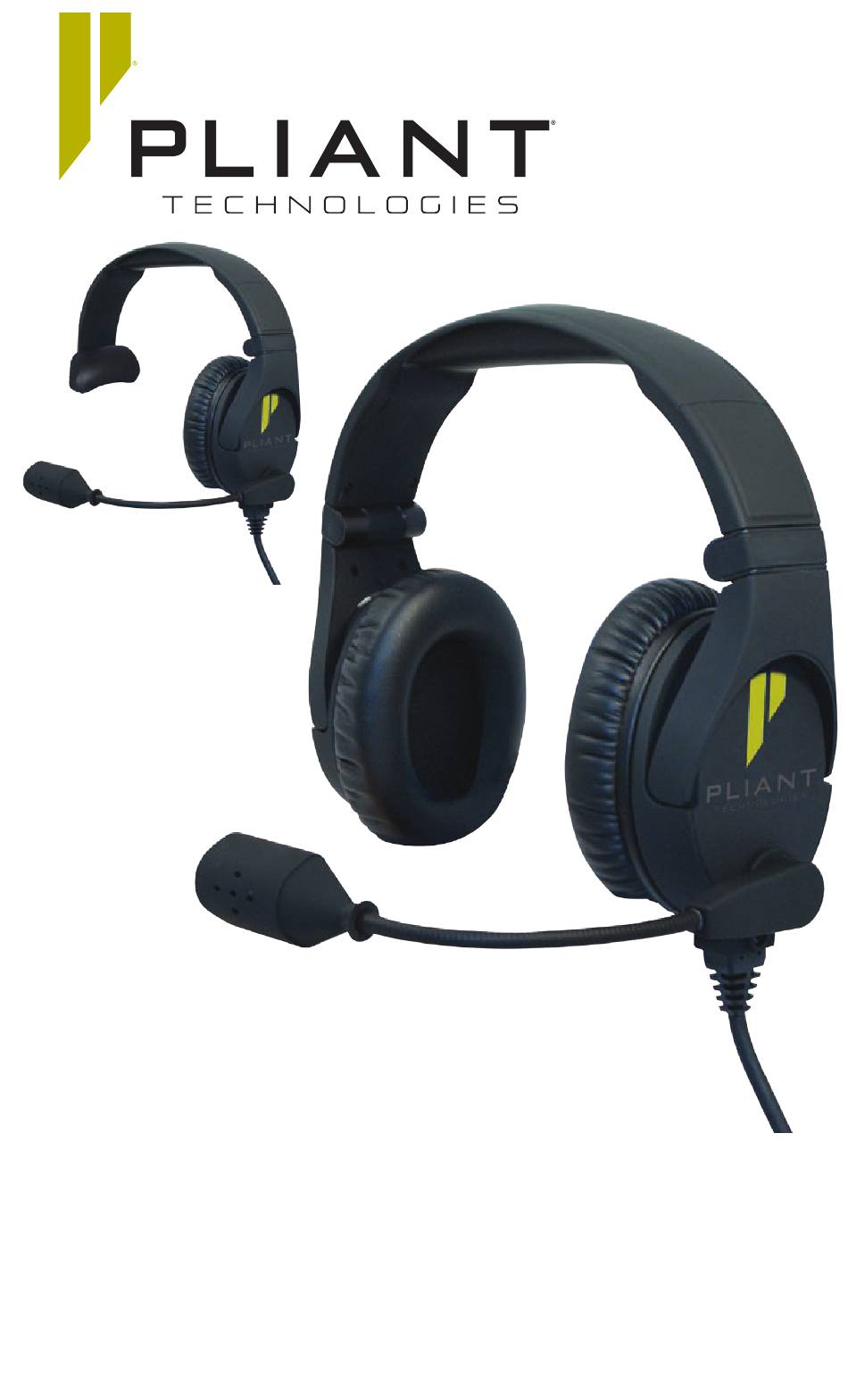

- Page 1 SmartBoom ® PHS-SB100-4F, PHS-SB100-5M, PHS-SB100-U, PHS-SB200-4F, PHS-SB200-5M, PHS-SB200-U Operating Manual...
-
Page 2: Safety Information
Thank You We at Pliant Technologies, LLC want to thank you for purchasing the SmartBoom PRO Headset. ® Pliant Technologies brings our experience, commitment to quality, and expertise to headsets with the new SmartBoom PRO Headset, which meets the standards of traditional, reliable headsets, while introducing modern features and design enhancements. -
Page 3: Operation
What’s included with SmartBoom PRO? Each SmartBoom PRO headset comes complete with everything needed to get started. Unpack your device and familiarize yourself with the following components: • Headset (assembled with ear and head pads) • Removable 4-pin XLR female connector cable (arrives attached to headset) •... - Page 4 SmartBoom Mic Mute: During operation, swiveling the boom up above the brow at approximately 45 degrees will mute the microphone. To activate the microphone again, simply lower the boom back down. Mute/Unmute at 45 Figure 4 SmartBoom Mute On/Off Note: To adjust the boom, swivel it so that the microphone is on the preferred side (right or left).
-
Page 5: Physical Features
Cable 3.8 oz (107.73 g) *Notice about Specifications: While Pliant makes every attempt to maintain the accuracy of the information contained in its product manuals, that information is subject to change without notice. Performance specifications included in this manual are design-centered specifications and are included for customer guidance and do facilitate system installation. Actual operating performance may vary. -
Page 6: Troubleshooting
PIN CONNECTION Headset Wire 4-Pin Female 5-Pin Male Plug Pin (Color and Description) Blue - Speaker R+ Brown - Speaker L+ Red - Speaker R- Orange - Speaker L- Yellow - Mic+ Green - Mic- Uncoated - Shield No connect MICROPHONE POLAR PATTERN PHS-SB200 -3dB... -
Page 7: Product Support
Product Support Pliant Technologies, LLC support and service personnel are ready to help you with any issues you may have. All requests and questions should be directed to our Customer Service department via phone, fax, or email. Pliant Technologies, LLC Customer Service Department Phone +1.334.321.1160... -
Page 8: Warranty Information
Tempest professional products will carry a two-year product warranty. All accessories carry a one-year warranty. The sole obligation of Pliant Technologies, LLC during the warranty period is to provide, without charge, parts and labor necessary to remedy covered defects appearing in products returned prepaid to Pliant Technologies, LLC.
