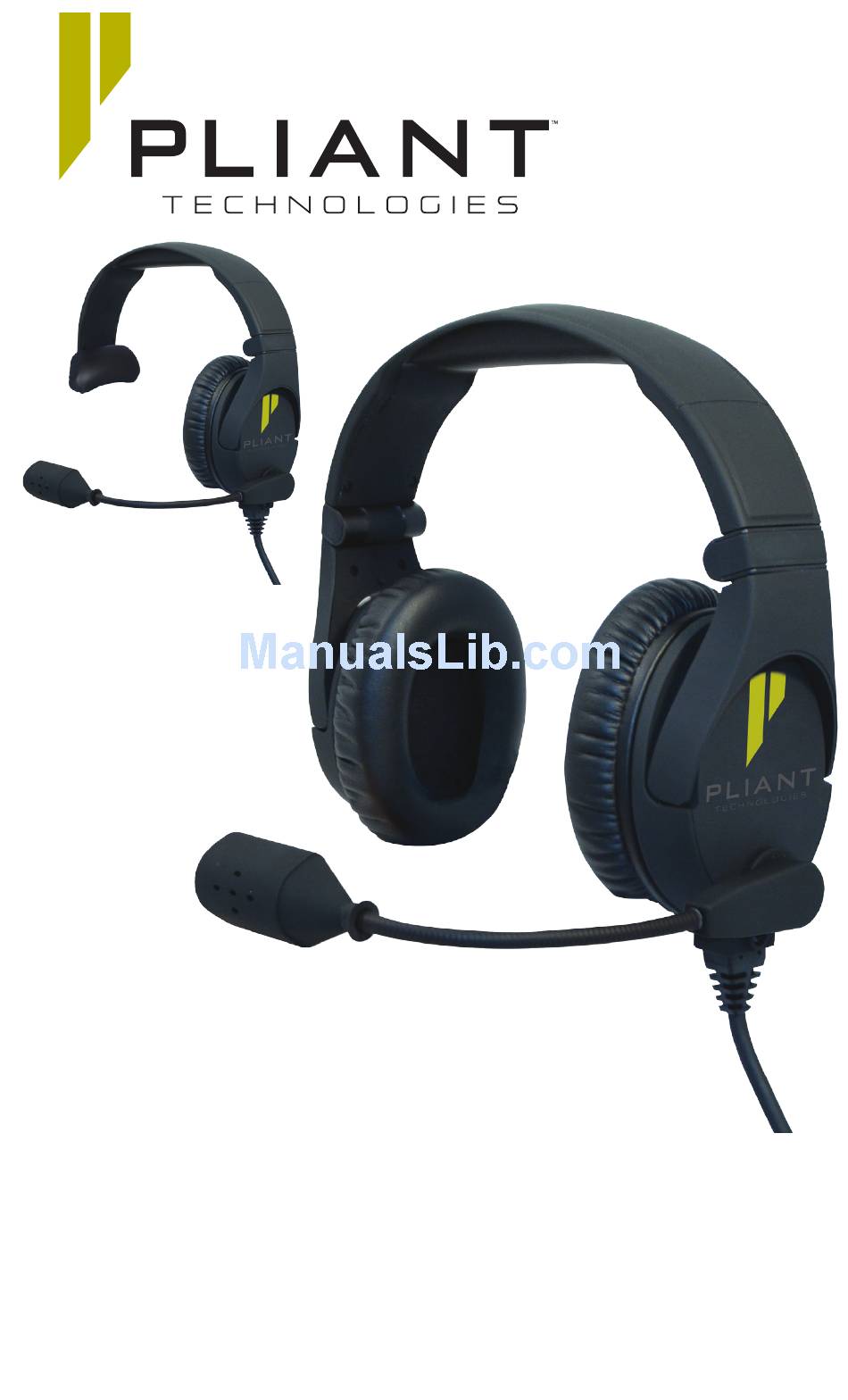

- Page 1 SmartBoom ® PHS-SB100 / PHS-SB200 Operating Manual D0000276...
-
Page 2: Safety Information
SmartBoom PRO Headset, please take a few moments to read this manual completely so that you better understand the operation of this product. This document applies to models PHS-SB100 and PHS-SB200. For questions not addressed in this manual, feel free to contact our Customer Support Department. -
Page 3: Operation
What’s included with SmartBoom PRO? Each SmartBoom PRO headset comes complete with everything needed to get started. Unpack your device and familiarize yourself with the following components: • Headset (assembled with ear and head pads) • Removable 4-pin XLR female connector cable (arrives attached to headset) Operation The following section details procedures for operating SmartBoom PRO. - Page 4 SmartBoom Mic Mute: During operation, swiveling the boom up above the brow at approximately 45 degrees will mute the microphone. To activate the microphone again, simply lower the boom back down. Mute/Unmute at 45 Figure 4 SmartBoom Mute On/Off Note: To adjust the boom, swivel it so that the microphone is on the preferred side (right or left).
-
Page 5: Physical Features
Cable 3.8 oz (107.73 g) *Notice about Specifications: While Pliant makes every attempt to maintain the accuracy of the information contained in its product manuals, that information is subject to change without notice. Performance specifications included in this manual are design-centered specifications and are included for customer guidance and do facilitate system installation. Actual operating performance may vary. -
Page 6: Pin Connection
PIN CONNECTION Headset Plug Pin Cable XLR Plug Pin Blue - Speaker R+ Brown - Speaker L+ Red - Speaker R- Orange - Speaker L- Yellow - Mic+ Green - Mic- Uncoated - Shield No connect MICROPHONE POLAR PATTERN PHS-SB200 -3dB 125 - 10kHz Pink Noise at 1 meter Troubleshooting... -
Page 7: Product Support
Product Support Pliant Technologies, LLC support and service personnel are ready to help you with any issues you may have. All requests and questions should be directed to our Customer Service department via phone, fax, or email. Pliant Technologies, LLC Customer Service Department Phone +1.334.321.1160... -
Page 8: Parts Limited Warranty
Pliant Technologies, LLC, and shipping damage. Products with their serial numbers removed or effaced are not covered by this warranty. This limited warranty is the sole and exclusive express warranty given with respect to Pliant Technologies, LLC products. It is the responsibility of the user to determine before purchase that this product is suitable for the user’s intended purpose.
