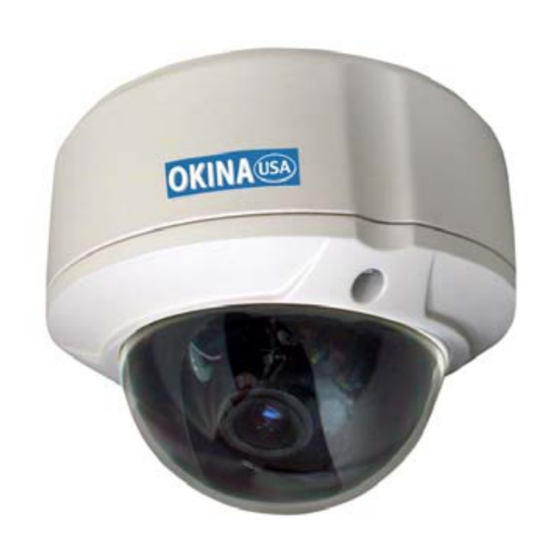

SDNX-F63AI-VD
SDNX-F63AI-VDP
SUPER LOW LUX DNR DAY & NIGHT
OSD VANDAL PROOF DOME CAMERA
DNR dramatically reduces both random and fixed noise.
It also reduces DVR disk space usage by up to 70%.
P = PAL Version
Copyright © 2011 by OKINA USA
www.okinausa.com
Please read the Operational Manual
before attempting to use this product.
1/3" Sony Super HAD CCD Sensor
630 TV Lines
Dual Voltage 12V DC / 24V AC
OPERATIONAL MANUAL
1
D-245
R072011-V13
Advertisement
Table of Contents
Related Manuals for Okina USA DNR Series
Summary of Contents for Okina USA DNR Series
- Page 1 Dual Voltage 12V DC / 24V AC OPERATIONAL MANUAL DNR dramatically reduces both random and fixed noise. It also reduces DVR disk space usage by up to 70%. P = PAL Version Copyright © 2011 by OKINA USA D-245 www.okinausa.com R072011-V13...
-
Page 2: Digital Noise Reduction (Dnr)
One (1) Operational Manual * For any returns, please include all components listed above with original packaging in Resalable Condition. Absolutely No Returns will be accepted if any component is missing/damaged. DIMENSIONS Copyright © 2011 by OKINA USA D-245 www.okinausa.com R072011-V13... -
Page 3: Parts And Functions
4 areas MIRROR OFF / ON Mirror Mode Switch SHARPNESS OFF / ON Adjustable 0 ~ 31 RESET All Setting Return to Default Value RETURN Save & Return to Setup Menu Copyright © 2011 by OKINA USA D-245 www.okinausa.com R072011-V13... - Page 4 Adjust Image Sharpness On (15) Reset Off, On Reset to System Default Return Return to Basic Setup Menu 2. Setup Below are 5 setup buttons on the rear of the camera. Copyright © 2011 by OKINA USA D-245 www.okinausa.com R072011-V13...
-
Page 5: Setup Menu
NOTE: When selecting DC DRIVE, the shutter speed will be fixed at 1/60 (NTSC), 1/50 (PAL) which the shutter mode is not selectable. When the shutter is set as FLK or MANUAL, SENS-UP will not work. Copyright © 2011 by OKINA USA D-245 www.okinausa.com... - Page 6 HIGH: The gain increases from 6dB up to 42dB MIDDLE: The gain increases from 6dB up to 30dB LOW: The gain increases from 6dB up to 18dB OFF: The gain is fixed at 6dB Copyright © 2011 by OKINA USA D-245 www.okinausa.com R072011-V13...
- Page 7 Adjust the mode from x2~x128. Return to last menu by pressing SETUP while finishing modification. When AGC is off, SENS-UP will be disabled. When SHUTTER is in MANUAL, FLK mode, SENS-UP will be disabled. Copyright © 2011 by OKINA USA D-245 www.okinausa.com R072011-V13...
- Page 8 ON: Default value. It is fixed to color mode and the image does not switch to B/W at night. NOTE: When AGC is off, COLOR function will be fixed to ON which cannot be modified. Copyright © 2011 by OKINA USA D-245 www.okinausa.com R072011-V13...
- Page 9 3. Position the arrow to TOP/DOWN/LEFT/RIGHT by pressing UP/DOWN button. The privacy place and coverage can be set up by LEFT/RIGHT button. 4. Return to last menu by pressing SETUP while finishing modification. Copyright © 2011 by OKINA USA D-245 www.okinausa.com...
-
Page 10: Setup: Exit
2. Press setup to return to main menu. Setup: Exit Exit from OSD menu. 1. Position the arrow to EXIT by pressing UP/DOWN button. 2. Press setup to exit from OSD menu. Copyright © 2011 by OKINA USA D-245 www.okinausa.com R072011-V13... -
Page 11: Specifications
3. Requires a proper operating environment This camera is designed for outdoor or indoor use. The allowable temperature range for operation of this camera is between 23°F ~ 104°F / -5°C ~ 40°C. Copyright © 2011 by OKINA USA D-245 www.okinausa.com... -
Page 12: Warranty
When the video product exhibits a distinct change in performance. WARRANTY OKINA USA products are covered under warranty for one year from the date of purchase. The warranty will automatically be voided if any of the following occurs: 1. Camera sticker is removed If the camera sticker is removed, we will not be able to confirm any information regarding when and where the product was purchased.
