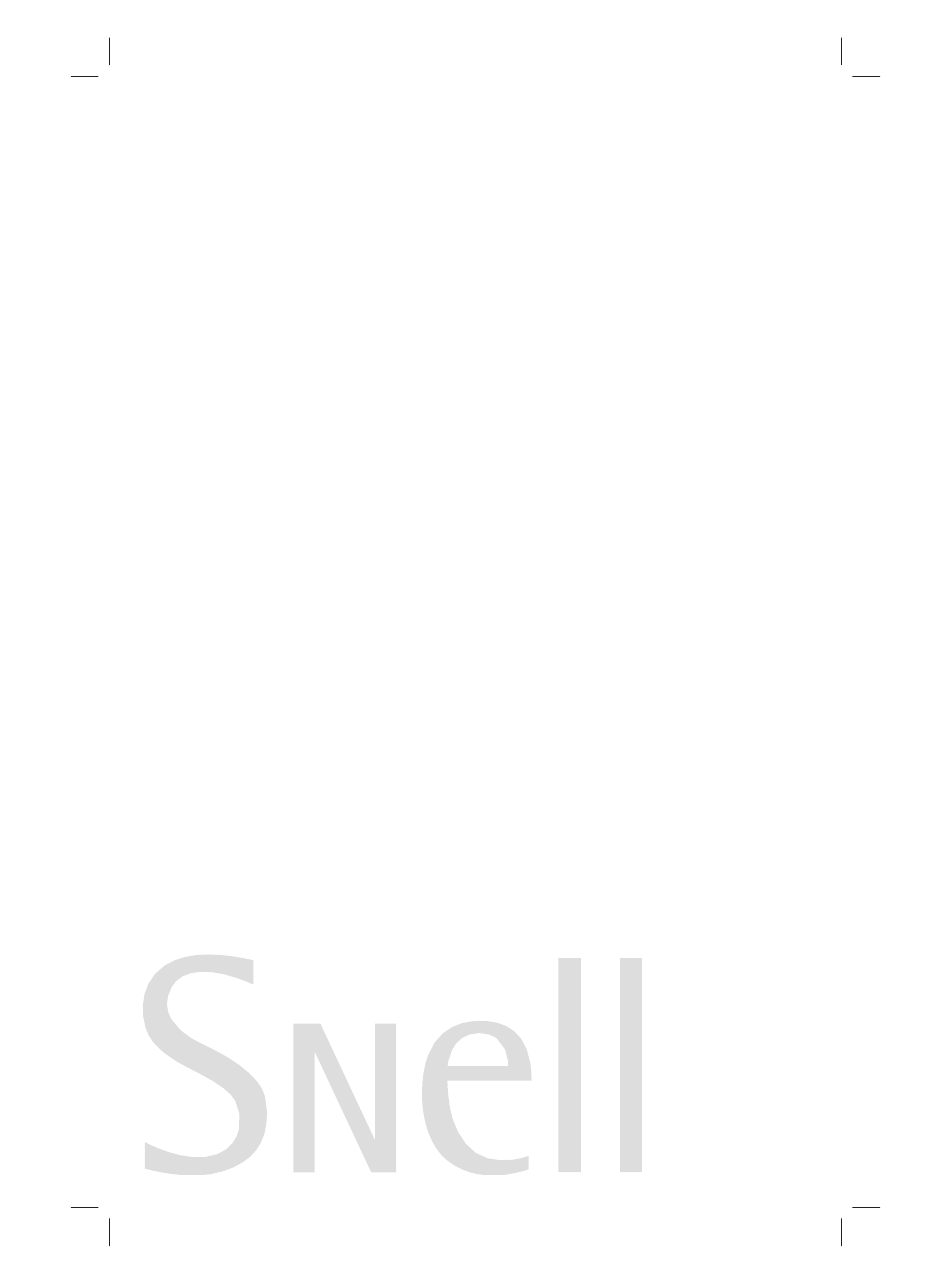

- Page 1 Owner’s Manual OH-S7 OH-T7 OH-S7 and OH-T7.indd 1 OH-S7 and OH-T7.indd 1 1/22/08 7:17:23 PM 1/22/08 7:17:23 PM...
-
Page 2: Specifications
” (241-248mm) Weight/each 3 lbs (1.4kg) 4.5 lbs (2.0kg) Finish White (paintable) White (paintable) 3/4" ferrofluid cooled tweeter copolymer woofer High-order Waveguide crossover with 20° tilt OH-S7 and OH-T7.indd 2 OH-S7 and OH-T7.indd 2 1/22/08 7:17:23 PM 1/22/08 7:17:23 PM... -
Page 3: Product Description
Fill the chamber behind the speaker mounting location with acoustically absorbent material. Note: A metal fi re-rated back box, the FRB68, is available for the OH-S7. In addition to provid- ing a protected environment for the speaker, the FRB68 meets the requirements of electrical codes throughout the country for fi... -
Page 4: Stereo Image
If the OH-S7 or OH-T7 is used as a wall-mounted center channel speaker, aim the tweeter up or down as appropriate. If its position is above normal seated ear level, orient the system with the waveguide angling downward. -
Page 5: Painting The Speakers
Using As a Surround Speaker The compact size and neutral tonal quality of the OH-S7 and OH-T7 make them perfect for the surround channel speakers of a home theater system. Place the speakers toward the back of the room, to the sides of, or behind the listening position. -
Page 6: Installation
3. Remove the speaker grille. Carefully pry up one side with an awl or small screwdriver. The OH-S7 and OH-T7 have heavy-duty spring-loaded push terminals for their input connec- tions. The terminals will accept wire or pins up to ⁄... -
Page 7: Listening Levels And Power Handling
LIMITED WARRANTY For fi ve years from the date of purchase, Snell Acoustics will repair for the original owner any defect in materials or workmanship that occurs in normal use of the speaker system, without charge for parts and labor. - Page 8 300 Jubilee Drive, P.O. Box 3717 Peabody, MA 01961-3717 phone: 978-538-6262 ©2008 Snell Acoustics. All Rights Reserved. fax: 978-538-6266 Specifi cations are subject to change without notice. email: info@snellacoustics.com Covered by patents issued and/or pending. web: www.snellacoustics.com Part #542-1049 OH-S7 and OH-T7.indd 8 OH-S7 and OH-T7.indd 8...
