Summary of Contents for Bluetechnix Sentis-ToF-P510

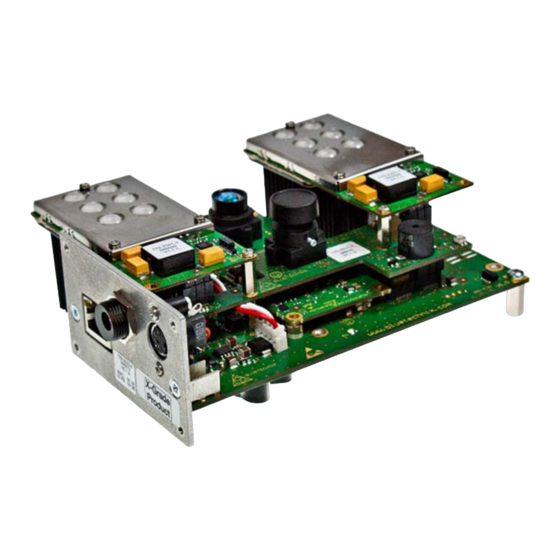

- Page 1 BLUETECHNIX Embedding Ideas Sentis-ToF – P510 Quick Start Guide Version 1...
- Page 2 This document is protected by copyright. All rights reserved. No part of this document may be reproduced or transmitted for any purpose in any form or by any means, electronically or mechanically, without expressly written permission by Bluetechnix GmbH. Windows is a registered trademark of Microsoft.
-
Page 3: Table Of Contents
Downloading the Evaluation Software ................... 10 Support website ........................10 Start-up screen ........................11 Prepare your Network Interface Card (NIC) ................11 Start using your Sentis-ToF-P510 with ‘BltTofSuite’ ..............12 System Requirements & Support ....................15 Bluetechnix ToF Suite ......................15 Support ........................... 15 Product History .......................... - Page 4 Bluetechnix takes no liability for any damages and errors causing of the usage of this board. The user of this board is responsible by himself for the functionality of his application. He is allowed to use the board only if he has the qualification.
-
Page 5: Unboxing
Netzkabel (Kaltegerätekable) * Note The power supply’s operating temperature is specified from 0 to +40°C. This represents not the effective working temperature of the Sentis-ToF-P510 sensor! Connecting your Sentis-ToF-P510 Eval-Kit Figure 1-2: Sentis-ToF-P510 connector compartment screw positions © Bluetechnix 2015... -
Page 6: Connector Overview
GBit Ethernet (RJ45) 10/100/1000 Base-T c. Extension Connector Figure 1-1: Sentis-ToF-P510 connectors and interfaces Note Please follow the next steps in the right order to get your ‘Sentis-ToF-P510’ up and running correctly. © Bluetechnix 2015 Page 6 | 16... -
Page 7: Power Connector (A)
Use inherently limited power sources only! The power supply connector is protected against wrong polarity but the ‘Sentis-ToF-P510’ will not work in case you don’t use the correct polarity! If the Sentis-ToF-P510 doesn’t work please check the power supply polarity first! To ensure, that your Sentis-ToF-P510 works correctly, connect the ‘Sentis-ToF-P510’... -
Page 8: Extension Connector (C)
13mA. (e.g 1k5 pull-up to 20V) Figure 1-2 Extension Connector (Mini-DIN8) pin out Description Manufacturer Part Number Mini-DIN8 plug, male CUI Inc MD-80 Table 1-2: Mating connector © Bluetechnix 2015 Page 8 | 16... -
Page 9: Overview Of The Test Set-Up
Embedding Ideas Quick Start Guide - Sentis-ToF – P510 Last change: 23 February 2015 Version 0.1 Overview of the Test Set-up Test Set-up Figure 1-3: Sentis-ToF-P510 with connected power supply and Ethernet cable © Bluetechnix 2015 Page 9 | 16... -
Page 10: Downloading The Evaluation Software
Downloading the Evaluation Software Please log in to our support website at https://support.bluetechnix.com/ and download the Sentis-ToF-P510 customer software package CD. This package also includes the Bluetechnix ToF-Suite V3.3 Support website Figure 2-1: Download Evaluation Package Please follow the instructions on the WEB-Site ©... -
Page 11: Start-Up Screen
Figure 2-2: Start-up screen Prepare your Network Interface Card (NIC) Once you have connected your Sentis-ToF-P510 to a Network Interface Card (NIC) of your PC give this NIC the IP-Address 192.168.0.1 with a subnet mask of 255.255.255.0. No driver must be installed on your PC! The Sentis-ToF-P510 uses IP-Address 192.168.0.10 with subnet mask 255.255.255.0. -
Page 12: Start Using Your Sentis-Tof-P510 With 'Blttofsuite
Using this software you can simply display the depth image and the amplitude image of the Sentis-ToF- P510. For a detailed introduction to the software, please read the ‘Bluetechnix ToF Suite - Quick Start Guide’ Place the Sentis-ToF-P510 on your desk approximately 50 cm in front of you. - Page 13 BLUETECHNIX Embedding Ideas Quick Start Guide - Sentis-ToF – P510 Last change: 23 February 2015 Version 0.1 Select your product: e.g. Argos3dP510 Connect your product: Press the Connect button and wait some seconds. © Bluetechnix 2015 Page 13 | 16...
- Page 14 Embedding Ideas Quick Start Guide - Sentis-ToF – P510 Last change: 23 February 2015 Version 0.1 After successful connection you will see the live-picture as a result on the screen. Figure 3-2: BltTofSuite screenshot © Bluetechnix 2015 Page 14 | 16...
-
Page 15: System Requirements & Support
Quick Start Guide - Sentis-ToF – P510 Last change: 23 February 2015 Version 0.1 System Requirements & Support A Sentis-ToF-P510 enabled application is required in order to use this ‘Sentis-ToF-P510’ device. Connect to a system with: Operating System: Microsoft Windows XP/7/Vista ... -
Page 16: Product History
Product History Version Information 5.1.1 Sentis-ToF-P510 Version Release date Firmware Version X-Grade Nov 2014 Table 5.1: Overview Sentis-ToF-P510 product changes Additional information can be found at http://support.bluetechnix.com Anomalies Version Date Description 0.0.0 No anomalies reported yet. Table 5.2: Product anomalies Additional information can be found at http://support.bluetechnix.com...
