深圳市神牛摄影器材有限公司
GODOX Photo Equipment Co., Ltd.
地址/Add: 深圳市宝安区福永镇福洲大道西新和村华发工业园A4栋
Building A4, Xinhe Huafa Industrial Zone, Fuzhou RD West, Fuyong
Town, Baoan District, Shenzhen 518103, China
电话/Tel: +86-755-29609320(8062)
传真/Fax: +86-755-25723423
邮箱/E-mail: godox@godox.com
http://www.godox.com
705-AD60B0-00
Made In China

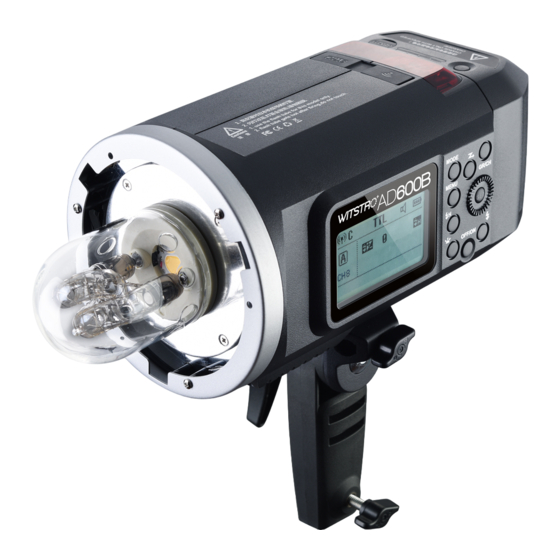

AD600B
TTL一体式外拍闪光灯
TTL ALL-in-One Outdoor Flash
中英文双语 / Chinese English Bilingual
说明手册 / INSTRUCTION MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Godox AD600B
Summary of Contents for Godox AD600B

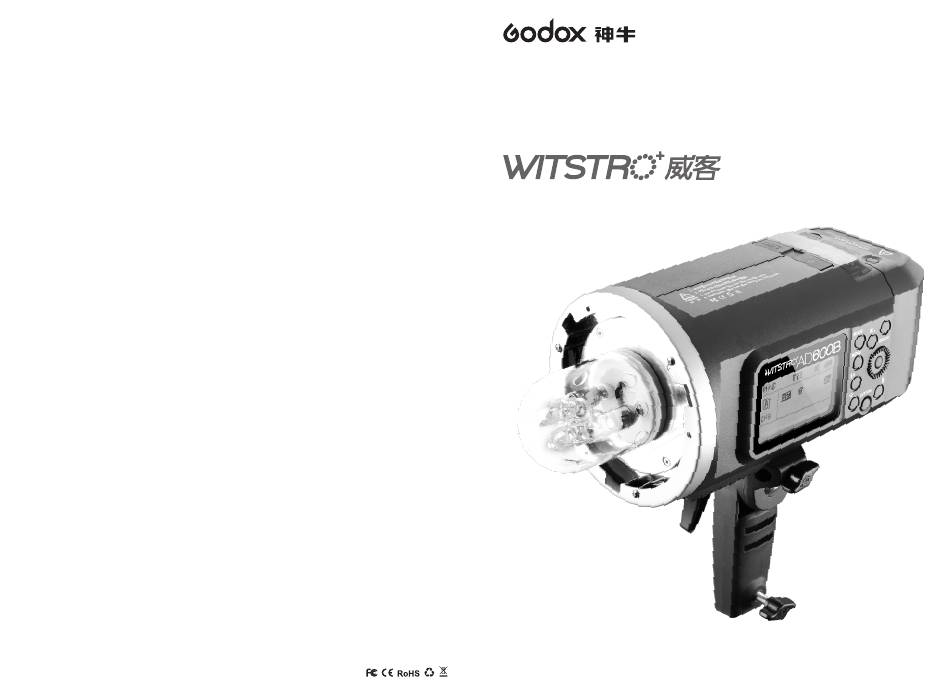

- Page 1 AD600B TTL一体式外拍闪光灯 TTL ALL-in-One Outdoor Flash 深圳市神牛摄影器材有限公司 GODOX Photo Equipment Co., Ltd. 地址/Add: 深圳市宝安区福永镇福洲大道西新和村华发工业园A4栋 Building A4, Xinhe Huafa Industrial Zone, Fuzhou RD West, Fuyong Town, Baoan District, Shenzhen 518103, China 电话/Tel: +86-755-29609320(8062) 传真/Fax: +86-755-25723423 邮箱/E-mail: godox@godox.com http://www.godox.com 说明手册 / INSTRUCTION MANUAL 中英文双语...
-
Page 2: Foreword
• Wireless control: With built-in Godox 2.4G wireless X system to achieve TTL control. Godox FT-16 flash trigger can also be used to wirelessly adjust flash power level and trigger the flash. AD600B has 3.5mm sync cord jack and PC sync socket to achieve various sync triggering mode. -
Page 3: Table Of Contents
Contents Foreword For your safety Name of Parts Body LCD Panel Included Accessories Separately Sold Accessories Installing Reflector (Other Accessories) Attaching Flash Tube Adjusting Handle Battery Power Management Wireless Flash Mode Flash Mode— TTL Autoflash FEC (Flash Exposure Compensation) High-Speed Sync Flash Mode—M: Manual Flash Flash Mode—Multi/Stroboscopic Flash Wireless Flash Shooting: Radio (2.4G) Transmission... -
Page 4: Name Of Parts
Name of Parts Name of Parts Body: Body: Body: < > Wireless Selection Button <MODE> Mode Selection Button <GR/CH> AD600B Group/Channel Button AD600B MODE GR/CH MENU <MENU> Menu Button Select Dial < H> Lithium Battery < SET >Set Button OFF/ON High Speed Sync Button <... -
Page 5: Included Accessories
LCD Panel: Separately Sold Accessories (2) M Manual Flash AD600B can be used in combination with the following accessories sold separately, so as to achieve best photography M: Manual flash effects: X1 Wireless Flash Trigger, FT-16 Remote Control, Softbox, Beauty Dish, Fold Up Umbrella, Snoots, Light Stand, etc. -
Page 6: Battery
AD600B can only be set as slave unit (receiver end). Press Wireless Selection Button to switch the two wireless modes: radio transmission and optical transmission. When using radio transmission, AD600B will automatically switch between Canon (C) and Nikon (N) system according to X1 series transmitter. When using optical transmission, please set AD600B to Canon (C) or Nikon (N) before firing a flash. -
Page 7: Flash Mode- Ttl Autoflash
Flash Mode — M: Manual Flash Flash Mode — TTL Autoflash This flash has three flash modes: TTL, Manual (M), and Multi (Stroboscopic). In TTL mode, the camera and the The flash output is adjustable from 1/1 full power to 1/256th power in 1/3rd stop increments. To obtain a correct flash will work together to calculate the correct exposure for the subject and the background. - Page 8 Flash Mode — M: Manual Flash Flash Mode — Multi: Stroboscopic Flash Display Flash Duration With stroboscopic flash, a rapid series of flashes is fired. It can be used to capture a multiple images of a moving subject in a single photograph. You can set the firing frequency (number of flashes per sec. expressed as Hz), the Flash duration refers to the length of time that from flash’s firing to reach the half peak at maximum.
-
Page 9: Wireless Flash Shooting: Radio (2.4G) Transmission
AD600B adopts Godox 2.4G wireless X system, which has good compatibility with other products of our company. 3. Setting the Communication Group As a slave unit, AD600B is automatically compatible with Canon E-TTL II system and Nikon i-TTL system according Short press the < GR/CH > Button to choose group ID from A to E. -
Page 10: Wireless Flash Shooting: Optical Transmission
(factor). In addition, you can set and shoot with a different flash mode for each firing group. 580EXII, 600EX-RT and commanders of Canon cameras e.g. 7D/60D/600D. ● Auto Shooting with Two Slave Groups * Compatible Nikon optical wireless system: AD600B can receive wireless signals of Nikon speedlights e.g. SB-900, SB-910 and commanders of D7100/D7000/D800. ●... -
Page 11: Setting The Communication Channel
C.Fn: Setting Custom Functions Wireless Flash: Optical Transmission 2. Setting the Communication Channel Custom Function Setting Signs Settings & Descriptions Functions Restrictions Signs If there are other wireless flash systems nearby, you can change the channel IDs to prevent signal interference. The channel IDs of the master unit and the slave unit(s) must be set to the same. -
Page 12: Modeling Lamp
When the over-temperature protection is started, is shown on the LCD display. AD600B is equipped with a 10W LED modeling lamp which has 3 steps of light adjustment and two always lighting Number of flashes that will activate over-temperature protection: modes. -
Page 13: Technical Data
Technical Data Troubleshooting If there is a problem, refer to this Troubleshooting Guide. Model AD600B The flash exposure is underexposed or overexposed. Wireless Slave Unit Mode Radio transmission mode (compatible with Nikon & Canon) ● There was a highly reflective object (e.g. glass window) in the picture.
