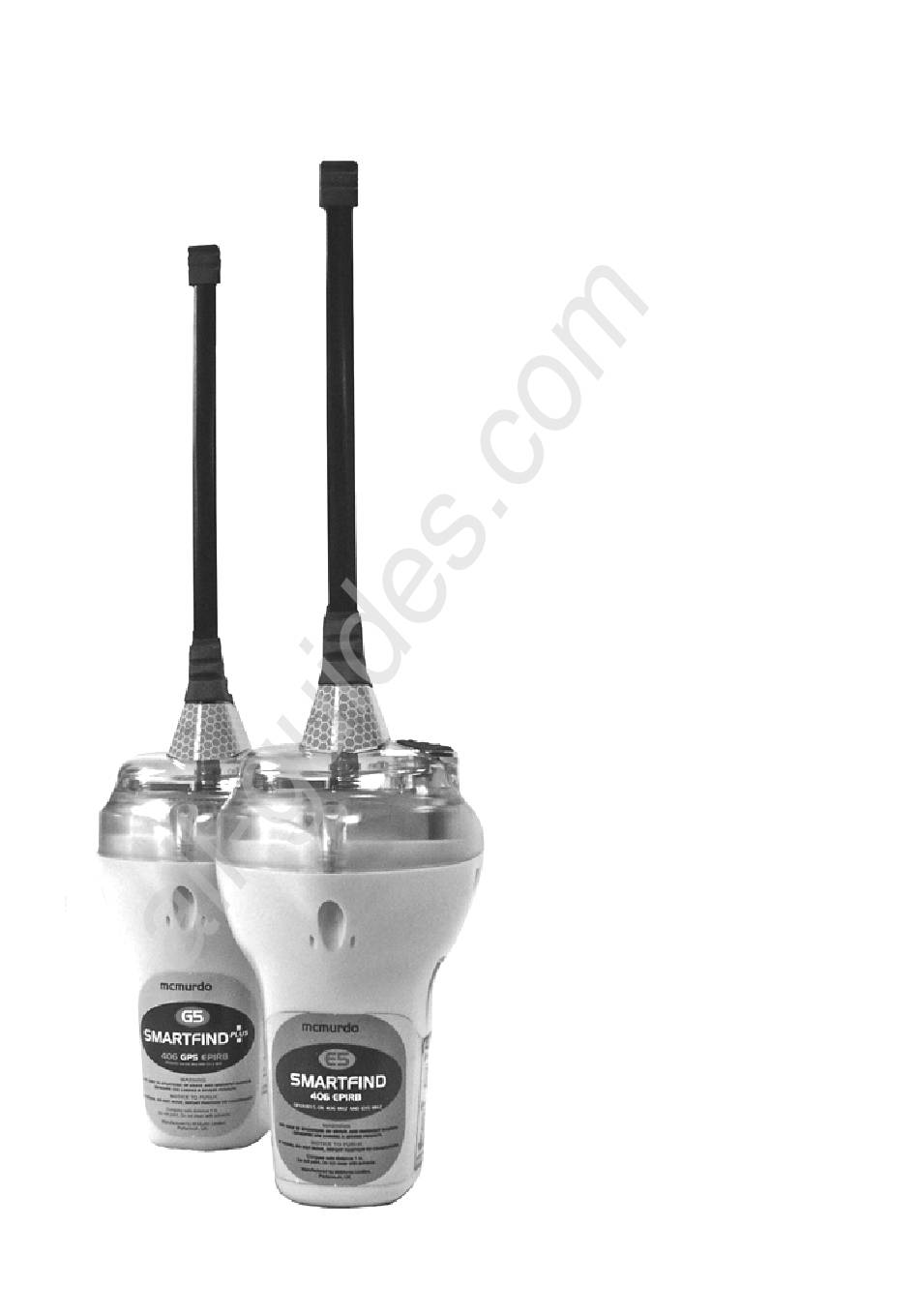

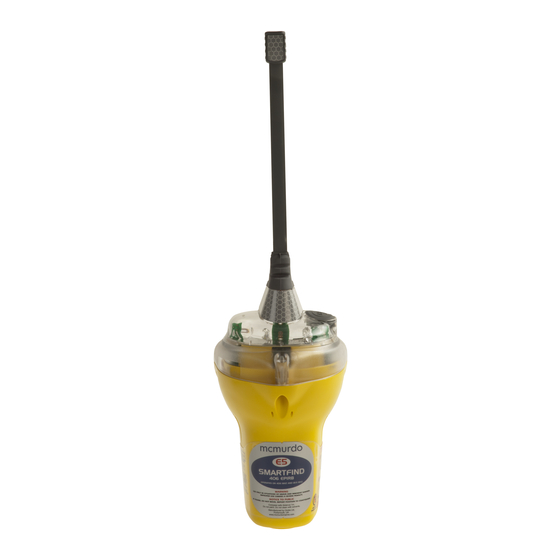

- Page 1 All manuals and user guides at all-guides.com mcmurdo mcmurdo mcmurdo mcmurdo E5/G5 E5/G5 E5/G5 E5/G5 EPIRB EPIRB EPIRB EPIRB Service Manual Service Manual Service Manual Service Manual...
- Page 2 All manuals and user guides at all-guides.com...
-
Page 3: Table Of Contents
No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form, electronic or otherwise without permission in writing from McMurdo, Signature Industries Limited. No liability can be accepted for any inaccuracies or omissions in the publication, although every care has been taken to make it as complete and accurate as possible. - Page 4 All manuals and user guides at all-guides.com Commercial in confidence Page 2 Smartfind EPIRB service manual...
-
Page 5: Introduction
82-1039 and annual inspection (in accordance with IMO Circ 1040) is covered in 82- 1040. 1.2. Applicability This manual applies to the following 406MHz EPIRB equipment: • McMurdo Smartfind Plus or G5 • McMurdo Smartfind or E5 Non-GPS • Sailor SGE406-II •... -
Page 6: Servicing Equipment
Static-safe work area with operator wrist strap Multimeter with voltage and resistance scales Programming kit : 82-950A Light pen 82-951A EPROG5 (McMurdo variant) Bar magnet or manual bracket with incorporated magnet Shorting link for sea switches Battery discharge load (made on-site as required) Handtools: Calibrated torque driver (0.6 Nm) with attachments:... -
Page 7: Safety Notices
All manuals and user guides at all-guides.com Commercial in Confidence 1.4. Safety notices Please read the following information for your safety: This product has been assessed as presenting negligible hazard in a sealed serviceable state. Safety analysis The following table summarises the nature of the hazard which may be present when the unit is opened or serviced;... - Page 8 All manuals and user guides at all-guides.com Commercial in confidence Strobe radiation The strobe lights fitted to EPIRBs produce intense flashes of light. No damage is likely to be caused by intermittent exposure, but prolonged exposure should be avoided. Radio frequency radiation An EPIRB produces radio frequency radiation when it is activated.
-
Page 9: False Alarms
All manuals and user guides at all-guides.com Commercial in Confidence 1.5. False alarms Every care must be taken to avoid the generation of false alarms. Modern EPIRBs are activated by sea switches. The mounting bracket (both Autocover and Manual) incorporates a magnet to disable the sea switch. However, if the EPIRB is wrongly fitted the magnet will fail to disable the sea switch, so water may activate the EPIRB. - Page 10 All manuals and user guides at all-guides.com Commercial in confidence Page 8 Smartfind EPIRB service manual...
-
Page 11: Assessment
2.1. Maintenance tasks Service providers are reminded that it is their responsibility to ensure that the procedures herein are followed, that only McMurdo approved parts are fitted and that good common practice is observed. False alarms caused by inadvertent activation must be avoided. We recommend that EPIRB testing is only done in self-test mode, where possible, to avoid false alarms. -
Page 12: Assessment
All manuals and user guides at all-guides.com Commercial in confidence 2.3. Assessment Every EPIRB returned for servicing, of whatever nature, must be fully assessed to determine its operational status. The diagram shows the tasks which must be carried out for each servicing situation. RECEIPT Assessment Inspect... - Page 13 All manuals and user guides at all-guides.com Commercial in Confidence EPIRB ASSESSMENT Ref No Date Customer Vessel Battery Type Man. Serial No expiry date MMSI Flag Call sign/MMSI Call sign Category Auto/Manual Serial Customer comments Warranty claim YES/NO EXTERNAL Auto bracket EPIRB INSPECTION Magnet present...
-
Page 14: Maintenance Procedures
All manuals and user guides at all-guides.com Commercial in confidence 3. MAINTENANCE PROCEDURES 3.1. Inspection Manual bracket (carry safe) If this has been returned, it should be checked as follows: Magnet Confirm magnet is still potted into bracket and is not rusting Release clip Check for correct and smooth operation. - Page 15 All manuals and user guides at all-guides.com Commercial in Confidence EPIRB inspection Drain holes Note that the EPIRB is designed to allow water to circulate around the outer edge of the dome (inside the outer clear plastic edge but outside the waterproof seal), consequently a volume of water in this area is of no consequence.
-
Page 16: Functional Test
All manuals and user guides at all-guides.com Commercial in confidence 3.2. Functional test Self test 1. Press the TEST button until the red LED lights indicating that the self test is running, then release the button. 2. The EPIRB will test its internal components and then make test transmissions at 121.5 and 406 MHz whilst monitoring the transmitter output. - Page 17 All manuals and user guides at all-guides.com Commercial in Confidence Live test The live test detailed here is for use if a screened enclosure is not available. It is advised that all live testing should be carried out in a screened enclosure. 1.
- Page 18 All manuals and user guides at all-guides.com Commercial in confidence GPS operation test (Smartfind Plus only) To comply with COSPAS-SARSAT regulations, the Smartfind Plus EPIRB is also capable of checking the correct operation of the GPS receiver. This test consumes significant reserve capacity of the EPIRB battery, consequently it can only be performed a fixed number of times.
-
Page 19: Message Read
All manuals and user guides at all-guides.com Commercial in Confidence 3.3. Message read To comply with SBM and annual maintenance the service provider must verify the EPIRB message. This can be done with a "Message Reader". A typical instrument is the ARG5410. -
Page 20: Internal Inspection
All manuals and user guides at all-guides.com Commercial in confidence 3.4. Internal inspection Internal inspection is important both for diagnosing faults and for detecting possible faults early. Internal inspection is required under the following conditions: • A fault has been observed and needs to be diagnosed •... -
Page 21: Disassembly
All manuals and user guides at all-guides.com Commercial in Confidence 3.5. Disassembly EPIRB disassembly should be done under static safe work condition (section 1.3.). a) Dome moulding removal Invert unit and using large posi-driv screwdriver remove 3 off screws and washers. - Page 22 All manuals and user guides at all-guides.com Commercial in confidence b) Circuit board removal Note that this is only required if the PCB /dome/antenna are damaged. Using a 7mm socket or nut runner remove the nyloc nut securing the PCB to the antenna.
- Page 23 All manuals and user guides at all-guides.com Commercial in Confidence c) Battery removal Note the location and fitting of the frangible tab and switch slider. Using a small posi-driv remove the 2 OFF posi-driv screws retaining the battery clamp. Pull out the battery clamp and battery packs. Remove foam pad and weight.
-
Page 24: Re-Assembly
All manuals and user guides at all-guides.com Commercial in confidence 3.6. Re-assembly Special care is required on the following points: • Ensure that the screw recesses are clean and free of debris. • New o-rings must be fitted • The screws must be tightened to an exact torque. •... - Page 25 All manuals and user guides at all-guides.com Commercial in Confidence c) Refit circuit board 1. Unseal new silica gel pack. Use double-sided adhesive tape to attach to PCB. 2. Offer circuit board into position. Note that the bracket slides over the stud in the dome and that the PCB fits into guides in the dome plastic.
- Page 26 All manuals and user guides at all-guides.com Commercial in confidence 8. Line up PCB with guides in bottom moulding and slide PCB/dome into position. Take care to ensure cables are not trapped during re-assembly. 9. Note that there will be an approximate 3mm gap between the dome moulding and base moulding prior to fitting the screws.
-
Page 27: Leak Testing
All manuals and user guides at all-guides.com Commercial in Confidence 3.7. Leak testing The leak test described here raises the air pressure inside the EPIRB. Check that no air bubbles escape when the EPIRB is submerged in water. Since the EPIRB is buoyant it must be held under the water. -
Page 28: Battery Change
All manuals and user guides at all-guides.com Commercial in confidence 3.8. Battery change When the battery expiry date is reached the battery needs to be replaced. Ensure that at least 5 years life of the replacement battery before fitting (to comply with IMO regulations). - Page 29 All manuals and user guides at all-guides.com Commercial in Confidence Battery replacement involves complete disassembly of the EPIRB, followed by re- assembly, resetting of the PCB battery life and then leak testing to prove the watertight sealing. The procedures elsewhere in this manual should be used as follows: 1.
-
Page 30: Reset The Run Time Counters On The Pcb
All manuals and user guides at all-guides.com Commercial in confidence 3.9. Reset the Run Time counters on the PCB The Smartfind PCB records the following during the life of the unit: 1. Number of long GPS tests carried out 2. Run time of 406MHz transmissions. 3. -
Page 31: Hru Replacement
All manuals and user guides at all-guides.com Commercial in Confidence 3.10. HRU replacement If the EPIRB is in an enclosure marked “Category 1” (automatic, float-free version) it will contain a Hydrostatic Release Unit (HRU). This item has a finite life and a 2 year replacement interval. -
Page 32: Programming
All manuals and user guides at all-guides.com Commercial in confidence 3.11. Programming Programming is the process of transferring information into the EPIRB so that when activated it can correctly identify the vessel it is fitted to. Once activated, this identity is transmitted to the satellite system and rescue services. - Page 33 Commercial in Confidence Programming the EPIRB It is recommended that the latest programming utility, EPROG5 – McMurdo part number 82-951A (McM branded) must be used with the USB pen 82-950A. A personal computer (PC) with the Windows XP/2000 operating system or later is required.
-
Page 34: Fault Finding
All manuals and user guides at all-guides.com Commercial in confidence 4. FAULT FINDING Test Switch Battery Connectors Firmware IC Page 32 Smartfind EPIRB service manual... - Page 35 All manuals and user guides at all-guides.com Commercial in Confidence GPS antenna Strobe LED Sea contact Buzzer Silica Gel bag Sea Contact Page 33 Smartfind EPIRB service manual...
- Page 36 All manuals and user guides at all-guides.com Commercial in confidence Page 34 Smartfind EPIRB service manual...
-
Page 37: Repair Procedures
All manuals and user guides at all-guides.com Commercial in confidence 5. REPAIR PROCEDURES Repair policy for this EPIRB is repair by replacement of major sub-assemblies. Component level diagnosis and repair is not supported. The PCB can be inspected for dry joints. The principal repair activity is the replacement of the circuit board. -
Page 38: Spares
Commercial in confidence 6. SPARES The following items are available as spare parts/accessories: Item Part number Variants Contents User Manual 82-810-001 McMurdo Available form website. Auto Housing 82-894A McMurdo Does not include HRU. Manual Bracket 82-897A Includes carrysafe bracket and... -
Page 39: Appendix 1 : Specification
IMO MSC/Circ 1039 Guidelines for Shore-based Maintenance of satellite EPIRBs.Dated 28 May 2002 IMO MSC/Circ 1040 Guidelines on Annual Testing of 406MHZ satellite EPIRBs. Dated 28 May 2002 Further details on how to comply with the current regulations are available from McMurdo website or Customer Service. - Page 40 All manuals and user guides at all-guides.com McMurdo (a division of Signature Industries Ltd) Silver Point Airport Service Road Portsmouth PO3 5PB United Kingdom Phone: +44 (0)23 9262 3900 Fax: +44 (0)23 9262 3998 Email: customerservice@mcmurdo.co.uk Website: www.mcmurdo.co.uk 82-992 Issue 2...
