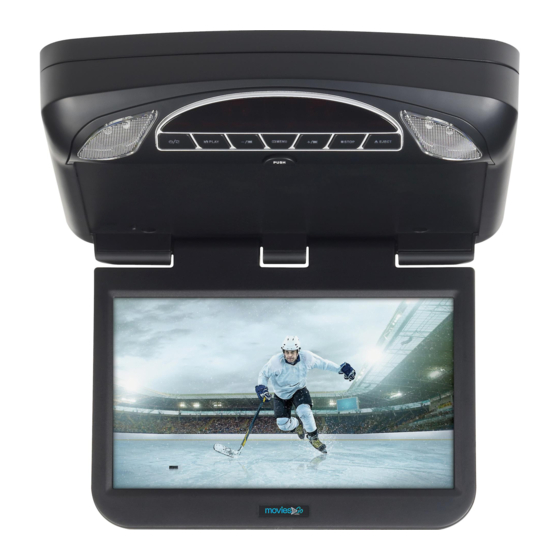

10.1"/13.3" overhead lcd monitor with built-in dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
MTG10UHD/MTG13UHD
10.1" /13.3" Overhead LCD Monitor
With Built-In DVD Player
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Movies To Go MTG10UHD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Voxx Movies To Go MTG10UHD

Summary of Contents for Voxx Movies To Go MTG10UHD

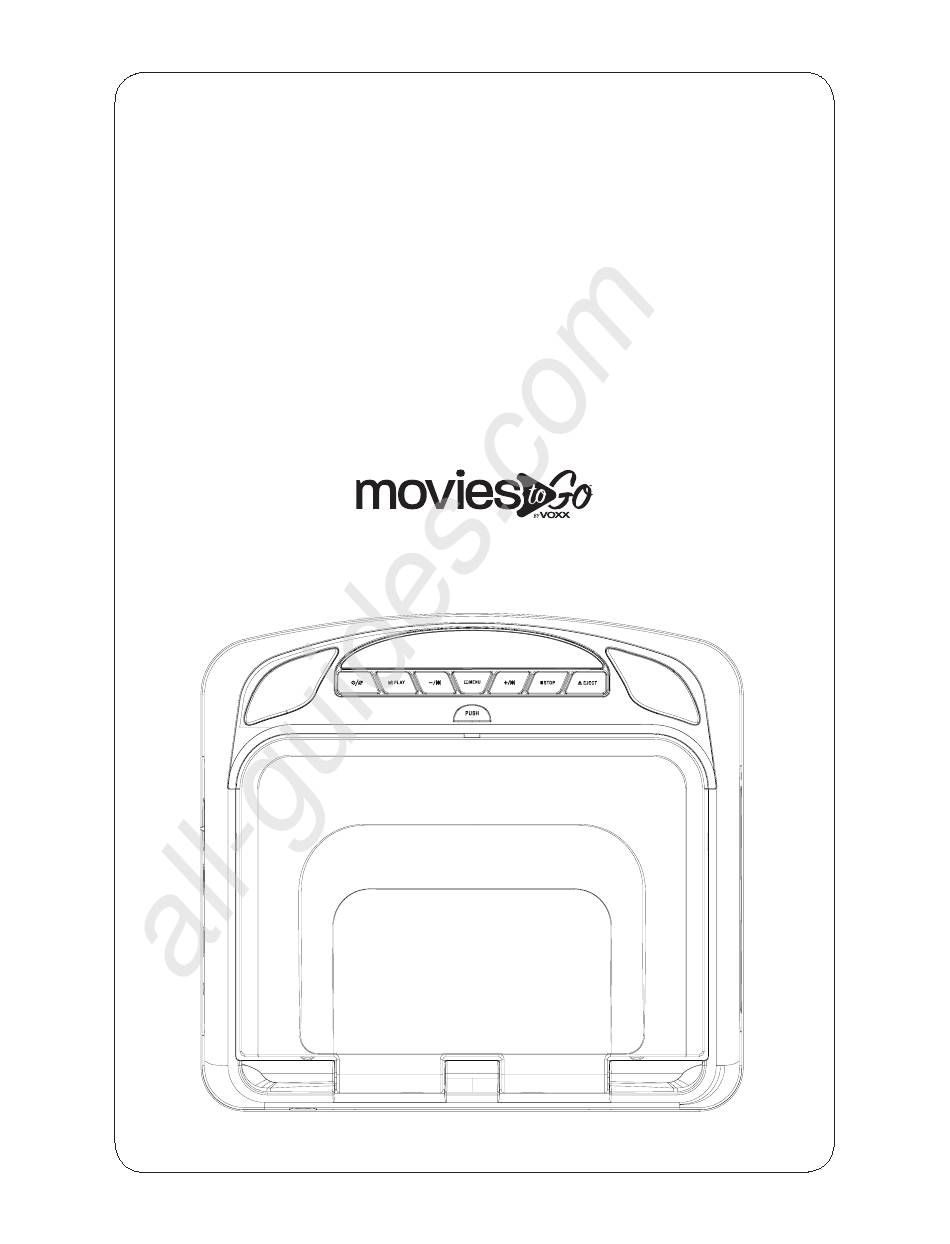

  • Page 1 All manuals and user guides at all-guides.com MTG10UHD/MTG13UHD 10.1” /13.3” Overhead LCD Monitor With Built-In DVD Player Owner's Manual...
  • Page 2 All manuals and user guides at all-guides.com...
  • Page 3 All manuals and user guides at all-guides.com Warnings Do not use any solvents or cleaning materials when cleaning the video monitor. Do not use any abrasive cleaners, they may scratch the screen. Use only a lightly dampened lint free cloth to wipe the screen if it is dirty. Lock the LCD screen in the fully closed position when not in use.
  • Page 4 All manuals and user guides at all-guides.com Congratulations Congratulations on your purchase of DVD Player with drop-down video / monitor. The MTG10UHD/MTG13UHD has been designed to provide passengers with unlimited content options delivering smiles for many miles. Please read the directions that follow to familiarize yourself with the product to ensure that you obtain the best results from your equipment.

  • Page 5: Table Of Contents

    All manuals and user guides at all-guides.com Table of Contents Features ......................6 Controls and indicators diagram(front view) ........7 Controls and indicators diagram(side view) ......... 9 Remote Control Operation ...............10 Remote Control functions .................10 Turning the unit on or off ................15 Source menu ....................16 System Menu Setting and Adjustments ..........18 Playing DVDs and Audio Discs ..............25...

  • Page 6: Features

    All manuals and user guides at all-guides.com Features • 10.1”/13.3” Digital Thin Film Transistor (TFT) Active Matrix Liquid Crystal Display LED Backlit Monitor • Built-in DVD Player • Last position memory for DVD Player • Six Audio / Video Source Inputs DVD, USB, AV, AUX, HDMI/MHL 1, HDMI/MHL or SmartStream.

  • Page 7: Controls And Indicators Diagram(Front View)

    All manuals and user guides at all-guides.com Controls and indicators diagram (front view) 1. POWER/SOURCE ( ) Button This button is used to turn the system on/off and to selcet the source . 2. Play/Pause (u/II ) Button This button is used to start playback of a disc or pause a disc. 3.
  • Page 8 All manuals and user guides at all-guides.com Controls and indicators diagram (front view) - Continued 6. STOP (n) Button -Press the STOP button once: Stops playback. - Pressing the PLAY button again will resume normal playback from where movie was stopped.

  • Page 9: Controls And Indicators Diagram(Side View)

    All manuals and user guides at all-guides.com Controls and indicators diagram (side view) 1. DVD Disc Insertion Slot For loading and removing discs. When a disc is inserted, the unit will automatically turn ON and switch to DVD source. Insert a disc with label side facing up. Note: The disc slot indicator is red when a disc is inserted and green when the disc slot is empty.

  • Page 10: Remote Control Operation

    All manuals and user guides at all-guides.com Remote control operation Battery Replacement 1. Remove the battery cover. 2. Insert two AAA batteries into the battery holder. Be sure to observe the correct polarity. Reinstall the battery cover into the battery holder until the holder is click .
  • Page 11 All manuals and user guides at all-guides.com Remote Control functions...
  • Page 12 All manuals and user guides at all-guides.com Remote Control functions(Continued) Function control is available on the unit and the Remote Control. ** Function not available in this model. 1. POWER* Press this button to turn the unit ON and OFF. 2.
  • Page 13 All manuals and user guides at all-guides.com Remote Control functions(Continued) 13. SCAN BACKWARD ( Press to search in a backward direction. Press repeatedly to change the search speed from 2, 4, 8, 20 times and normal speed. 14. SCAN FORWARD ( Press to search in a forward direction.
  • Page 14 All manuals and user guides at all-guides.com Remote Control functions(Continued) 22. FM MODULATOR CHANNEL SELECT (C)** No function on this model. User may use the system menu to select the FM Modulator. 23. FMM ON/OFF Turns the FM Modulator power on/off. 24.

  • Page 15: Turning The Unit On Or Off

    All manuals and user guides at all-guides.com Turning the unit on or off 1. Push in the Screen Release button to unlock the LCD screen. The screen will drop down slightly. 2. Pivot the screen downward until a comfortable viewing angle is reached. The hinge friction will hold the screen in position while the system is in use.

  • Page 16: Source Menu

    All manuals and user guides at all-guides.com Source menu The System is capable of accessing six source inputs. To select or change a source, press the source button on the front panel or the Source button on the remote control. The source OSD will appear on the screen as shown in the figure below.
  • Page 17 All manuals and user guides at all-guides.com Source menu(Continued) HDMI 1 & HDMI 2 These Source inputs allow the user to enjoy high-definition digital images and high-quality sound by connecting a HD device such as a Blu-ray player or smartphone with an HDMI output to the system.

  • Page 18: System Menu Setting And Adjustments

    All manuals and user guides at all-guides.com System Menu Setting and Adjustments The Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on-screen display or set up PARENTAL controls to control DVD playback for children.
  • Page 19 All manuals and user guides at all-guides.com System Menu Setting and Adjustments(Continued) If without a Remote control user can use the local key to select the function setting. a.) Menu = Long press to call up the setup menu screen information or return/exit the system menu = Short press function as Down Key u/II Play...
  • Page 20 SYSTEM SYSTEM PLAYER PLAYER SMART STREAM SMART STREAM MOVE ADJUST EXIT All manuals and user guides at all-guides.com MENU SMART STREAM SMART STREAM MOVE ADJUST EXIT MOVE SELECT EXIT MENU MENU 88.1MHz System Menu Setting and Adjustments(Continued) 88.3MHz 88.5MHz 88.7MHz 88.9MHz 88.1MHz 91.1MHz...
  • Page 21 DEFAULT DVD PICTURE MONITOR MODE All manuals and user guides at all-guides.com AUDIO RESET SYSTEM PLAYER System Menu Setting and Adjustments(Continued) SMART STREAM MOVE ADJUST EXIT MENU BRIGHTNESS RESET CONTRAST FMM CHAN PICTURE PICTURE COLOR The RESET functions allows all settings options to AUDIO AUDIO TINT...
  • Page 22 TV SYSTEM NTSC SUBTITLE LA TV SYSTEM TV SYSTEM NTSC All manuals and user guides at all-guides.com SCREEN SAVER MENU LANG SCREEN SAVER SCREEN S PICTURE PICTURE PICTURE PICTURE ASPECT RATIO 16:9 ASPECT RATIO ASPECT RA 16:9 AUDIO AUDIO AUDIO PASSWORD SETUP AUDIO PASSWORD SETUP...
  • Page 23 All manuals and user guides at all-guides.com System Menu Setting and Adjustments(Continued) LAST MEMORY The last memory function allows DVD playback TV SYSTEM NTSC TV SYSTEM NTSC to begin from the point when playback was last SCREEN SAVER SCREEN SAVER PICTURE PICTURE ASPECT RATIO...
  • Page 24 All manuals and user guides at all-guides.com System Menu Setting and Adjustments(Continued) FMM MODULATION(ON/OFF) This setting allows you to turn the FMM modulator ON or OFF. FM MODULATION FM MODU FMM CHANNEL FMM CHA FMM CHANNEL PICTURE PICTURE AUDIO AUDIO This setting allows you to select the frequency.

  • Page 25: Playing Dvds And Audio Discs

    All manuals and user guides at all-guides.com Playing DVD and Audio Discs Playing DVDs When a disc is loaded. Press the DISPLAY button on the remote control to display the status banner. The status banner includes the disc title, chapter audio language , subtitle &...

  • Page 26: Playing Mp3 Discs

    All manuals and user guides at all-guides.com Playing DVD and Audio Discs Use the cursor keys p q t or u and OK to navigate the on screen menus. The USB port can play AUDIO, PHOTO, VIDEO . The following formats are supported: Audio •...

  • Page 27: Dvd Basics

    All manuals and user guides at all-guides.com DVD Basics To get the optimum use out of the DVD Player, please read the following: DVD Region Code The DVD player is preset to a region code at the factory depending on where the DVD player is sold.
  • Page 28 All manuals and user guides at all-guides.com DVD Basics HDMI (HDMI/MHL) An HD Input is located on the side of the unit. This input can be used for devices with HDMI or MHL output ports (such as smartphones, tablets and HDMI devices) and may require the purchase of an HDMI cable and HDMI adapter which is available from your device manufacturer.

  • Page 29: Hdmi/Mhl Devices

    All manuals and user guides at all-guides.com HDMI Devices HDMI Devices **: Amazon FireTV Stick streaming device: • www.amazon.com and search for FireTV Stick Chromecast media streaming device: • www.google.com and search for Chromecast Roku HDMI streaming device: • http://www.roku.com/products/compare MHL devices**: Roku MHL Streaming Stick •...

  • Page 30: Usb Input

    All manuals and user guides at all-guides.com USB Inputs USB1 Port(User Accessible) The USB port provides two functions: Media port for USB thumb drives: charging: • The USB port will not charge a portable device when the unit is turned OFF. •...

  • Page 31: Troubleshooting

    All manuals and user guides at all-guides.com Troubleshooting PROBLEM SOLUTION IR remote inoperative • Verify that the battery in the remote is fresh. • Verify that the remote sensor eye is not obstructed. Disc won't play • Insert a disc with the label side facing the viewer. •...

  • Page 32: Specifications

    All manuals and user guides at all-guides.com Specifcaitons For MTG10UHD Type TFT Active Matrix LCD Resolution 1024 (RGB) (X3) x 600 Pixels 1,843,200 Operation Temperature 32 ~ 113º F (0 ~ 45º C) Storage Temperature -4 ~ 149º F (-10 ~ 65º C) Backlit life 20,000 Hours Video Display System...

  • Page 33: Warranty

    D A M A G E S F O R B R E A C H O F T H I S O R A N Y O T H E R W A R R A N T Y . person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product. VOXX Electronics Corporation, 180 Marcus Blvd Hauppauge, NY 11788 1-800-645-4994...
  • Page 34 All manuals and user guides at all-guides.com...
  • Page 35 All manuals and user guides at all-guides.com...
  • Page 36 All manuals and user guides at all-guides.com www.voxxelectronics.com © 2016 Voxx Electronics Corp.,180 Marcus Blvd Hauppauge, NY 11788 700-020...
