Summary of Contents for Voxx avxmtghr9hd

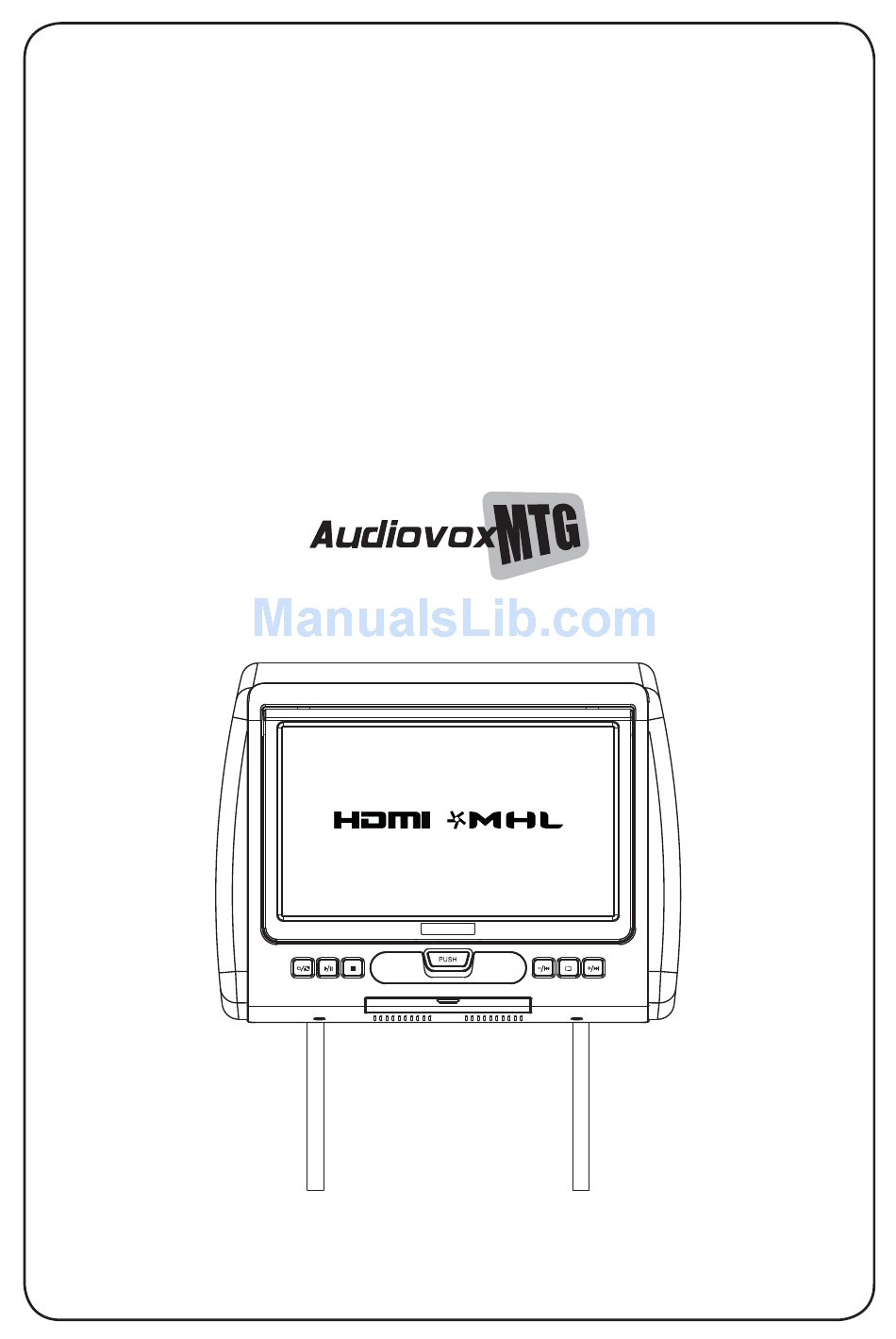

- Page 1 AVXMTGHR9HD 9” LCD Monitor With Built-In DVD Player and HDMI/MHL Port For Rear Seat Entertainment Installation And Operation Manual...
-
Page 2: Important Notices
(usually identified by yellow connectors and yellow wire jackets). Damage to air bag wiring can result in personal injury to vehicle occupants. If you have any questions regarding wire routing or installation in a vehicle, please contact VOXX Electronics Technical Support at 1-800-225-6074. -
Page 3: Table Of Contents
Table of Contents Features ......................4 Quick Start Guide ....................5 Materials Supplied ..................6 Headrest Cover Replacement ..............7 Installation - Vehicle Preparation .............. 8 Installation - Wiring Diagram ..............9 Controls and Indicators Diagram ............10 Remote Control Battery Replacement ..........11 Remote Control Operation ..............12-15 System Settings and Adjustments ............16 DVD Settings and Adjustments ............ -
Page 4: Features
Features Features 9” Digital Thin Film Transistor (TFT) Active Matrix Liquid Crystal Display (LCD) • Monitor • Built-in DVD Player • Last position memory for DVD Player • Five Audio / Video Source inputs • • • • • HDMI/MHL •... -
Page 5: Quick Start Guide
Quick Start Guide Press the POWER ( ) button on the front panel or the POWER button on the remote control. Press the screen release ( ) button. The screen will pop open a short distance. Raise the PUSH screen up 90 degrees to access the DVD mechanism. Snap a DVD, CD or MP3 disc onto the hub (label facing outward). -
Page 6: Materials Supplied
Materials Supplied 1) AVXMTGHR9HD System Monitor with DVD Player (AVXMTGHR9HD) (1 pc) NOTE: The AVXMTGHR9HD monitor has been designed with interchange- able covers. The headrest as supplied is covered with shale colored vinyl. A black or pewter vinyl cover can replace the shale colored vinyl cover. -
Page 7: Headrest Cover Replacement
Headrest Cover Replacement NOTE: If desired, replace the headrest cover before installing the headrest in the vehicle. 1. Using a Phillips screwdriver, remove the two Phillips screws and lift the bottom edge of the monitor upward. Carefully pull the headrest wires up through the tubes so that the monitor can be moved away from the headrest. -
Page 8: Installation - Vehicle Preparation
Install the headrest: a. Remove vehicle's original headrest. b. Adjust the posts of the AVXMTGHR9HD to the same width of the posts on the original headrest by pulling the posts apart or pushing them together. (Note: grab the posts close to the bottom of the headrest while doing this adjustment) c. -
Page 9: Installation - Wiring Diagram
Installation - Wiring Diagram Headrest Monitor Headrest Cable Headrest Cable P/N 112-4308 P/N 112-4307 GREEN Video In Yellow Audio In Left White Video Out Yellow Audio Out Left White Audio In Right Red Audio Out Right Red +12V (ACC) Ground- RED Connector GREEN Connector AV IN / Power Cable, 8 Pin Din to 3 RCA (Red) -
Page 10: Controls And Indicators Diagram
Controls and Indicators Diagram Headrest Screen Power / Source Volume + / Next * Play / Pause System Menu Stop Volume - / Previous * Screen Release IR Headphone Transmitter Lens Pull Down * Note: Press and hold to display volume control AUX IN Connector Wired Headphone... -
Page 11: Remote Control Battery Replacement
Remote Control Battery Replacement NOTE: The remote control has a battery installed with a pull tab to prevent battery discharge. Remove the pull tab before attempting to use the remote. Protective Pull Tab Clear Plastic Battery Replacement 1. Depress the tab (1) and slide the battery holder (2) out in the direction of the arrow. 2. -
Page 12: Remote Control Operation
Remote Control Operation POWER MENU MODE TITLE 10/0 GOTO DISPLAY SLOW PROGRAM SUBTITLE MUTE REPEAT ANGLE SETUP ZOOM ENTER CONSOLE... - Page 13 Remote Control Operation * Function control is available on the unit and the remote control. POWER Button* Press this button to turn the unit ON and OFF. MENU / PBC Button Press this button to display the DVD disc Root Menu. NUMBER Buttons Allows the user to enter numbers 0 to 9 to 10/0 and 10+ for selection of CD tracks, DVD chapters, and passwords.
- Page 14 Remote Control Operation 11. CONSOLE Button Press this button to access the BRIGHTNESS, CONTRAST, COLOR, TINT (For NTSC only), IRT, FMM or RESET. Once the desired adjustment bar is displayed, use the cursor buttons ( ) to adjust the setting. The display will automatically turn off after 6 seconds if no adjustments are made.
- Page 15 Remote Control Operation 20. ZOOM Button Press this button to enlarge or decrease the picture size when playing a DVD disc. Press ZOOM button DVD Player performs 1 Time Enlarges the picture 2X 2 Times Enlarges the picture 3X 3 Times Enlarges the picture 4X 4 Times Reduces the picture 1/2...
-
Page 16: System Settings And Adjustments
System Settings and Adjustments The System Menu contains features and options that allow you to customize your system. Press the menu ( ) button on the unit or press the CONSOLE ( )button on the CONSOLE remote control. The menu OSD will appear at the bottom of the display. Pressing continuously will display each individual setting. -
Page 17: Dvd Settings And Adjustments
DVD Settings and Adjustments The Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on-screen display or set up PARENTAL controls to control DVD playback for children. Using the Setup Menu Press the SETUP button on the remote. -
Page 18: Audio Mode
DVD Settings and Adjustments AUDIO MODE The AUDIO setup functions allows the user to select AUDIO MODE STANDARD DOWNMIX and set the audio mode for standard, music, speech OP MODE PICTURE LINE OUT and movie. DYNAMIC RANGE AUDIO SYSTEM See page 17 for settings navigation. VOLUME PLAYER MOVE... - Page 19 DVD Settings and Adjustments LANGUAGE The LANGUAGE setup allows you to select LANGUAGE ENGLISH OSD DURATION 60 SECONDS ENGLISH, CHINESE, ITALIAN, SPANISH, FRENCH, PICTURE GERMAN for the on-screen language display. VIDEO OUTPUT AUDIO RESET SYSTEM See page 17 for settings navigation. PLAYER MOVE ADJUST...
- Page 20 DVD Settings and Adjustments TV SYSTEM TV SYSTEM The TV SYSTEM setup allows the user to choose NTSC SCREEN SAVER television standard which corresponds to your TV. ASPECT RATIO PICTURE 4:3 LB PASSWORD SETUP AUDIO RATING 8 ADULT NTSC-Select this type for NTSC TV LAST MEMORY SYSTEM PAL-Select this type for PAL TV...
- Page 21 DVD Settings and Adjustments PASSWORD SETUP The default password is 3308. To change the rating TV SYSTEM NTSC SCREEN SAVER of the DVD player press 3308 to access the RATING ASPECT RATIO PICTURE 4:3 LB setting. PASSWORD SETUP AUDIO RATING 8 ADULT LAST MEMORY SYSTEM...
-
Page 22: Dvd Settings And Adjustments
DVD Settings and Adjustments AUDIO LANGUAGE TV SYSTEM This item allows you to select a preferred audio lan- NTSC SCREEN SAVER guage. This function only applies to discs encoded PICTURE ASPECT RATIO 4:3 LB with diff erent audio languages. PASSWORD AUDIO RATING 8 ADULT... -
Page 23: Playing Dvds And Audio Discs
Playing DVD and Audio Discs Playing DVDs Press the "PUSH" button to release the LCD screen and raise the screen up from the bottom edge. Snap a disc on the hub and close the LCD screen. Press the PLAY button to activate the play mode when a disc is loaded. -
Page 24: Playing Mp3 Discs
Playing USB Devices Use the cursor keys and ENTER to navigate the on screen menus. ENTER The USB port can play AUDIO, PHOTO, VIDEO or E-BOOKS. The following formats are supported: Audio • • • Photo • JPEG Video* • AVI (MPEG4-DIVX (DIVX 4.0/5.0), MPEG4-XVID - (720 x 576 max resolution) •... -
Page 25: Dvd Basics
DVD Basics To get the optimum use out of the DVD Player, please read the following: DVD Region Code The DVD player is preset to a region code at the factory depending on where the DVD player is sold. A DVD from a different region cannot be played in this unit and the unit will display "WRONG REGION”. - Page 26 HDMI/MHL Devices HDMI (HDMI/MHL) The HDMI/MHL input is located on the front/bottom of the unit behind a flip down cover (see page 10). This input can be used for devices with HDMI or MHL output ports (such as smartphones, tablets and HDMI devices) and may require the purchase of an HDMI cable and HDMI adapter which is available from your device manufacturer.
- Page 27 HDMI Devices HDMI Devices **: Amazon FireTV Stick streaming device: • www.amazon.com and search for FireTV Stick Chromecast media streaming device: • www.google.com and search for Chromecast Roku HDMI streaming device: • http://www.roku.com/products/compare MHL devices**: Roku MHL Streaming Stick • http://www.roku.com/roku-ready/models* Note: does not require external power but must be purchased with the Roku remote cotnrol...
-
Page 28: Hdmi/Mhl Usage
USB Devices (Media and Charging) USB Port The USB port provides two functions: Media port for USB thumb drives: Phone/Tablet charging: • The USB port will not charge a portable device when the unit is turned OFF. • The USB port will charge a portable device in the following modes: •... -
Page 29: Troubleshooting
Troubleshooting PROBLEM SOLUTION IR remote inoperative • Verify that the battery in the remote is fresh. • Verify that the remote sensor eye is not obstructed. Disc won't play • Insert a disc with the label side facing the viewer. •... -
Page 30: Specifi Cations
Specifi caitons Type TFT Active Matrix LCD Resolution 800 (RGB) (X3) x 480 Pixels 1,152,000 Operation Temperature 32 ~ 113º F (0 ~ 45º C) Storage Temperature -4 ~ 149º F (-20 ~ 65º C) Backlit life 20,000 Hours Video Display System NTSC / PAL / AUTO Headphone Audio Output 0.03 W max @ 32 ohms... -
Page 31: Warranty
D A M A G E S F O R B R E A C H O F T H I S O R A N Y O T H E R W A R R A N T Y . person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product. VOXX Electronics Corporation, 128-9339 150 Marcus Blvd., Hauppauge, New York 11788 l 1-800-645-4994... - Page 32 © 2015 Voxx Electronics Corp., Hauppauge, NY 11788 128-9426...
