HOBO® Temp Data Logger (UX100-001) Manual

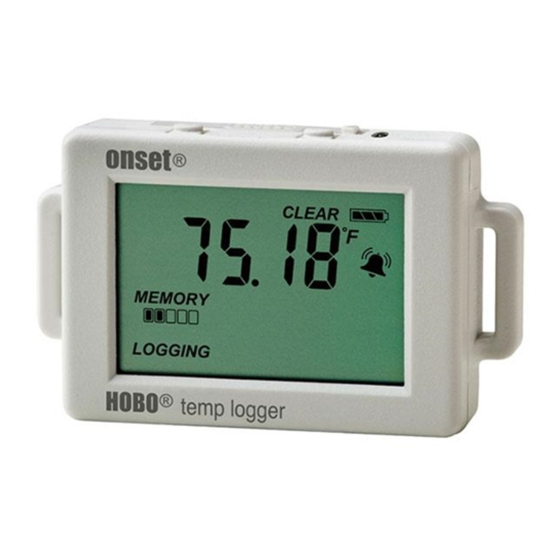

HOBO Temp Data Logger
UX100-001
Included Items:
• Command™ strip
• Double-sided tape
• Hook & loop strap
Required Items:
• HOBOware 3.4 or later
• USB cable (included with
software)
Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia
Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia
Phone: 021-8690 6777 (Hunting)
The HOBO Temp data logger records temperature in indoor environments with its integrated
sensor. Using HOBOware®, you can easily configure the logger alarm to trip for specific high or
low temperatures. Or, you can set up burst logging in which the logger records data at a different
interval during certain conditions. The logger can also calculate minimum, maximum, average, and
standard deviation statistics. This compact data logger has a built-in LCD screen to monitor
temperature, logging status, battery use, and memory consumption in between readouts.
Specifications
Temperature Sensor
Range
Accuracy
Resolution
Response Time
Drift
Logger
Logger Operating Range
Logging Rate
Logging Modes
Memory Modes
Start Modes
Stop Modes
Restart Mode
Time Accuracy
Battery Life
Battery Type
Memory
Download Type
Full Memory Download Time
LCD
Size
Weight
Environmental Rating
Plot A: Temperature Accuracy and Resolution
-20° to 70°C (-4° to 158°F)
±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A
0.024°C at 25°C (0.04°F at 77°F); see Plot A
8 minutes in air moving 1 m/s (2.2 mph)
<0.1°C (0.18°F) per year
Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification
1 second to 18 hours, 12 minutes, 15 seconds
Normal, burst, or statistics
Wrap when full or stop when full
Immediate, push button, date & time, or next interval
When memory full, push button, or date & time
Push button
±1 minute per month at 25°C (77°F), see Plot B
1 year, typical with logging rate of 1 minute and sampling interval of
15 seconds or greater
One 3V CR2032 lithium battery
128 KB (84,650 measurements, maximum)
USB 2.0 interface
20 seconds
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly
or go blank in temperatures outside this range
3.66 x 5.94 x 1.52 cm (1.44 x 2.34 x 0.6 in.)
23 g (0.81 oz)
IP50
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
Plot B: Time Accuracy
Mobile: +62 816 1740 8925
Fax: 021-8690 6771
Fax: 021-8690 6777
Advertisement
Table of Contents
Related Manuals for ALAT UJI Onset HOBO UX100-001
Summary of Contents for ALAT UJI Onset HOBO UX100-001
- Page 1 HOBO® Temp Data Logger (UX100-001) Manual The HOBO Temp data logger records temperature in indoor environments with its integrated sensor. Using HOBOware®, you can easily configure the logger alarm to trip for specific high or low temperatures. Or, you can set up burst logging in which the logger records data at a different interval during certain conditions.
- Page 2 HOBO Temp Data Logger (UX100-001) Manual Logger Components and Operation LCD Symbol Description The logger has been configured to stop logging Battery Door when memory fills. The memory bar indicates the Alarm/Stats Button approximate space remaining in the logger to Start/Stop Button record data.
- Page 3 HOBO Temp Data Logger (UX100-001) Manual Notes: above or below a value you specify. See Setting up Alarms for details. • You can disable the LCD screen when logging. Select “Turn LCD off” when setting up the logger as described in 3.
- Page 4 HOBO Temp Data Logger (UX100-001) Manual 9. Click the Start button to launch the logger. Disconnect the reading within limits” if you want the alarm to clear once logger from the computer and deploy it using the mounting the sensor reading returns to the normal range between materials (see Mounting the Logger).
- Page 5 HOBO Temp Data Logger (UX100-001) Manual logging interval will be 10 minutes from the last burst logging point, or 9:22 in this case. If burst logging had not occurred, the next data point would have been at 9:15. • A New Interval event will appear on the plot (if you select events for plotting in the Plot Setup window) each time the logger enters or exits burst logging mode.
- Page 6 HOBO Temp Data Logger (UX100-001) Manual • Insert the hook-and-loop strap through the mounting 4. Click OK when done. This will return you to the Launch Logger window. Click the Edit button next to Logging Mode loops on both sides of the logger to mount it to a curved in the Launch Logger window to make additional changes.
- Page 7 WARNING: Do not cut open, incinerate, heat above 85°C (185°F), or recharge the lithium battery. The battery may explode if the logger is exposed to extreme heat or conditions that could damage or destroy the battery case. Do not dispose of the logger or battery in fire.
