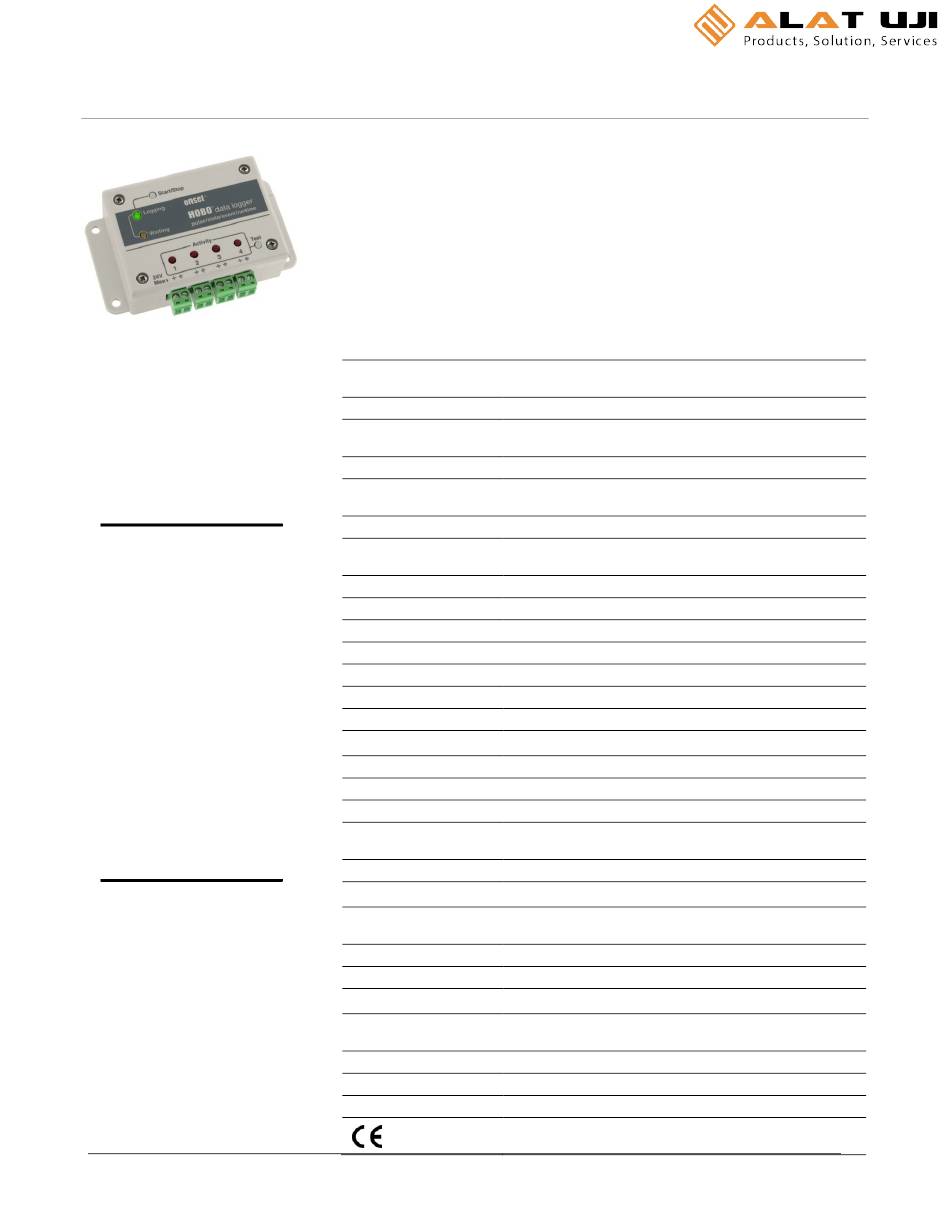

HOBO® 4‐Channel Pulse Input
Data Logger (UX120‐017x) Manual
HOBO 4‐Channel Pulse
Input Data Logger
Models: UX120‐017
UX120‐017M
Included Items:
4 Mounting screws
2 Magnets
Hook & loop tape
4 Terminal block connectors
Required Items:
HOBOware Pro 3.2 or later
USB cable (included with
software)
Accessories:
Additional terminal blocks
(A‐UX120‐TERM‐BLOCK)
Lithium batteries (HWSB‐LI)
Additional sensors and accessories
available at www.onsetcomp.com.
Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia
Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia
Phone: 021-8690 6777 (Hunting)
The HOBO 4‐Channel Pulse Input data logger records electronic pulses and mechanical or
electrical contact closures from external sensing devices. Using HOBOware®, you can easily
configure each of its four channels to monitor and record pulse, event, state, or runtime data in
a wide variety of applications, including tracking building energy consumption, monitoring
mechanical equipment, and recording water and gas flow rates. Plus, when combined with the
E50B2 Energy & Power Meter (T‐VER‐E50B2), this logger provides extensive power and energy
monitoring capabilities. There are two models of the HOBO 4‐Channel Pulse Input data logger:
the UX120‐017 stores more than 500,000 measurements while the UX120‐017M holds more
than 4,000,000 measurements.
Specifications
Inputs
External Contact Input
Maximum Pulse Frequency
Maximum State, Event,
Runtime Frequency
Bits
Maximum Pulses Per
Interval
Driven Logic Signal
Absolute Maximum Rating
Solid State Switch Closure
Internal Weak Pull‐Up
Input Impedance
Minimum Pulse Width
Lockout Time
Edge Detection
Preferred Switch State
Logging
Resolution
Logging Rate
Time Accuracy
Battery Life
Battery Type
Memory
Memory
Download Type
Download Time
Physical
Operating Range
Weight
Size
Environmental Rating
Electronic solid state switch closure or logic driven digital signals to
24 V
120 Hz
1 Hz
4–32 bits depending on pulse rate and logging interval
7,863,960 (using maximum logging rate)
Input Low: ≤ 0.4 V; Input High: 3 to 24 V
Maximum Voltage: 25 V DC
Minimum Voltage: ‐0.3 V DC
Input Low: < 10 KΩ; Input High: > 500 KΩ
100 KΩ
Solid state switch closure: 100 KΩ pull up; Driven signal: 4.5 KΩ
Contact closure duration: 500 uS; Driven logic signal: 100 uS
0 to 1 second in 100 ms steps
Falling edge, Schmitt Trigger buffer
Normally open or Logic "1" state
Pulse: 1 pulse, Runtime: 1 second, State and Event: 1 State or Event
1 second to 18 hours, 12 minutes, 15 seconds
±1 minute per month at 25°C (77°F) (see Plot A on next page)
1 year, typical with logging intervals greater than 1 minute and
normally open contacts
Two AA alkaline or lithium batteries
UX120‐017: 520,192 measurements (assumes 8‐bit)
UX120‐017M: 4,124,672 measurements (assumes 8‐bit)
USB 2.0 interface
30 seconds for UX120‐017, 1.5 minutes for UX120‐017M
Logging: ‐40° to 70°C (‐40° to 158°F); 0 to 95% RH (non‐condensing)
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification
149 g (5.26 oz)
11.4 x 6.3 x 3.3 cm (4.5 x 2.5 x 1.3 inches)
IP50
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
Mobile: +62 816 1740 8925
Fax: 021-8690 6771
Fax: 021-8690 6777
Advertisement
Related Manuals for ALAT UJI HOBO UX120-017
Summary of Contents for ALAT UJI HOBO UX120-017
- Page 1 HOBO® 4‐Channel Pulse Input Data Logger (UX120‐017x) Manual The HOBO 4‐Channel Pulse Input data logger records electronic pulses and mechanical or electrical contact closures from external sensing devices. Using HOBOware®, you can easily configure each of its four channels to monitor and record pulse, event, state, or runtime data in a wide variety of applications, including tracking building energy consumption, monitoring mechanical equipment, and recording water and gas flow rates. Plus, when combined with the E50B2 Energy & Power Meter (T‐VER‐E50B2), this logger provides extensive power and energy monitoring capabilities. There are two models of the HOBO 4‐Channel Pulse Input data logger: the UX120‐017 stores more than 500,000 measurements while the UX120‐017M holds more than 4,000,000 measurements. Specifications Inputs External Contact Input Electronic solid state switch closure or logic driven digital signals to 24 V Maximum Pulse Frequency 120 Hz Maximum State, Event, 1 Hz Runtime Frequency Bits 4–32 bits depending on pulse rate and logging interval Maximum Pulses Per 7,863,960 (using maximum logging rate) HOBO 4‐Channel Pulse Interval Input Data Logger Driven Logic Signal Input Low: ≤ 0.4 V; Input High: 3 to 24 V Models: UX120‐017 Absolute Maximum Rating Maximum Voltage: 25 V DC UX120‐017M Minimum Voltage: ‐0.3 V DC Solid State Switch Closure Input Low: < 10 KΩ; Input High: > 500 KΩ Included Items: Internal Weak Pull‐Up 100 KΩ ...
- Page 2 Inputs: There are 4 input channels to connect the logger to Specifications (continued) external sensors/devices. Terminal Blocks: There are 4 terminal blocks included with the logger to plug into the inputs for connecting devices. Test Button: Press this button to activate the Activity Lights for 10 minutes to test for contact resistance or voltage signal in any of the four input channels (see the LED table). Mounting Holes: There are four mounting holes, two on each side, that you can use to mount the logger to a surface (see Mounting the Logger). USB Port: This is the port used to connect the logger to the computer or the HOBO U‐Shuttle via USB cable (see Setting up the Logger and Reading Out the Logger). Plot A: Time Accuracy Setting Up the Logger Use HOBOware Pro to set up the logger, including selecting the Logger Components and Operation start and stop logging options, configuring the input channels for specific sensor types, and entering scaling factors. It may be Start/Stop Button LEDs helpful to set up the logger with a Delayed Start or a Button Start first and then bring it to the location where you will mount it to connect the external sensors/devices and test the connections before logging begins. 1. Connect the logger and open the Launch window. To connect the logger to a computer, plug the small end of the USB Port USB cable into the side of the logger and the large end into a USB port on the computer. Click the Launch icon on the HOBOware toolbar or select Launch from the Device menu. Inputs Important: USB specifications do not guarantee operation One of Four outside this range of 0°C (32°F) to 50°C (122°F). Mounting Holes Terminal Blocks ...
- Page 3 interval, the logger records how many seconds the line Determining Logging Duration for was in the logic low state. Event/State Data 3. Choose the logging interval, from 1 second to a maximum The logger’s storage capacity and logging duration varies of 18 hours, 12 minutes, and 15 seconds (available for Pulse depending on several factors, including logging interval, number or Runtime logging only). of channels configured, and the type of data being recorded. This 4. Choose when to start logging: table estimates the logging duration based on recording event or Now. Logging begins immediately. state changes on one input channel with logging set to stop when At Interval. Logging will begin at the next even interval. the memory is full. To estimate logging duration for multiple event or state channels, divide the logging duration by the Push Button. Logging will begin once you press the number of active channels. If you want to know exactly how long Start/Stop logging button for 3 seconds. the logger will run, use pulse or runtime modes. On Date/Time. Logging will begin at a date and time you Time Approximate Approximate specify. Between Total Data Logging Duration Logger Part 5. Choose when to stop logging: Events Points (1 Year Battery Life) ...
- Page 4 U‐Shuttle to HOBOware. Refer to the HOBOware Help for more hair dryer before reinstalling the battery. Do not let the board details. get too hot. You should be able to comfortably hold the board in your hand while drying it. Recording Internal Logger Events Note: Static electricity may cause the logger to stop logging. The logger has been tested to 4 KV, but avoid electrostatic The logger records several internal events to help track logger discharge by grounding yourself to protect the logger. For more operation and status. These events, which are unrelated to information, search for “static discharge” in the FAQ section on state and event logging, include the following: onsetcomp.com. Internal Event Name Definition Host Connected The logger was connected to the computer. Battery Information Started The Start/Stop button was pressed to begin The logger is shipped with two AA alkaline batteries. You can logging. also use 1.5 V AA lithium batteries when deploying the logger in cold environments. Expected battery life varies based on the Stopped The logger received a command to stop temperature where the logger is deployed and the frequency recording data (from HOBOware or by (the logging interval and the rate of state changes and/or pushing the Start/Stop button). events) at which the logger is recording data. A new battery Button Up/Button The Start/Stop button was pressed for typically lasts one year with logging intervals greater than one Down second. minute and when the input signals are normally open or in the high logic state. Deployments in extremely cold or hot ...
