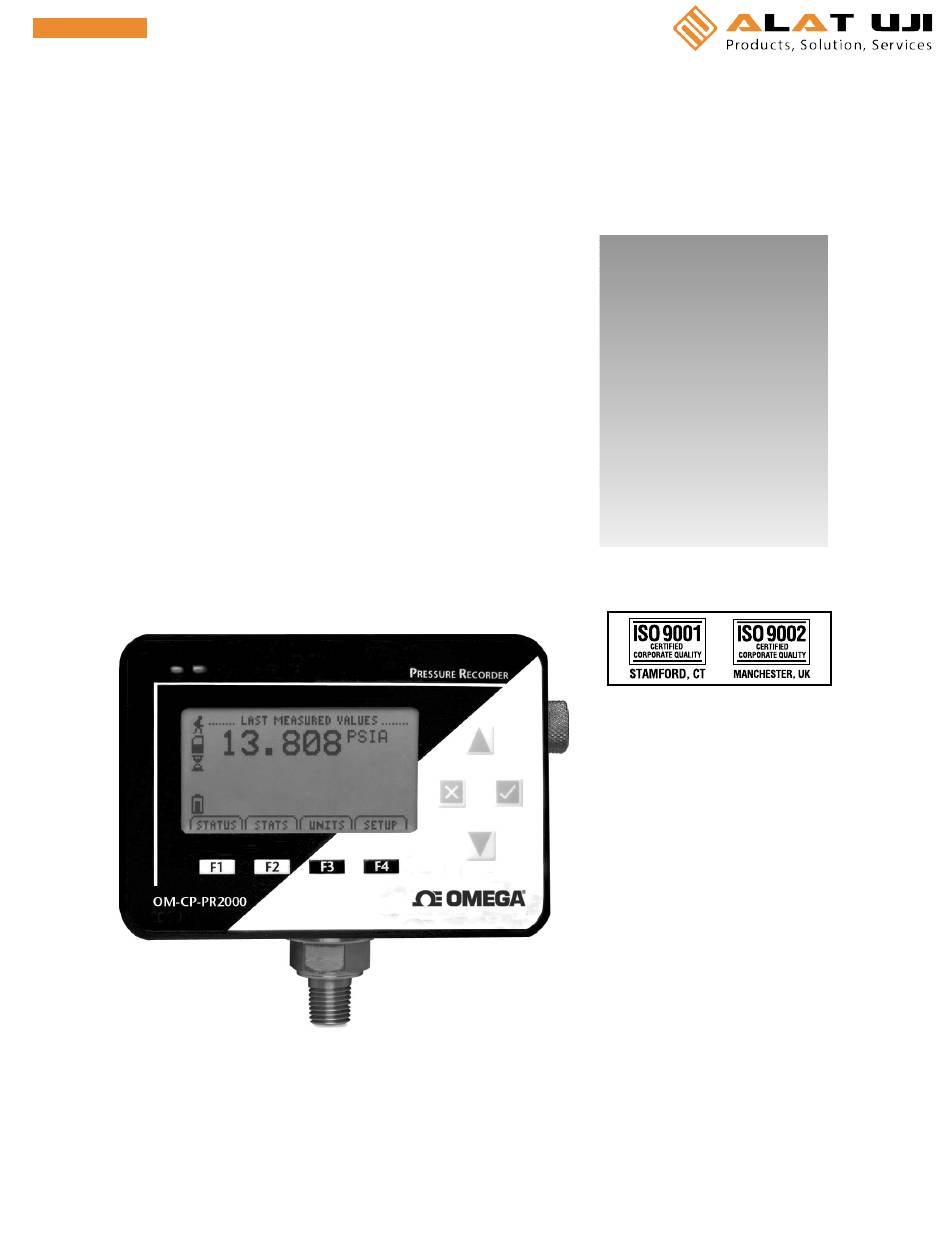

- Page 1 User’ s Guide OM-CP-PR2000 Pressure Data Logger with LCD Display...
-
Page 2: Table Of Contents
Data Logger Manual Table of Contents Section 1: Device Safety................3 1.1 Model information ..............3 1.2 Specifi cations ................3 Section 2: Device Overview ..............5 Section 3: Status Indicator Icons ..............6 3.1 Battery Status ................6 3.2 Memory Status .................6 3.3 Running Indicator ..............6 3.4 Delay Start Indicator ..............6 3.5 Wait Icon ..................6 3.6 Stop Icon ..................6... - Page 3 OMEGA OM-CP-PR2000 6.16 Power Status Screen: ............20 6.17 Device Information Screens (Minimum Device Range): ..20 6.18 Device Information Screens (Maximum Device Range): ..20 6.19 Device Information Screens (Device Version): .......21 6.20 Device Information Screens (Firmware Version): ....21 6.21 Calibration Information Screens (Calibration Date): ....21 6.22 Calibration Information Screens (Pressure Calibration): ..22...
-
Page 4: Section 1: Device Safety
NOTICE: WHEN 230VAC SUPPLY USED, OMEGA SPECIFIES USE OF AC SUPPLY PART # T35-9-100R-3 MANUFACTURED BY ENG ELECTRIC. THIS SUPPLY IS AVAILABLE FROM OMEGA. 1.1 Model information • Model: OM-CP-PR2000 • Description: Pressure Logger with LCD display • Manufactured in the USA 1.2 Specifi... - Page 5 OMEGA OM-CP-PR2000 Software: Software: Windows 95/98/ME/NT/2000/XP based software Windows 95/98/ME/NT/2000/XP based software Operating Environment: -20 to +60ºC, 0 to 95%RH non-condensing Dimensions: Dimensions: 5.1” x 4.8” x 1.78” (130mm x 122mm x 45mm) 5.1” x 4.8” x 1.78” (130mm x 122mm x 45mm)
-
Page 6: Section 2: Device Overview
Data Logger Manual Section 2: Device Overview Power Jack Pressure Sensor Indicators Communication Jack LCD Screen Up Key Okay Key Black anodized Down Key aluminum enclosure Function Keys Cancel Key Page 5... -
Page 7: Section 3: Status Indicator Icons
Full The memory status icons indicate the amount of memory left for data storage. If the OM-CP-PR2000 is in wraparound mode, the memory status icon will always indicate empty. 3.3 Running Indicator Indicates that the OM-CP-PR2000 is taking readings. The icons cycle periodically. -
Page 8: External Power Icon
Data Logger Manual 3.7 External Power Icon Indicates that the OM-CP-PR2000 is powered by an external source. 3.8 Reset Icon Indicates that the device has been reset. Page 7... -
Page 9: Section 4: Front Panel Overview
4.1 Changing the display units The OM-CP-PR2000 comes with factory default display units of PSI for pressure and the real-time pressure graphing feature. These units can be easily changed by pressing the F3 button in the main screen and then selecting F1 for pressure or F2 for the pressure graph. -
Page 10: Changing The Contrast
4.5 Changing the contrast The OM-CP-PR2000’s LCD screen contrast values can be changed in two ways. One method is outlined in the Function Reference Guide. A faster, simpler way involves simultaneously pressing the CANCEL and UP or DOWN button repeatedly in any screen. -
Page 11: Section 5: Pr2000 Function Reference
100 most recently recorded data points. At the bottom of the main screen are tabs corresponding to each of the four function keys. These tabs are used to access the four main function menus of the OM-CP-PR2000: status, statistics, units, and setup. -
Page 12: Units
UP and DOWN keys. Note: Use of the OM-CP-PR2000’s graphing function will reduce the battery life of the device, particularly when not logging. To increase battery life either deactivate the graphing function by turning it to “Hide” in the Adjust Visibility screen, increase “auto time”... - Page 13 LED Modes The function of the two LEDs on the upper left corner of the OM-CP-PR2000 can be regulated by fi rst pressing the F3 key to highlight the LED parameter confi guration tab. Once the tab is highlighted the option can be changed by pressing the F3 key repeatedly or using the UP and DOWN keys to select either “Enabled”...
- Page 14 The Maximum Device Range screen can be accessed by pressing the F2 key while viewing the Minimum Device Range screen. This display indicates the maximum values which the OM-CP-PR2000 is capable of detecting and logging. Values on this screen cannot be modifi ed.
-
Page 15: Section 6: Pr2000 Screen Descriptions
OMEGA OM-CP-PR2000 Section 6: OM-CP-PR2000 Screen Descriptions Section 6: OM-CP-PR2000 Screen Descriptions 6.1 Main Screen: 6.1 Main Screen: Displays last measured values. F1 = STATUS: enters status screens F2 = STATS: shows statistics menu F3 = UNITS: enters unit selection screen F4 = SETUP: enters device confi... -
Page 16: Status Screens (Time)
Data Logger Manual For all status screens: F1 = RUN: displays run parameters screen F2 = MEM: displays memory status screen F3 = TIME: displays date and time screen F4 = MORE: displays ID parameters screen CANCEL = returns to main screen OK = returns to main screen UP = no function DOWN = no function... -
Page 17: Statistics Menu Screen
OMEGA OM-CP-PR2000 6.6 Statistics Menu Screen: Displays options available within the statistics menu. F1 = CHAN: shows statistics sorted by channel F2 = TYPE: shows statistics sorted by type F3 = INFO: enters Statistics Information Screen F4 = EXIT: returns to main screen... -
Page 18: Statistics Information Screen
Data Logger Manual OK = returns to Statistics Menu UP = no function DOWN = no function 6.9 Statistics Information Screen: Displays current statistics information including the number of recorded readings, start date, and start time. F1 = CLEAR: gives the option to clear all statistics F2 = no function F3 = no function F4 = EXIT: returns to Statistics Menu... -
Page 19: Device Confi Guration Menu
OMEGA OM-CP-PR2000 6.11 Device Confi guration Menu: Displays options available within the device confi guration menu. F1 = DISPLAY: enters Adjust Visibility screen F2 = POWER: enters Power Modes screen F3 = INFO: enters Device Information screens F4 = EXIT: returns to main screen... -
Page 20: Power Modes Screen
Data Logger Manual UP = when contrast parameter confi guration tab is highlighted increases contrast value DOWN = when contrast parameter confi guration tab is highlighted increases decreases contrast value 6.14 Power Modes Screen: Displays information regarding the devices different power modes including the display visibility, backlight options, and LED modes. -
Page 21: Power Status Screen
DOWN = if type parameter confi guration tab is highlighted, scrolls through available options 6.17 Device Information Screens (Minimum Device Range): Displays values indicating minimum pressure detectable by the OM-CP-PR2000. For all Device Information Screens: F1 = MIN: no function... -
Page 22: Device Information Screens (Device Version)
Data Logger Manual 6.19 Device Information Screens (Device Version): Displays device version information. F1 = VERS: no function F2 = FIRM: shows Firmware Version screen F3 = MORE: shows Device Range (Minimum) screen F4 = EXIT: returns to Device Confi guration Menu CANCEL = returns to Device Confi... -
Page 23: Calibration Information Screens (Pressure Calibration)
OMEGA OM-CP-PR2000 OK = returns to Device Confi guration Menu UP = no function DOWN = no function 6.22 Calibration Information Screens (Pressure Calibration): Displays calibration information for pressure channel. For all Device Information Screens: F1 = DATE: returns to Calibration Date screen... -
Page 24: Device Reset Screen (Power Interruption)
Data Logger Manual 6.24 Device Reset Screen (Power Interruption): Displayed as notifi cation when power is interrupted during device operation. F1 = OK: accepts notifi cation and displays main screen F2 = no function F3 = no function F4 = no function CANCEL = no function OK = accepts notifi... -
Page 25: Section 7: Computer Interface
OMEGA OM-CP-PR2000 Section 7: Computer Interface: Fully insert the male connector of the OM-CP-IFC110 interface cable into the female receptacle of the data logger. Insert fully the RS232 connector into the Serial Port. Fully insert the male connector of the OM-CP-IFC200 interface cable into the female receptacle of the data logger.
