Industrial Electronic Devices
User Manual
Revision 1.012
English

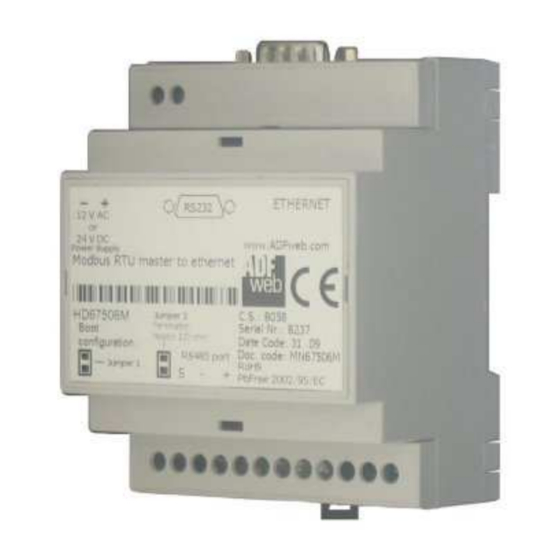

Modbus Master / Ethernet - Converter
(Order Code: HD67506 – HD67506M)
For Website information:
www.adfweb.com?Product=HD67506
www.adfweb.com?Product=HD67506M
For Price information:
www.adfweb.com?Price=HD67506
www.adfweb.com?Price=HD67506M
Benefits and Main Features:
Mountable on Rail DIN
TCP/UDP protocols changeable with software
Easy to use software configuration
Temperature range: -40°C/+85°C (-40°F/+185°F)
ADFweb.com S.r.l.
User Manual Modbus Master / Ethernet
Document code: MN67506_ENG
Revision 1.012
HD67506
For others Converter / Adapter:
Converters / Adapters
See also the following links:
www.adfweb.com?Product=HD67118
Slave)
www.adfweb.com?Product=HD67119
www.adfweb.com?Product=HD67120
For others Gateways / Bridges:
Modbus RTU Master / Slave
See also the following links:
www.adfweb.com?Product=HD67001
www.adfweb.com?Product=HD67502
www.adfweb.com?Product=HD67011
www.adfweb.com?Product=HD67012
Modbus TCP Client to Modbus RTU Slave
See also the following link:
www.adfweb.com?Product=HD67510
Do you have an your customer protocol?
See the following link:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
Page 1 of 18
HD67506M
(Modbus RTU
(Modbus TCP Master)
(Modbus TCP Slave)
(CANopen)
(CANopen)
(CAN bus)
(CAN bus)
Advertisement
Table of Contents
Related Manuals for ADF Web HD67506
Summary of Contents for ADF Web HD67506
- Page 1 Revision 1.012 Page 1 of 18 Industrial Electronic Devices User Manual Revision 1.012 English Modbus Master / Ethernet - Converter (Order Code: HD67506 – HD67506M) For Website information: HD67506 HD67506M www.adfweb.com?Product=HD67506 www.adfweb.com?Product=HD67506M For others Converter / Adapter: For Price information: Converters / Adapters www.adfweb.com?Price=HD67506...
-
Page 2: Table Of Contents
User Manual Modbus Master / Ethernet Document code: MN67506_ENG Revision 1.012 Page 2 of 18 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: Page INDEX Updated... -
Page 3: Security Alert
User Manual Modbus Master / Ethernet Document code: MN67506_ENG Revision 1.012 Page 3 of 18 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Connection Scheme
User Manual Modbus Master / Ethernet Document code: MN67506_ENG Revision 1.012 Page 4 of 18 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme HD67506 ADFweb.com S.r.l. - Page 5 User Manual Modbus Master / Ethernet Document code: MN67506_ENG Revision 1.012 Page 5 of 18 Industrial Electronic Devices Figure 2: Connection scheme for HD67506M ADFweb.com S.r.l.
-
Page 6: Characteristics
User Manual Modbus Master / Ethernet Document code: MN67506_ENG Revision 1.012 Page 6 of 18 Industrial Electronic Devices CHARACTERISTICS: The configurable ModBus Master / Ethernet Converter allow the following characteristics: TCP/UDP Ethernet protocols changeable with software; Mountable on 35mm Rail DIN; Wide power supply input range: 8…19V AC or 8…35V DC;... -
Page 7: Power Supply
The devices can be powered at 8…19V AC and 8…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67506 HD67506M Caution: Not reverse the polarity power HD67506 HD67506M ADFweb.com S.r.l. -
Page 8: Use Of Compositor Sw67506
User Manual Modbus Master / Ethernet Document code: MN67506_ENG Revision 1.012 Page 8 of 18 Industrial Electronic Devices USE OF COMPOSITOR SW67506: To configure the Converter, use the available software that runs with Windows called SW67506. downloadable site www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on our web site). -
Page 9: General Parameter
User Manual Modbus Master / Ethernet Document code: MN67506_ENG Revision 1.012 Page 9 of 18 Industrial Electronic Devices GENERAL PARAMETER: This section define the fundamental communication parameter of two buses, Modbus and Ethernet. By pressing the “General Parameter” button from the main window for SW67506 (Fig. 3) the window “General Paramater”... -
Page 10: Ping
User Manual Modbus Master / Ethernet Document code: MN67506_ENG Revision 1.012 Page 10 of 18 Industrial Electronic Devices PING DEVICE: If is necessary to do a Ping on the net, before pressing the “Ping Device” button insert a value in the right field and then press the button. UPDATE DEVICE VIA SERIAL: Section “Update Via... -
Page 11: Characteristics Of The Cables
Page 11 of 18 Industrial Electronic Devices Note: When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67506 or HD67506M device. Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67506 or HD67506M device. -
Page 12: Ethernet Protocol
User Manual Modbus Master / Ethernet Document code: MN67506_ENG Revision 1.012 Page 12 of 18 Industrial Electronic Devices ETHERNET PROTOCOL: This protocol is able to read and write frames in the ModBus net. This protocol is very simple; you must known only the “Type of Data”, the “Device Address”... - Page 13 User Manual Modbus Master / Ethernet Document code: MN67506_ENG Revision 1.012 Page 13 of 18 Industrial Electronic Devices The Bytes that composed the respons are these: Byte Number Description Status of operation The “Status of operation” (Byte Number 1) can have these values: 0xFF: Ok;...
-
Page 14: Read Fames
User Manual Modbus Master / Ethernet Document code: MN67506_ENG Revision 1.012 Page 14 of 18 Industrial Electronic Devices RAMES The transmission has a fixed structure that consist of seven byte. Byte Number Description Read Identifier (Read=0x01) Type of Data Device Address Start Address Hi Start Address Lo Number of Point Hi... - Page 15 User Manual Modbus Master / Ethernet Document code: MN67506_ENG Revision 1.012 Page 15 of 18 Industrial Electronic Devices The Bytes that composed the respons are these: Byte Number Description Status of operation 2÷n+1 Data n=”Number of Point *2” if Type of Data is 3,4 or n=”(Number of Point+7)/8” if Type of Data is 1,2 The “Status of operation”...
-
Page 16: Mechanical Dimensions
Document code: MN67506_ENG Revision 1.012 Page 16 of 18 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 7: Mechanical dimensions scheme for HD67506 Figure 8: Mechanical dimensions scheme for HD67506M ORDER CODE: Order Code: HD67506 Modbus Master / Ethernet – Converter Order Code: HD67506M Modbus Master / Ethernet –... -
Page 17: Disclaimer
User Manual Modbus Master / Ethernet Document code: MN67506_ENG Revision 1.012 Page 17 of 18 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 18: Warranties And Technical Support
User Manual Modbus Master / Ethernet Document code: MN67506_ENG Revision 1.012 Page 18 of 18 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
